NOEIFEVO always focuses on user needs and continuously drives product innovation forward. Eventually, this user-friendly, stable, and cost-effective electric vehicle (EV) charger was brought to the market.

[Minimalist and Stylish Design]The charger features a simple and elegant design that includes only essential display lights, power selection buttons, and control keys, without unnecessary functions or a cluttered interface. Simply choose the desired current strength, and the charger will start charging automatically. It's so easy that even children and older people can use it with no trouble.

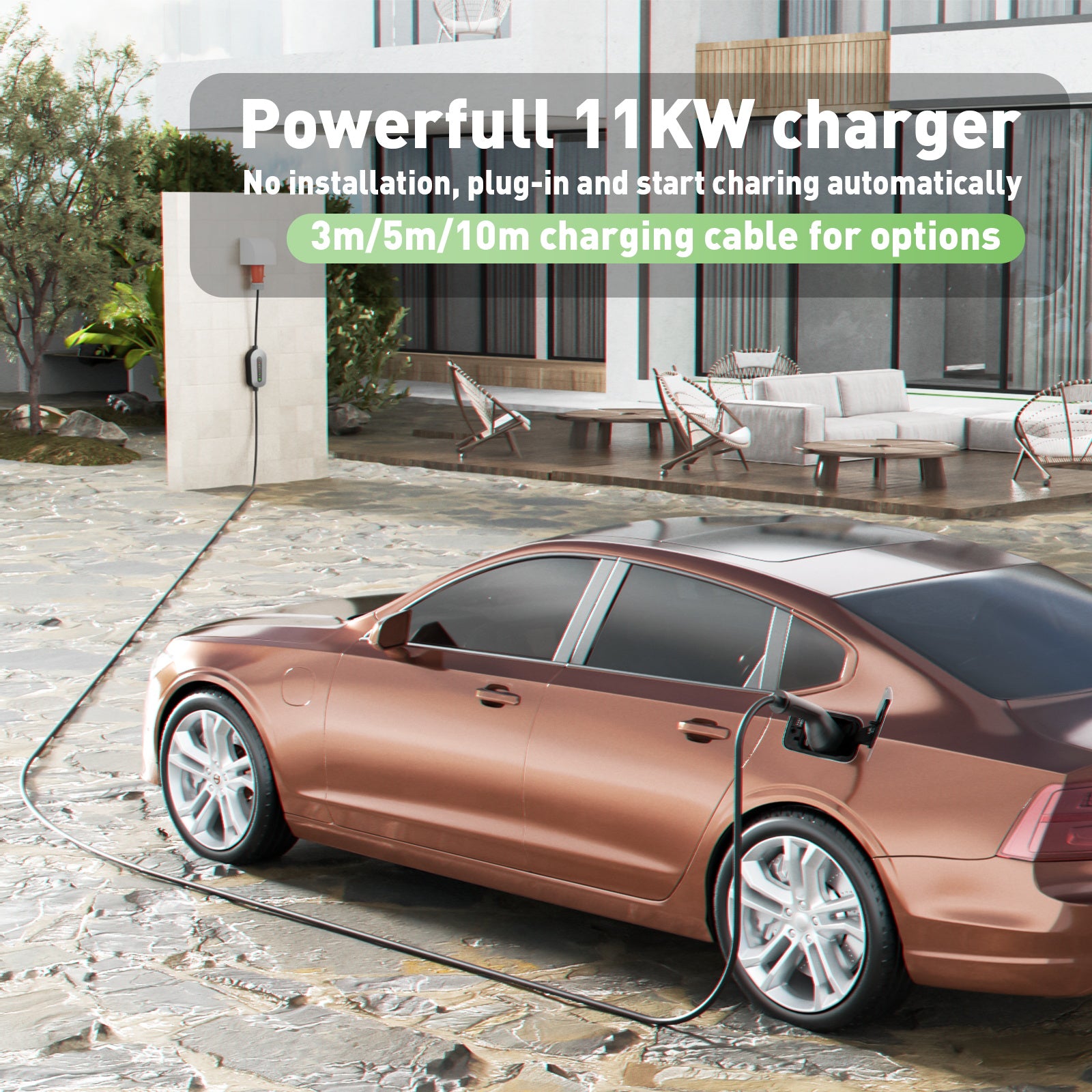

[Super-fast Charging Speed]
This portable 11 kW three-phase charger is three times faster than a standard 230V charger and easily charges your electric vehicle (EV) or plug-in hybrid vehicle (PHEV). Just connect the 380/400V CEE 16A five-pin plug, select the charging power, and charging will start immediately. Most batteries can be fully charged in 3 to 5 hours. On trips, you can recharge anytime – with just one hour of charging time, you get a range of 55 to 77 kilometers. Say goodbye to long wait times and enjoy an efficient charging experience.

Flexible Charging Power
Users can choose the appropriate charging power flexibly according to their needs. By using a CEE16A three-phase socket, the charge current can be adjusted to effectively change the charging power.
Available current strengths: 6A/10A/13A/16A, with corresponding charging powers of 3.5KW/6.24KW/8.11KW/11KW (the actual charging power may deviate slightly due to energy losses and the power factor). When sufficient time for charging is available, select a lower power; if there is an urgent need, choose a higher power. This flexible charging option not only meets various scenarios but also is the best choice to extend battery life.

Clear Display Luminaires

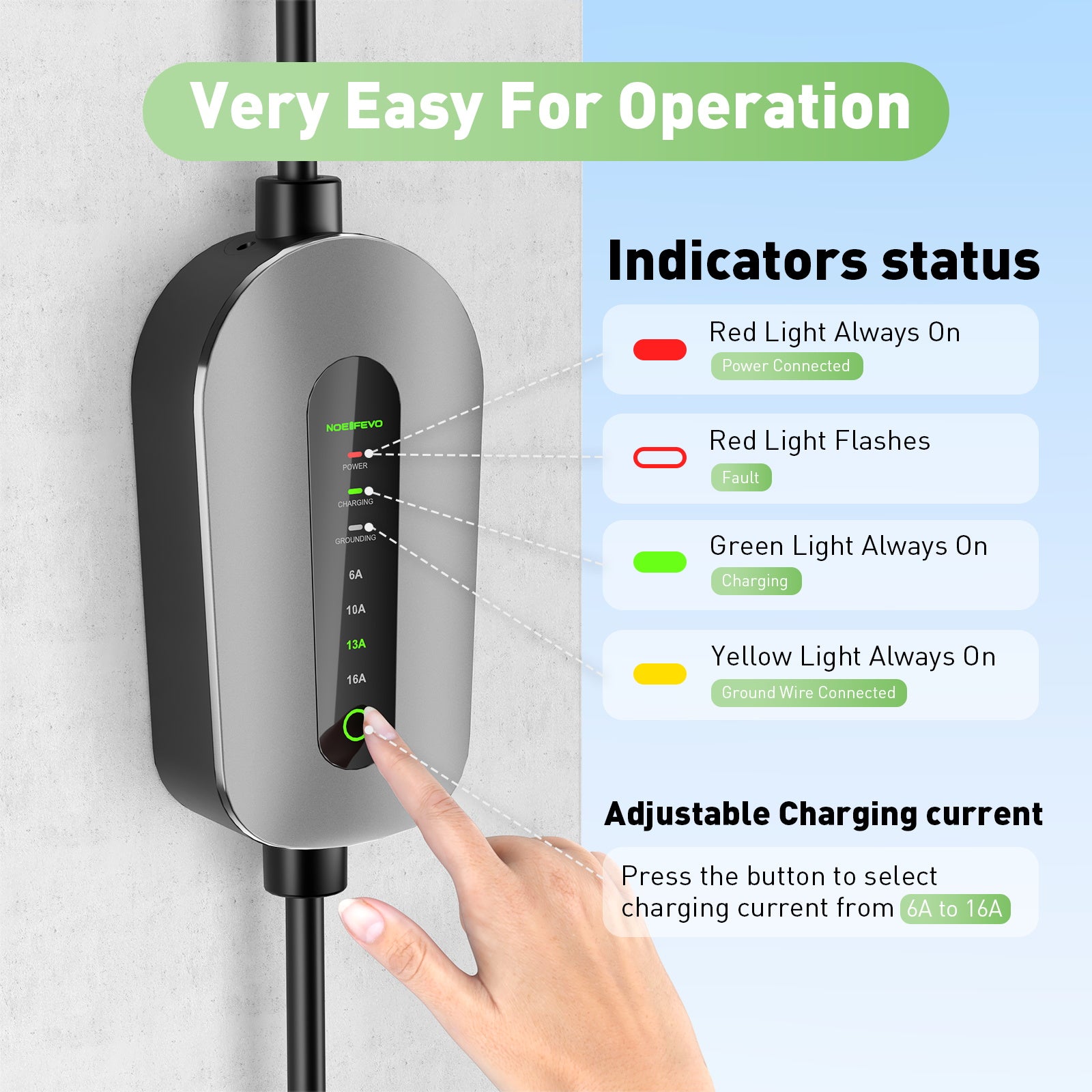

Three display luminaires indicate "Power supply connected", "Charging in progress", and "Ground cable attached", allowing you to instantly recognize the current status of the charger at a glance. This ensures that the charging process runs smoothly and safely without worries or uncertainties.

[Maximum Compatibility]
Compatible with all vehicles on the market equipped with a Type 2 charging connector, as well as with all future models. Regardless of which electric vehicle you drive, this charger fits perfectly.

Example car brands (not exhaustive):
Volkswagen, Mercedes-Benz, BMW, Audi, Skoda, Opel, SEAT, Hyundai, Ford, Kia, Renault, Dacia, Volvo, Fiat, Toyota, Tesla, Mini, Mazda, Peugeot, Citroën, Nissan, and many more.

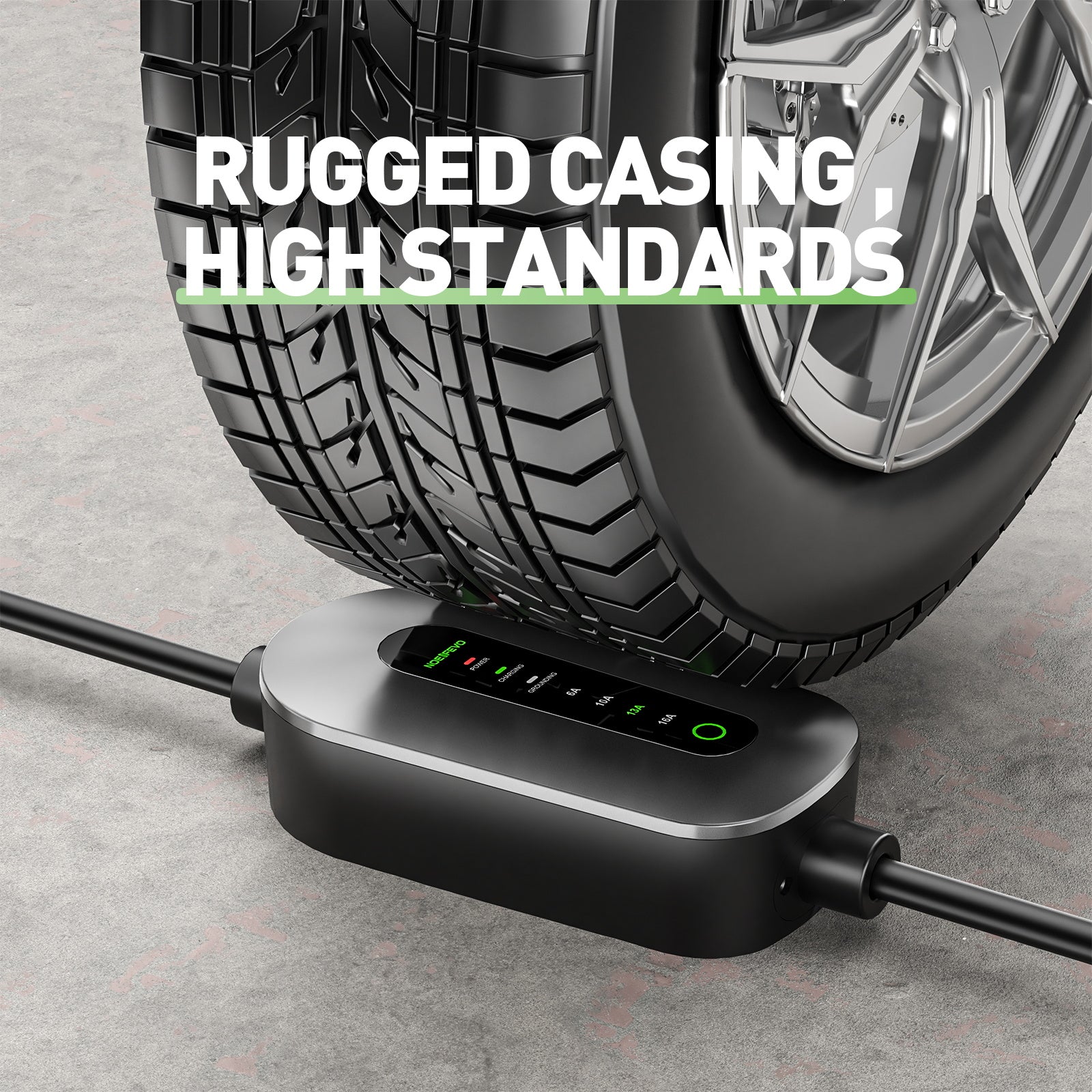

[CE Certification and 10 Safety Features]
The NOEIFEVO charging device is CE certified and features an integrated RCD protection (residual current device). Additionally, the device offers 10 extra safety functions:

1. Undervoltage protection

2. Overvoltage protection

3. Overcurrent protection

4. Fault current protection

5. Short-circuit protection

6. Overheating protection

7. Flame-retardant design

8. Grounding protection

9. CP-Deviation Protection

10. Overvoltage Protection (Lightning Protection)

These functions ensure a safe charging process and guarantee that you can use the charger at any time without hesitation.

Waterproof

• Weatherproof DesignIP65+ water protection class, ensuring that the charger can be used safely even in rainy conditions.

• DustproofEffectively prevents dust from entering to keep the interior of the charger clean.

• Snow-safeCan be used in snowy environments and guarantees stable charging performance.

• Heat resistantEven at high temperatures, the charger remains stable and reliable, guaranteeing a long lifespan.

• Wide temperature range: Supports an operating area of-25°C to 50°C, ensuring reliable operation under extremely cold or hot conditions.

[Easy to use, just plug and charge]
Simply insert the charger plug into a 380/400V CEE 16A 5-pole industrial socket, select the desired charging current, and connect the charger plug to the vehicle. Once the charger and the vehicle successfully communicate with each other, the charging process starts automatically. After completion of the charging process, the charger disconnects the connection automatically.

【Auch mit Haushaltssteckdosen laden】

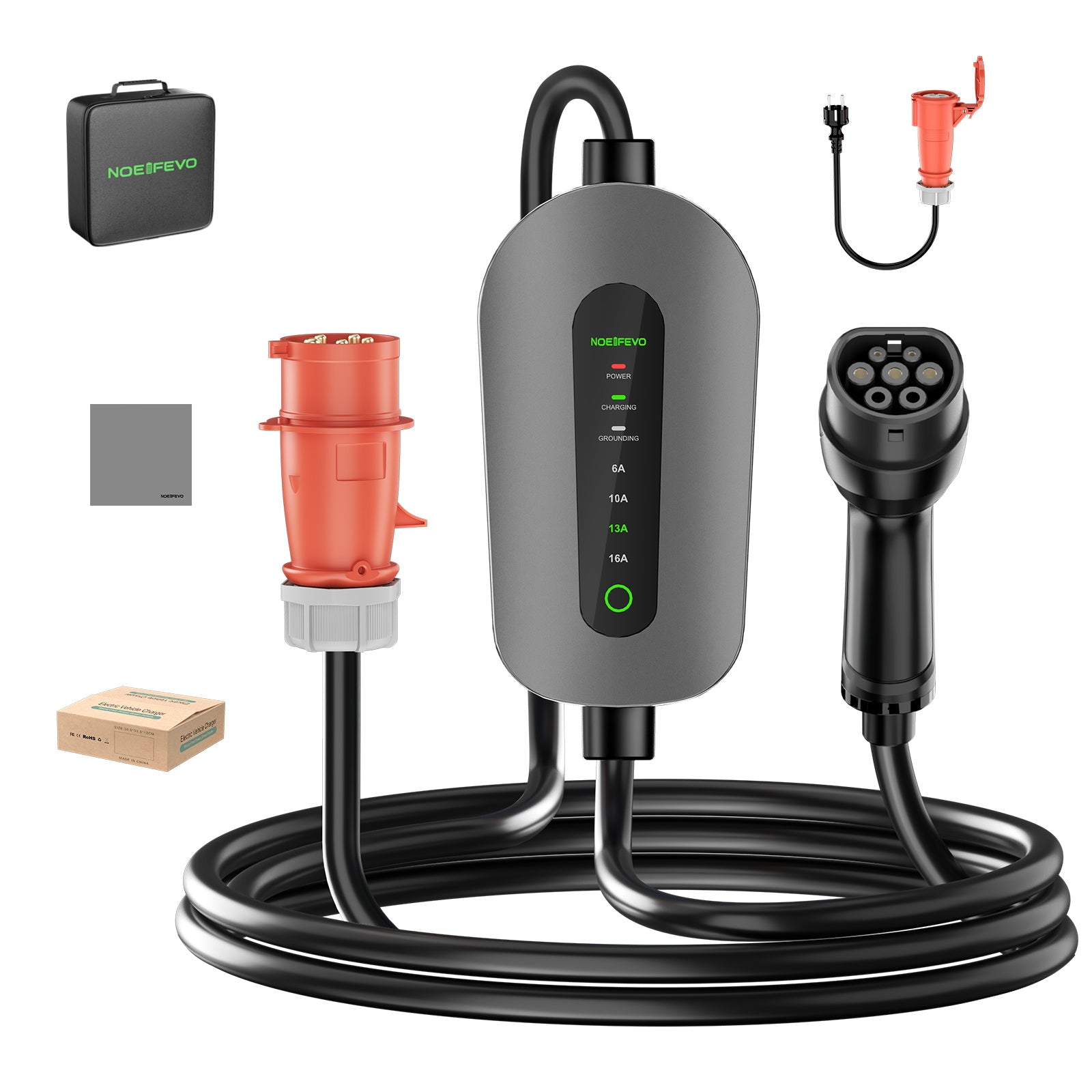

Wenn Sie unterwegs sind oder Ihr Unternehmen keine CEE16A 3-phasige Steckdose hat, müssen Sie sich keine Sorgen machen. Mit einem CEE16A-Stecker-auf-Schuko-Adapterkabel (dieses Kabel muss separat gekauft werden) können Sie ganz einfach mit einer normalen Haushaltssteckdose Ihr Elektrofahrzeug laden.

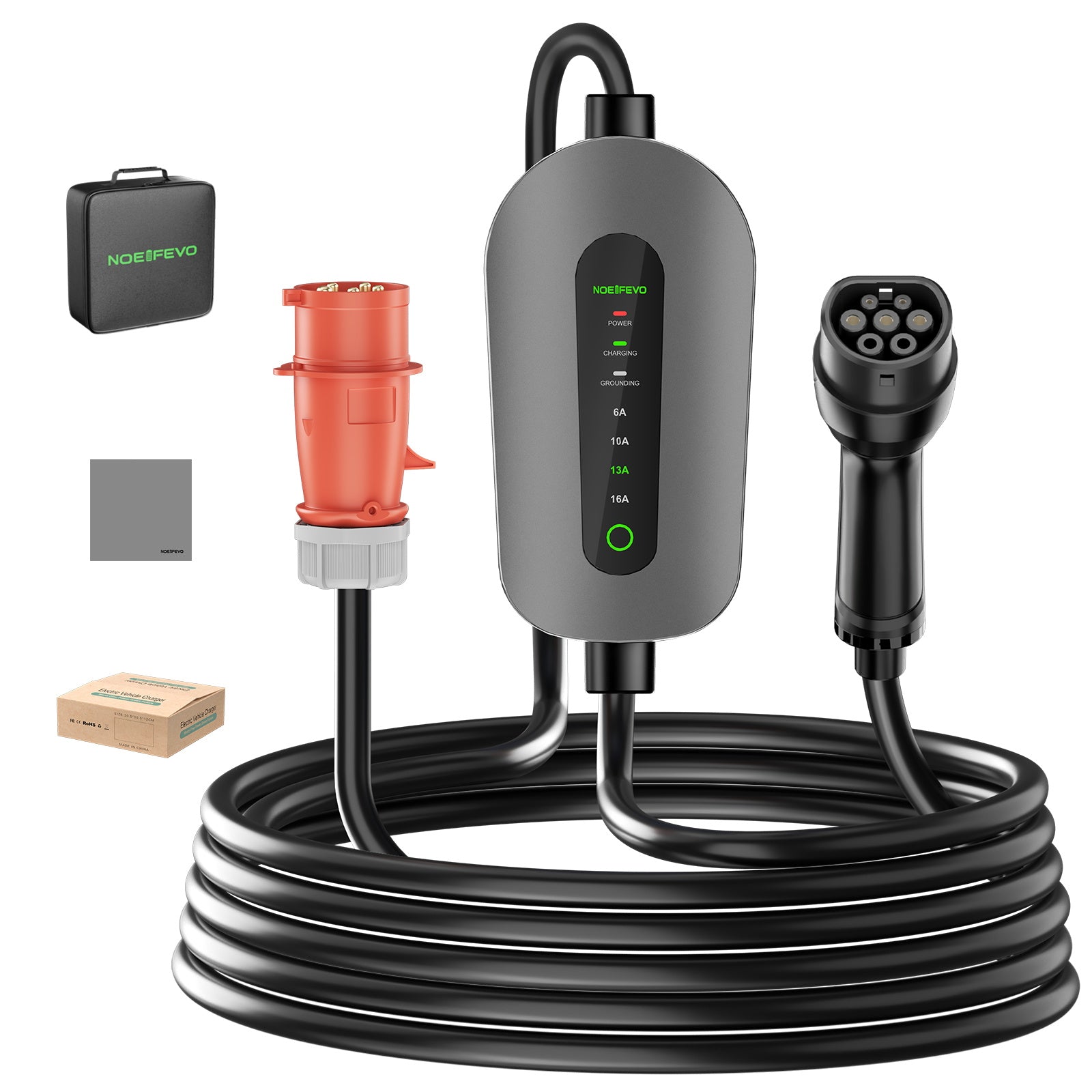

[TÜV-certified High-Quality Cables in 3/5/10 Meters]
Das Ladegerät verwendet TÜV-zertifizierte Kabel mit den Spezifikationen 5*2,5 mm² + 1*0.75 mm², to ensure a safe charging experience. You can choose between cables with lengths of 3 m, 5 m, and 10 m that meet most everyday charging requirements. If you need another length, please contact our customer service. (The actual length of the 3-m cable can be up to 4 meters, the 5-m cable up to 6 meters, and the 10-m cable up to 11 meters.)

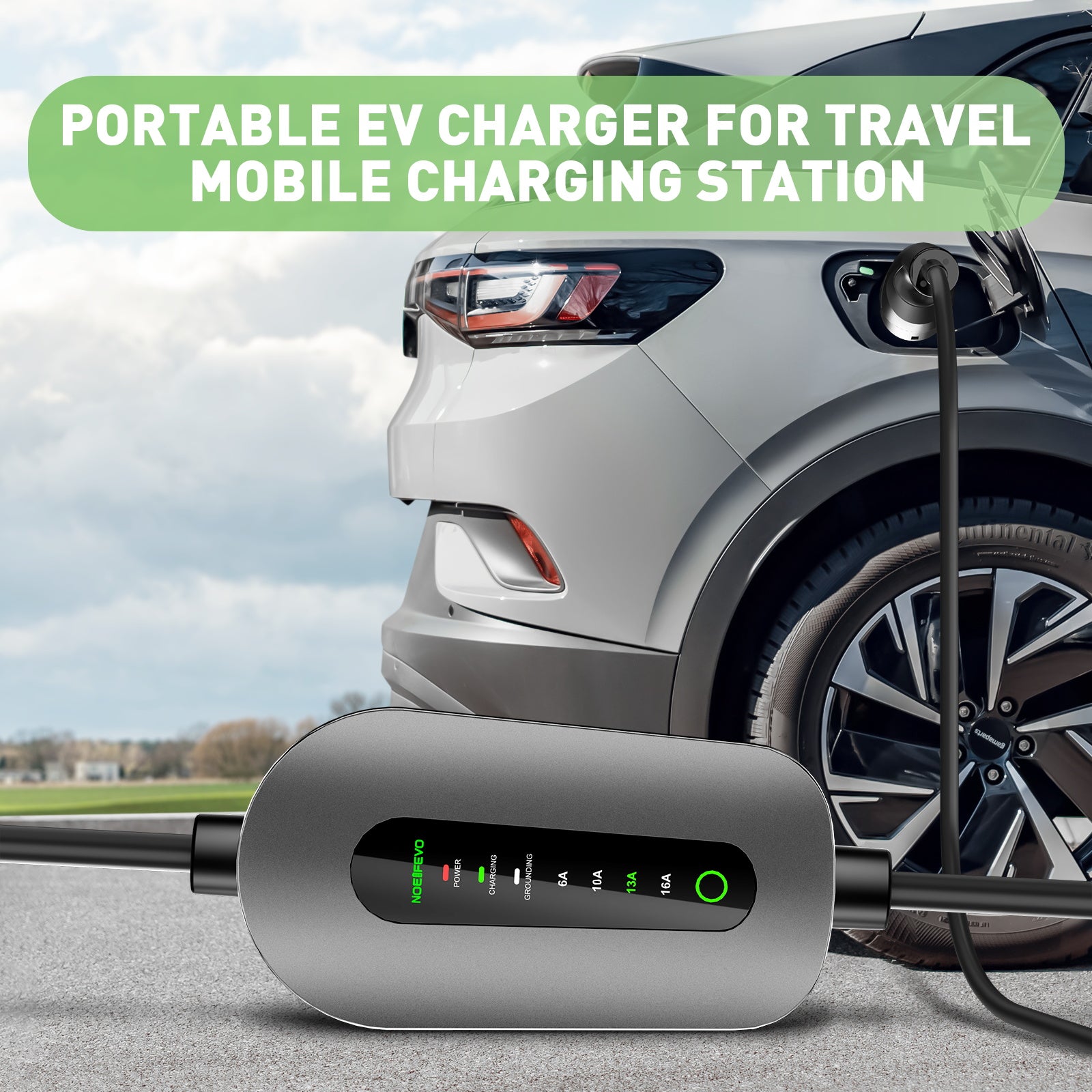

【The Perfect Combination of Wallbox and Portable Charger】
This charger combines the high efficiency of a wallbox with the practicality of a standard charger, while also impressing with its compact, lightweight design and attractive price. No electrician assistance is required – you can mount the holder on the wall with just one screwdriver to activate the wallbox functionality easily. It’s also a handy companion when traveling, offering charging options wherever you are – whether at a camping site, in an apartment, garage, hotel, single-family home, or company. (The holder must be purchased separately.)

【2-Year Warranty and Technical Support】
We offer a 2-year exchange warranty for products with issues and free technical support. Our professional after-sales team responds within 24 hours (excluding holidays) and quickly resolves all problems to ensure your user experience.

Specifications:

Input Voltage: 200V-450V AC
Nennstrom: 6A/10A/13A/16A
Socket Type: CEE 16A Red
Connection Type: IEC 62196 Type 2
Phases: Three Phases
Kabel: 5*2.5mm²+1*0.75mm²
Gesamtlänge: 3/4/10 Meter
RCD: RCD Type A, AC30mA
Operating temperature: -25°C to +50°C
Storage temperature: -40°C to +80°C
Protection class: Cable box: IP65, Type 2 charging plug: IP54
Multiple protection functions: Undervoltage, Overvoltage, Overcurrent, Leakage, Short circuit, Overtemperature, Flame protection, Grounding, CP anomaly, Overvoltage protection.

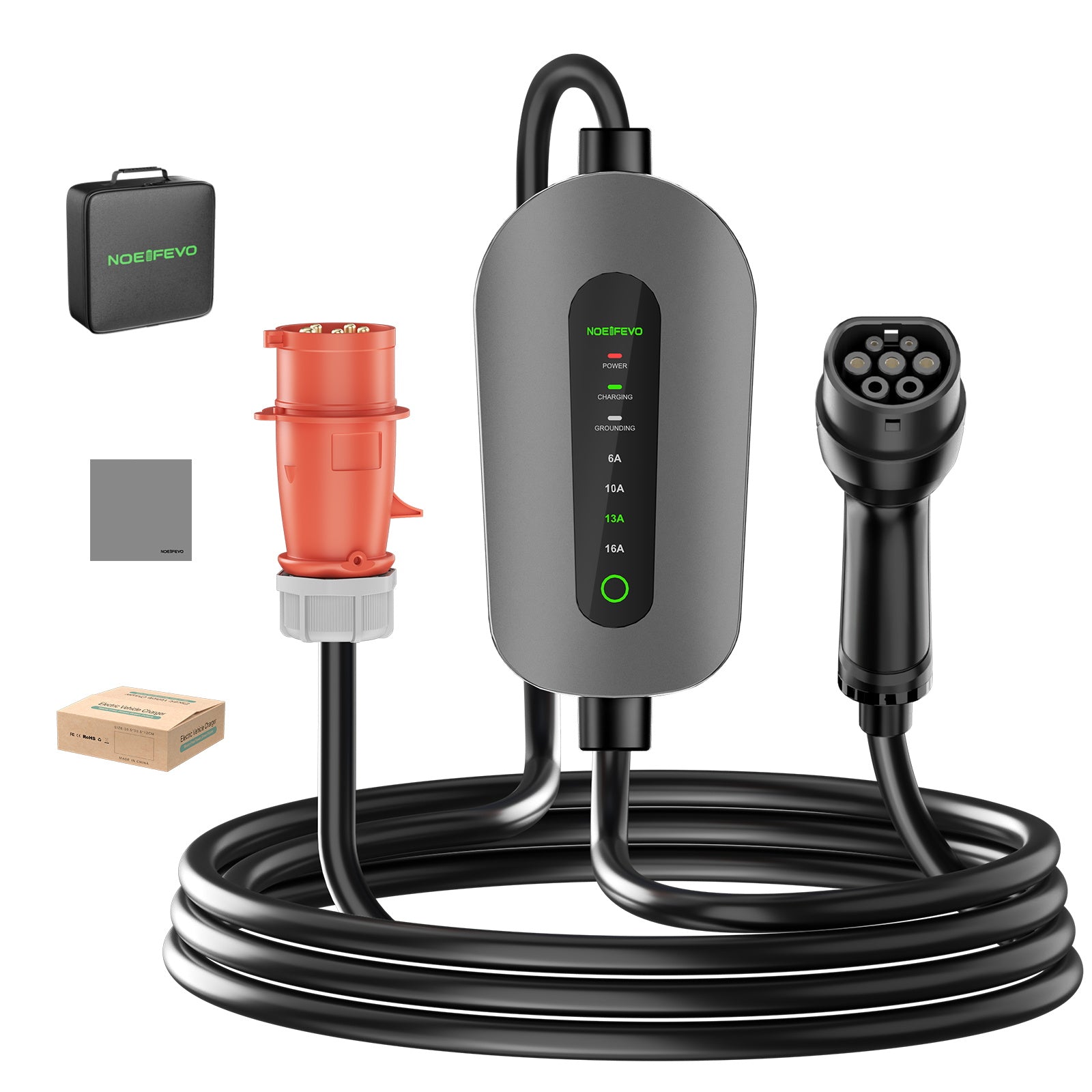

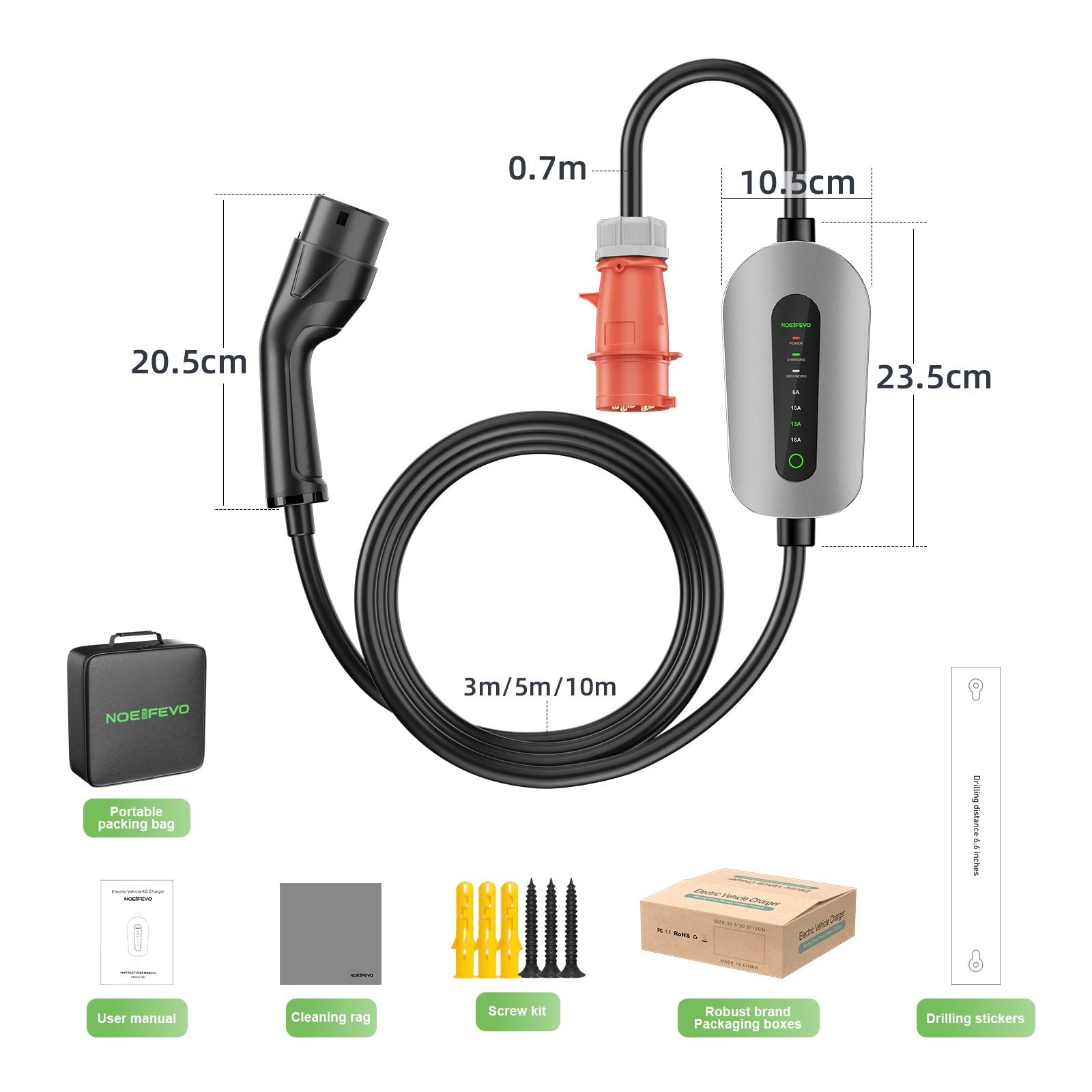

Packing List
1 Charging Device

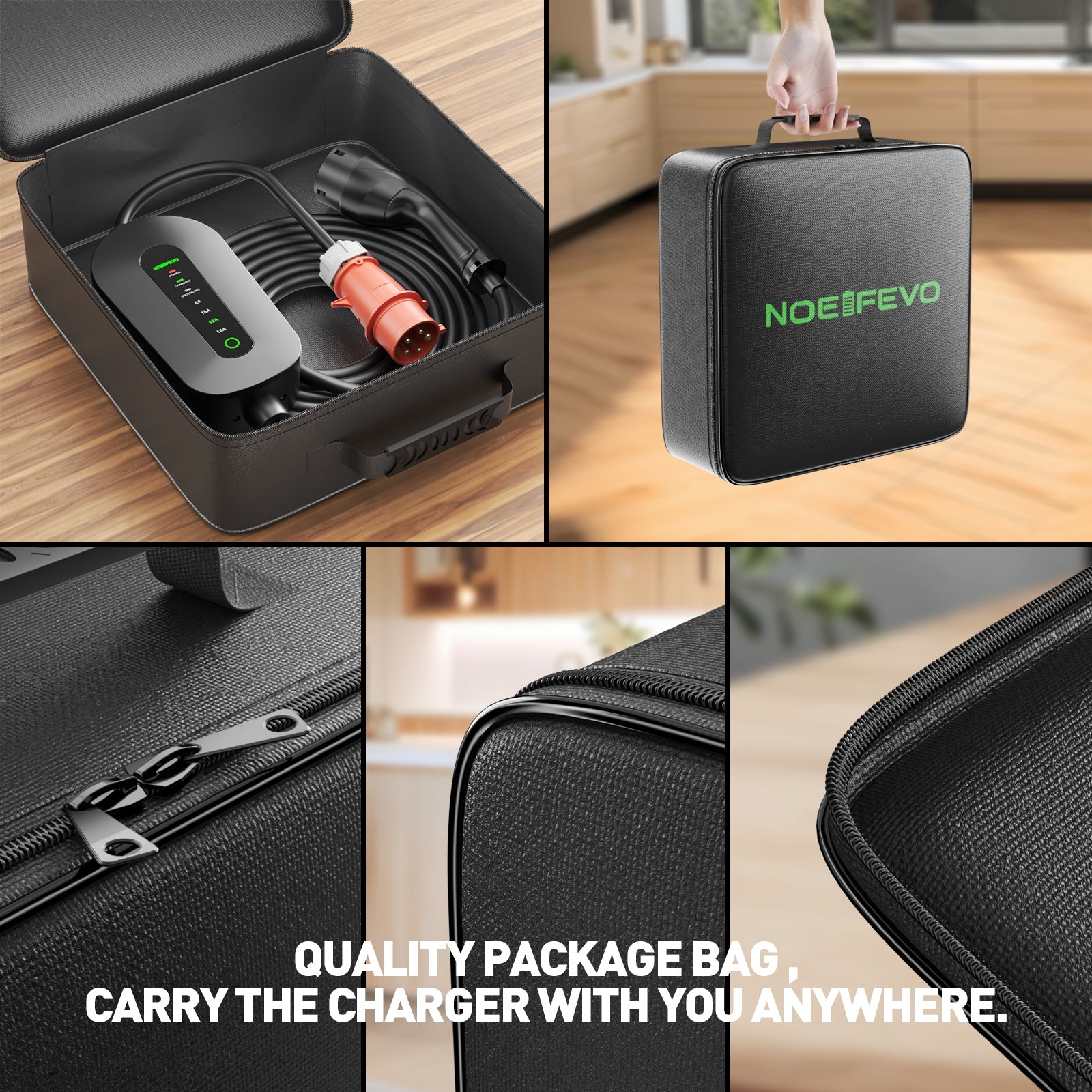

1 Carry Bag
1 * User manual
1 Cleaning Cloth
1 Screw Holder
4 Screws
1 Carton
