Der NOEIFEVO Q21W 11KW Smart Tragbare Ladegerätist mit einer APP-Steuerung ausgestattet, die es Ihnen ermöglicht, den Ladezustand jederzeit zu überwachen. Es bietet leistungsstarke Funktionen, eine einfache Bedienung und ist mit allen Fahrzeugen auf dem Markt mit Type 2/CCS2-Anschlüssen kompatibel.

[Start your intelligent charging journey]
Möchten Sie während des hektischen Arbeitsalltags den Ladezustand Ihres Autos überprüfen oder sich Sorgen über Überladung machen, wenn Sie unterwegs sind? Herkömmliche tragbare Ladegeräte bieten keine Echtzeit-Überwachung aus der Ferne. Der NOEIFEVO Q21W Ladegerät ist mit der Tuya-App-Funktion ausgestattet, die es Ihnen ermöglicht, den Ladefortschritt jederzeit und überall zu überwachen und eine Überladung zu vermeiden. Leistungsstark und kostengünstig, löst es Ihre Ladeprobleme.

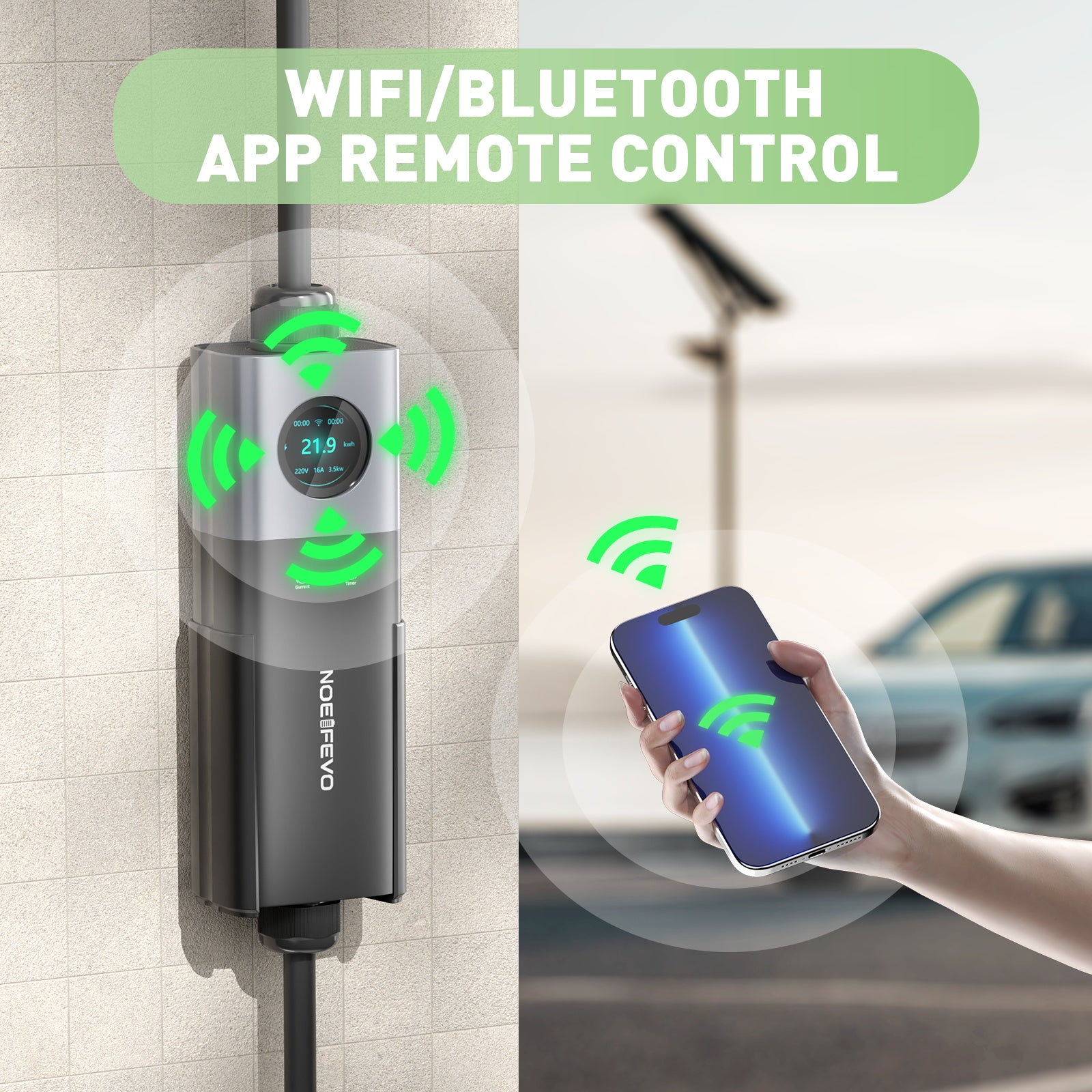

1. Intelligent remote control: Beim ersten Gebrauch müssen sowohl Ihr Handy als auch der NOEIFEVO Q21W Ladegerät im gleichen Netzwerk (WIFI 2.4G / Bluetooth 4.2) gekoppelt werden. Nach erfolgreicher Kopplung können Sie mit der Bedienung beginnen. Beim zweiten Gebrauch müssen Sie lediglich sicherstellen, dass sowohl der Ladegerät als auch das Handy mit dem Netzwerk verbunden sind. Egal wie weit entfernt Sie sind (sogar im Ausland), können Sie das Ladegerät in Echtzeit steuern.

2. Einfache Kontrolle der LadedatenYou can control the charging device anytime and anywhere via the app, whether to check the charging status, adjust the charging time, or stop the charging process. Simply open the app on your mobile phone and conveniently manage your charging process.

3. Customized Charging SettingsThrough the app, you can program charging times for start and end periods ranging from 1 to 24 hours. This ensures that charging occurs during off-peak electricity rates and helps reduce your energy costs. You can also adjust the charging power as needed. Since the charging current cannot be adjusted directly during the charging process, you can stop the charging, change the current, and restart it – a feature not available with conventional charging stations.

4. Charging History and Data AnalysisThe app also provides a charging history so that you can check the charging times and amount used each time. This way, you always have a clear overview of your charging behavior and can efficiently organize your charging plans.

[Ultra-Fast Charging Speed]
This portable 11 kW three-phase charger is three times faster than conventional 230V chargers and easily charges your EV or PHEV without the need for an electrician. Simply plug in the 380/400V CEE 16A 5-pin plug, and the charging process starts immediately. Most batteries can be fully charged within 3 to 4 hours.

[Adapt the charging power as needed]
Users can flexibly choose the charging power according to their needs. If a CEE16A three-phase input socket is used, the charging power can be effectively adjusted by adjusting the charge current.
Available current steps: 6A-16A, corresponding to charging powers of 3.5 kW to 11 kW (actual power may vary due to energy losses and deviation in efficiency). When sufficient charging time is available, a lower power can be chosen to gently charge the battery; if faster charging is required, higher power can be selected. This flexible charging option not only meets different requirements but also is the best choice for extending battery life.

[LCD screen, all charging information at a glance]
Our charging device is equipped with a display and operation keys. The LCD shows the most important charging information, including current charging power, charging voltage, charging time, and total current strength. A quick click of the button allows you to also select the charging current ranging from 6A to 16A. By pressing the button for a longer duration, you enter the time control mode where you can set the start time of the charging process up to 1-24 hours in advance. With charging time selection, you can benefit from lower off-peak electricity rates at night.

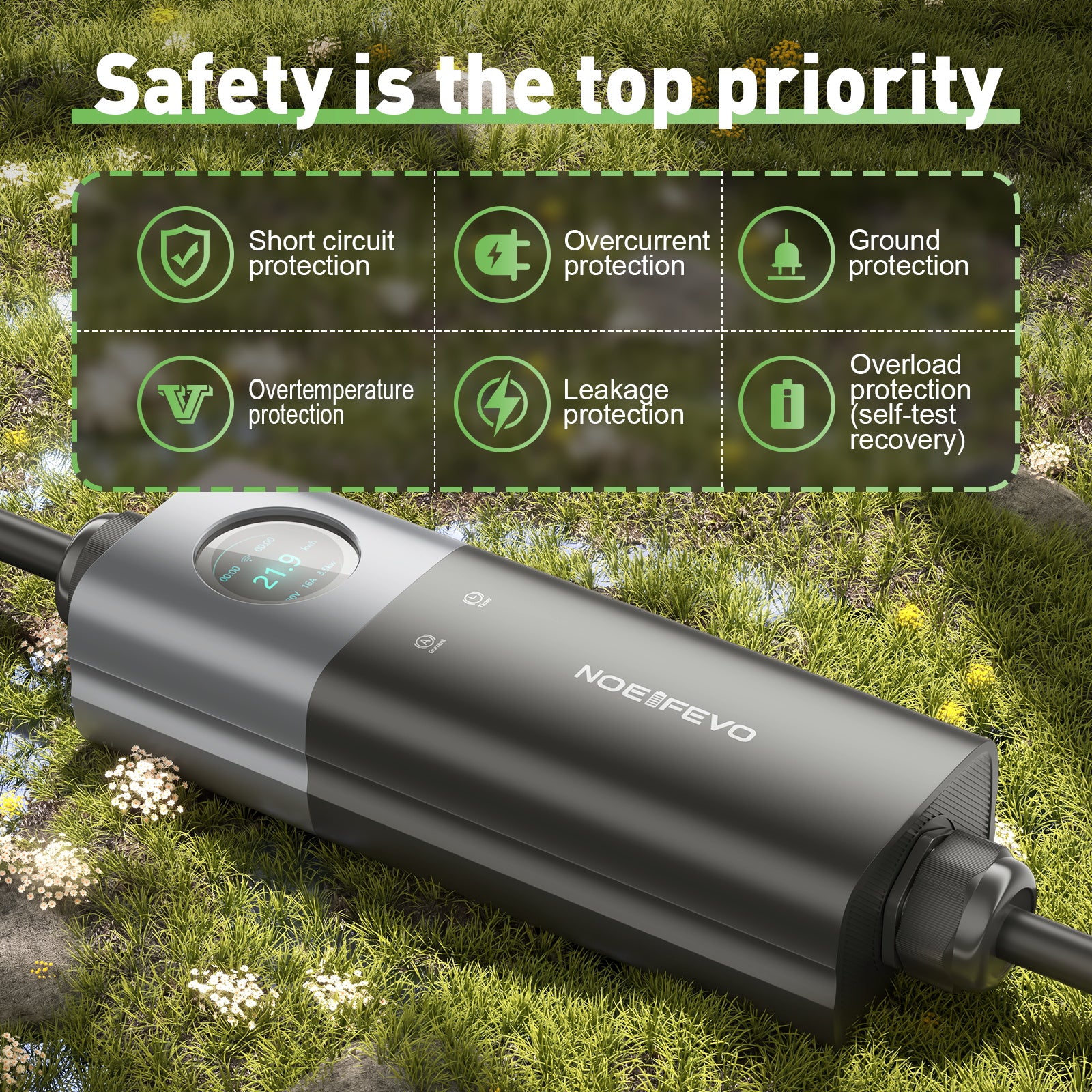

[CE Certification and 10 Safety Features]
The NOEIFEVO Q21W charger is CE certified and features an integrated Type B RCD (AC 30mA + DC 6mA) error current protection. Additionally, the product offers 10 additional safety functions: undervoltage, overvoltage, overcurrent, error current, short circuit, overheating, fire prevention, grounding, CP anomaly, and lightning protection, ensuring you a fully safe charging experience.

Safety:

• Automatic shutdown after completion of the charging process

• Monitoring of charging voltage and charging current during the charging process

• Overcharging protection

• Short-circuit protection

• Isolation test before loading

• Resumption of charging process after a power outage

• Shutdown if the fault current >6mA DC to protect the internal residual current protection device

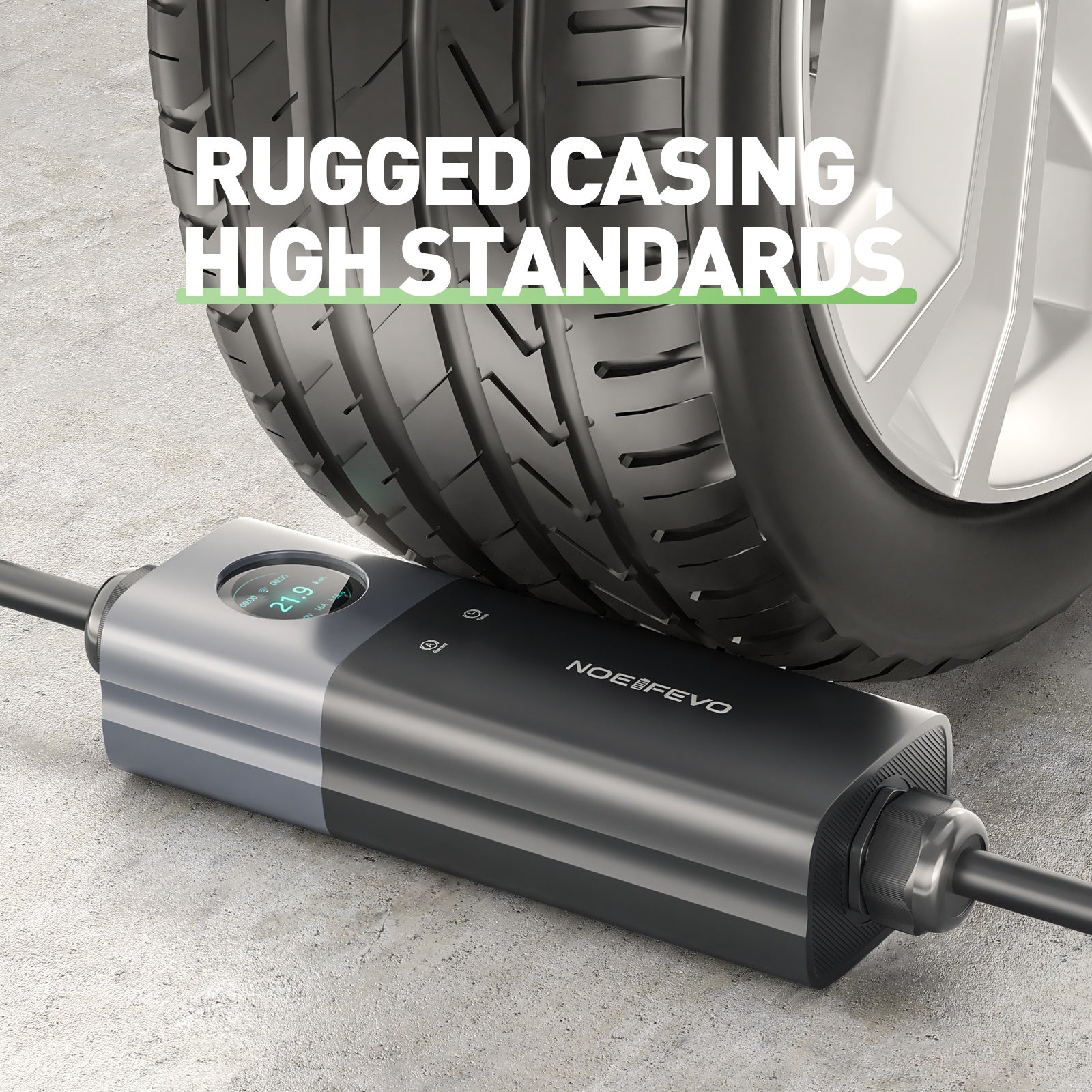

Weatherproof and robust

• Rain-resistant:With the IP65+ protection class, the charger also ensures safe use on rainy days.

• Dust-tight:Effectively protects against dust and keeps the charger clean on the inside.

• Snow-resistant:Functions reliably in snowy environments and guarantees stable charging performance.

• Heat-resistant:Even at high temperatures, the charger remains stable and ensures a long service life.

• Wide temperature range:Supports a temperature range of-25°C to 50°C, ensuring reliable operation of the charger in both cold and hot environments.

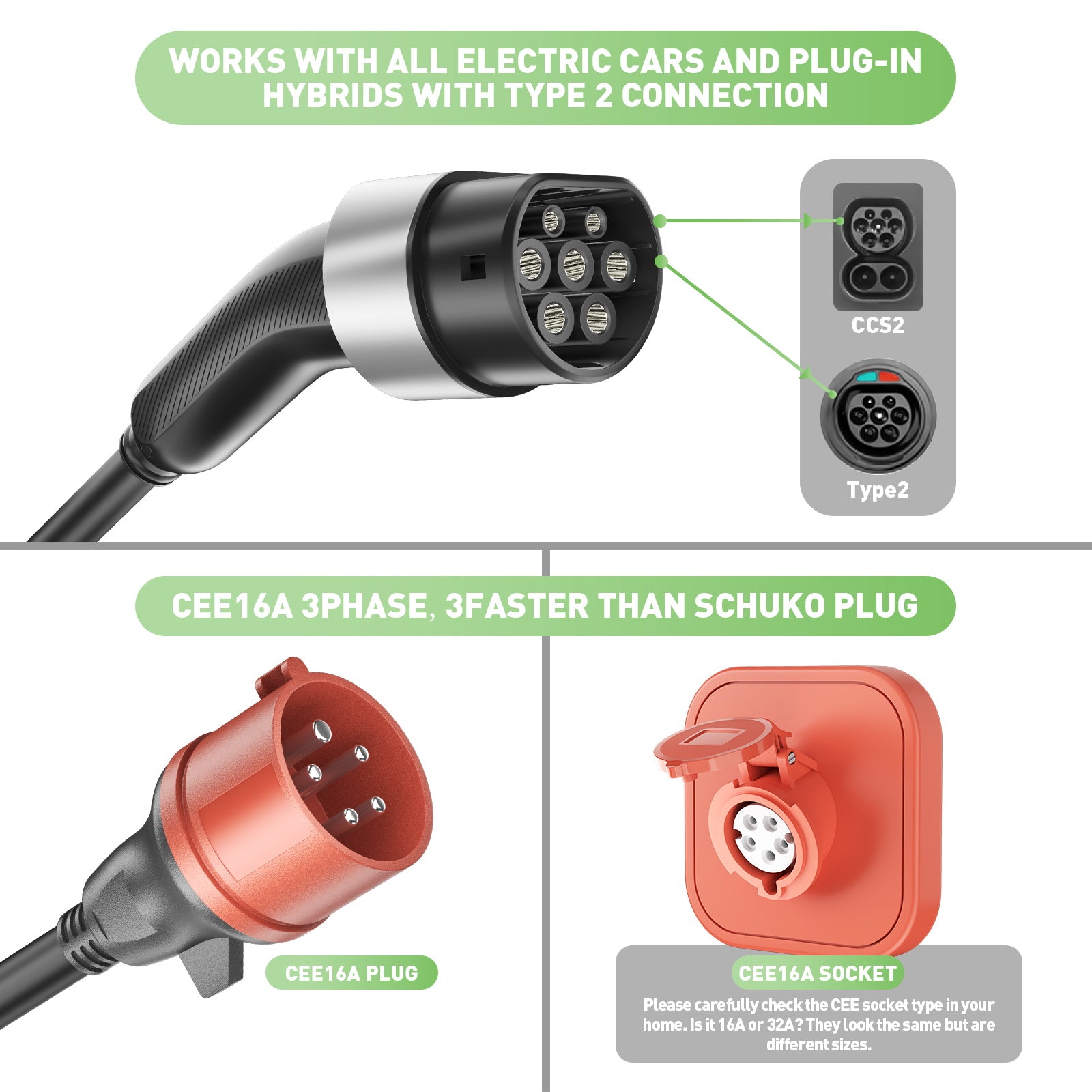

[Maximum Compatibility]
Compatible with all vehicles equipped with a Type 2 charging socket, as well as with all future vehicle models that support this standard.

Example car brands compatible with this charger:
Volkswagen, Mercedes-Benz, BMW, Audi, Škoda, Opel, SEAT, Hyundai, Ford, Kia, Renault, Dacia, Volvo, Fiat, Toyota, Tesla, Mini, Mazda, Peugeot, Citroën, Nissan and many more.

[Simple charging operation, just plug in to charge]
Simply plug the charger into a 380/400V CEE 16A 5-pole industrial socket, select the charging current, and connect the charging connector to the vehicle. Once the signal between the charger and the car is successfully matched, the charging process starts automatically. After complete charging, the charging process will stop automatically.

[Also chargeable with domestic sockets]
If you are traveling or your company does not offer CEE16A three-phase socket, you do not need to worry. With a CEE16A-to-Schuko socket adapter, you can easily use the charging device with a household socket (this adapter must be purchased separately).

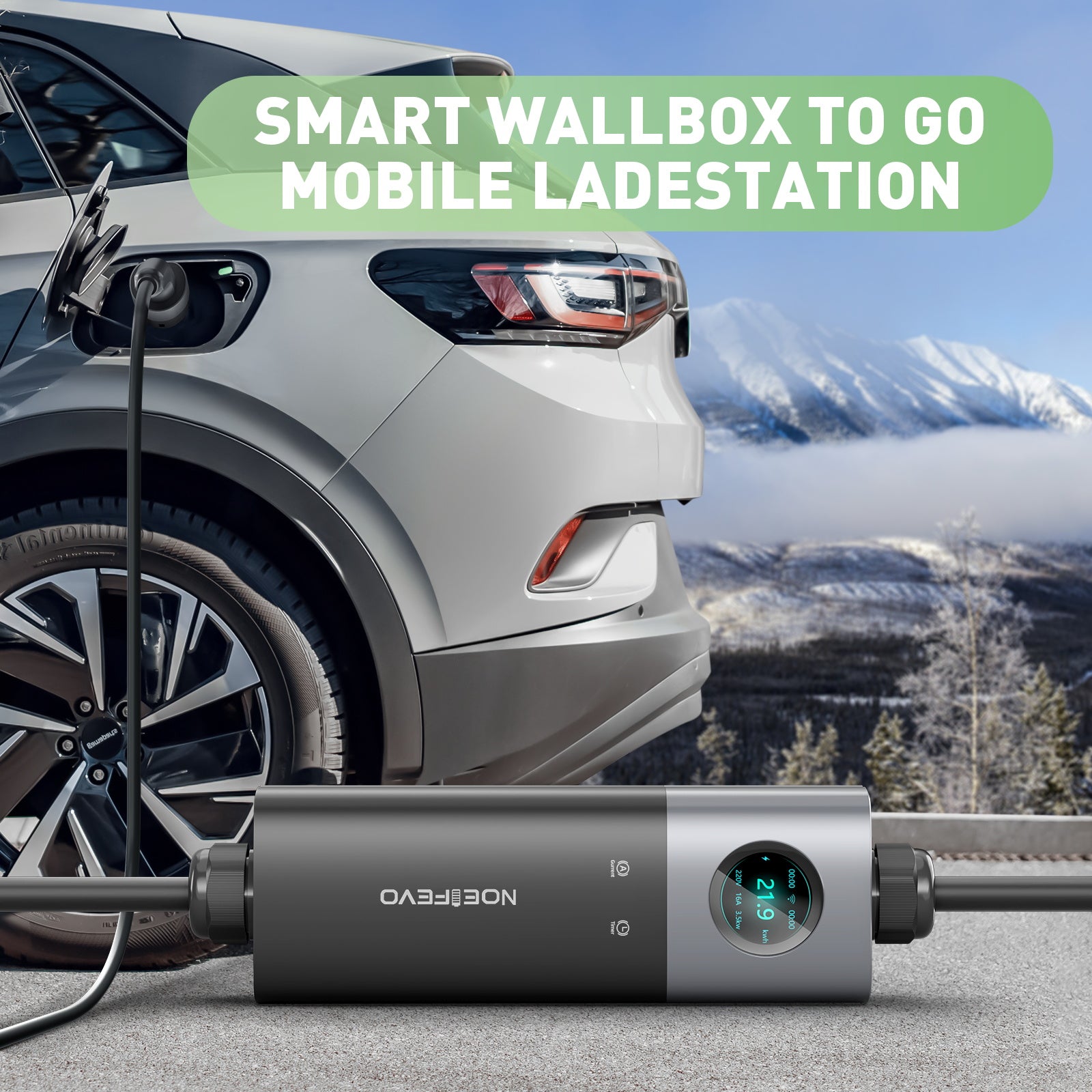

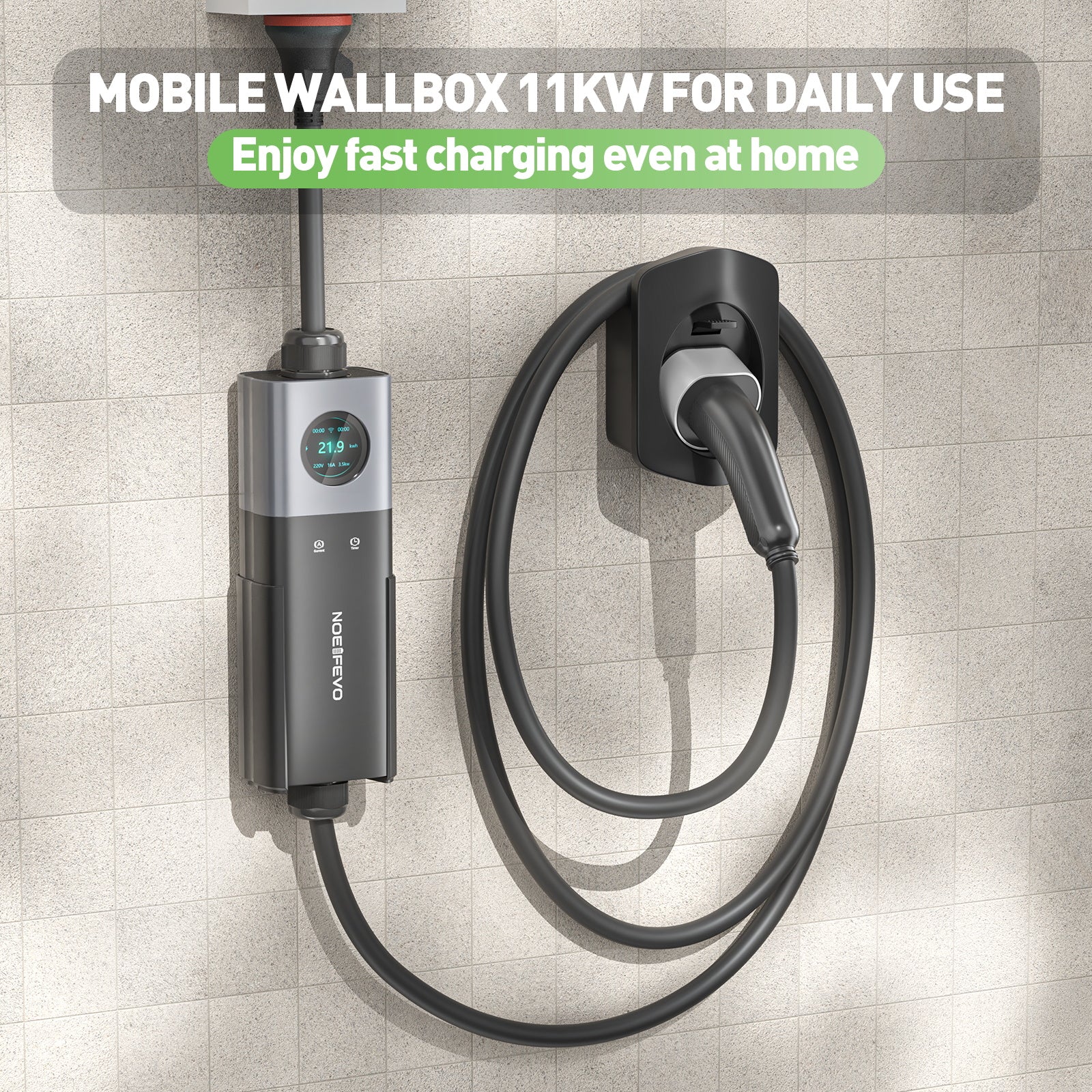

[Perfect Combination of Wallbox and Portable Charger]
This charger combines the high efficiency of a wallbox with the practicality of a standard charging device and offers a compact design at a more affordable price. Without an electrician, you can simply mount the holder to the wall using a screwdriver and thus easily implement the wallbox function. It is also a practical portable charger for travel that provides charging safety wherever and whenever you need it. It is suitable for campsites, apartments, garages, hotels, single-family homes, and companies, and always offers a safe and convenient charging experience.

[TÜV-certified Quality Cables in 5/10 meters]
The charger uses TÜV-certified cables of 5/10 meters.2,5 mm² + 1A 0.75 mm² cable ensures safe charging. Cable lengths of 5m and 10m are offered to meet most daily charging requirements. If you need a different length, please contact our customer service.

[2-Year Warranty and Technical Support]
We provide a replacement service within 2 years for product issues, free technical support, and a professional after-sales team that responds to your inquiries within 24 hours (excluding holidays) to ensure quick resolution of any questions and guarantee a positive user experience.

Specifications:
Input Voltage: 200V-450V AC
Rated current: 6A to 16A
Socket type: CEE16A Red
Connector Type: IEC 62196 Type2
Phases: Three Phases
Cable: 5*2.5mm² + 1×0.75mm²
Total length: 5/10 meters
RCD: RCD Type B, AC30mA+DC 6mA
Operating temperature: -30°C - +50°C
Storage temperature: -40°C - +80°C
Protection Type: Cable Box: IP65, Socket Type 2: IP54
Multiple safety protections: undervoltage, overvoltage, overload, leakage, short circuit, overtemperature, flame protection, grounding, CP anomaly, lightning protection.

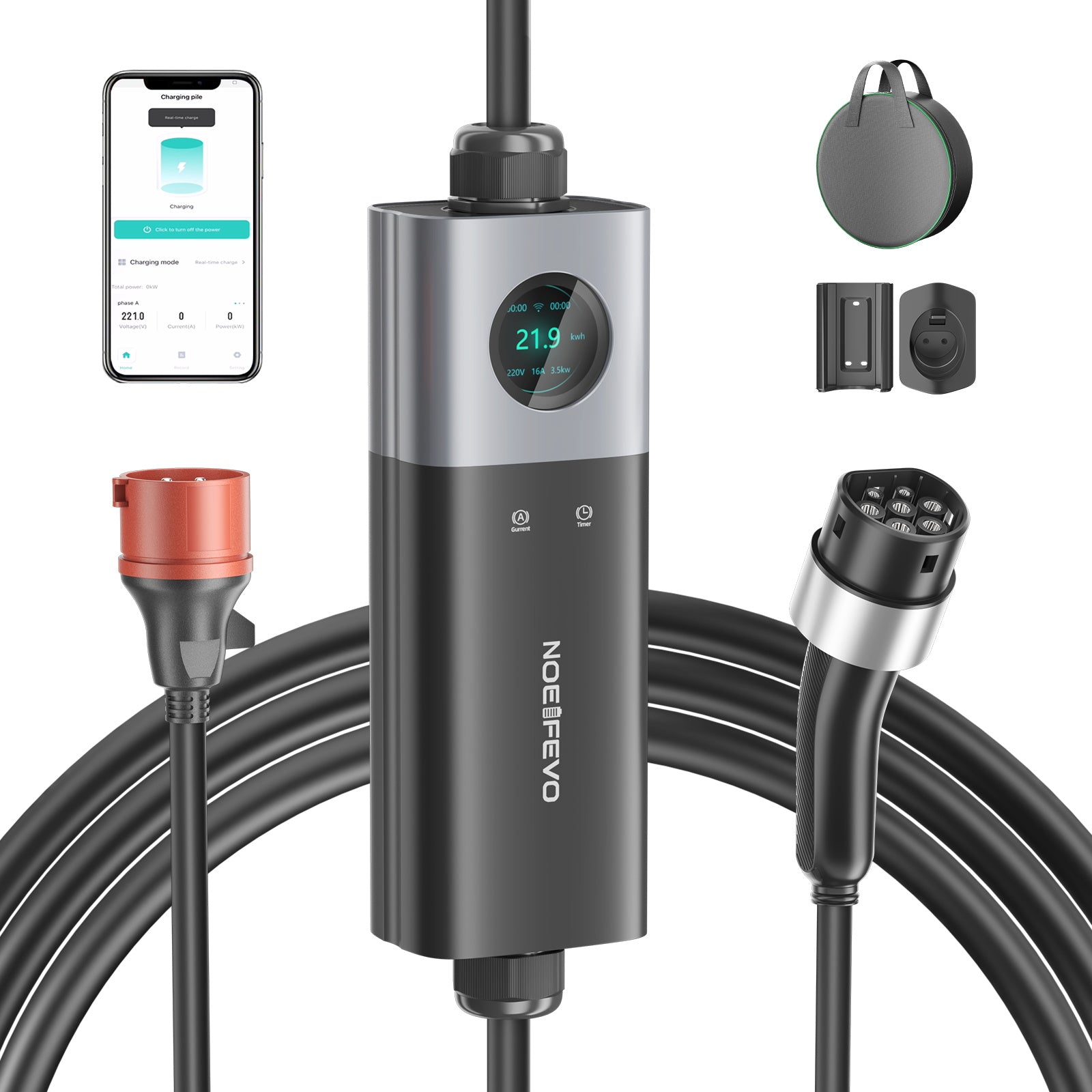

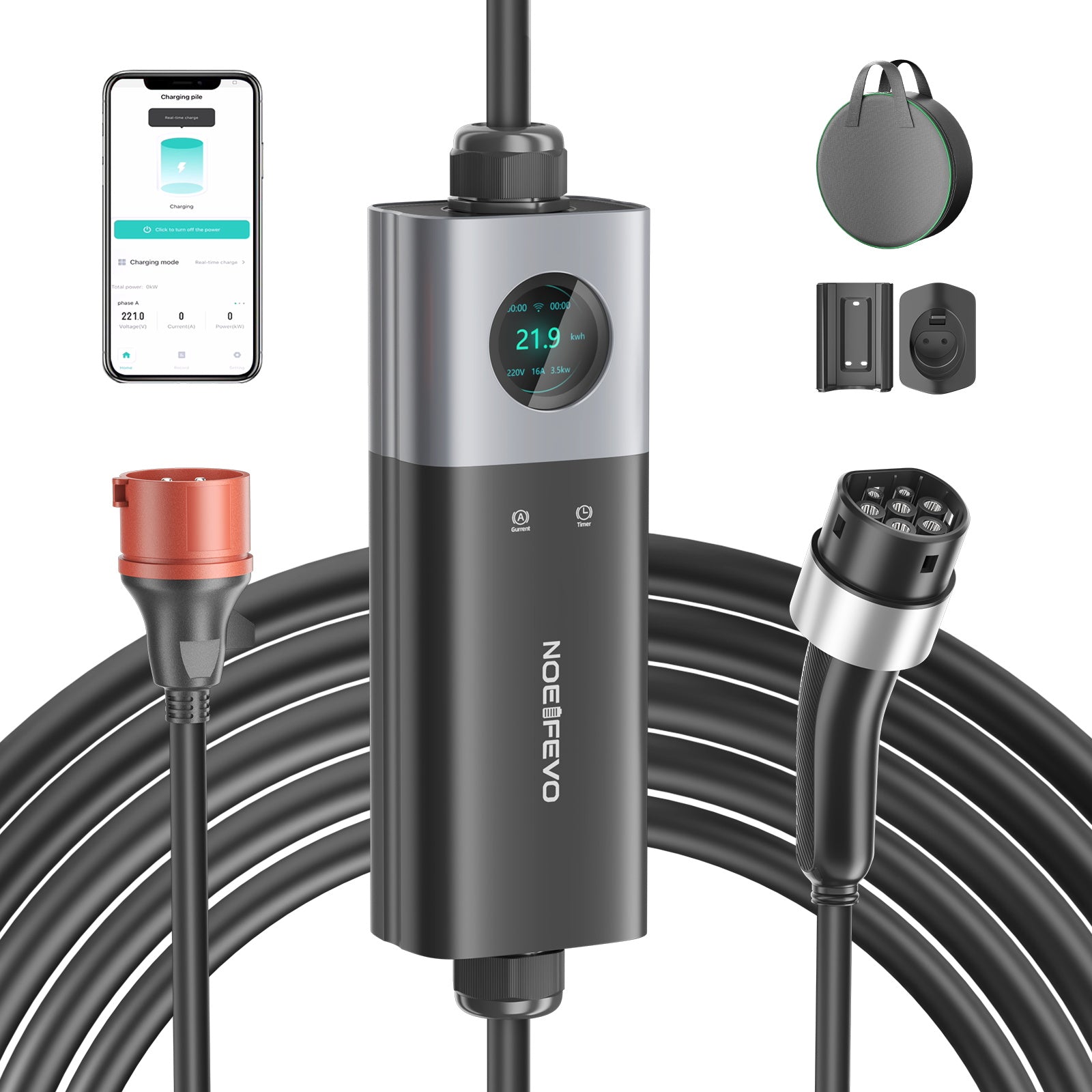

List of packages
1* EV charger
1* transport bag
2* Screwdriver Set
1 plug holder
1* Mounting Bracket for the Control Unit
User Manual
