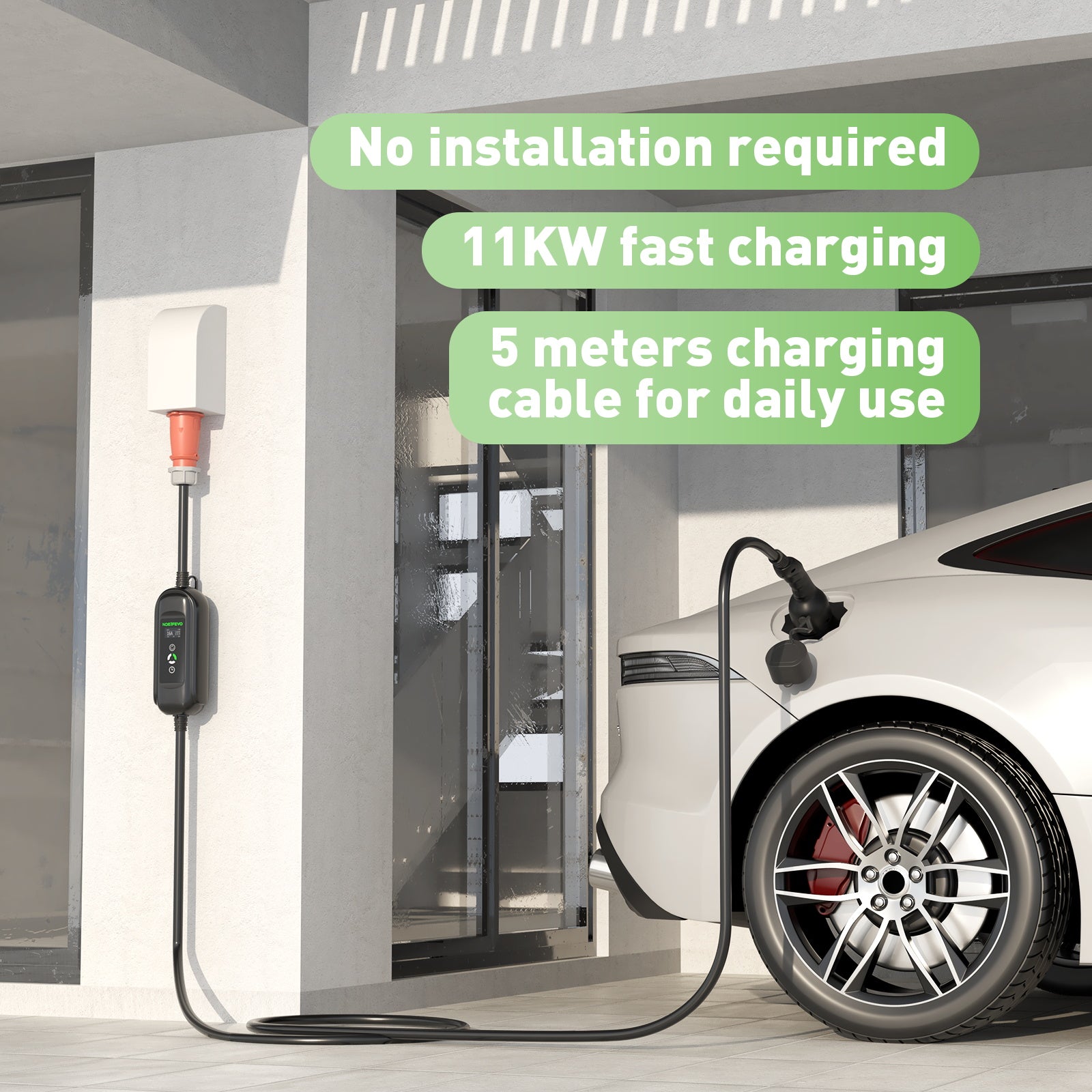

[Simple charging operation, plug in and charge]
Simply plug the charger into a 380/400V CEE 16A 5-pole industrial socket, select the charging current, and connect the charging connector to the vehicle. Once the charger and the vehicle have successfully exchanged signals, charging starts automatically. After full charging is complete, the charger disconnects automatically.
[Maximum Compatibility]
Compatible with all common electric vehicles, supports Type 2 plug and future models.
Examples of car brands compatible with this charger (including but not limited to the following brands):
Volkswagen, Mercedes-Benz, BMW, Audi, Škoda, Opel, SEAT, Hyundai, Ford, Kia, Renault, Dacia, Volvo, Fiat, Toyota, Tesla, Mini, Mazda, Peugeot, Citroën, Nissan and many more.

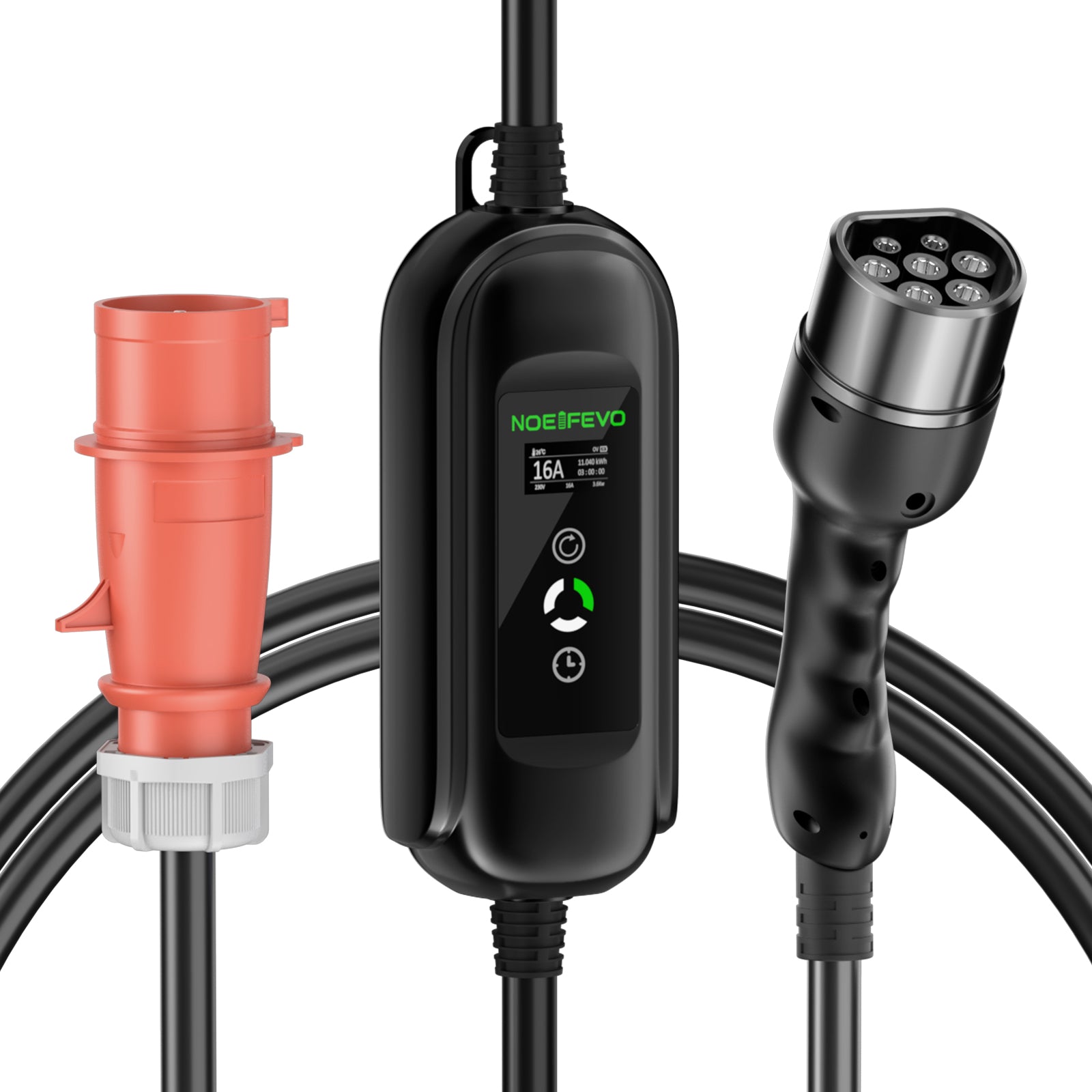

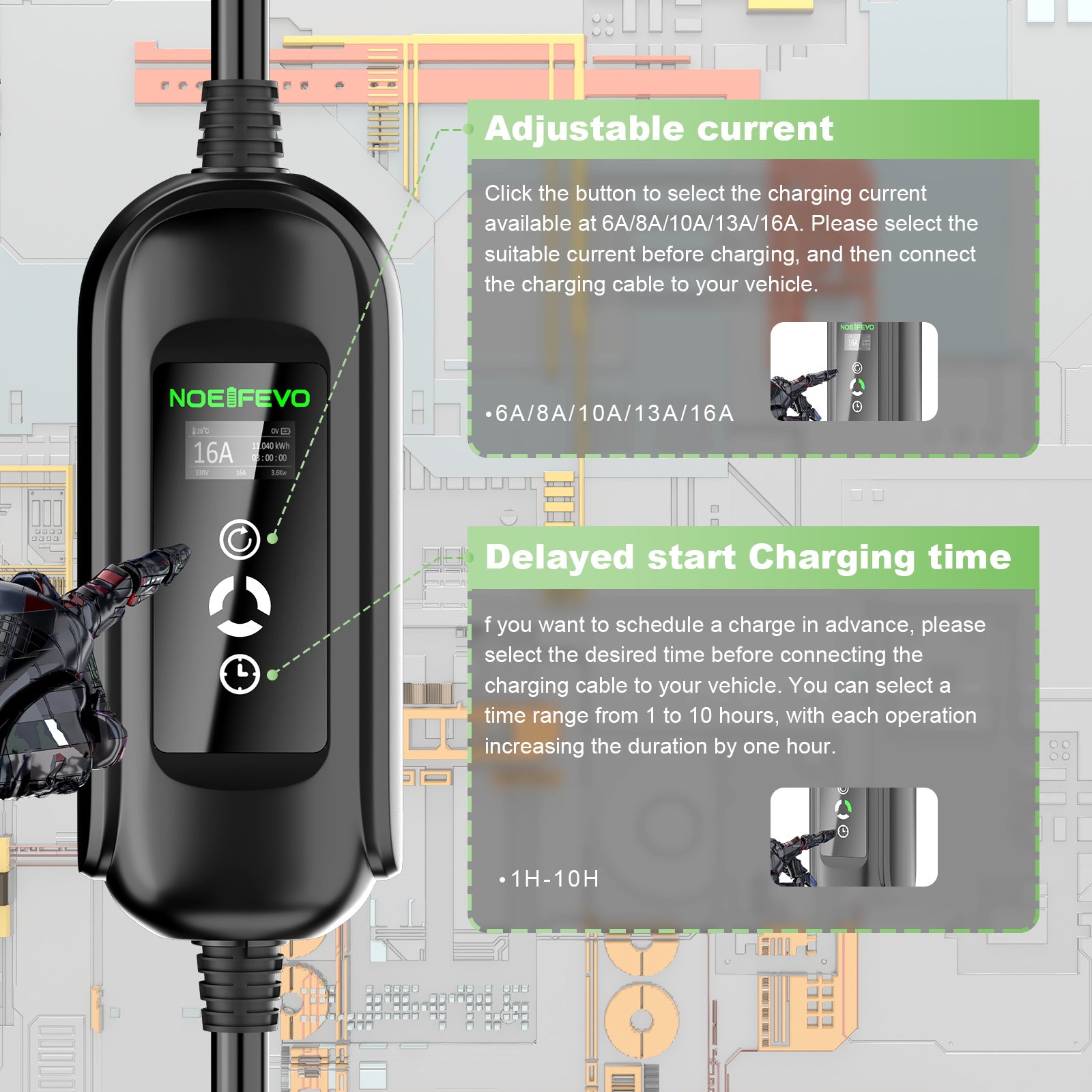

[LCD screen, charge information at a glance]
Our charging station is equipped with a display and operation buttons. The LCD screen displays essential charge data including real-time charge current, voltage, time, total power, and grounding status. With double-tap operation, you can select the charge current setting from options of 6A/8A/10A/13A/16A. Using the scheduling button, you can delay the start time of the charging process by up to 10 hours. The scheduling function allows you to take advantage of cheaper off-peak rates.
[Charge power adjustable as needed]
Users can adjust the charge power according to their needs by selecting an appropriate charge current. When using a CEE16A three-phase inlet plug, the charge power can be changed by choosing the corresponding charge current.
The current steps are: 6A/8A/10A/13A/16A, with corresponding powers of 3.5KW/5KW/6.24KW/8.11KW/11KW (actual power may vary due to energy losses and efficiency factors). A charging station can meet the charging requirements for vehicles with 3.5KW, 7KW, and 11KW power.

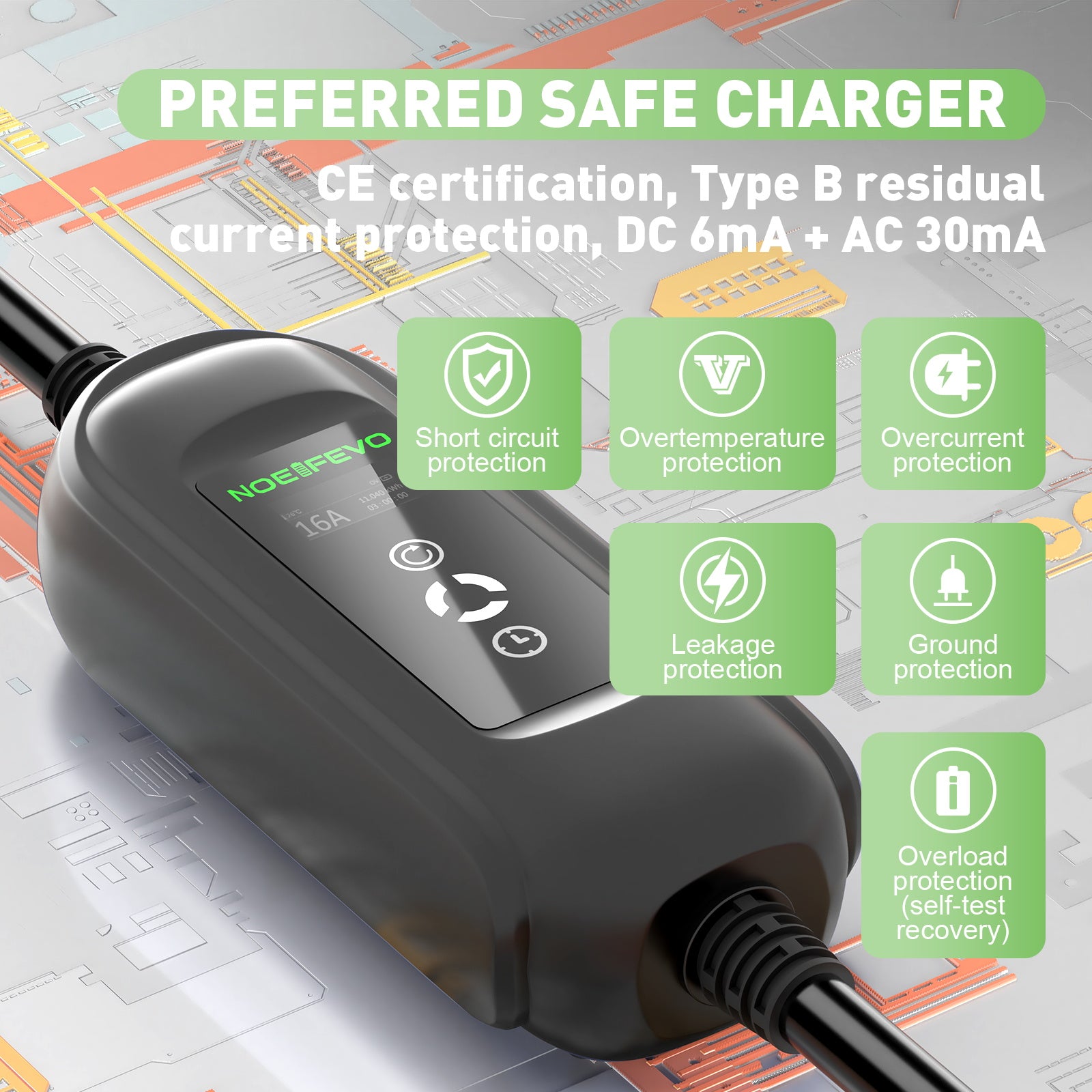

[CE certification and 10 key safety features]
The NOEIFEVO charger is CE-certified and features an integrated RCD (residual current device). Additionally, the product offers 10 additional protective functions: undervoltage, overvoltage, overcurrent, fault current, short circuit, overheating, flame protection, grounding, CP abnormality, and lightning protection. These functions ensure a fully safe charging experience.
[Laden mit einer Haushaltssteckdose]
If you are on the go or your company does not have a CEE16A three-phase socket, no worries. With a CEE16A-to-Schuko plug adapter cable (separately available), you can easily charge your vehicle using a standard household socket.
[5 Meter TUV-zertifiziertes Hochwertiges Kabel]
Das Ladegerät ist mit einem 5 Meter langen TUV-zertifizierten Kabel (5*2.5 mm² + 2*0,5 mm²) ausgestattet, das für sicheres Laden sorgt. Die 5 Meter Länge erfüllt die Anforderungen der meisten täglichen Ladeentfernungen. In unserem Shop sind auch 10 Meter und 15 Meter Kabel erhältlich. Wenn Sie eine individuelle Länge benötigen, wenden Sie sich bitte an unseren Kundenservice.
[Multilingual user manual]
To cater to the needs of our European customers, we provide a multilingual user manual available in English, German, French, Danish, Finnish, Swedish, Estonian, and Norwegian.
[2-Year Warranty and Technical Support]
We offer a 2-year replacement service for defective products, free technical support, and a professional after-sales team that responds within 24 hours (excluding holidays) to ensure quick solutions for all problems, securing your user experience.
Specifications:
Input Voltage: 200V-450V AC
Voltage: settable at 6A, 8A, 10A, 13A, or 16A
Stromversorgungsstecker: CEE 3 x 16A
Connector Type: IEC 62196 Type2
Phases: 3
Cable: 5*2.5 mm² + 2*0.5 mm²
Total length: 5 meters
RCD: RCD Type B, AC30mA+DC 6mA
Operating temperature: -30°C - +50°C
Storage temperature: -40°C - +80°C
Protection Type: Cable Box: IP65, Socket Type 2: IP54
Contact Plug: Copper Alloy, Silver + Thermoplastic on the Surface
Impact resistance to external force: can withstand a 1m fall and a 2t vehicle impact
Housing flame retardancy class: UL94V-0. Makes charging simple and safe!
List of packages
Optional: Standard package
1* EV charger
1* Packing box
User Manual

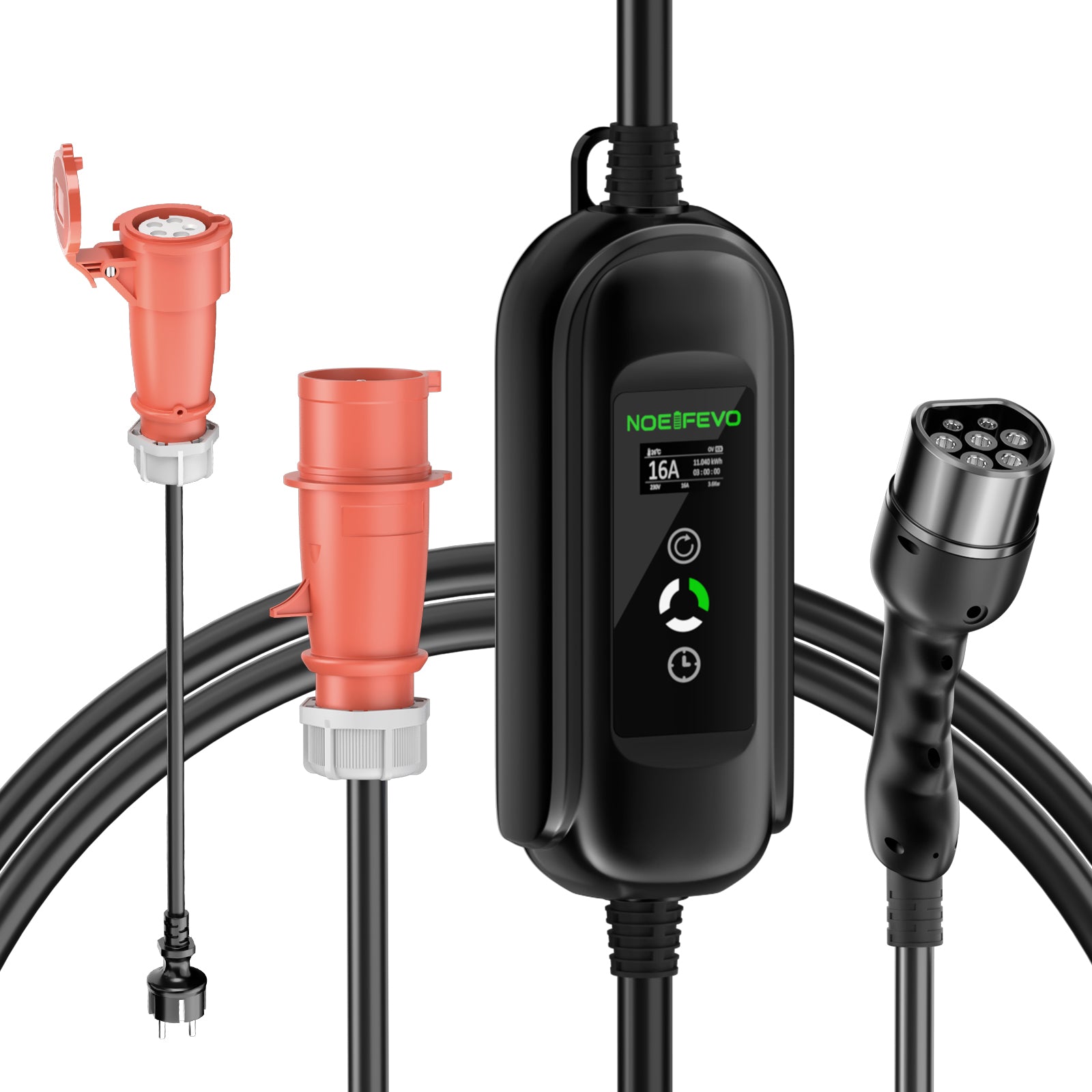

Optional Two: Extra Schuko Adapter Version
1* EV charger
1* Package
User Manual
1* CEE16A Socket on Schuko Adapter

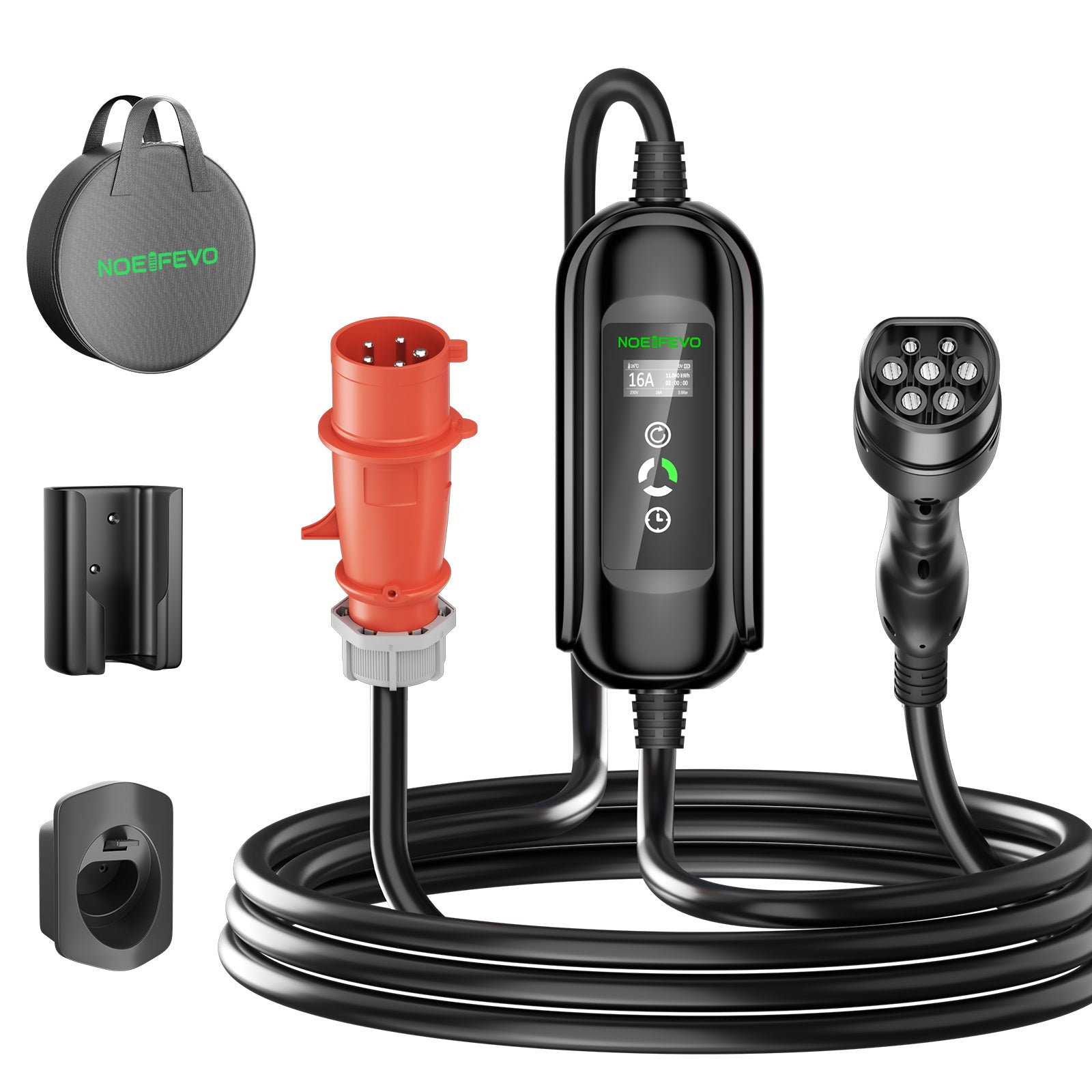

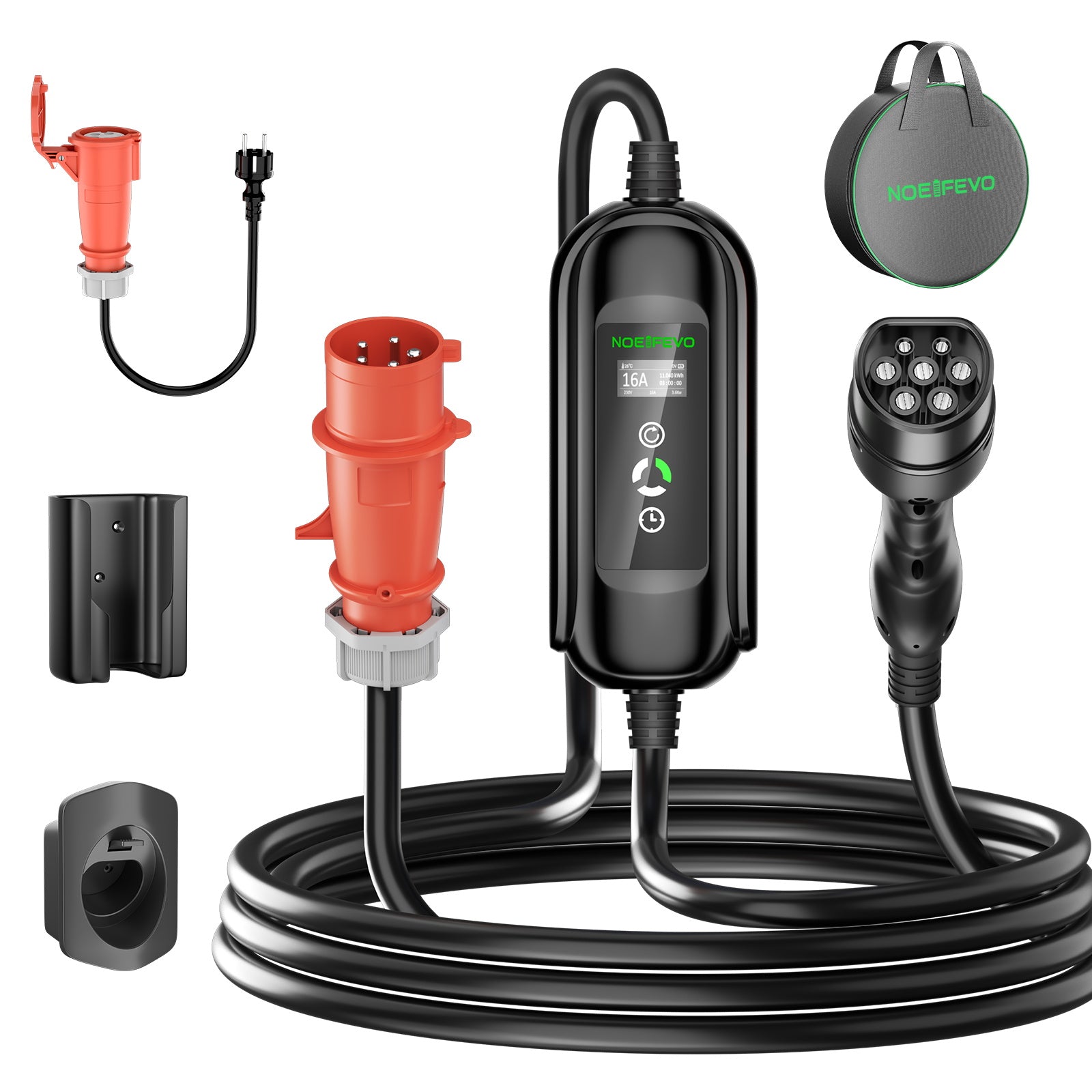

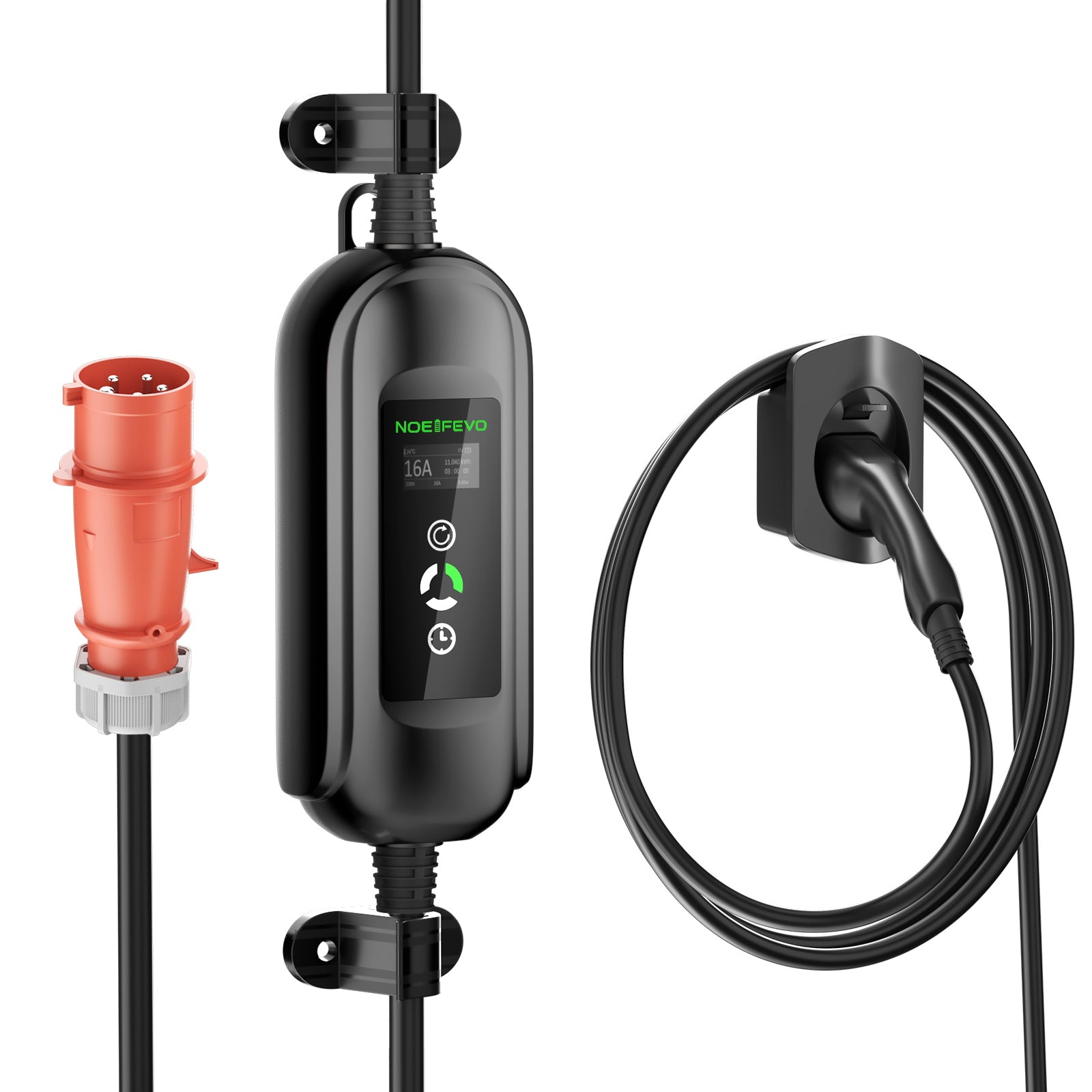

Option Three: Wallbox Version
1* EV charger
1* Packing box
User Manual
Kabelständer Clip
1*Kabel und Ladesteckereinrichtung

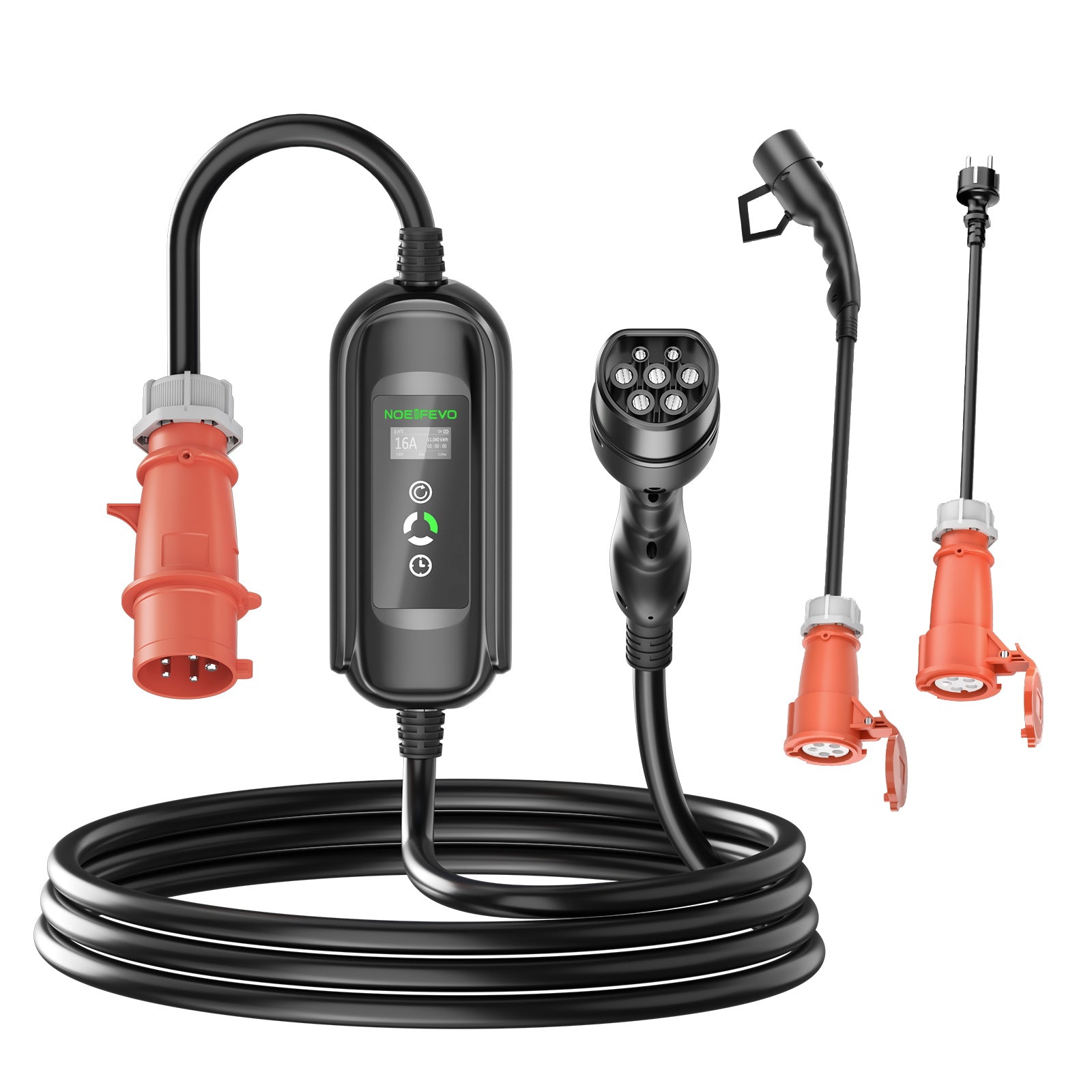

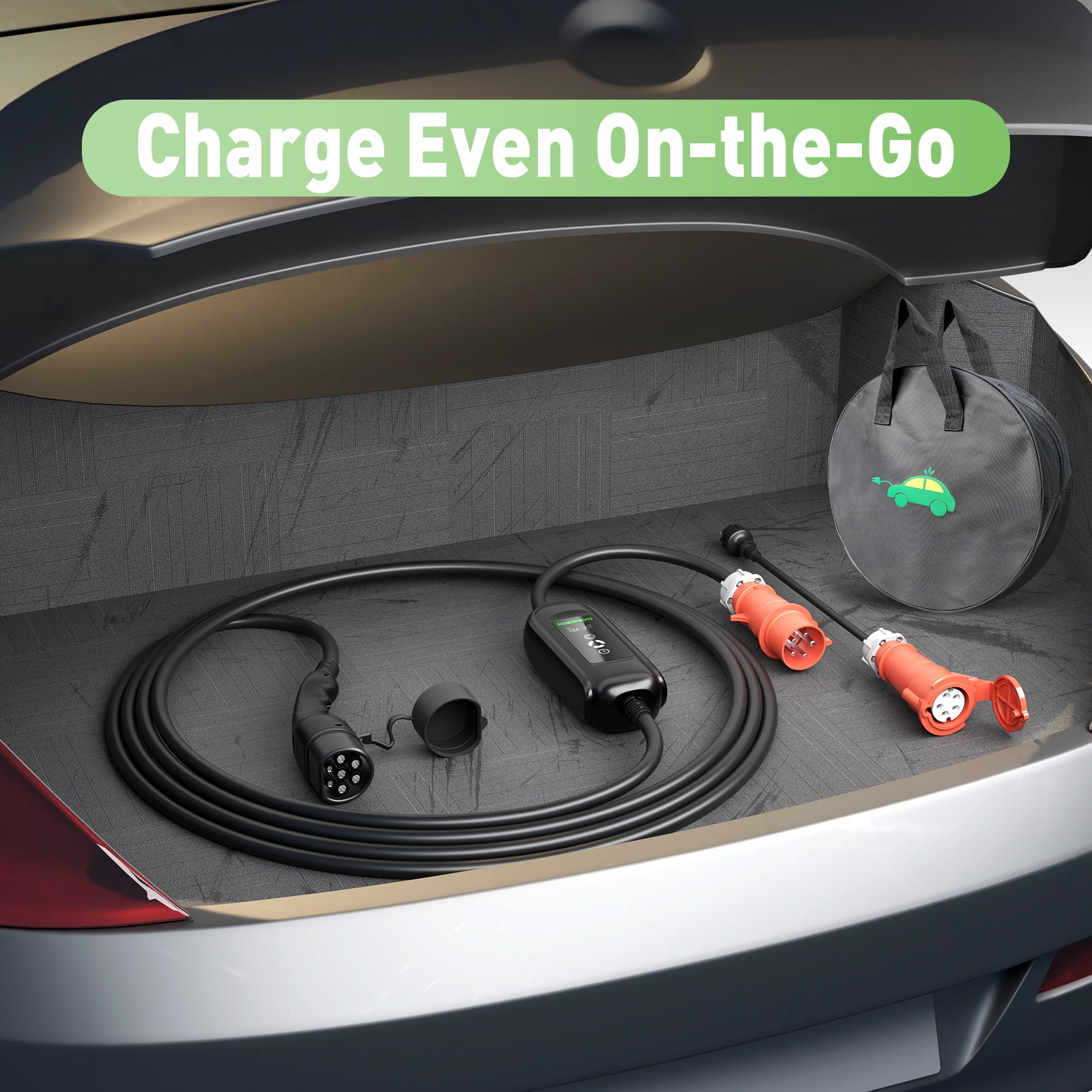

Option four: Travel version
1* EV charger
1*Packaging box
User Manual
1*Shucko-Stecker auf CEE16A-Anschluss
1*Type 2 plug on CEE 16A socket (with this adapter, you can use the charger at a public charging station)
