€13,95

26 auf Lager gelassene Artikel

Wire gauge (AWG)
  • AWG 12
  • AWG 10
  • 8 AWG
  • 7AWG
  • 6AWG
  • 4AWG
Anderson Type
  • Anderson 50A
  • Anderson 120A
Cable Length
  • 20 cm
  • 30 cm
  • 50 cm
  • 100 cm

Sicheres Auschecken garantiert

trus

Aktie::

Beschreibung

Zusätzliche Informationen

This product supports customized adjustments. Please share with us the required cable specification, length, and desired Anderson plug type.

Specifications:

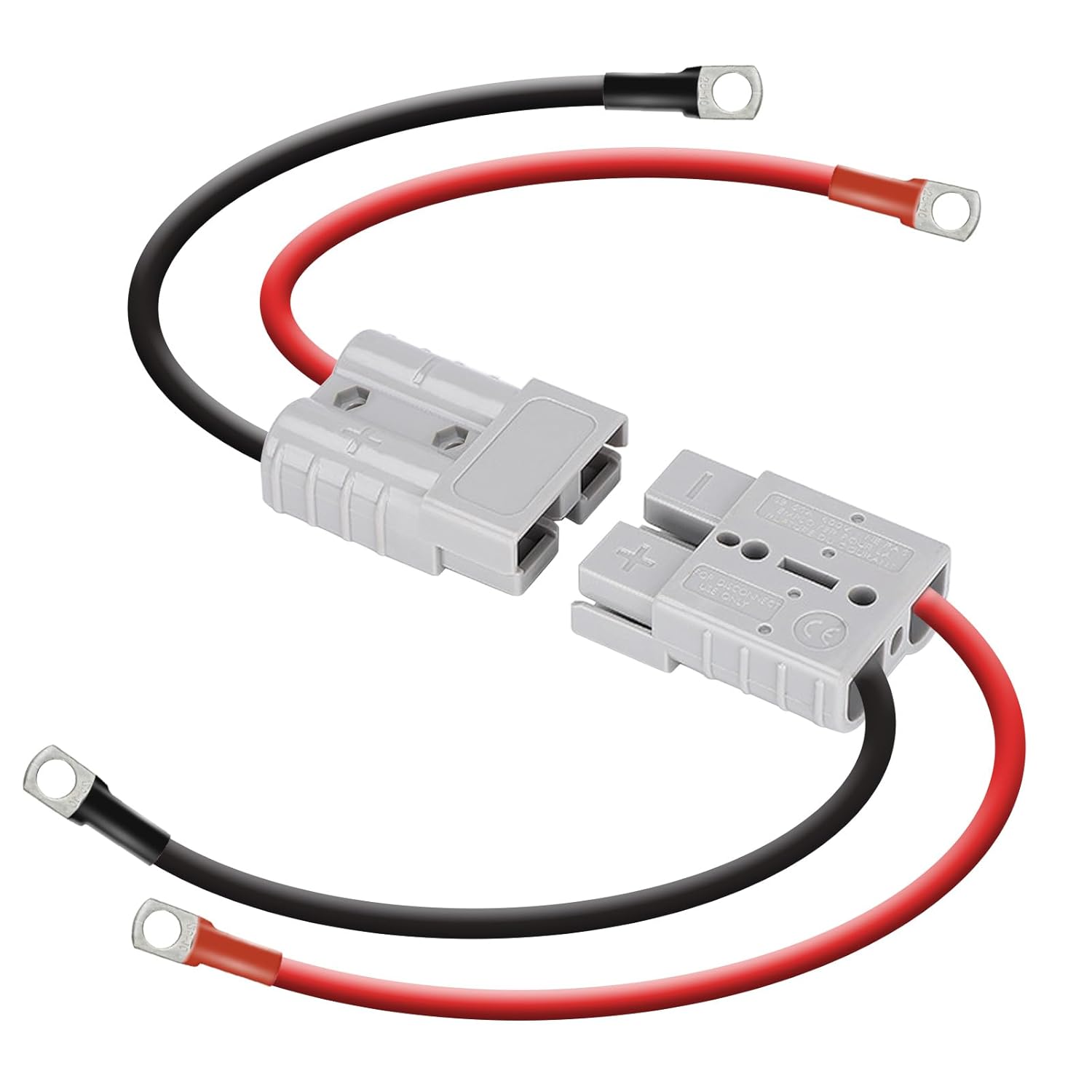

  • Name:Dual-pin connector on O-Clamp extension cable

  • Materials:High-quality tin-coated copper wire

  • Cable length:20/30/50/100 cm (as per your choice)

  • Wire gauge:2/4/6/7/8/10/12 AWG

  • Current:20-100A (depending on your choice)

  • Included in the Package:2 x Adapters for dual-pin connectors

Features:

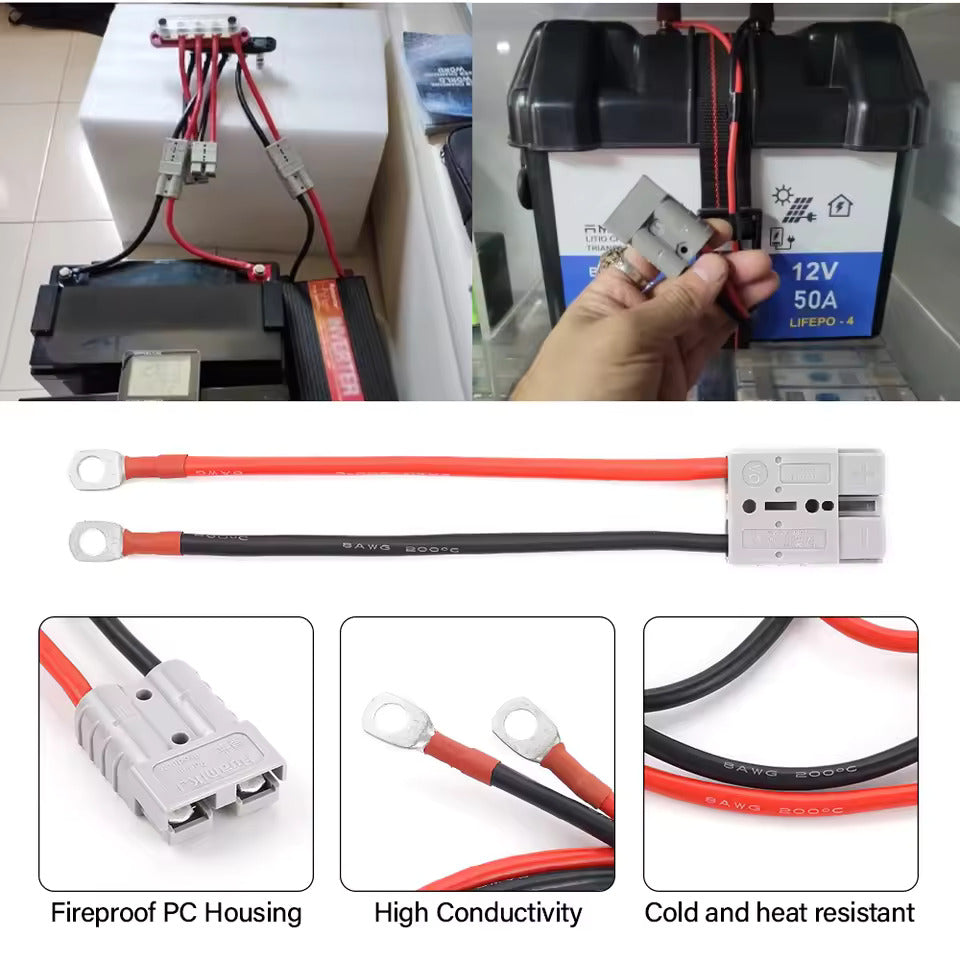

  1. Versatile compatibility:Made from tin-coated copper wire and O-Clamp extension cables with dual-pin connectors, this product is easily compatible with most battery connections. Ideal for use in mobile power supplies, vehicles, motorhomes, trucks, ships, and more. The tin-coated copper wire is extremely flexible, durable, and efficient.

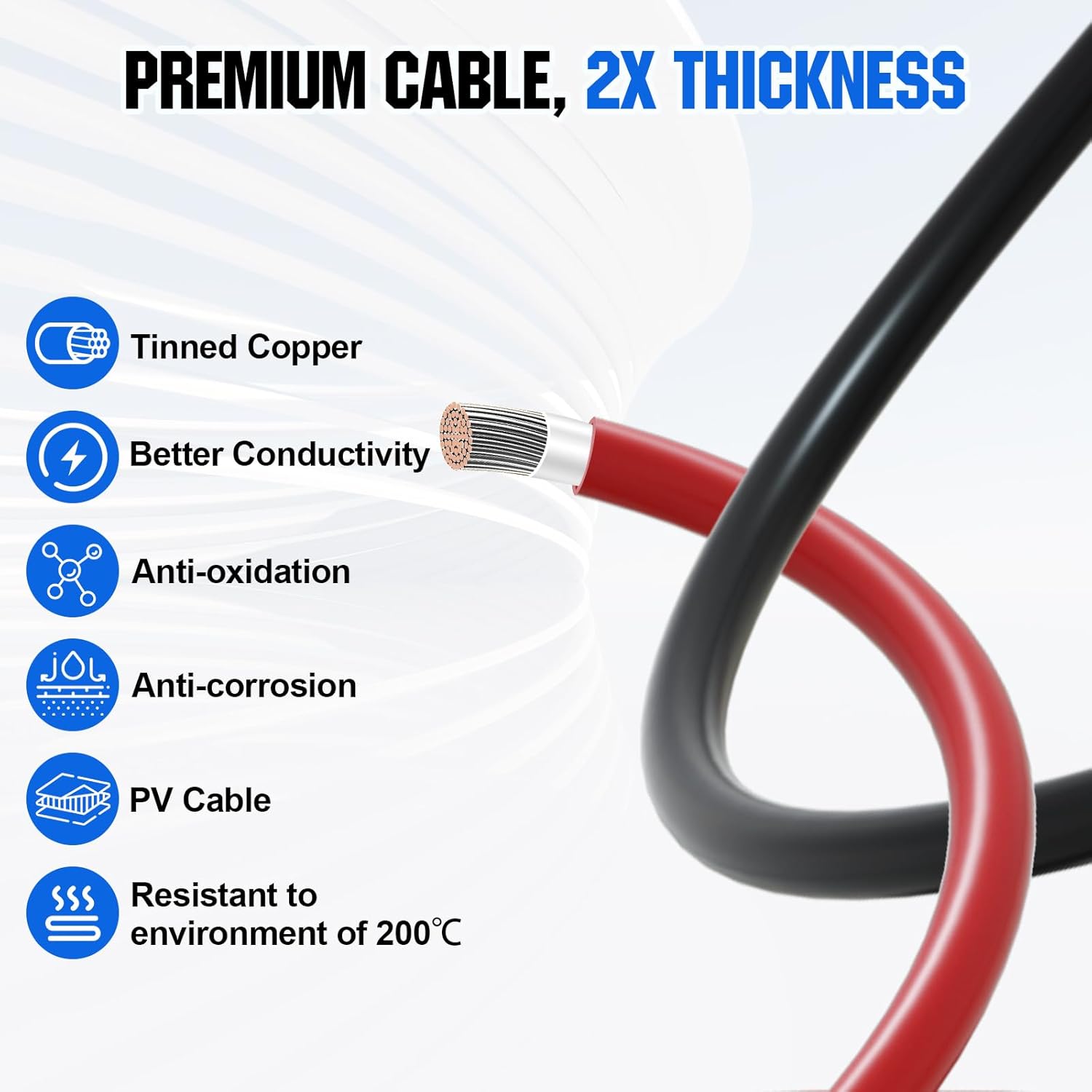

  2. Superior material properties:Tin-coated copper material offers excellent properties such as low resistance, oxidation and corrosion resistance, high and low temperature stability, flame retardancy, and outstanding electrical conductivity. This ensures a stable power supply for your devices.

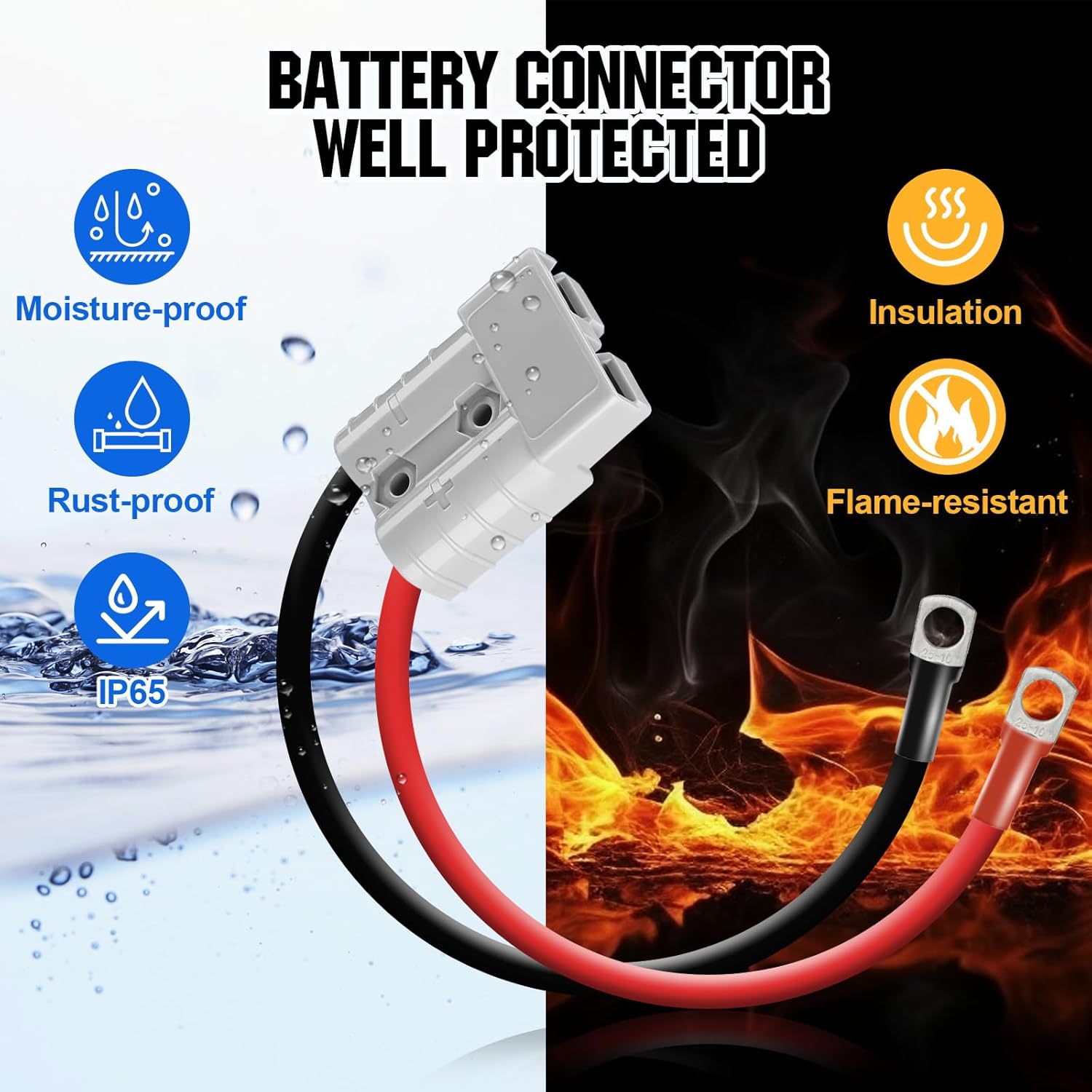

  3. Durability and safety:The extension cable uses high-quality, tin-coated silicone copper wire that withstands extreme environments. With an operating temperature range of -50°C to +200°C, it guarantees better electrical conductivity and safe application, making it an ideal choice for battery systems.

Wire gauge conversion and maximum current capacity:

Wire gauge (AWG) Approximate equivalent (mm²) Maximum current capacity (A)
12 AWG 4 mm² 20-25 A
10 AWG 6 mm² 30-35 A
8 AWG 8 mm² 40-50 A
7 AWG 10 mm² 50-60 A
6 AWG 16 mm² 70-85 A
4 AWG 25 mm² 95-115 A
2 AWG 35 mm² 115-135 A
1 AWG 50 mm² 150-175 A
1/0 AWG 70 mm² 190-225 A
