CCS2 Combo Charging Station Socket for EVSE Electric Vehicle, 80A/125A/150A/200A CCS2 Socket

€159,95

26 auf Lager gelassene Artikel

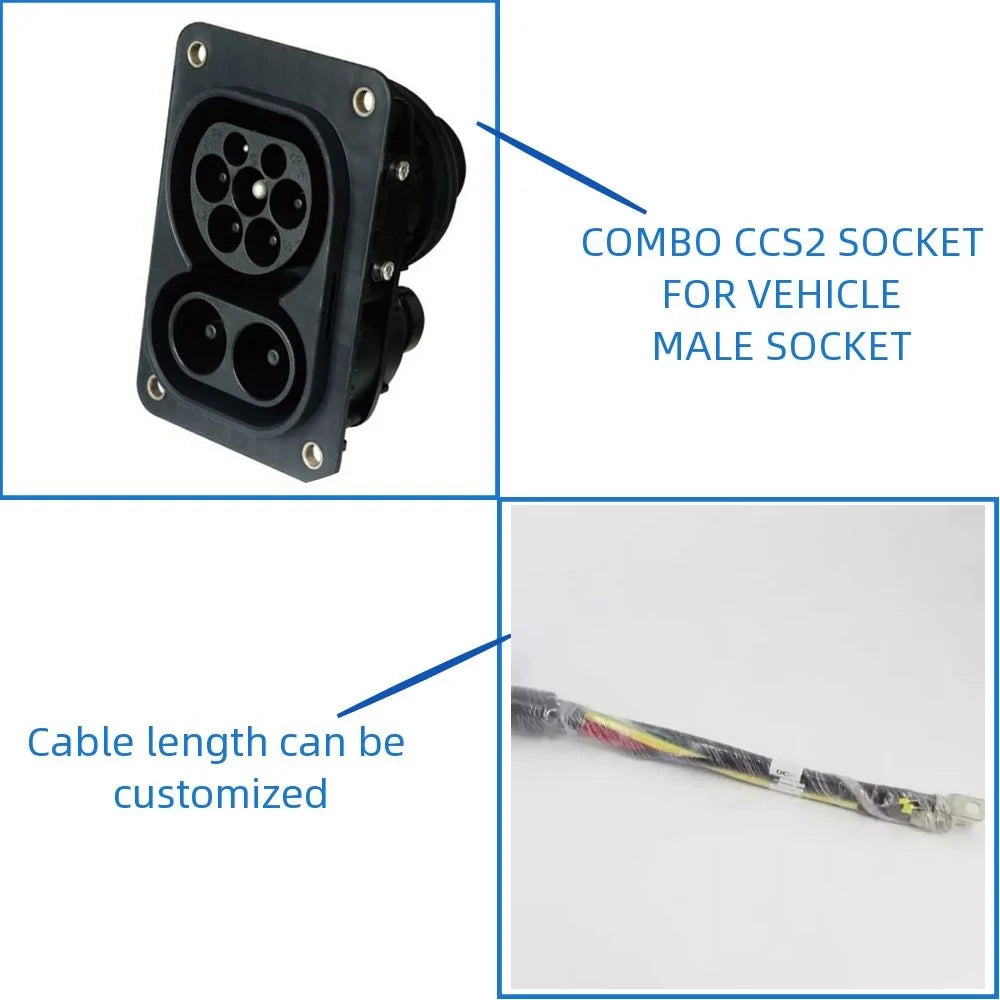

√ 【Variants】 Choose between a version without cable or with a 0.5 m cable. Cable lengths can be adjusted upon request.

√ 【Safety Design】 The marker head has an insulation that prevents direct contact with the hands.

√ 【Protection】 Protection class IP55 against dust and water.

√ 【Electrical Power】 Rated current: 80A/125A/150A/200A DC, maximum DC power: 127.5 kW, maximum AC power: 41.5 kW.

√ 【Durability】 Service life: over 10,000 cycles without load. High voltage resistance and insulation.

Option

80A
125A
150A
200A
80A With 0.5 m Cable
125A With 0.5 m Cable
150A With 0.5 m Cable
200A With 0.5 m Cable

Sicheres Auschecken garantiert

Aktie::

Email: sale@noeifevo.de

Whatsapp: Kontaktieren Sie uns

For this outlet, we offer a version without cable and a version with a 0.5 m cable. Please choose the appropriate version according to your needs. And the length of the cable can be individually adjusted. Please contact us if you need a longer cable.

Features:
Complies with IEC 62196-3 Standard
The pin head features a safety insulation design to prevent accidental direct contact by human hands.
Excellent protective performance, achieving IP55 protection level
Mechanical behavior:
1. Mechanical life: Extraction and insertion without load > 10,000 times
Electrical performance:
1. Rated working DC current: 80A/125A/150A/200A DC
2. Operating voltage: 1000 V DC
3. Maximum DC charging power: 127.5 kW
4. Maximum AC charging power: 41.5 kW

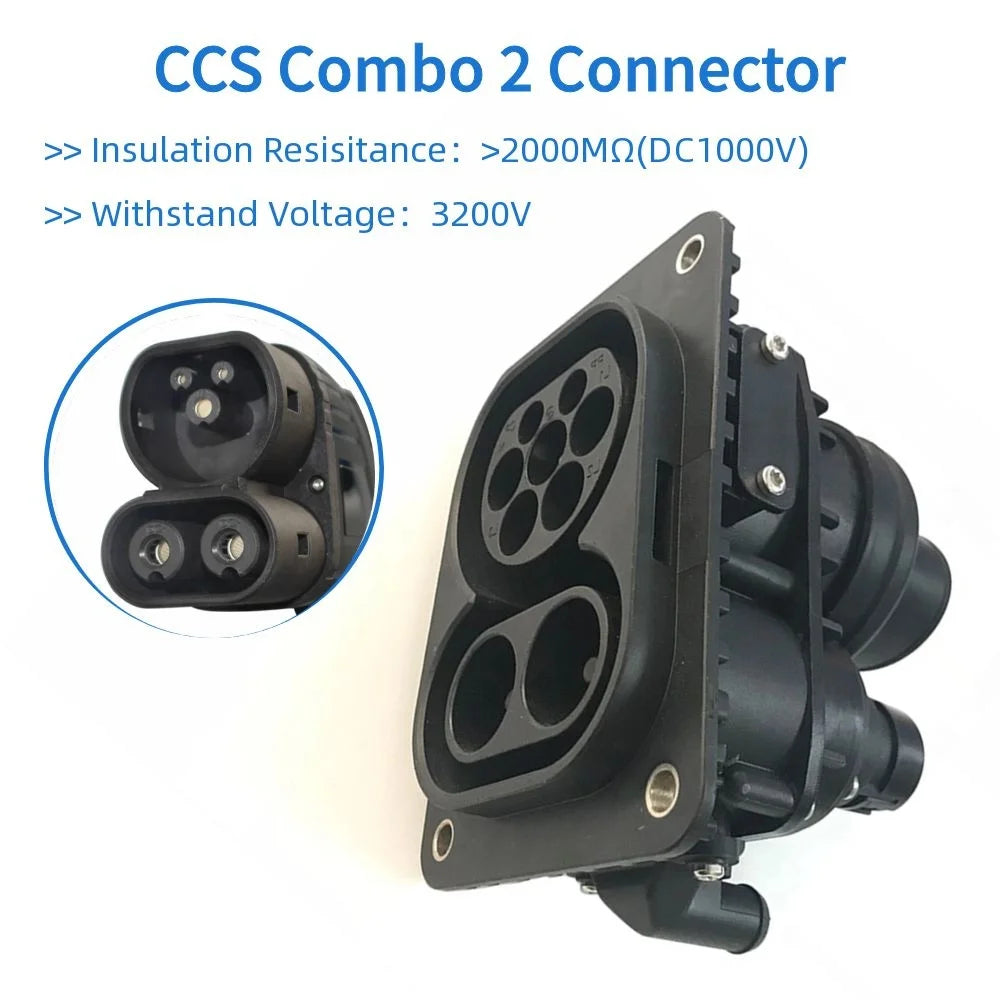

5. Insulation resistance: >2000 MΩ (DC1000 V)
6. Terminal temperature rise: <50 K
7. Withstand voltage: 3200 V
8. Contact resistance: max 0.5 mΩ
Material application:

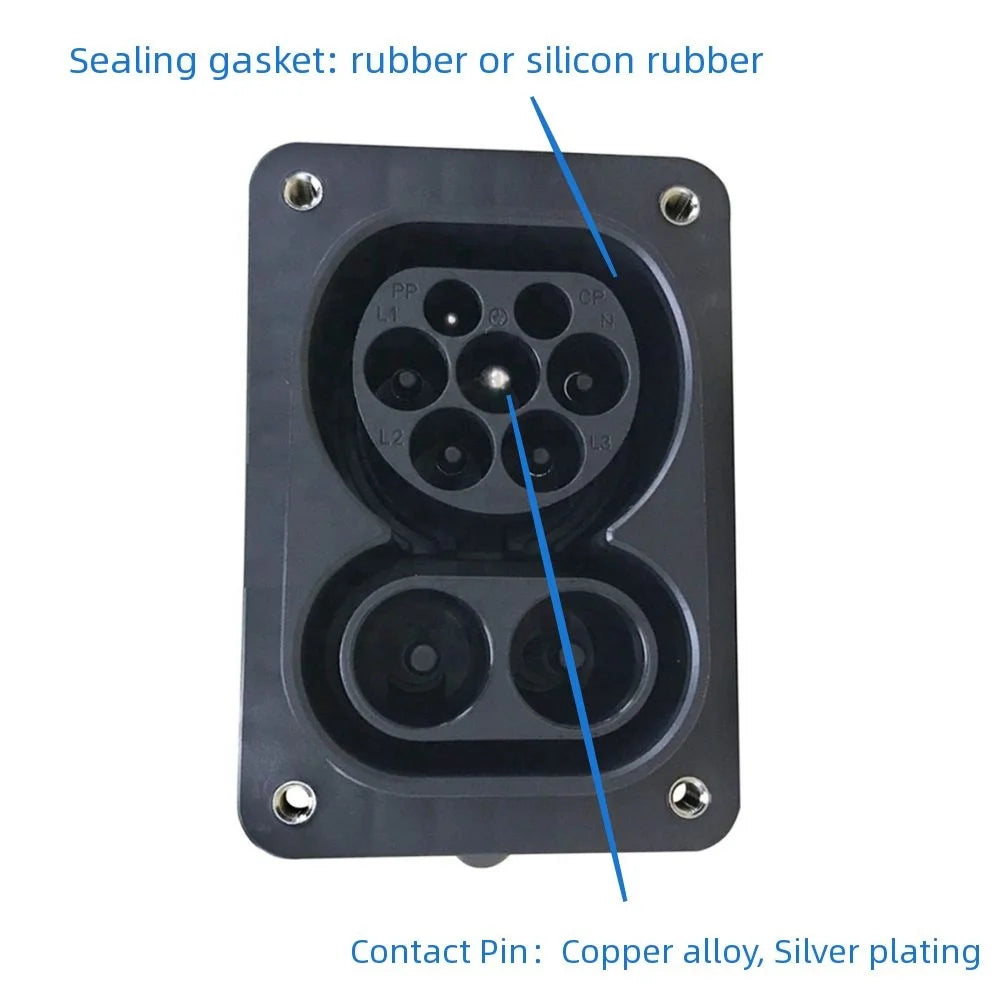

1. Shell material: Thermoplastic, UL94V-0 flame-retardant grade
2. Pin: Copper alloy, silver-plated + top shell thermoplastic
Ambient temperature:
1. Operating ambient temperature: -30℃~+50℃

Packaging list: 1 * CCS2 Charging Socket
