NOEIFE EVO 55.2V-58.8V 2.5A 3A Lead-Acid Battery Charger for 48V Lead-Acid Battery, Cooling Fan, Automatic Shutoff (GREEN)

€52,95

26 auf Lager gelassene Artikel

STECKER TYPE

Anderson 50A
XLR
IEC C13 (3P-Socket)
GX16-2(1+2-)
GX16-3(1+3-)
XT60
XT90
Anderson 45A
Crocodile clutch
DC5.5*2.1/2.5
M25(2+1+5)
M8
M25（2+4）

Battery Type

48V 2.5A
48V 3A

Sicheres Auschecken garantiert

Aktie::

Email: sale@noeifevo.de

Whatsapp: Kontaktieren Sie uns

Due to some batteries with M25 charging connectors that have integrated charging protocols, our charger cannot support batteries with built-in charging protocols. Please confirm with the battery supplier before purchasing whether the battery has an integrated charging protocol.

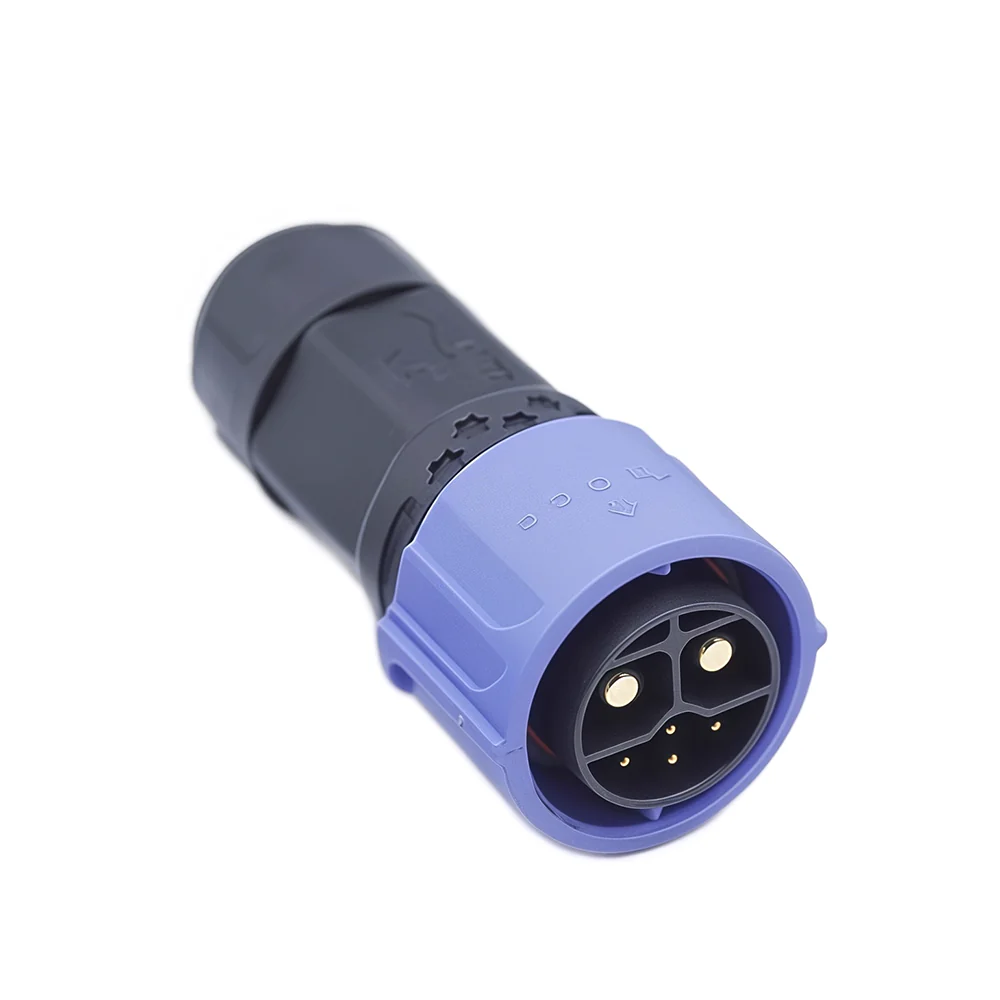

For M25 (2+1+5) and M25 (2+4), the standard polarity is 1+ for positive and 2- for negative. If you require a different polarity, please let us know.

Contact:
You can reach us online or send an email to sale@noeifevo.de.

Before purchasing a charger, please ensure that the battery type, nominal voltage, charging voltage, and acceptable charging current (recommended charging current 0.2C) match those described in the following product description. If you are unsure whether the charger is suitable for your battery, please contact our customer service for assistance.

Specifications
1. Input Voltage: 220V
2. Charging Voltage Range: 55.2V-58.8V (charging voltage for the battery)
3. Charging Method: CC/CV
4. Charging Current: 2.5A - 3A
5. Suitable for: 48V Lead-Acid Battery. (not for Lithium-ion Battery Li-Ion and Lithium Iron Phosphate Battery LiFePO4)
Weight: 0.8kg
Dimensions: 135*90*50 mm
8. Operating Temperature Range: -20°C to +45°C
Efficiency: 87 %
Charger Plug: EU Plug (if you need a different power plug, please contact our customer service)
11. Optional Charging Plugs:Anderson 50A, XLR, IEC C13 (3P plug),GX16-2(1+2-),GX16-3(1+3-)XT60, XT90, Anderson 45A, crocodile clip, DC5.5*2.1/2.5, M25(2+1+5)，M25（2+4）,M8etc. (If the version you need is not listed here, please contact our customer service).
12. High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
Applications: Batteries, Electric Tools, E-Bike, Scooter, etc.

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

Usage:
1. Before use, check if the battery charger matches the type of charger model. If the model does not match, charging may be abnormal and can seriously damage the battery.
2. Connect the battery properly. Do not reverse the polarity! (Red + Black or Brown- Blue + or Red + Blue -).
3. Plug in the power plug into the socket and the charger starts to charge the battery. When the voltage is full, unplug the charger first and then remove the battery plug.

Included:
1 x 48V 3A Charger
