Product Description:

This is a multifunctional charger that is compatible with various battery types. It offers a constant voltage and current mode. Simply set the appropriate charging voltage and current according to the battery type and capacity.

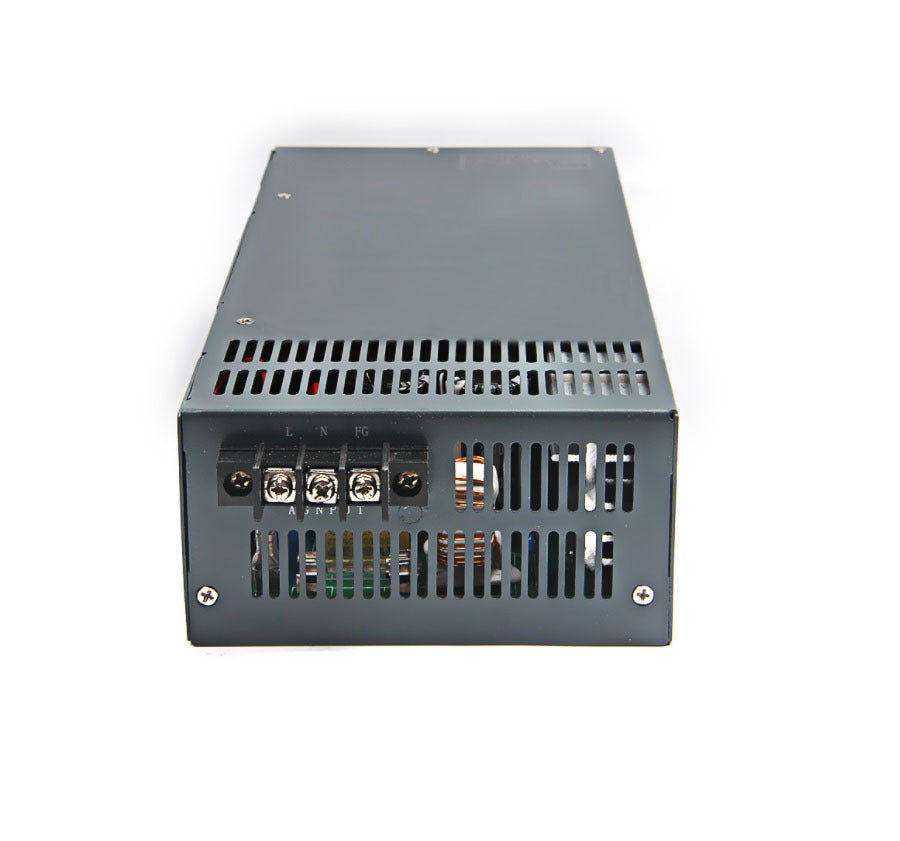

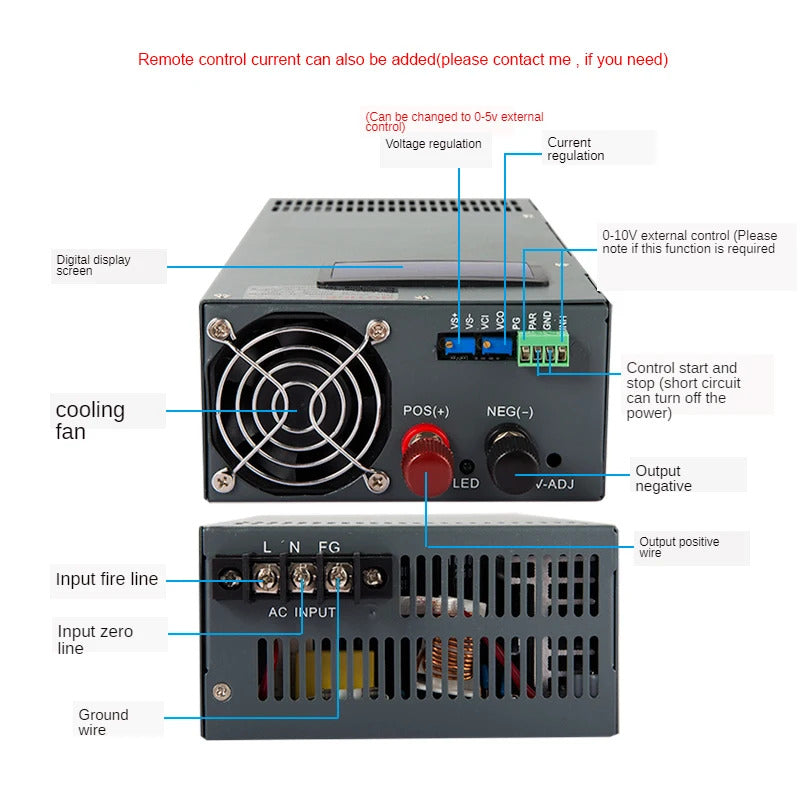

Please note that this charger is designed for professional DIY users and does not include standard power supply. Users must connect the mains supply with live, neutral, and earth wires to the charger. The output of the charger consists of positive and negative terminals. Users need to connect the outlet cables according to their battery connection as no additional outlet cables are included.

This charger supports adjustments, with a maximum charging voltage of 320V. If you require other voltage ranges, please contact our customer service for further information.

Translation 4LCD Display
The LCD display shows real-time charging voltage and the charging process, as well as the set voltage and current values. As the display may show slight deviations, it is recommended to use a multimeter for precise settings.

Translation 4Charging Voltage Range
The maximum supported charging voltage depends on the specification chosen during purchase. For a 0-320V charger, the maximum voltage is 320V.
The charging voltage must be selected before connecting the battery. Once the voltage is set, connect the battery. (Ensure that the charging voltage is correct: A too low voltage can result in incomplete battery charging, while a too high voltage can damage the battery. Always choose the voltage according to your battery specifications.)

Translation 4Charging Current Range
Select an appropriate charging current based on the battery capacity. The recommended charging current usually amounts to 0.2C, calculated by multiplying the battery capacity with 0.2.

Translation 4Battery Connection
Ensure that the positive terminal is connected to the positive and the negative terminal to the negative when connecting the battery.

Translation 4Protection upon Full Charge
Once the battery is fully charged, the charger automatically stops to ensure safe usage and prevent overcharging.

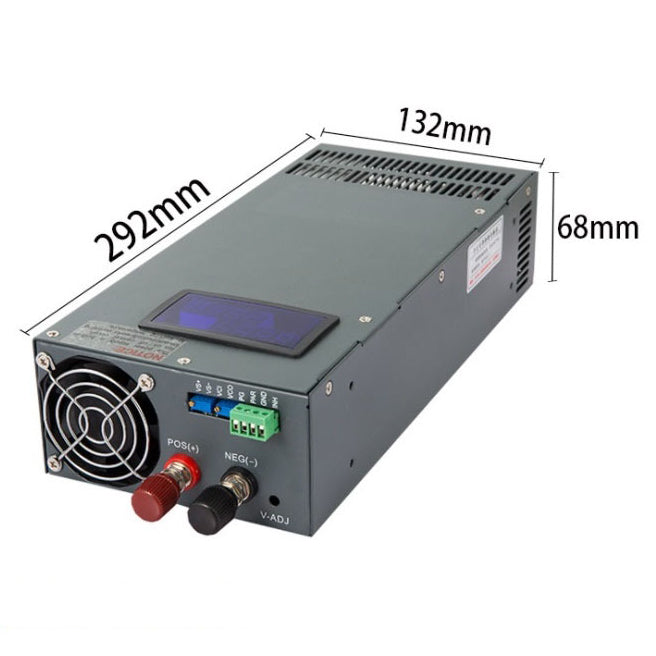

Translation 4Charger dimensions:
292 x 132 x 68 (mm)

Translation 4Weight:
Approximately 3 kg
