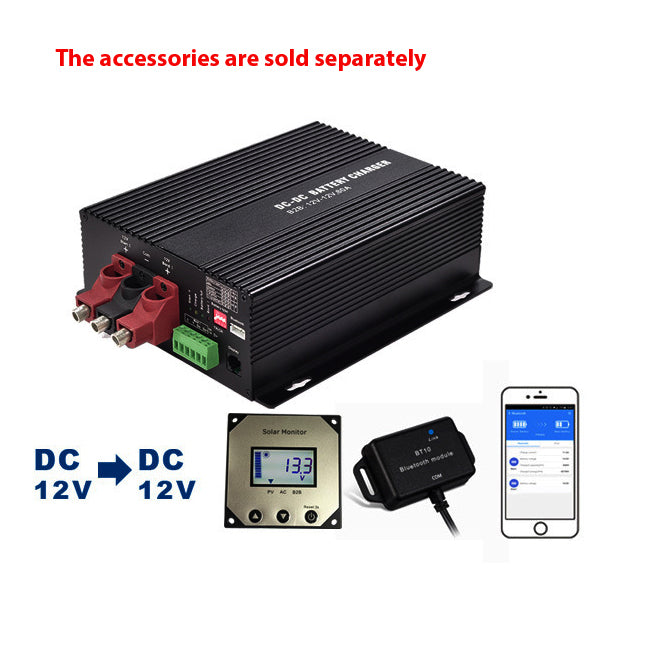

If you need additional accessories, please contact our customer service. The accessories include monitor, Bluetooth module, and NTC cable.

Product Introduction
This is an automatic 12V-DC-DC charger that can charge the main battery via the lighting system and the starter battery. A DC12V-to-DC12V battery charger specifically developed for recreational vehicles, campers, boats, etc.

B2B Customer

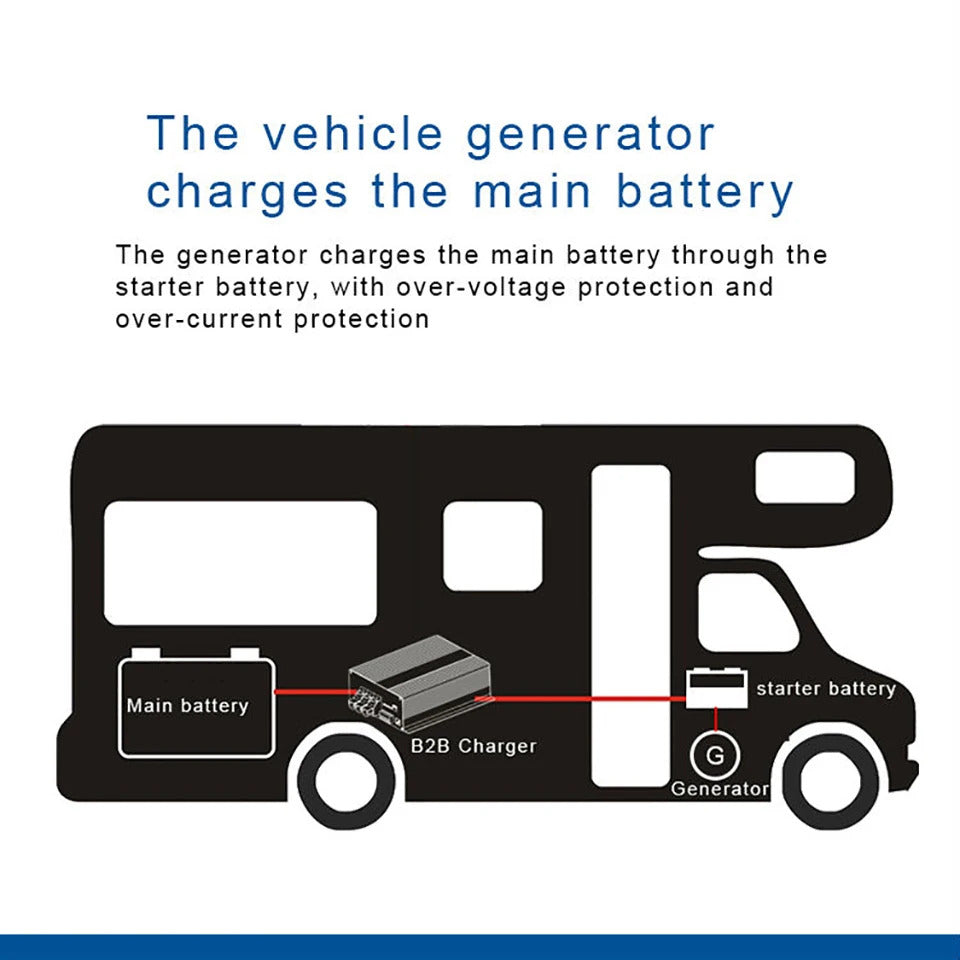

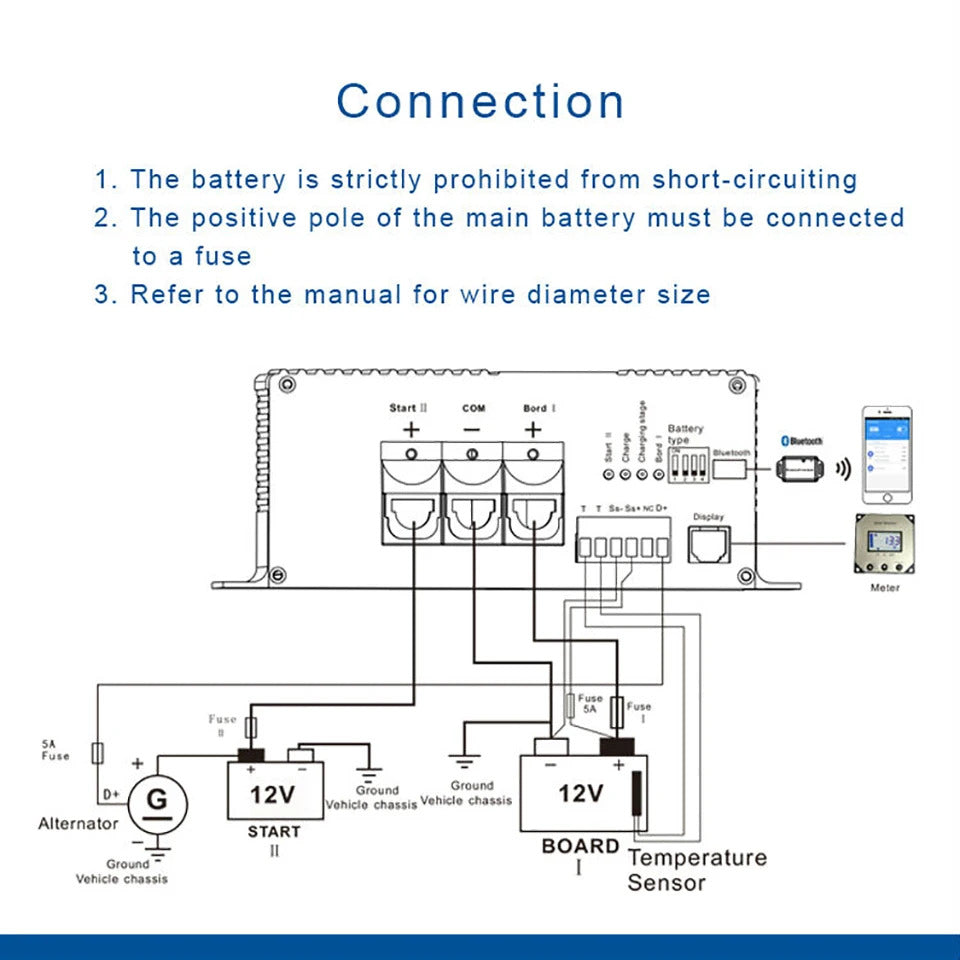

It means charging the main battery via the lighting system and the starter battery. If it is not used in the vehicle, you can also use a battery to charge another battery.

1. When the vehicle is running, the vehicle's lighting system can quickly charge the main battery at full power through the charger.

2. The charger can charge the main battery according to the specified voltage and current strength by amplifying or reducing it to ensure that the main battery meets the standard. Load profile charging

Produktparameter

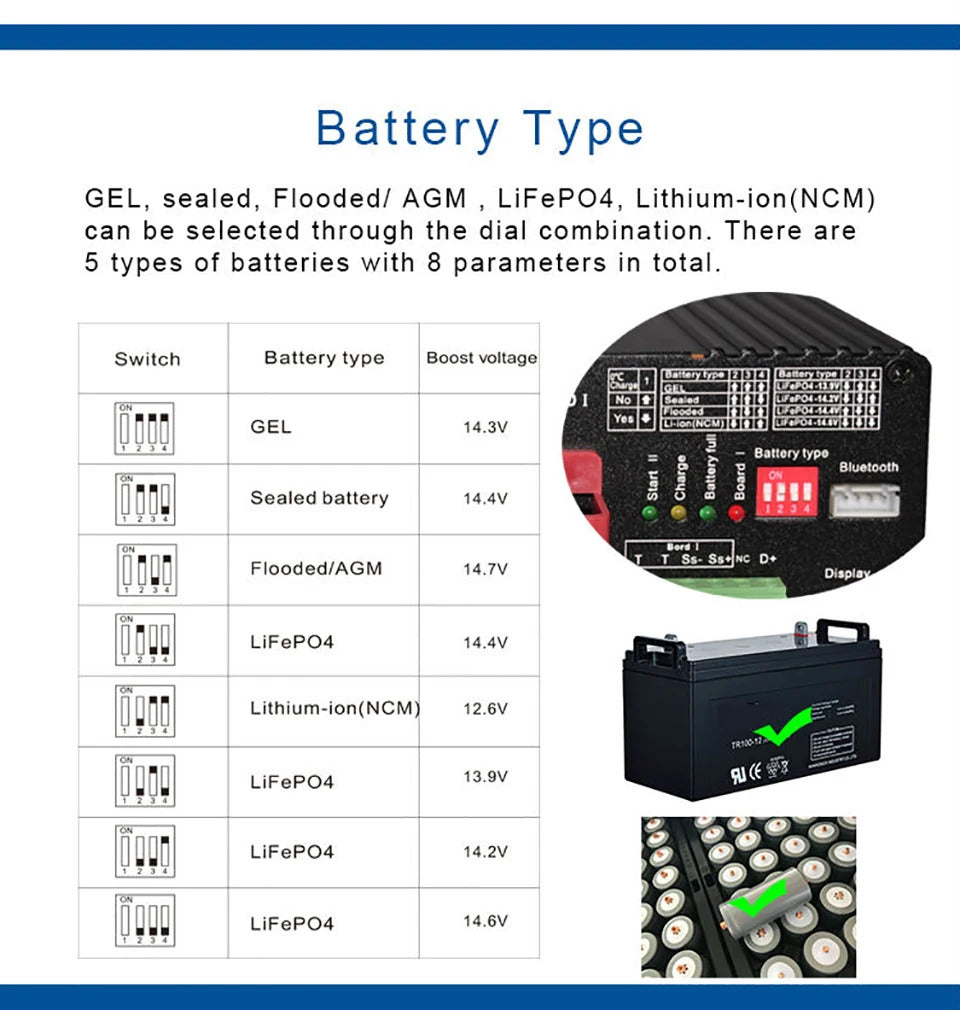

Main Battery “BOARDⅠ”
Blei-Säure-, Gel-, AGM-Batterien Nennspannung: 12 V
LiFePO4 Nennspannung: 12,8 V
Lithium-Ionen (NCM) Nennspannung: 11,1 V
Kapazität (Batteriegröße), empfohlen: 100–520 Ah
Battery Voltage Range: 8–16 V

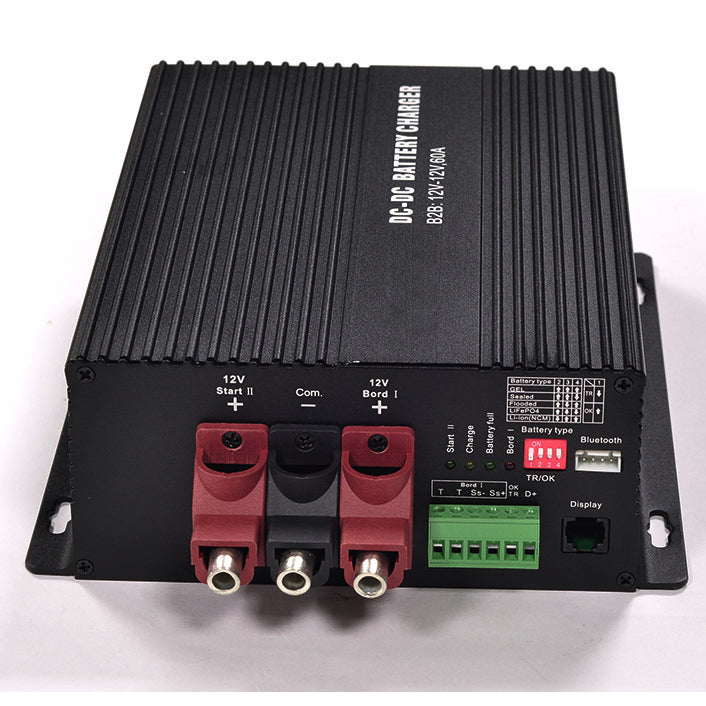

Vehicle Starter Battery “Start II”:
Fahrzeugstarterbatterie Nennspannung: 12 V
Kapazität (Batteriegröße), empfohlen: 80–100 Ah
B2B Ladevorgang
Starterbatterie-Spannungsbereich: 10,5–16 V
Max. Ladeleistung: 780 W
Max. Ladestrom: 60 A
„D+“-Signalspannung: 8–16 V
Temperaturkompensation: 3 mv/℃/2 V
„TR“-Signal: NC
Main Battery Temperature Sensor “T T”: YES
Main Battery Voltage Detection “SS-, SS+”: YES
Standby Strom: 32±2 mA
Betriebstemperatur: 20-50℃

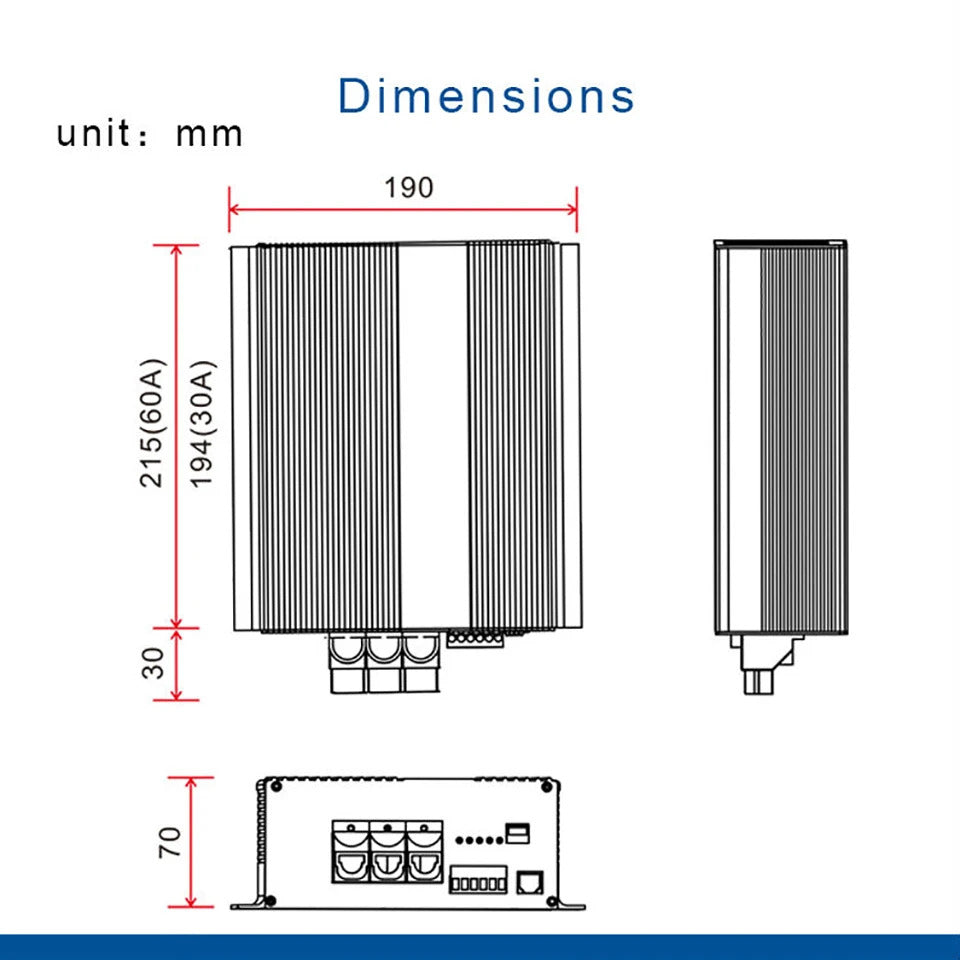

Abmessungen: 190x215x70mm
Zubehör: Monitor (MT-2) Optional
BT-Modul: (BT10) Optional

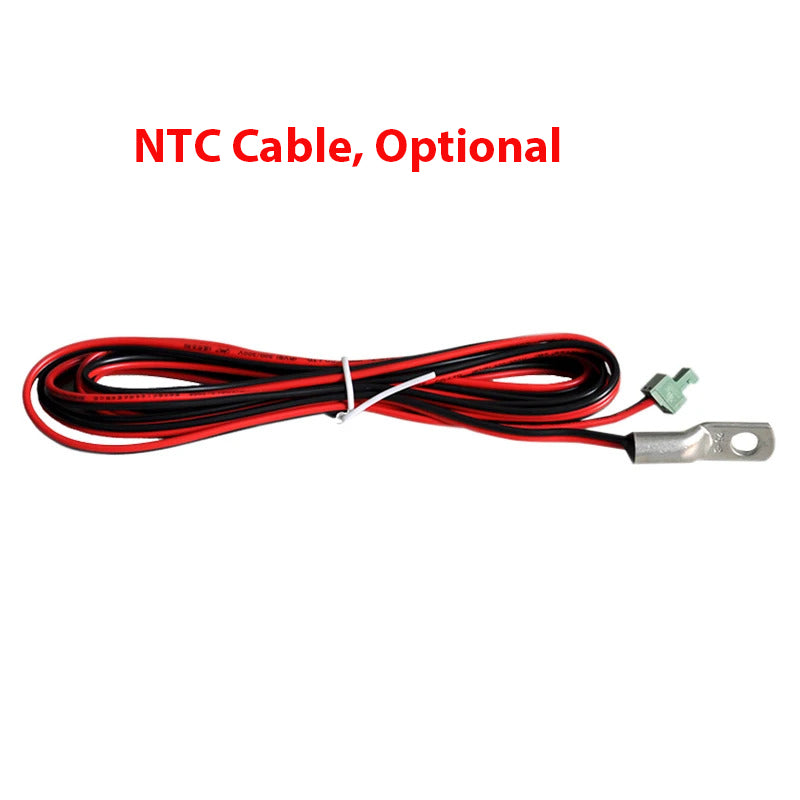

Temperatursensor (NTC TRS) Optional
