Bevor Sie ein Ladegerät kaufen, überprüfen Sie bitte, ob der Batterietyp, die Nennspannung, die Ladespannung und der akzeptable Ladestrom (empfohlener Ladestrom 0,2C) mit der Produktbeschreibung übereinstimmen. Wenn Sie sich nicht sicher sind, ob das Ladegerät für Ihre Batterie geeignet ist, wenden Sie sich bitte an unseren Kundenservice zur Unterstützung.

Specifications

1. Input Voltage: 220V
Starting voltage: 14.6 V (the charging voltage for the battery)
3. Charging Method: CC/CV
4. Charging Current: 20 A
Suitable for: 4S 12 V 12.8 V LiFePO4 battery (not for lead-acid batteries)

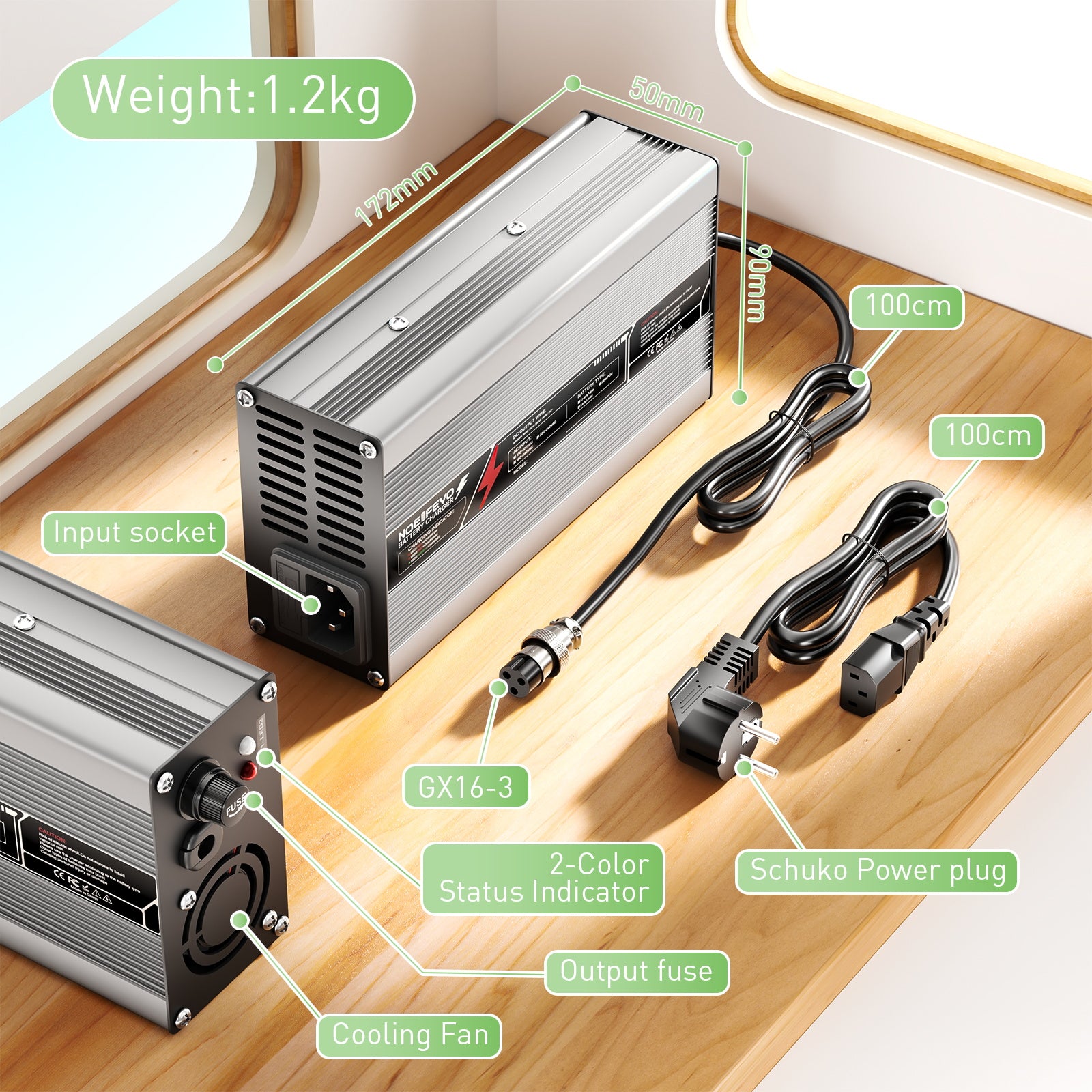

6. Weight: 1.2 kg
7. Dimensions: 172 x 90 x 50 mm

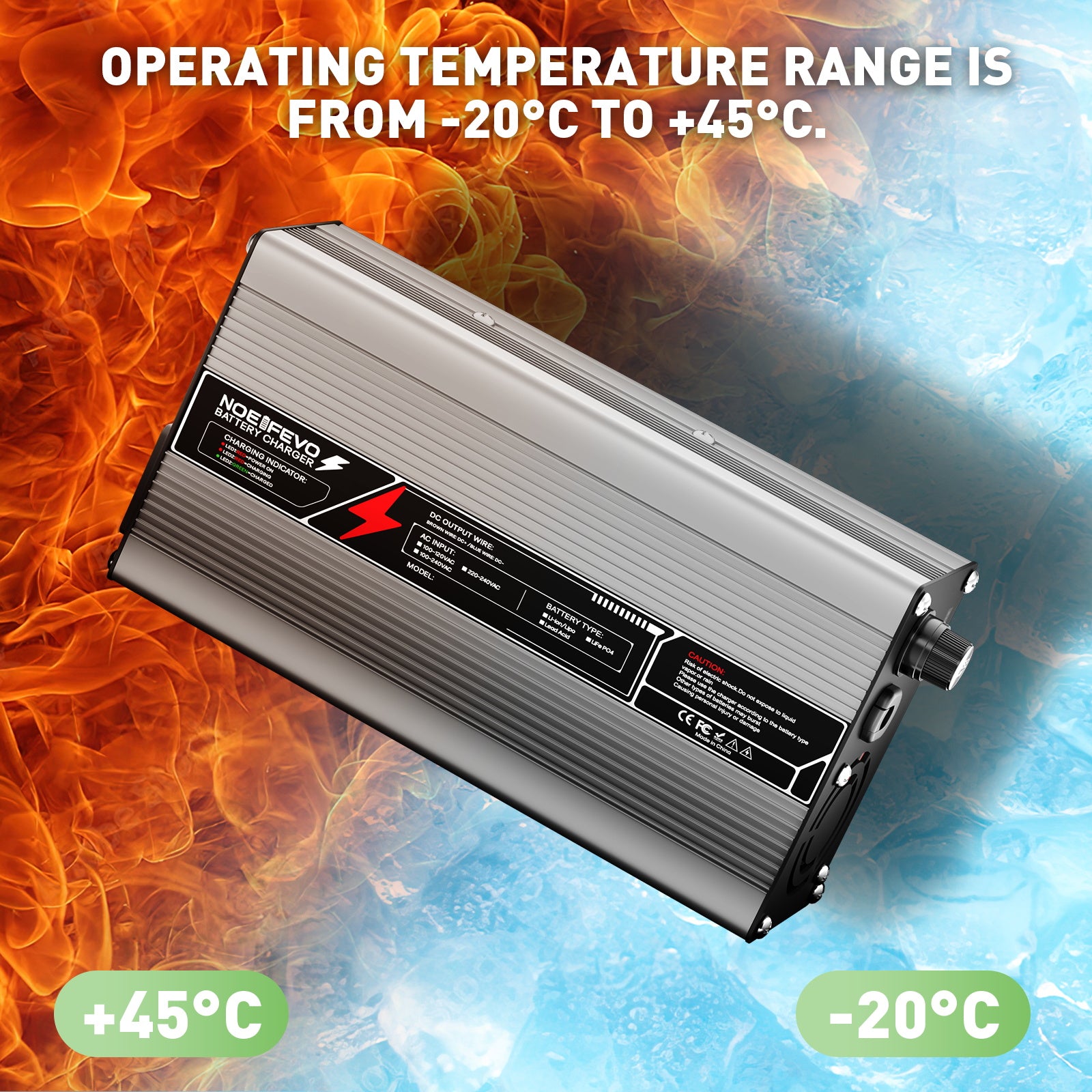

8. Operating Temperature Range: -20°C to +45°C
Efficiency: 85 %
Charger Plug: EU Plug (if you need a different power plug, please contact our customer service)

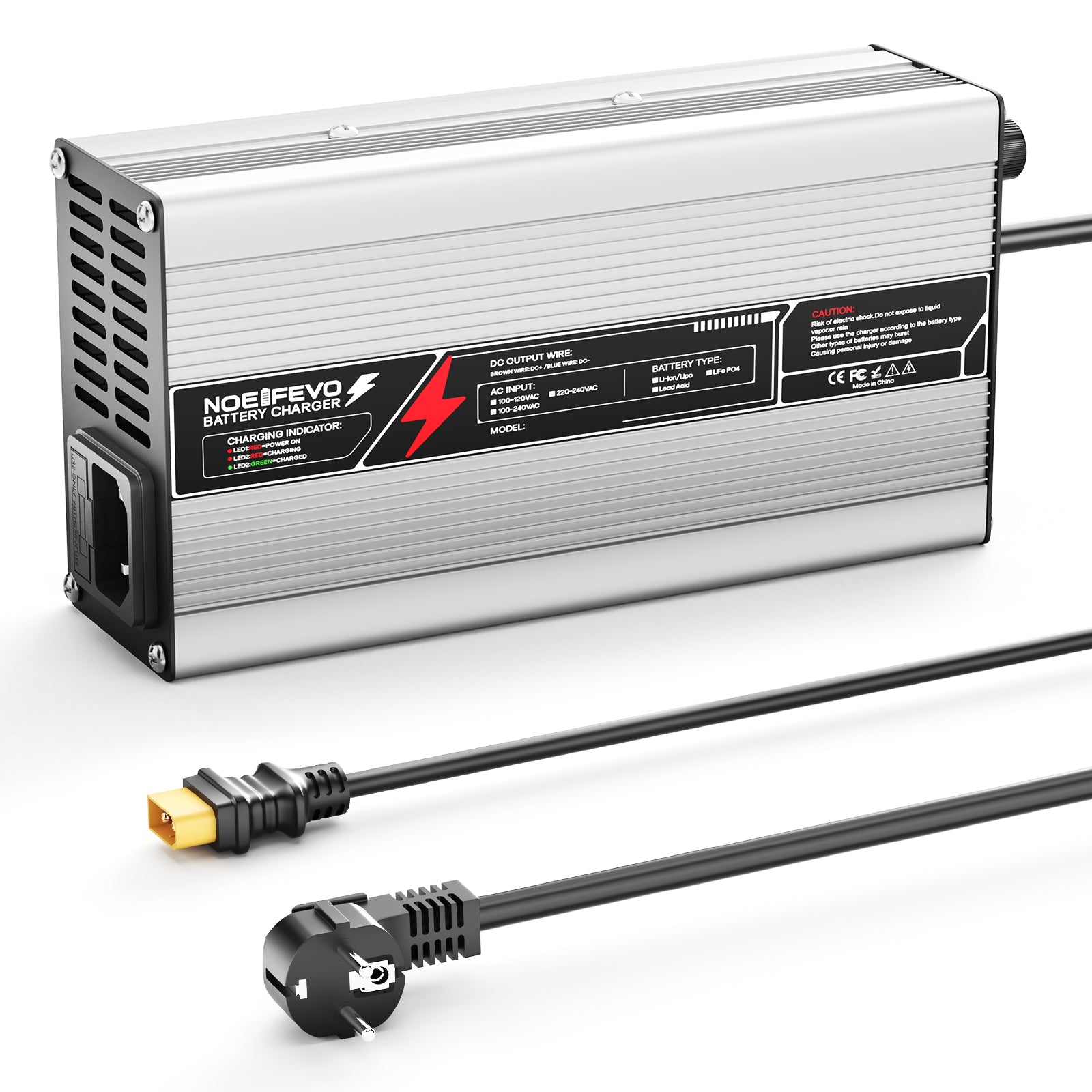

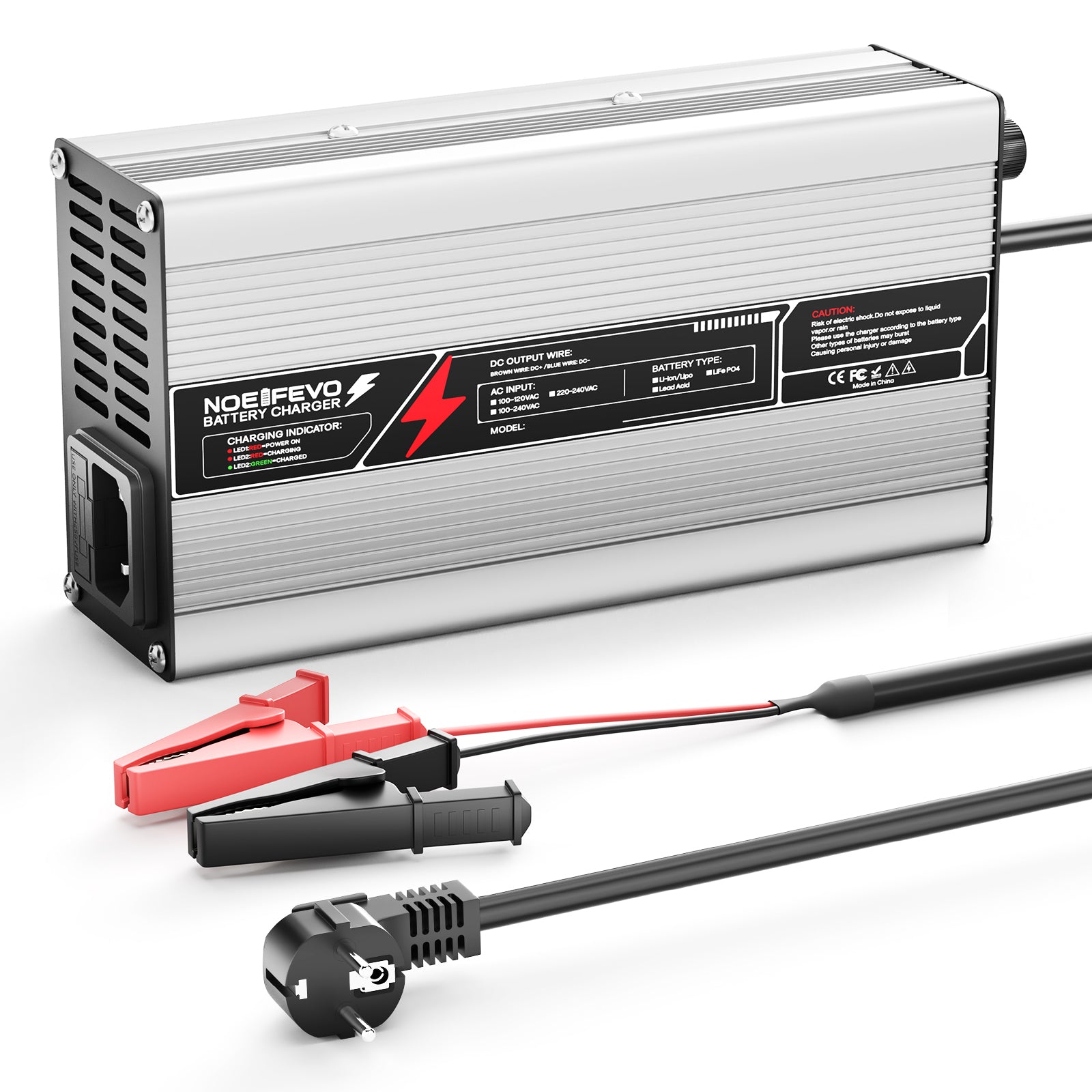

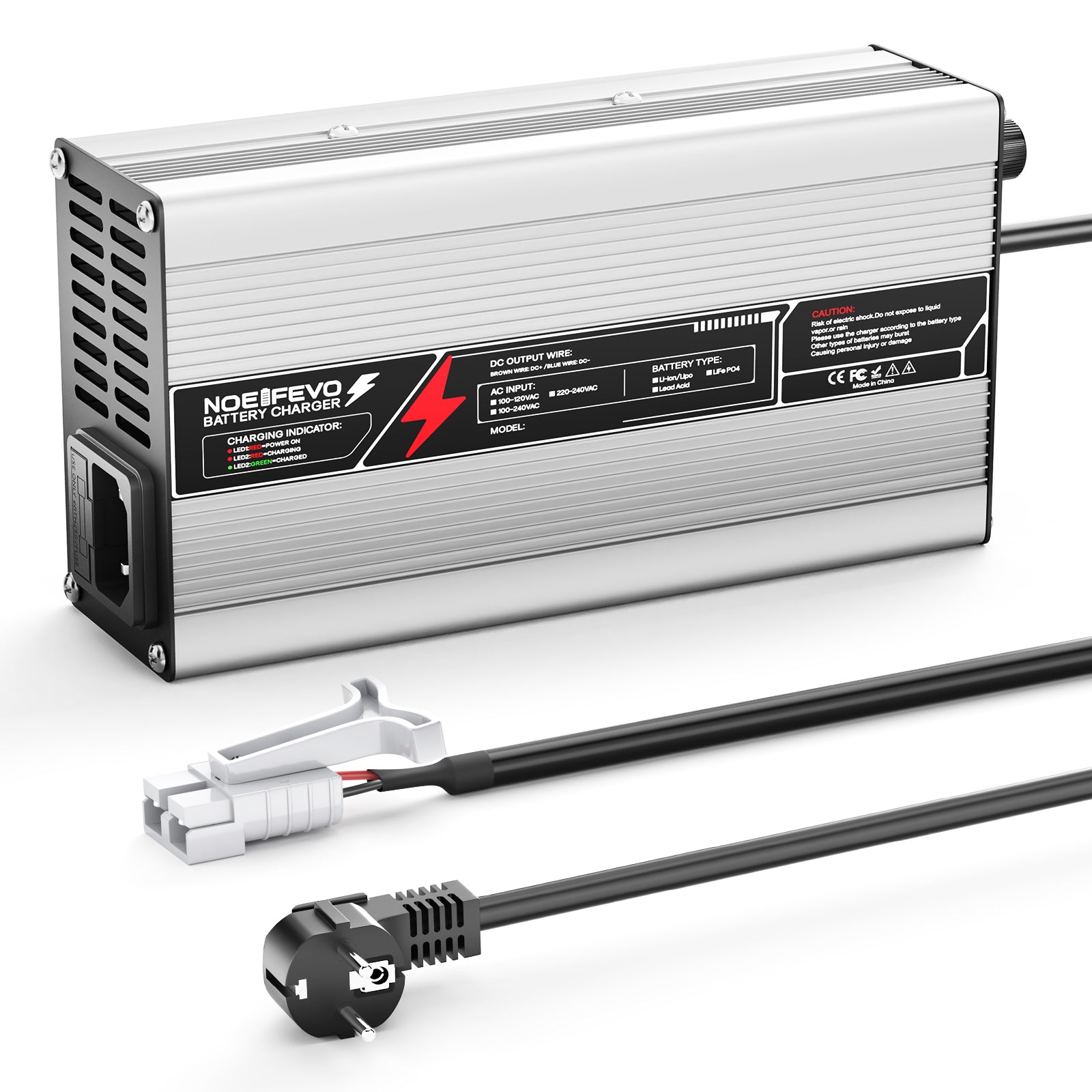

11. Optional Charging Plugs:XT60, XT90, Anderson 50 A, Anderson 45A Crocodile Clip, M8 etc.(If the version you require is not listed here, please contact our customer service.)

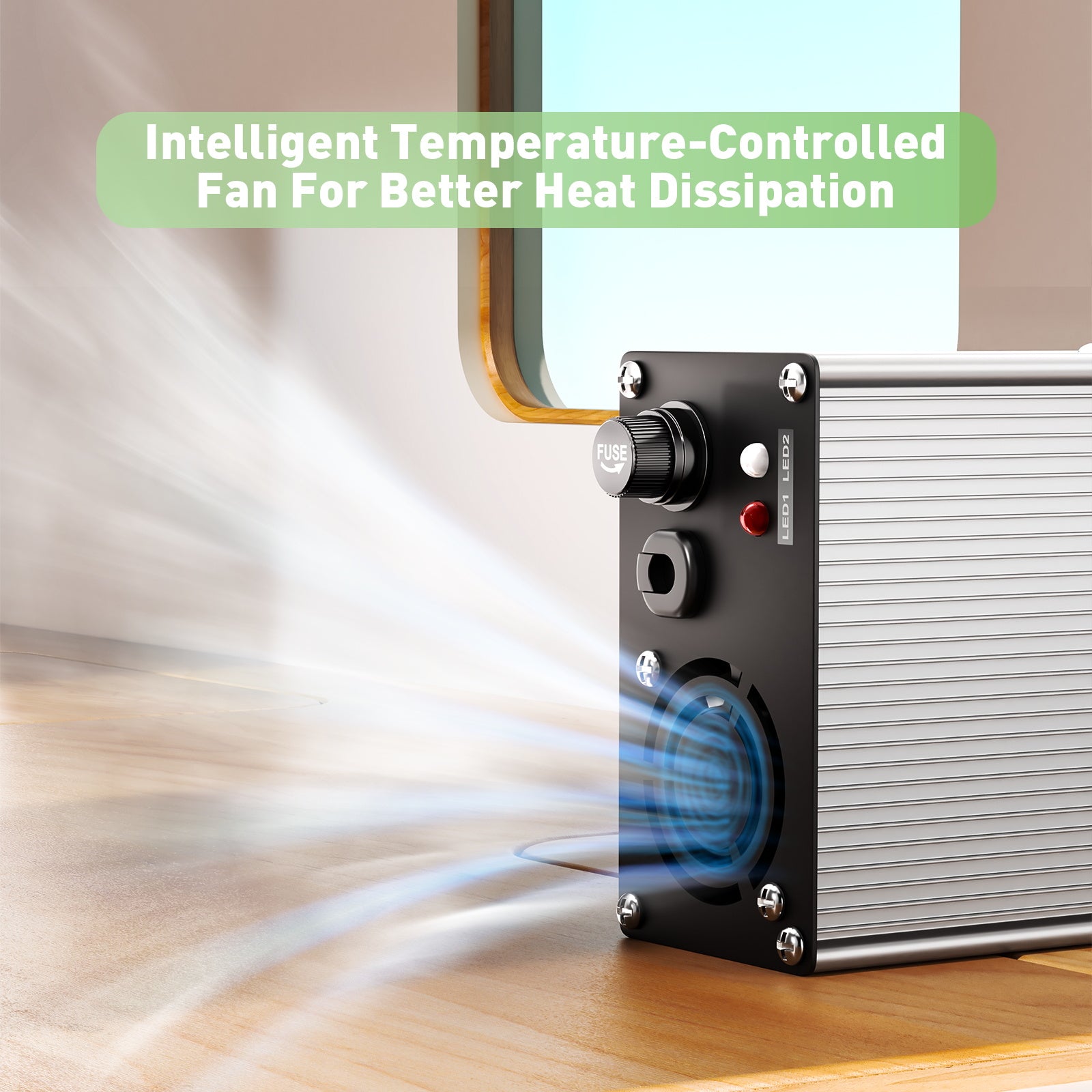

High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
Applications: Batteries, electric tools, e-bikes, scooters, electric vehicles, cars, golf carts, robots, etc.

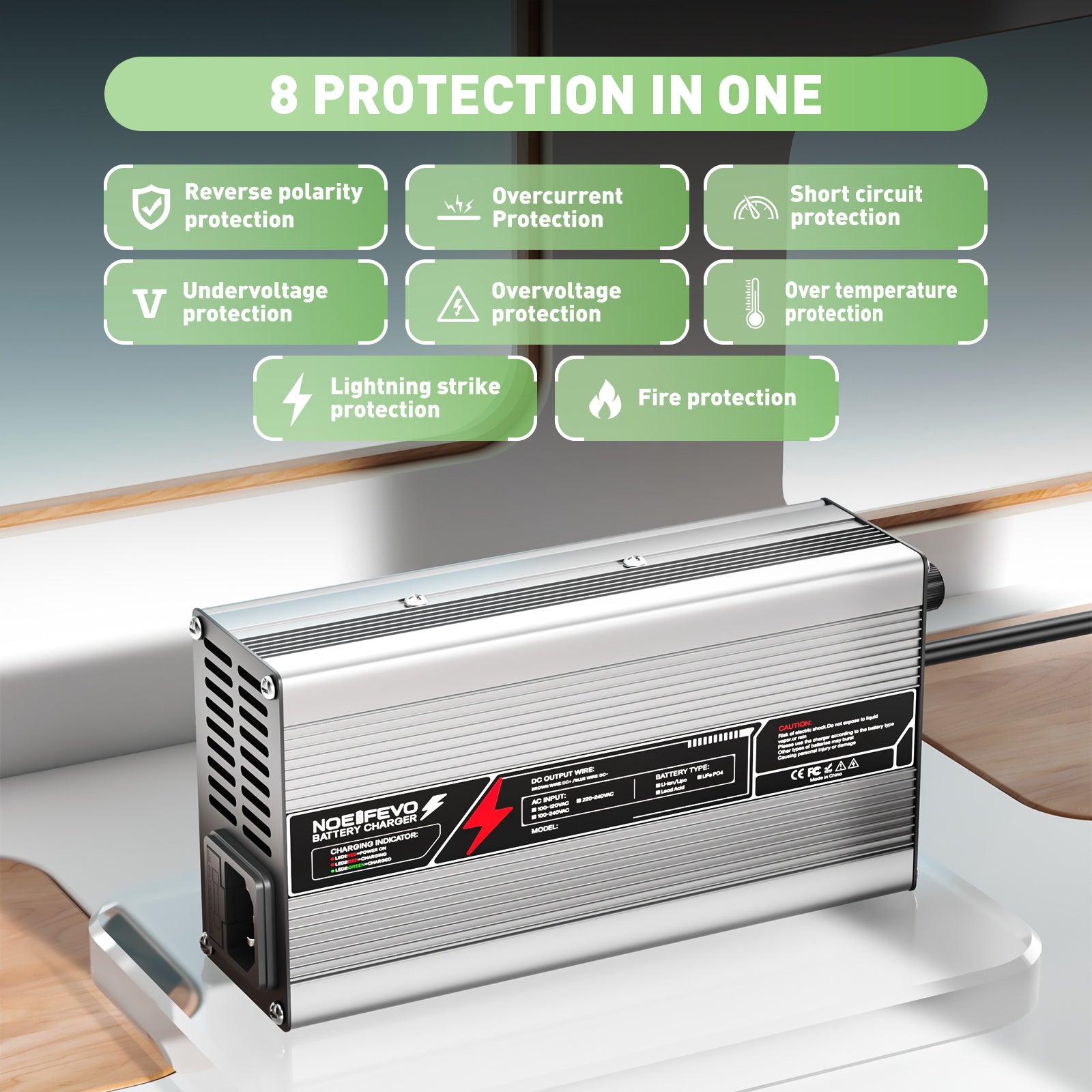

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

Usage:
1. Before use, check if the battery charger matches the type of charger model. If the model does not match, charging may be abnormal and can seriously damage the battery.
The battery must be connected correctly. Do not reverse the polarity! (Red + Black or Brown- Blue + or Red + Blue -).
Then plug in the wall socket and the charger starts charging the battery.
4. Once the voltage is full, first unplug the charger and then remove the battery plug.

Included:

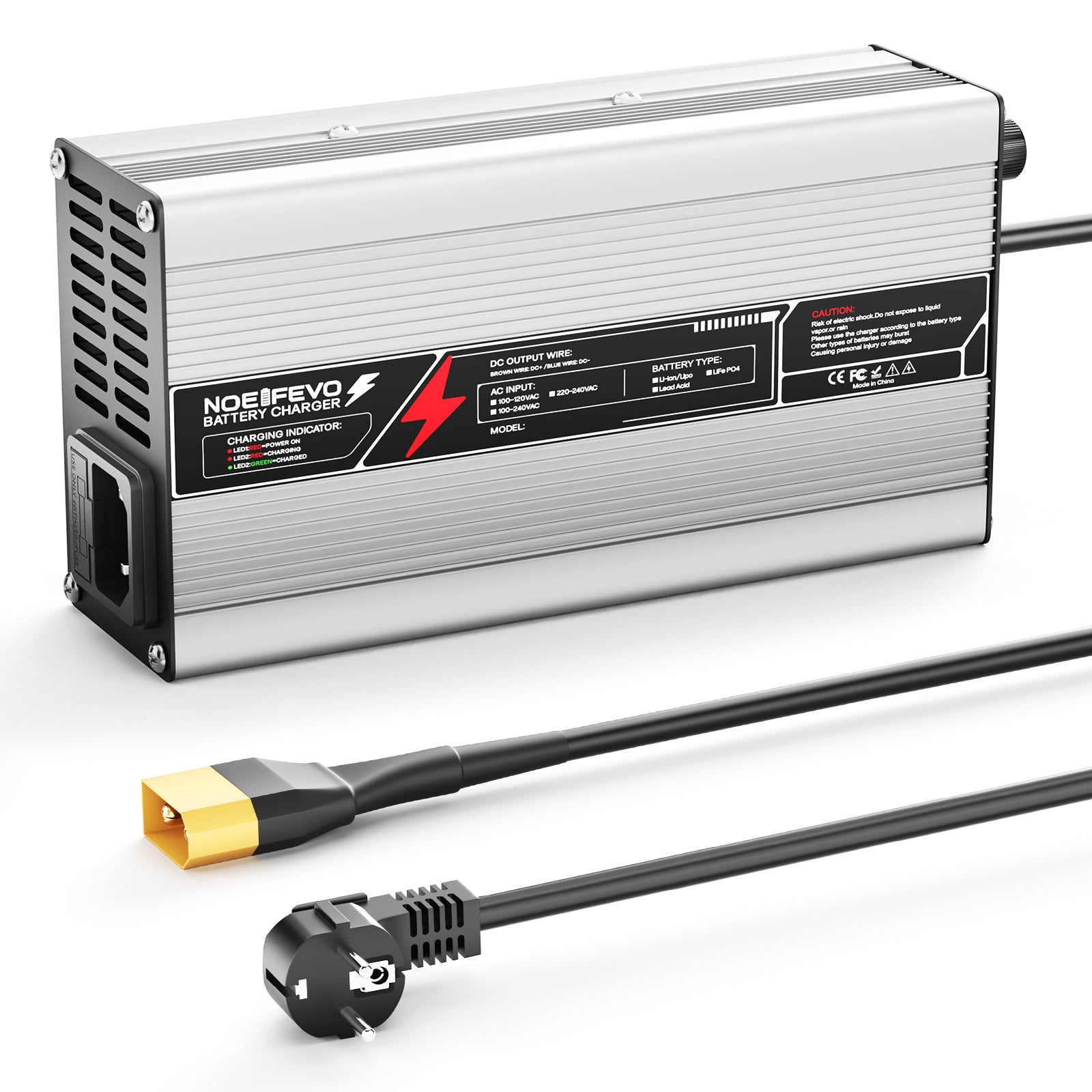

1 x 14.6 V 20 A Charger
