NOEIFEVO 16.8V 10A Lithium Charger for 4S 14.8V Li-Ion Lipo Batteries, with LCD Display, Cooling Fan, Automatic Shutdown

€52,95

26 auf Lager gelassene Artikel

STECKER TYPE

Anderson 50A
XLR
IEC C13 (3P-Socket)
GX16-2(1+2-)
GX16-3(1+3-)
XT60
XT90

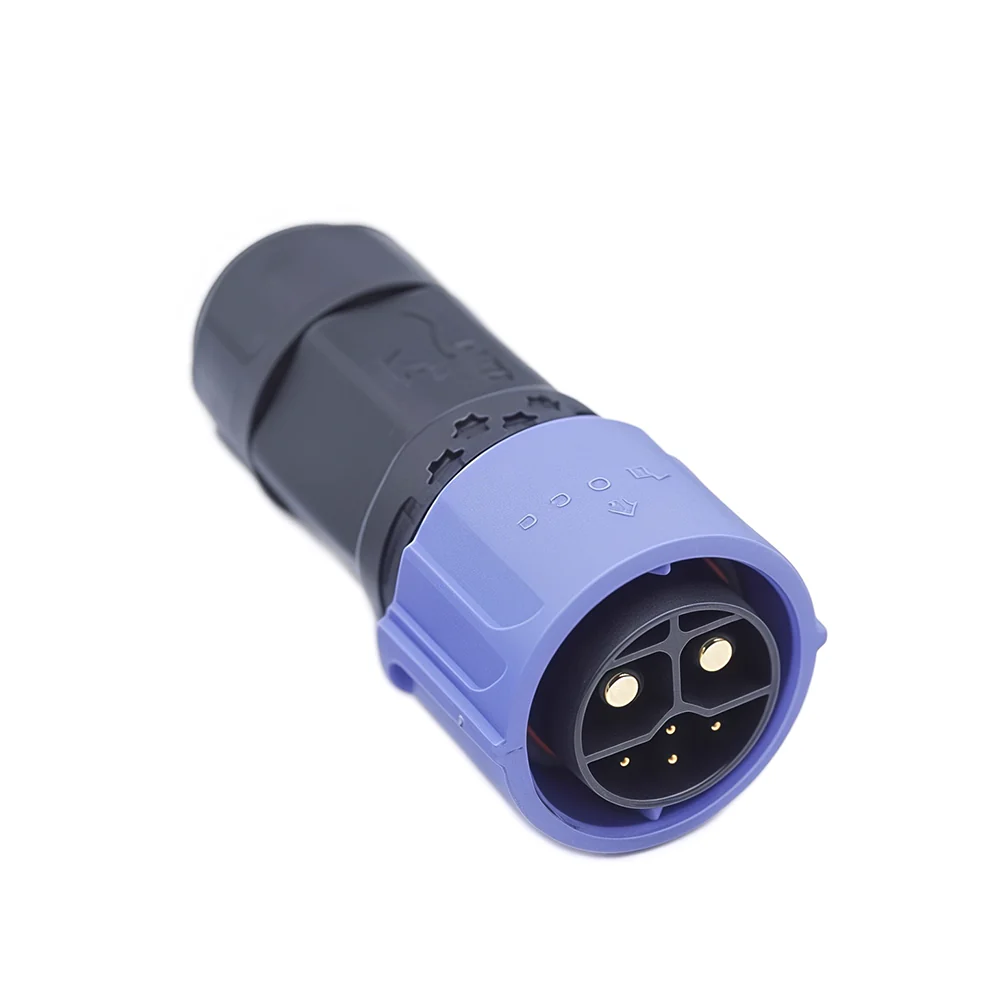

M25(2+1+5)
Anderson 45A
Crocodile clutch
M8
M25（2+4）

Sicheres Auschecken garantiert

Aktie::

Email: sale@noeifevo.de

Whatsapp: Kontaktieren Sie uns

Due to certain batteries with M25 charging ports that have integrated charging protocols, our charger cannot support batteries with built-in charging protocols. Please confirm with the battery supplier before purchasing whether the battery has an integrated charging protocol.

For M25 (2+1+5) and M25 (2+4), the standard polarity is 1+ for positive and 2- for negative. If you need a different polarity, please let us know.

Contact options:
You can reach us online or send an email to sale@noeifevo.de.

Before purchasing a charger, please ensure that the battery type, nominal voltage, charging voltage, and acceptable charging current (recommended charging current 0.2C) match those described in the following product description. If you are unsure whether the charger is suitable for your battery, please contact our customer service for assistance.

Specifications
1. Input Voltage: 220V
Starting voltage: 16.8V (the charge voltage for the battery)
3. Charging Method: CC/CV
Charging current: 10A
Suitable for: 4S 14.8V Lithium battery. (not for lead-acid battery)
6. Weight: 0.8kg
7. Dimensions: 135*90*50mm
8. Operating Temperature Range: -20°C to +45°C
9. Efficiency: 85%
10. Charging Plug: EU-Schuko plug (if you need a different type of power outlet, please contact our customer service for assistance)
11. Optional Charging Plugs:Anderson 50A, XLR, IEC C13 (3P plug),GX16-2(1+2-),GX16-3(1+3-)XT60, XT90, M25(2+1+5)，M25（2+4）,Anderson 45A, Crocodile clip, M8etc.(If the version you need is not listed here, please contact our customer service).
With the LED display, all charging data can be shown in real time.
High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
14. Applications: batteries, power tools, ebike, scooter, electric vehicles, cars, golf carts, robots, etc.

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

How to Use:
1. Before use, check whether the battery charger matches the type of your charger model. If the model does not match, the charging process may be abnormal and the battery can be seriously damaged.
2. The battery must be connected correctly. Do not reverse polarity! (Red + Black- or Brown- Blue+ or Red + Blue -).
3. Then plug in the power outlet into the socket; the charger will begin to charge the battery.
4. Once the voltage is full, first unplug the charger and then remove the battery plug.

Package List
1*16.8V 10A charger
