Bevor Sie ein Ladegerät kaufen, überprüfen Sie bitte, ob der Batterietyp, die Nennspannung, die Ladespannung und der akzeptable Ladestrom (empfohlener Ladestrom 0,2C) mit der Produktbeschreibung übereinstimmen. Wenn Sie sich nicht sicher sind, ob das Ladegerät für Ihre Batterie geeignet ist, wenden Sie sich bitte an unseren Kundenservice zur Unterstützung.

Specifications
1. Input Voltage: 220V
Starting voltage: 16.8V (charging voltage for the battery)
3. Charging Method: CC/CV
4. Charging Current: 20A

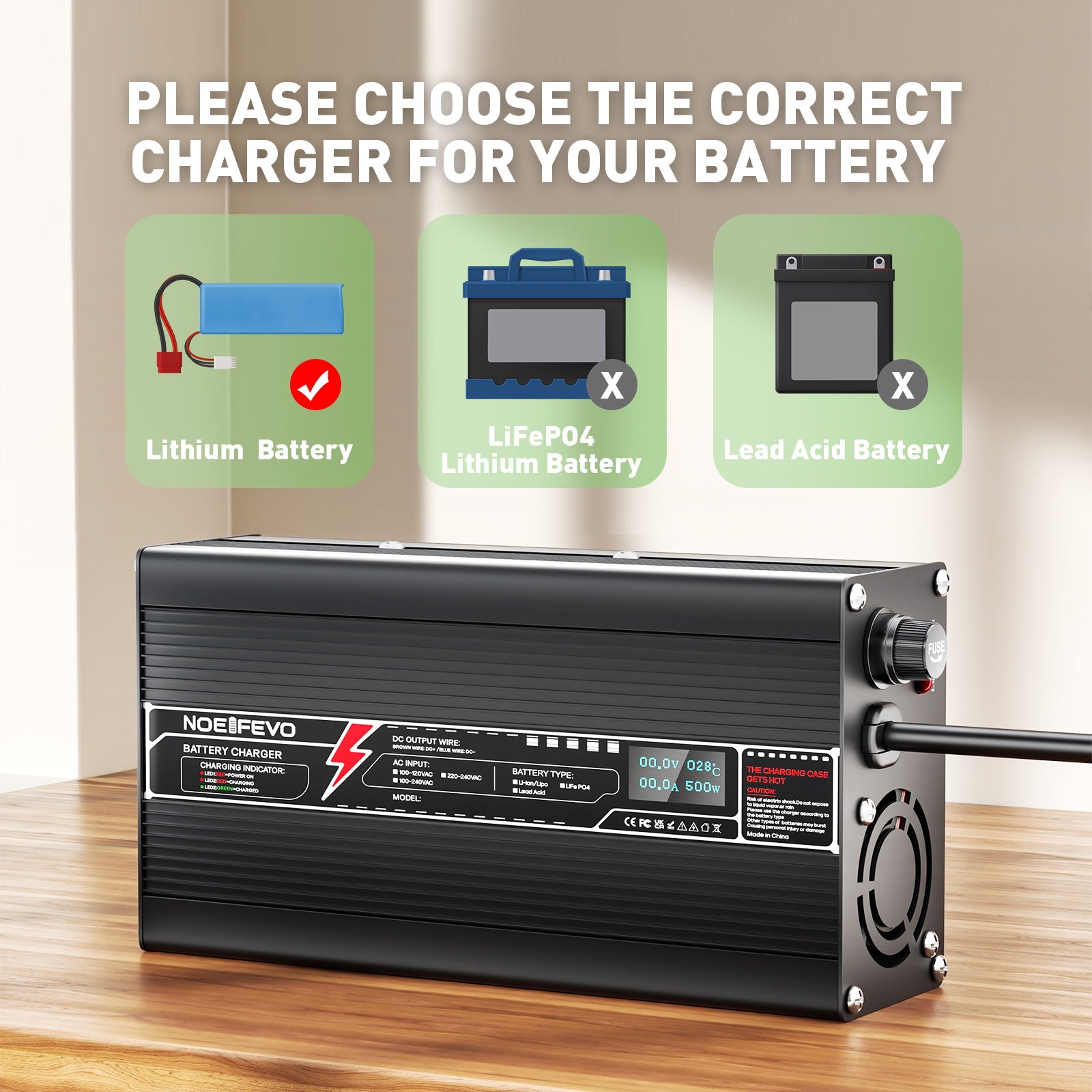

Suitable for: 4S 14.8V Lithium Battery (not for lead-acid batteries)
6. Weight: 1.2 kg

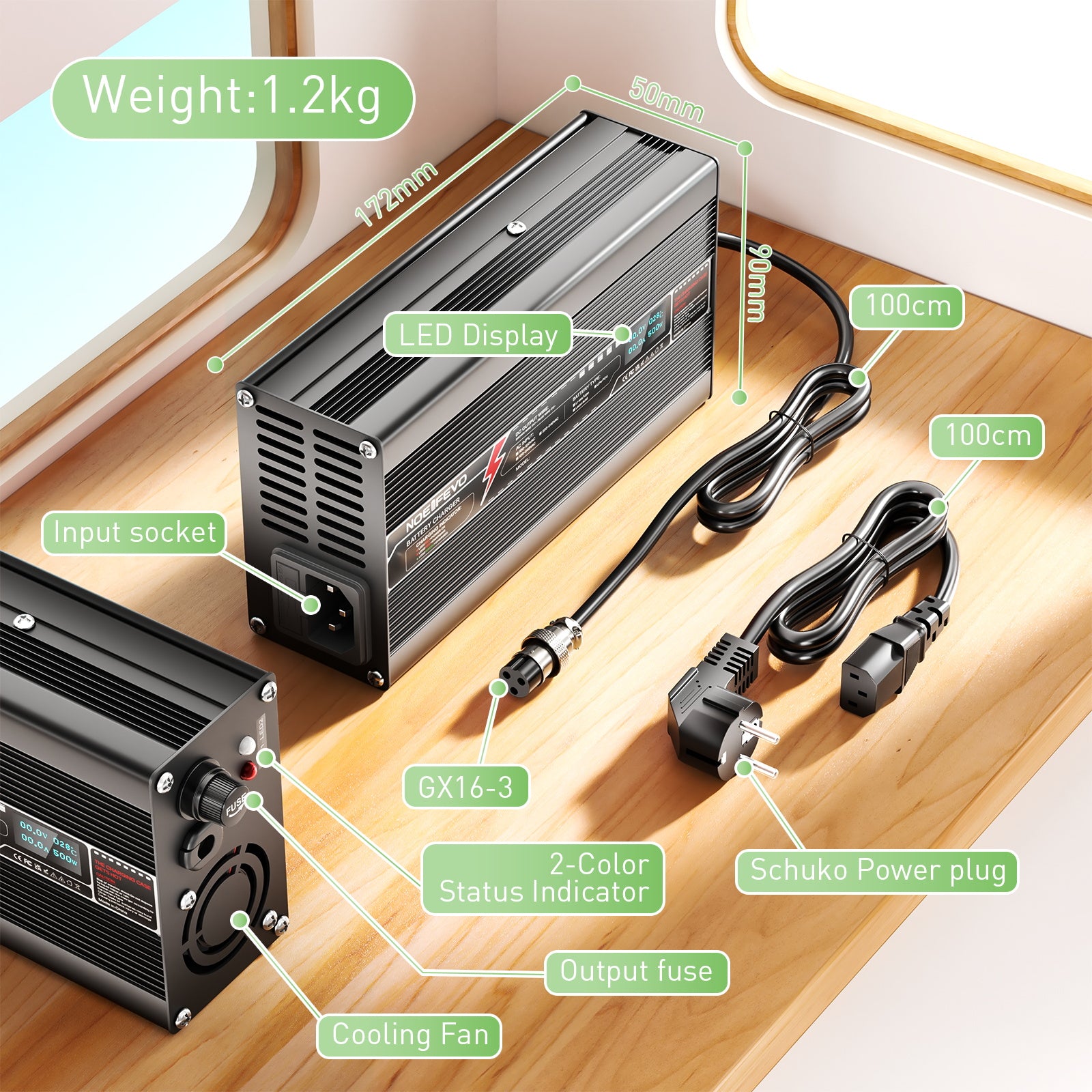

7. Dimensions: 170 x 90 x 50 mm

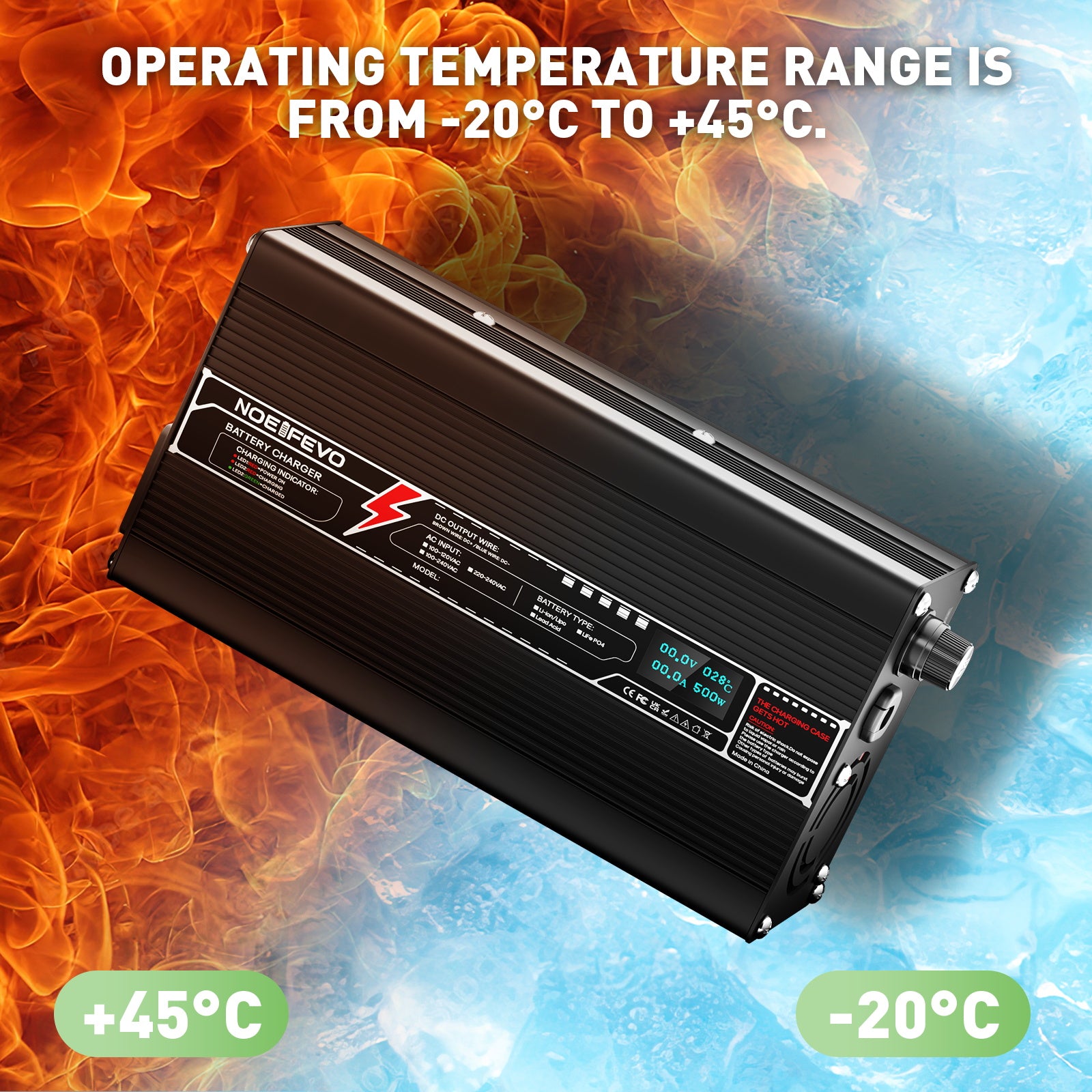

8. Operating Temperature Range: -20°C to +45°C
9. Efficiency: > 85 %
Charger Plug: EU Plug (if you need a different power plug, please contact our customer service)

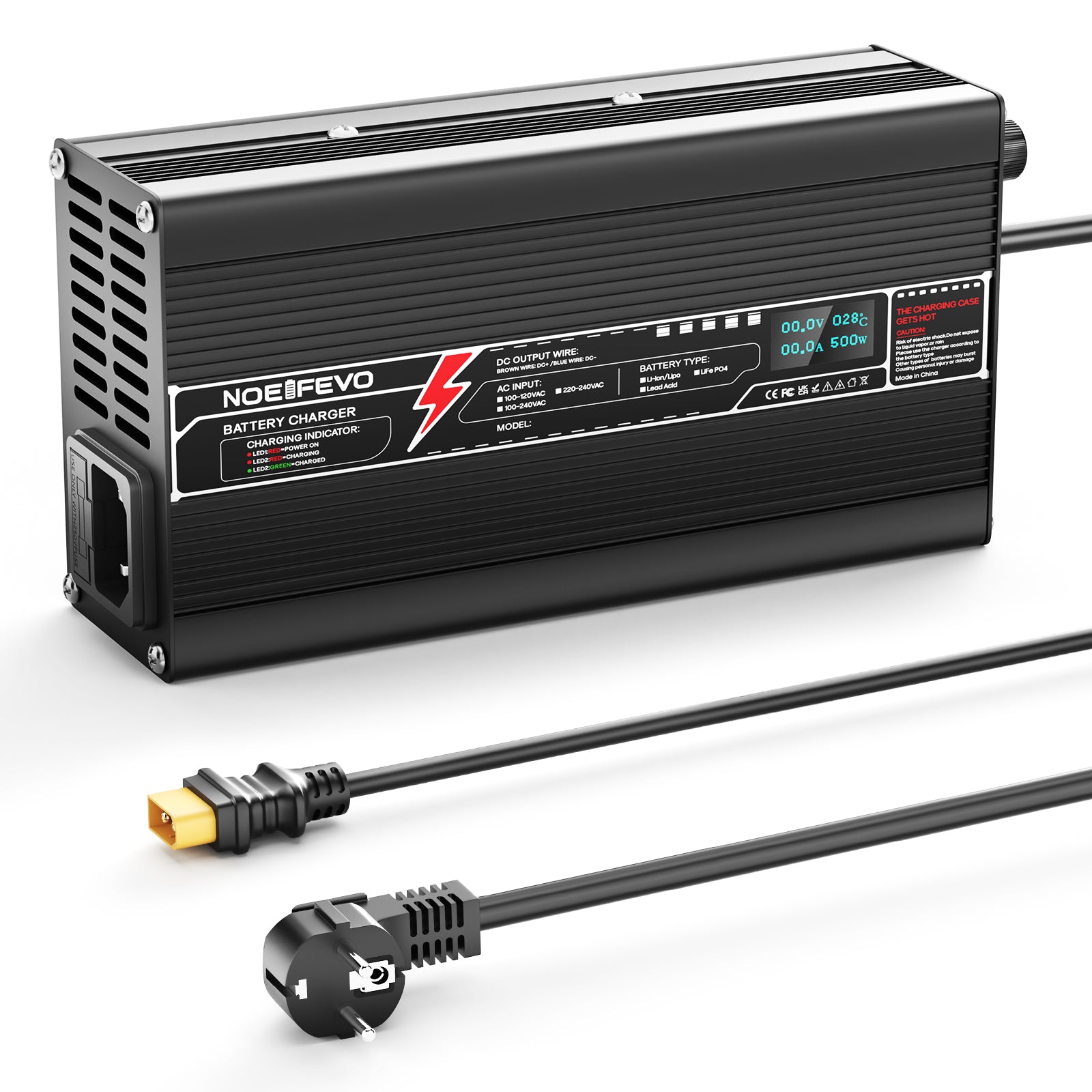

11. Optional Charging Plugs:XT60, XT90, Anderson 50 A, Anderson 45 A, Anderson 120A, Anderson 175A, Crocodile Clamps, M8, etc.(If the version you need is not listed here, please contact our customer service).

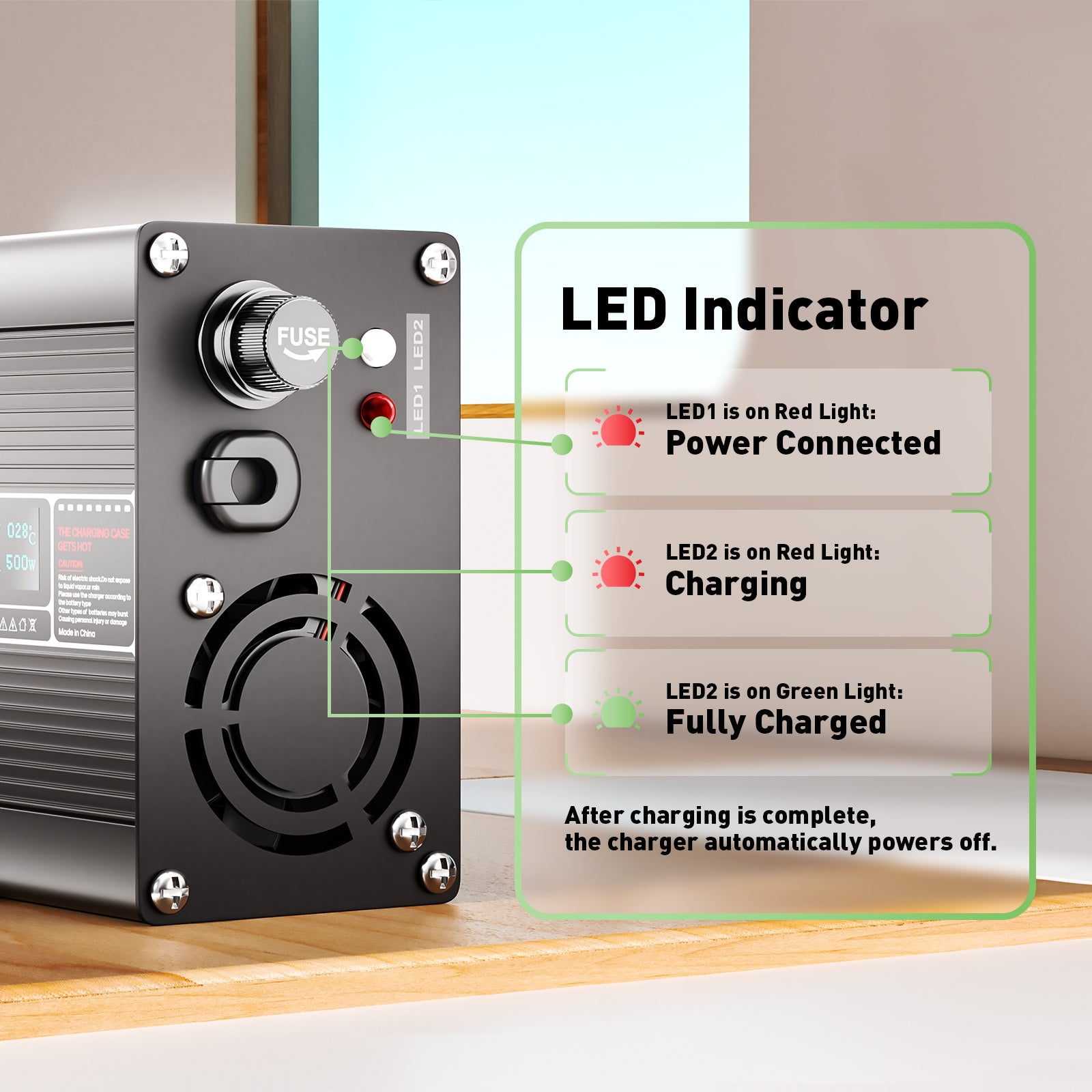

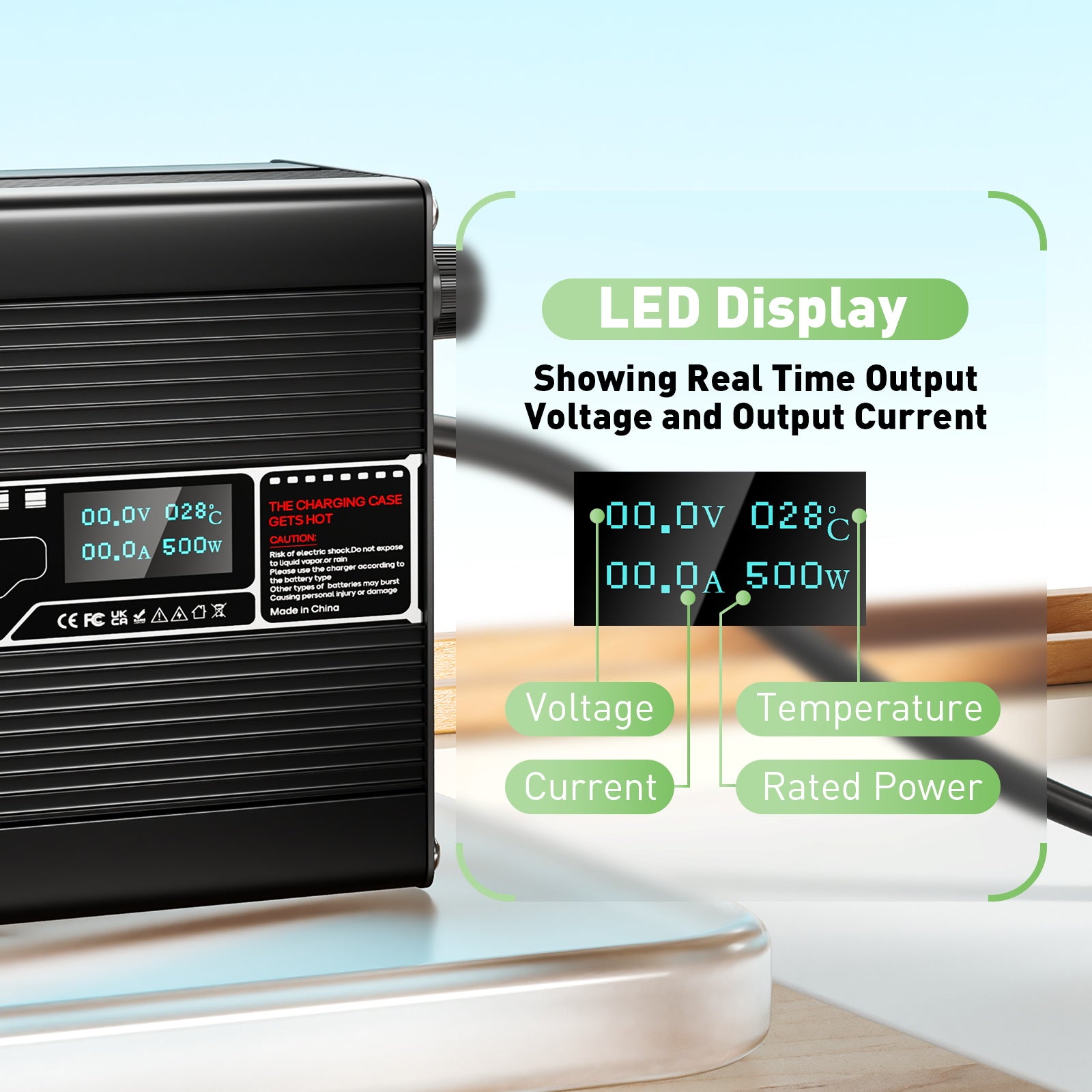

With LED display, all charging data can be shown in real-time.

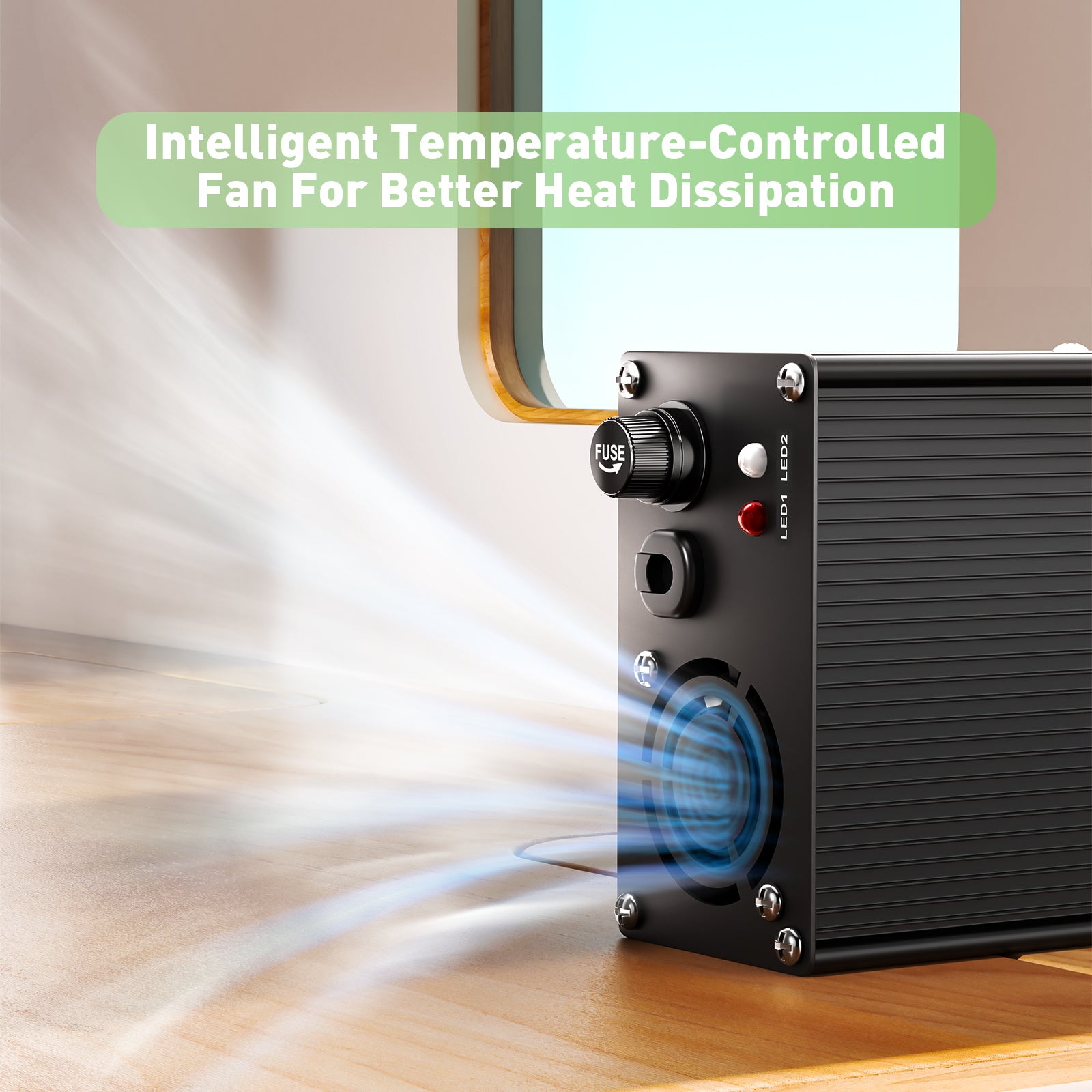

High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
Applications: Batteries, power tools, e-bikes, scooters, electric vehicles, cars, golf carts, robots etc.

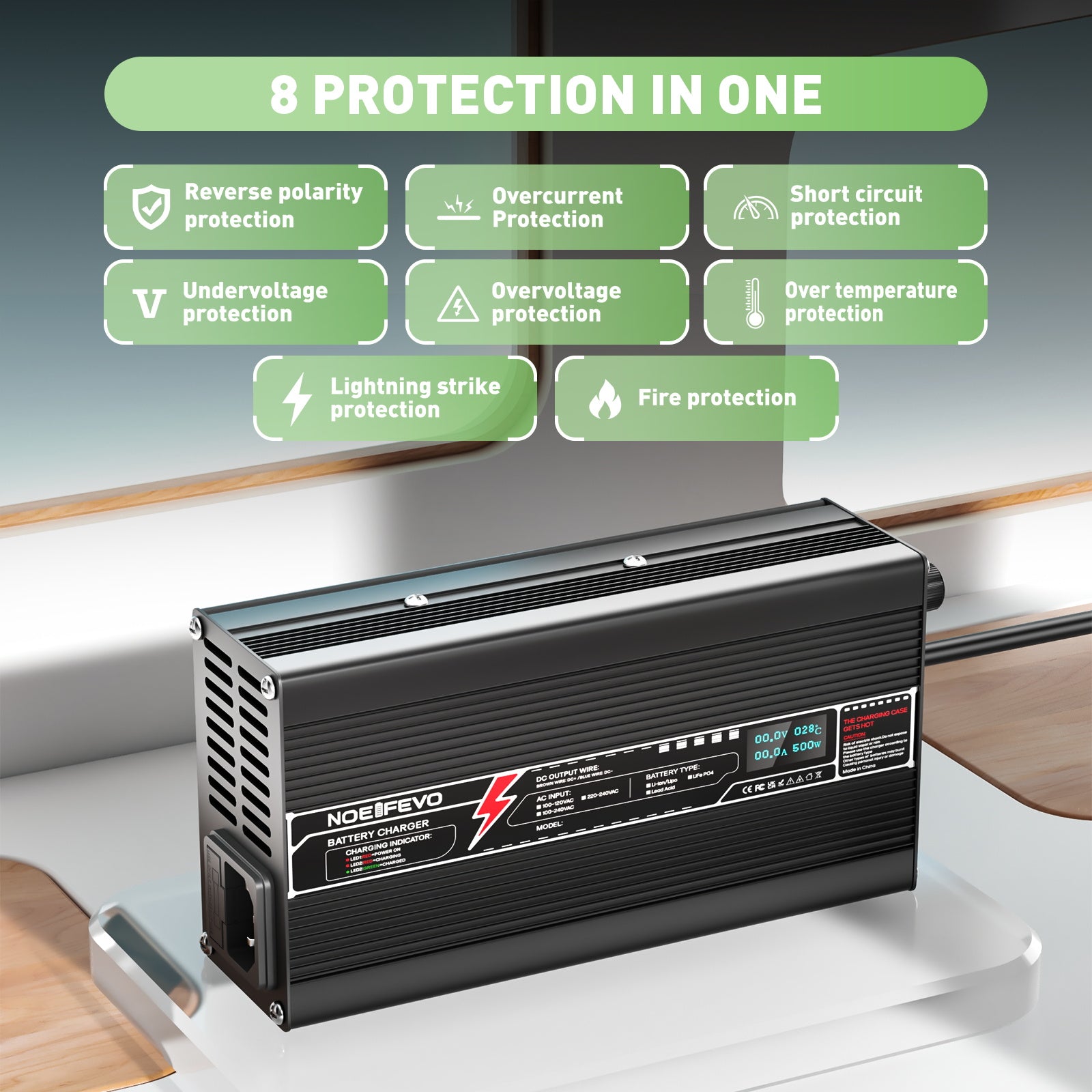

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

Usage:
1. Before use, check if the battery charger matches the type of charger model. If the model does not match, charging may be abnormal and can seriously damage the battery.
2. Connect the battery properly. Do not reverse the polarity! (Red + Black or Brown- Blue + or Red + Blue -).
3. Plug in the power plug into the socket and the charger starts to charge the battery. When the voltage is full, unplug the charger first and then remove the battery plug.

Included:
1 x 16.8 V 20A charger
