Before purchasing a charger, please ensure that the battery type, nominal voltage, charging voltage, and acceptable charging current (recommended charging current 0.2C) match those described in the following product description. If you are unsure whether the charger is suitable for your battery, please contact our customer service for assistance.
Specifications
1. Input Voltage: 220V
2. Starting Voltage: 21V (the charging voltage for the battery)
3. Charging Method: CC/CV
4. Charging Current: 2A, 3A, 4A, 5A

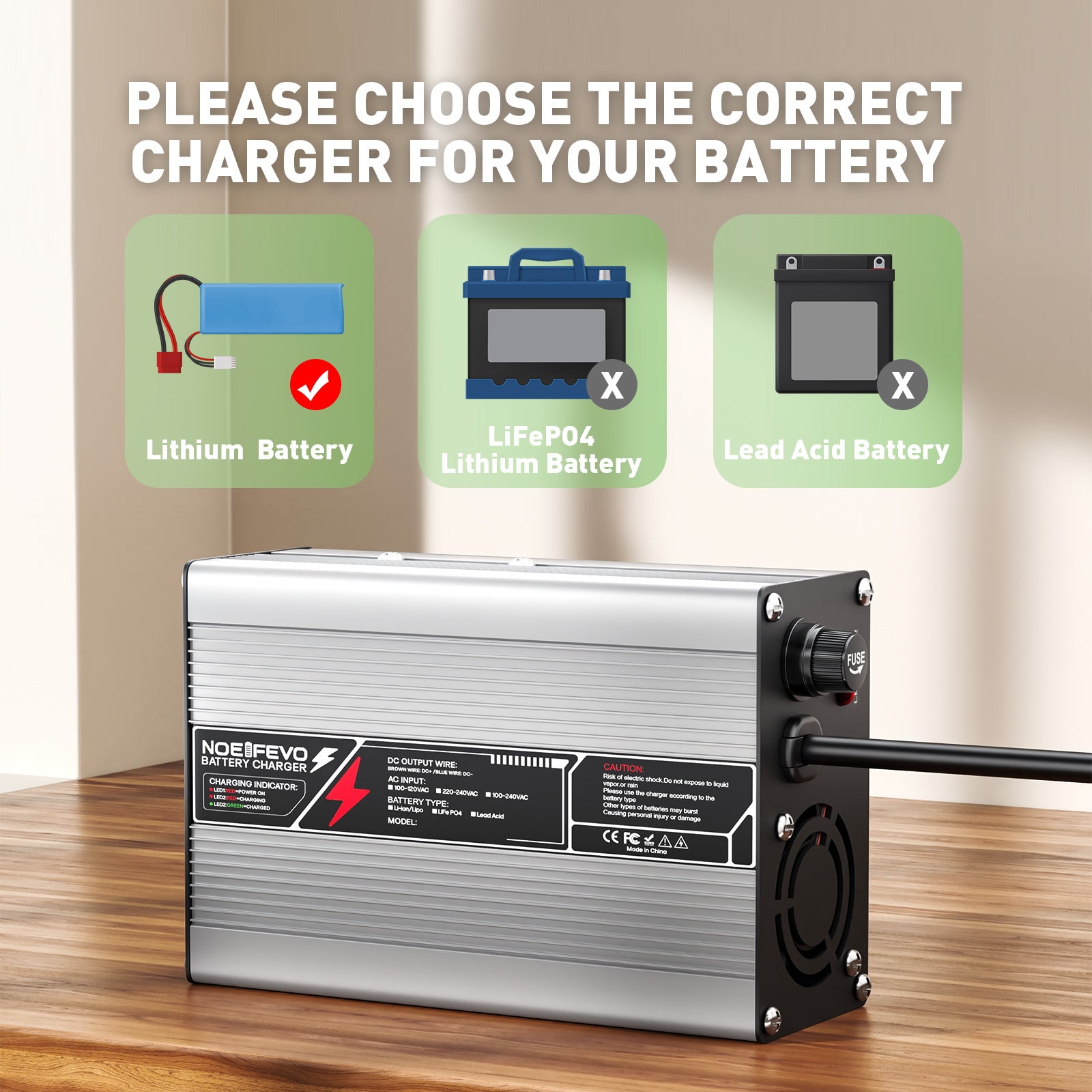

5. Suitable for: 5S 18.5V Lithium Battery. (not for Lead-Acid Battery)

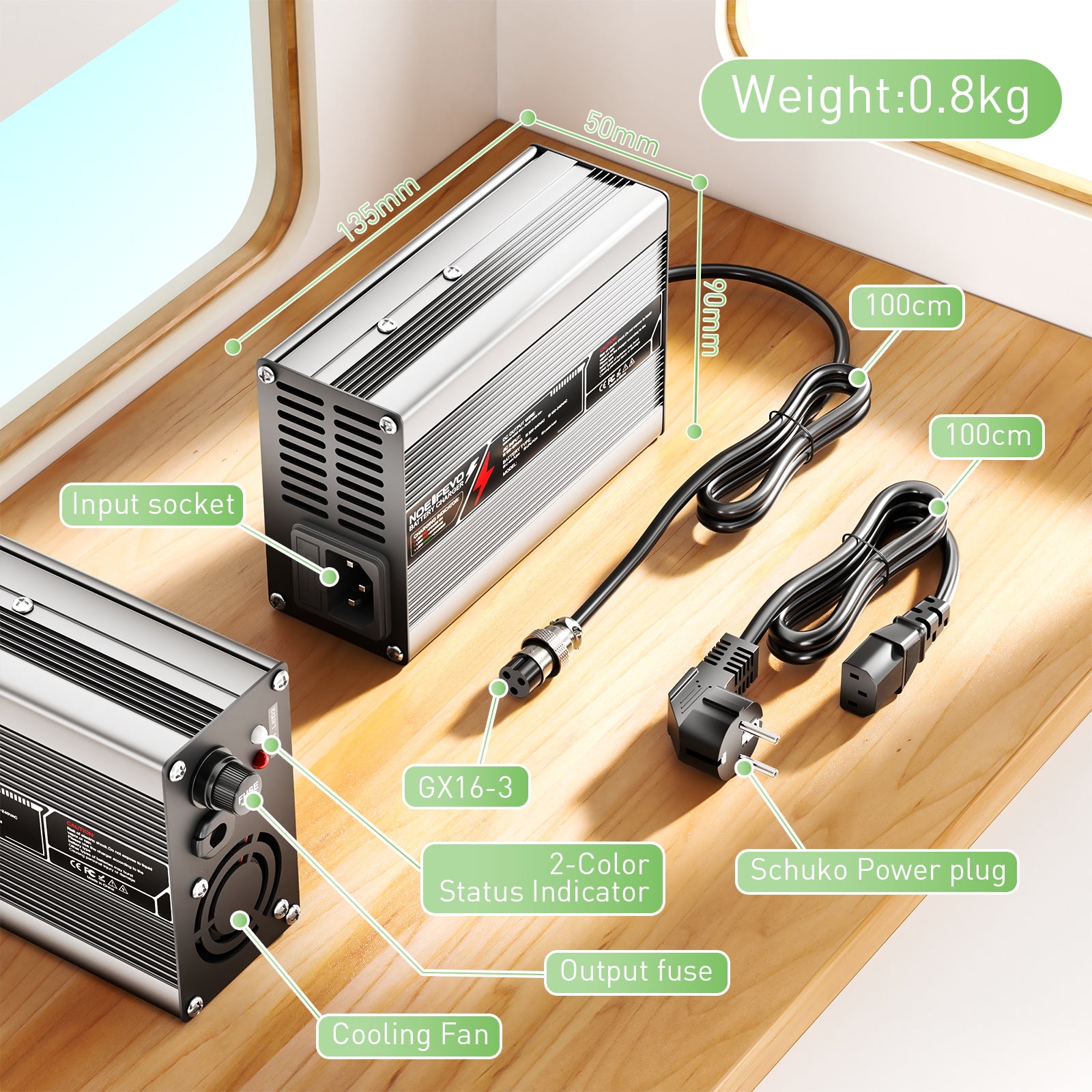

6. Weight: 0.8kg
7. Dimensions: 135*90*50mm

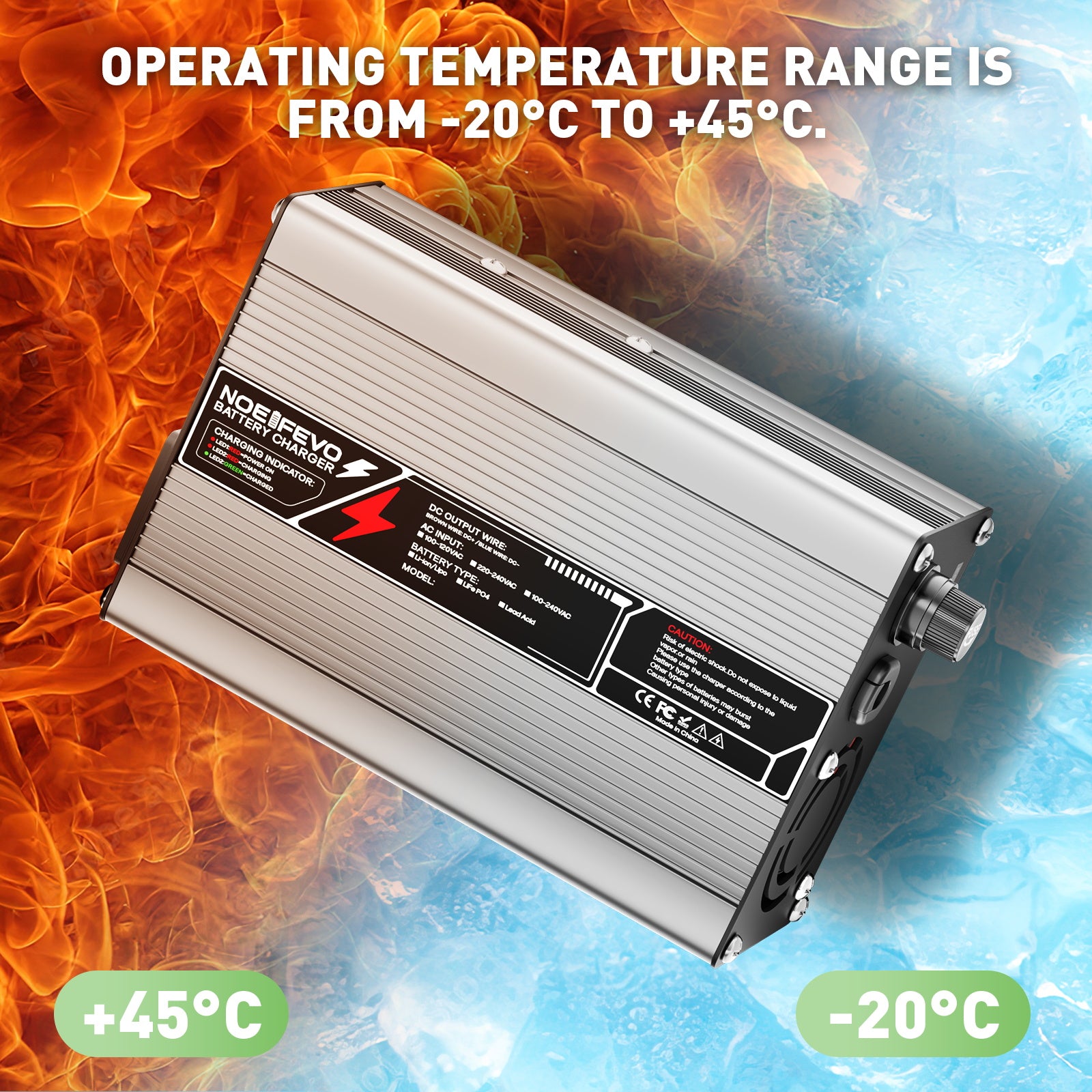

8. Operating Temperature Range: -20°C to +45°C
9. Efficiency: 85%
10. Charging Plug: EU-Schuko plug (if you need a different type of power outlet, please contact our customer service for assistance)
11. Optional Charging Plugs:Anderson 50A, XLR, IEC C13 (3P plug),GX16-2(1+2-),GX16-3(1+3-)XT60, XT90, M25, DC5.5*2.5/2.1, Anderson 45A, Crocodile Clip, M8etc.(If the version you need is not listed here, please contact our customer service).

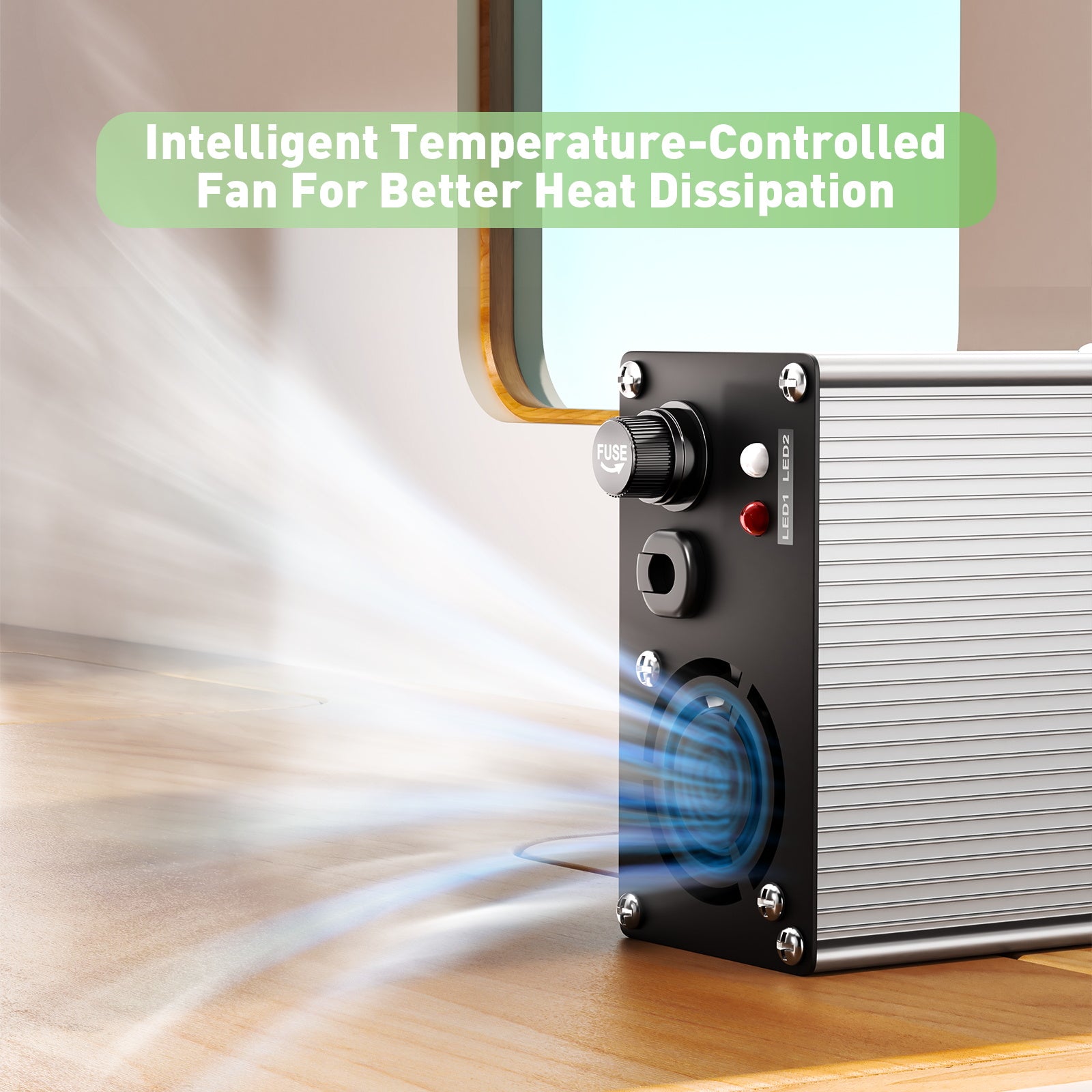

12. High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
13. Applications: batteries, power tools, electric bicycles, scooters, electric vehicles, cars, golf carts, robots, etc.

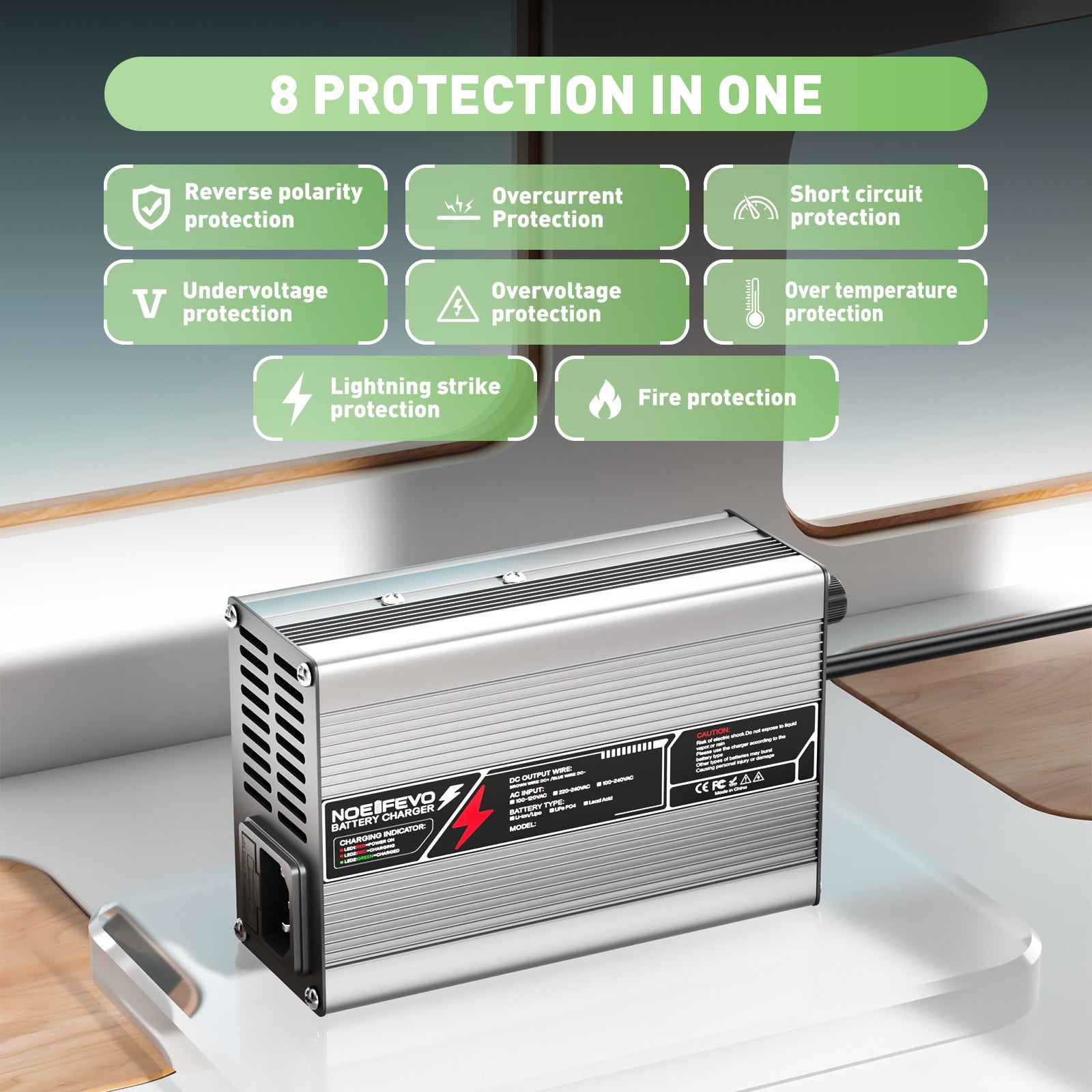

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection
How to Use:
1. Before use, check whether the battery charger matches the type of your charger model. If the model does not match, the charging process may be abnormal and the battery can be seriously damaged.
2. The battery must be connected correctly. Do not reverse polarity! (Red + Black- or Brown- Blue+ or Red + Blue -).
3. Then plug in the power outlet into the socket; the charger will begin to charge the battery.
4. Once the voltage is full, first unplug the charger and then remove the battery plug.
Package List
1*21V 5A Charger
