Specifications
1. Input Voltage: 220V
Starting voltage: 25.2 V (charging voltage for the battery)
3. Charging Method: CC/CV
4. Charging Current: 10 A
Suitable for: 6S 22.2 V Lithium battery. (not for lead-acid batteries)
Weight: 0.8 kg

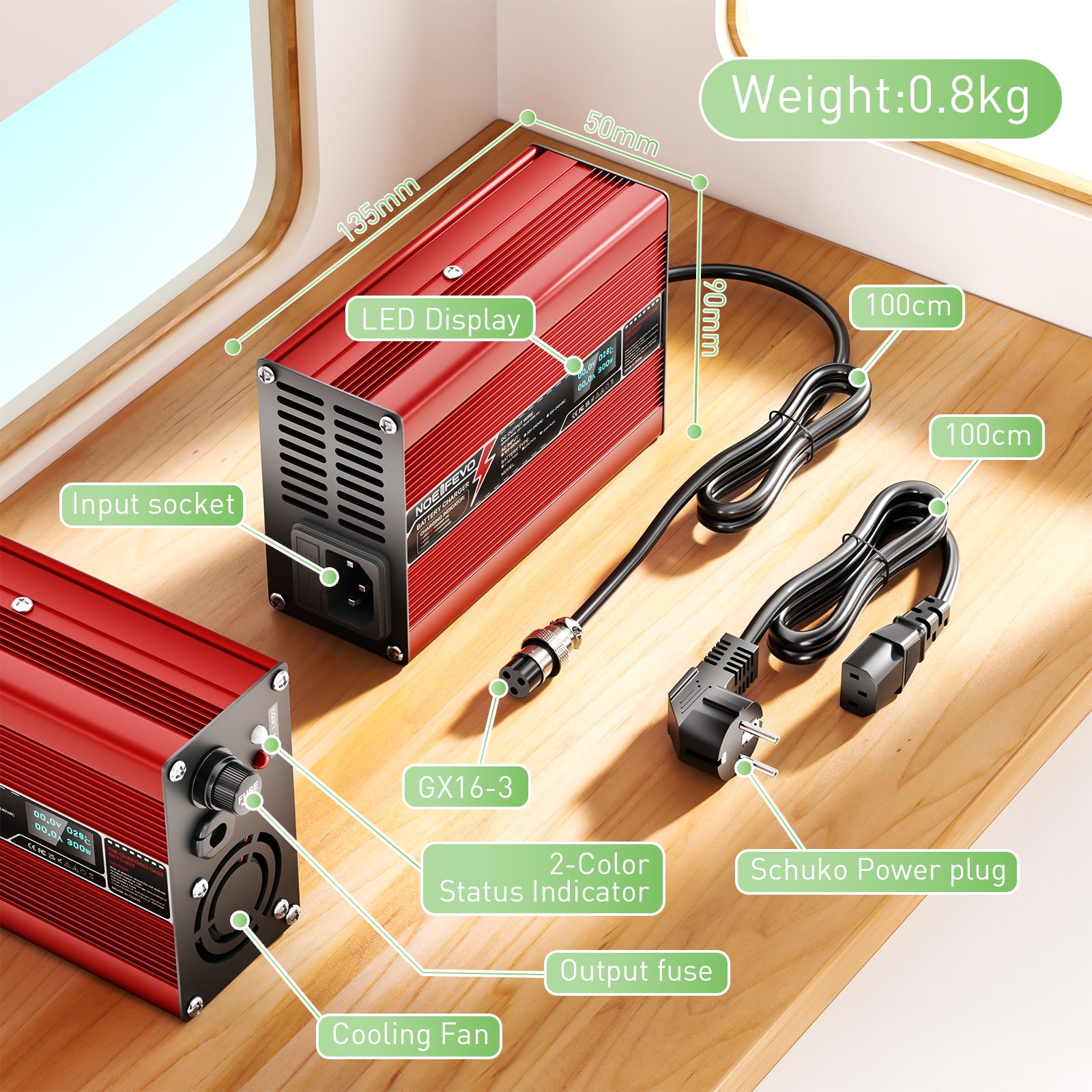

Dimensions: 135 x 50 x 90 mm

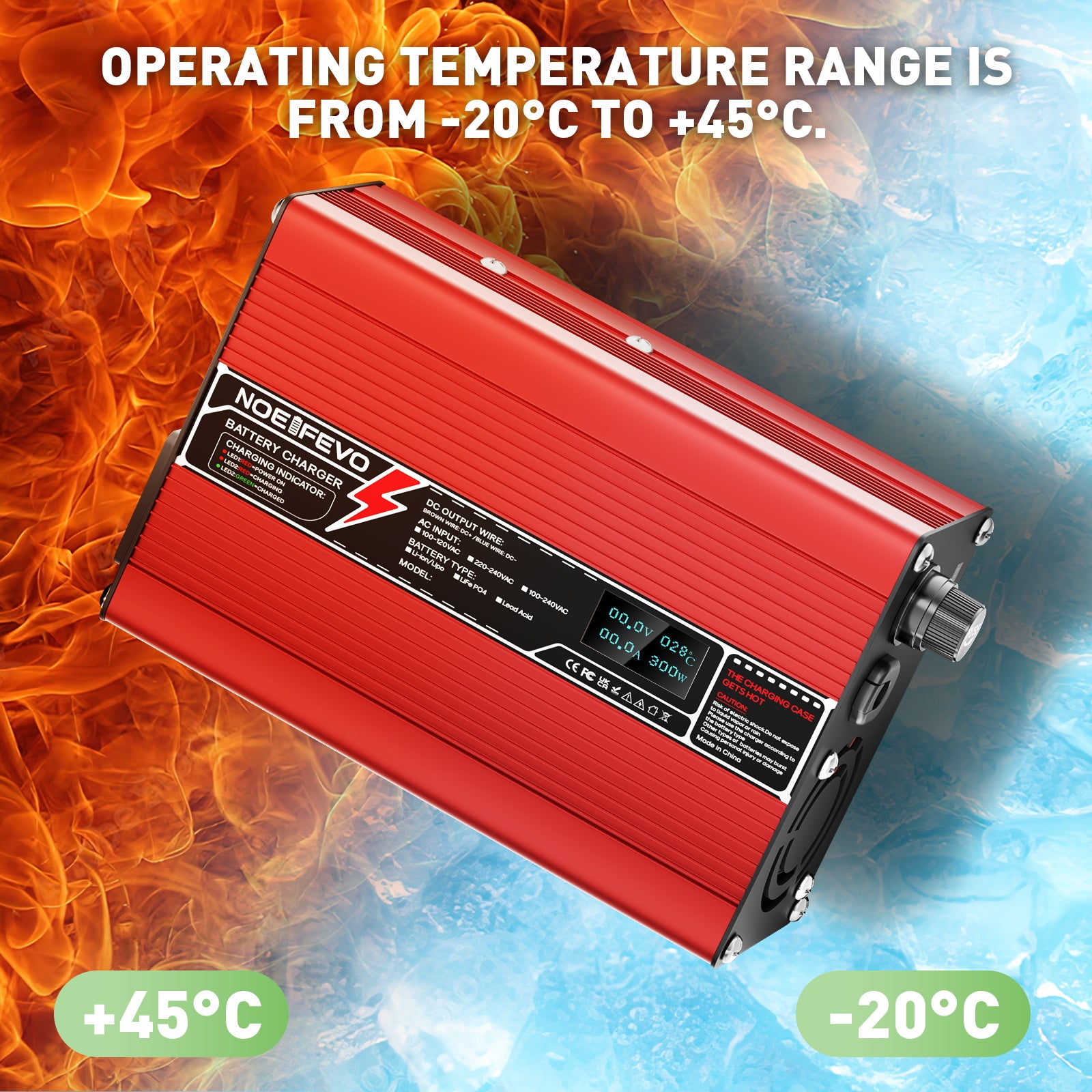

8. Operating Temperature Range: -20°C to +45°C
9. Efficiency: > 85 %
Charger Plug: EU Plug (if you need a different power plug, please contact our customer service)

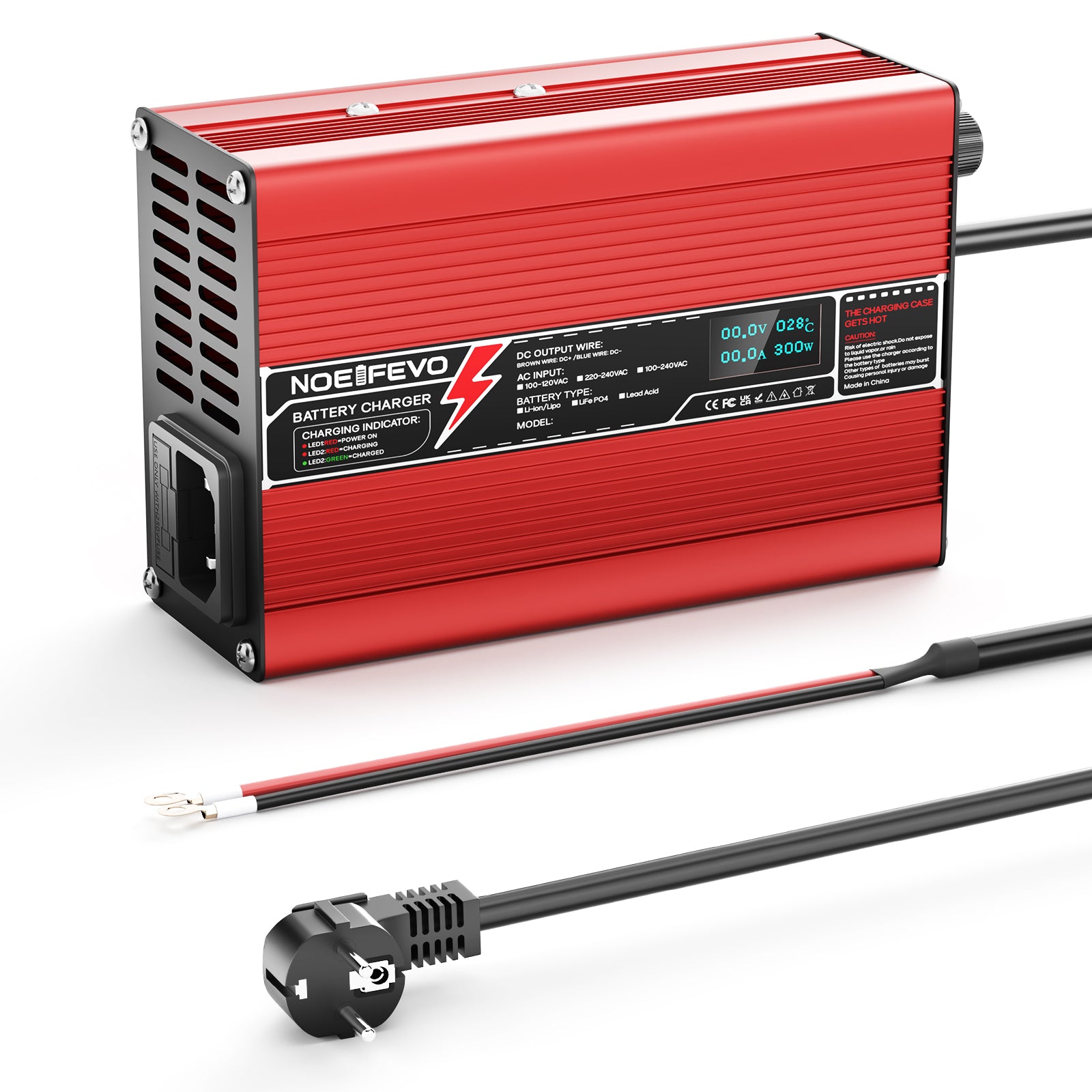

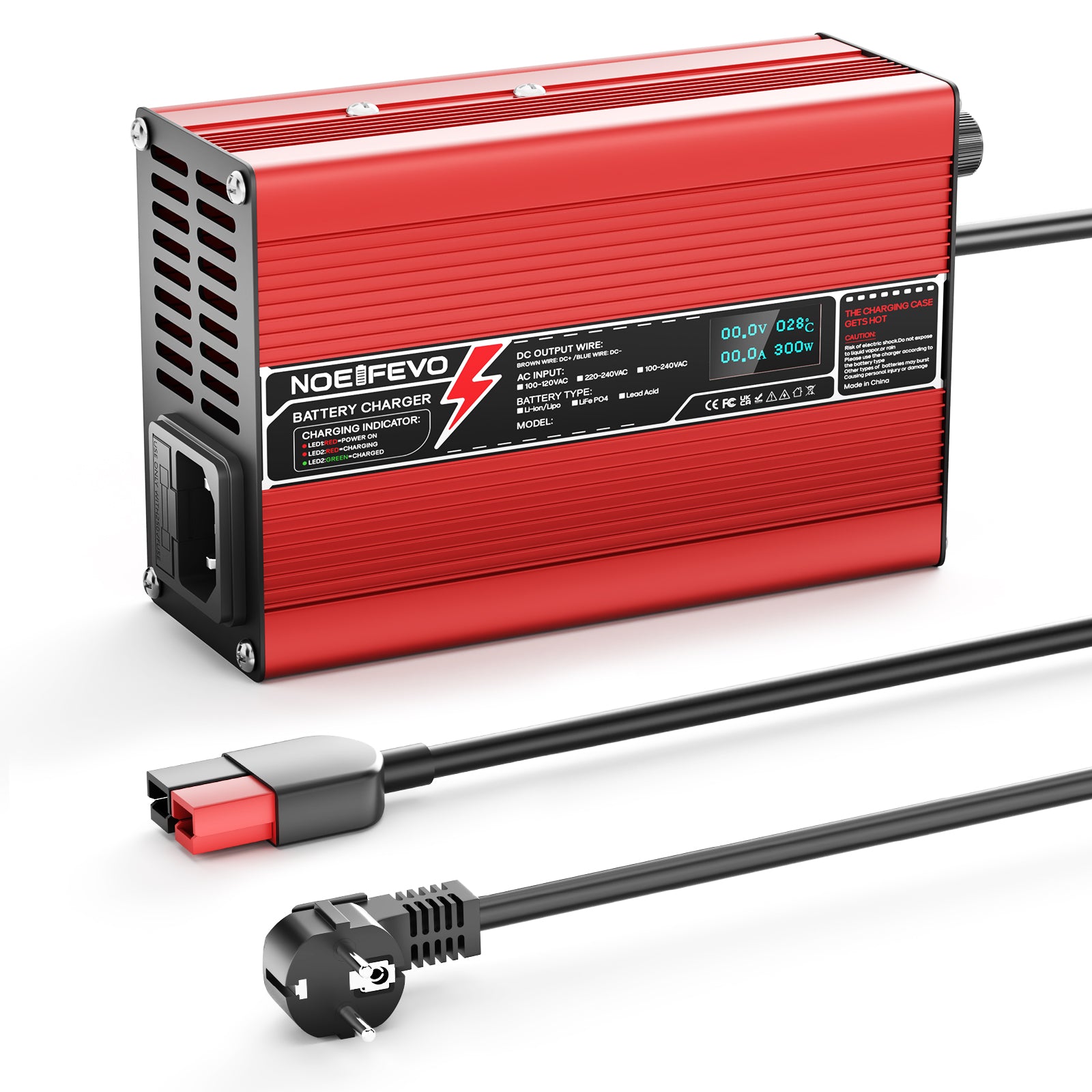

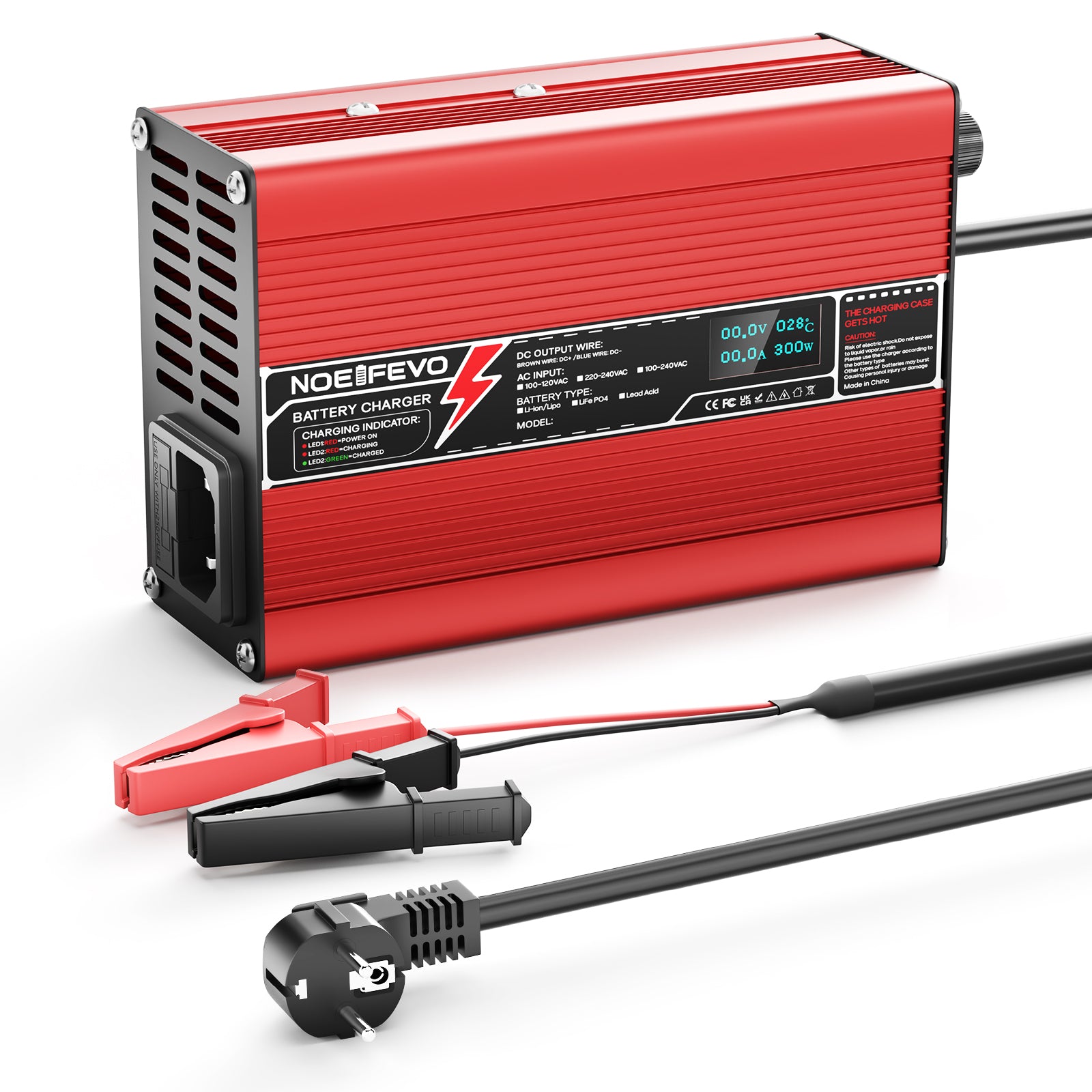

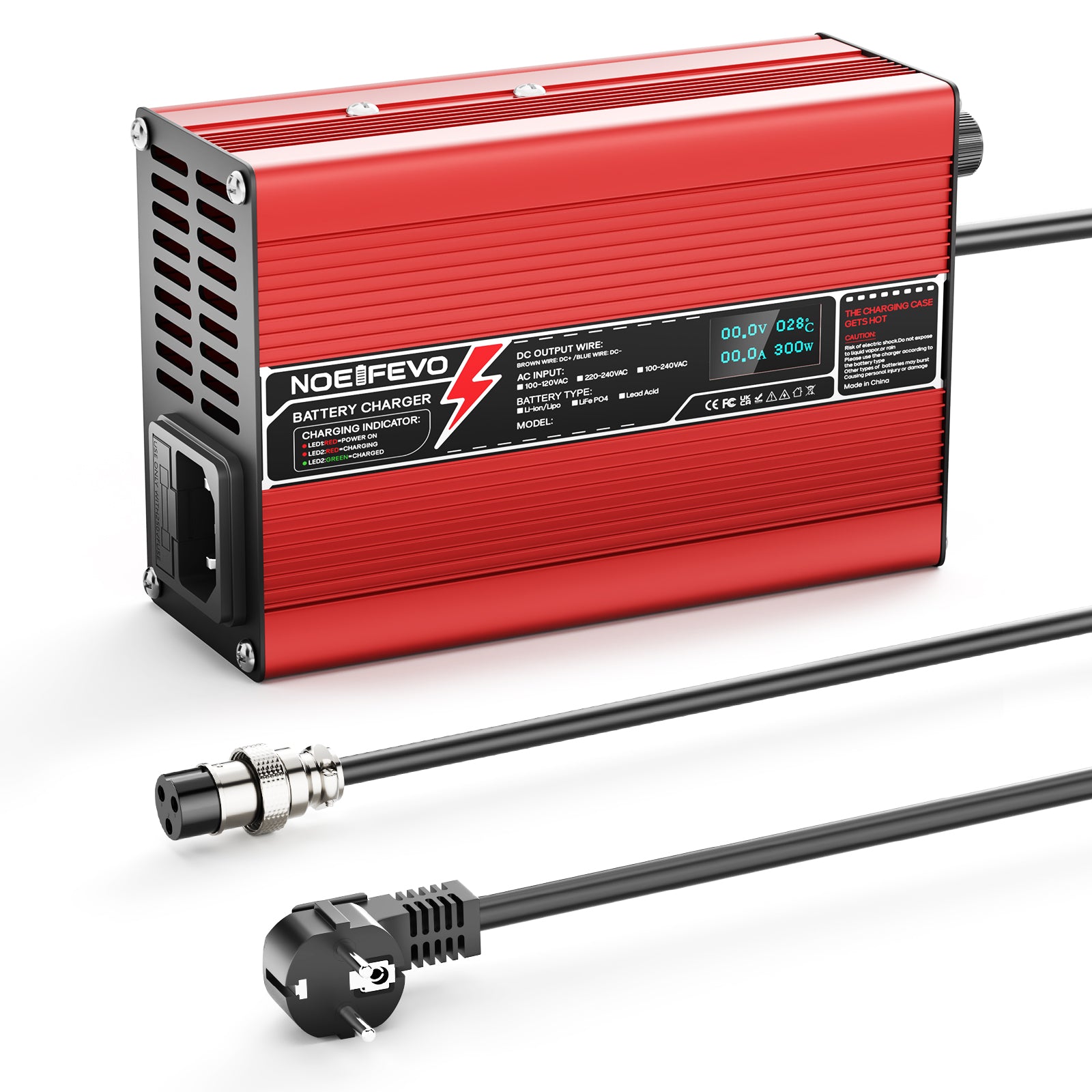

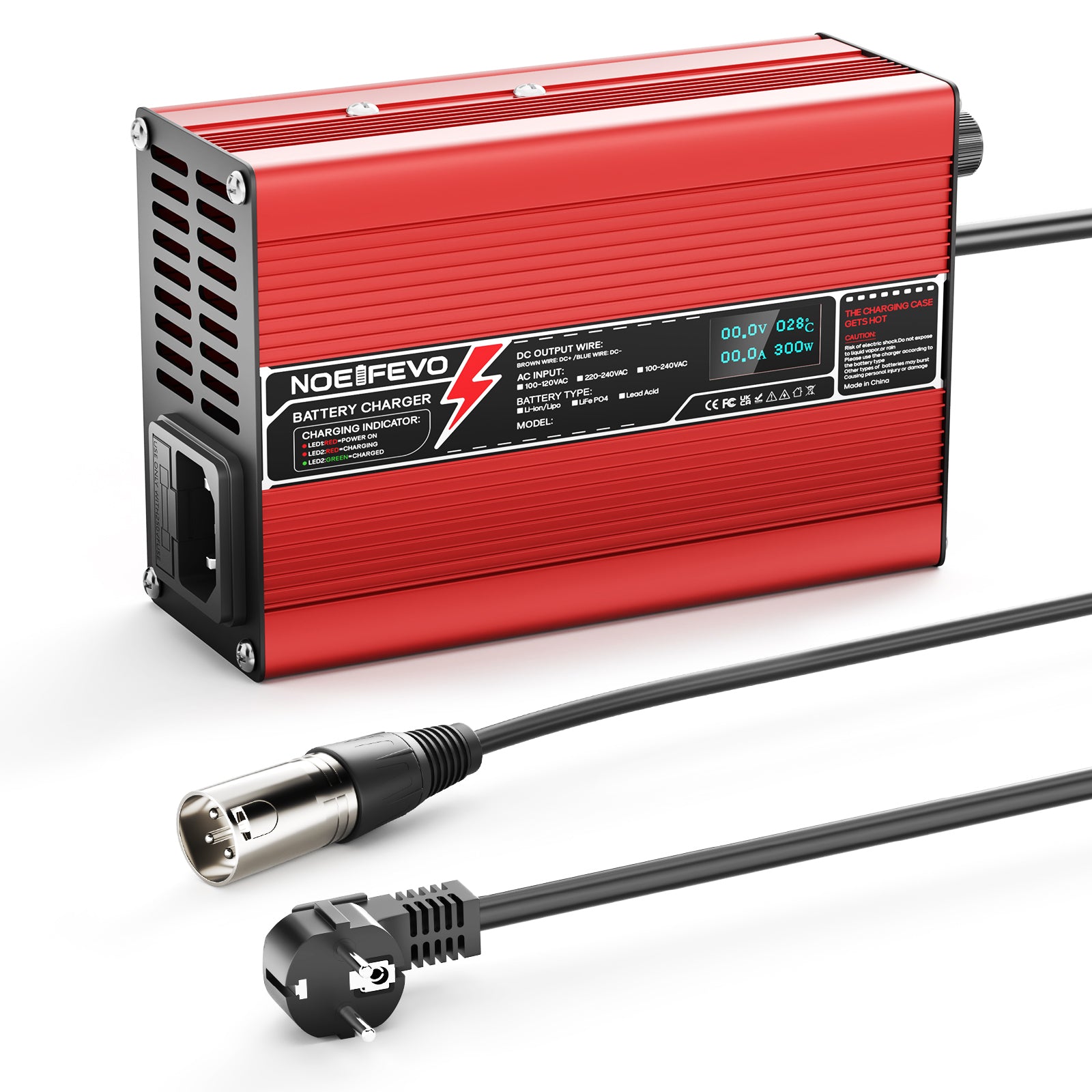

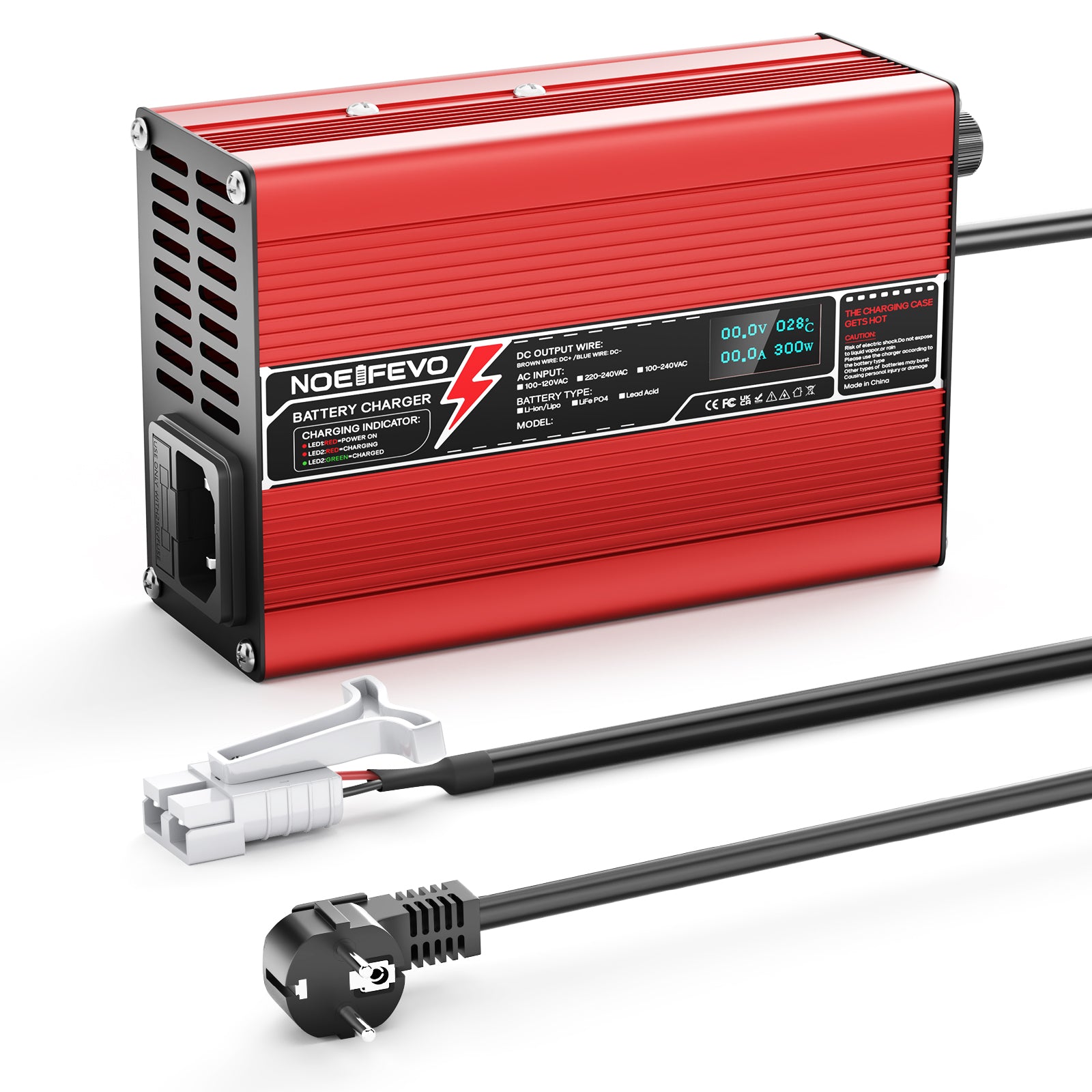

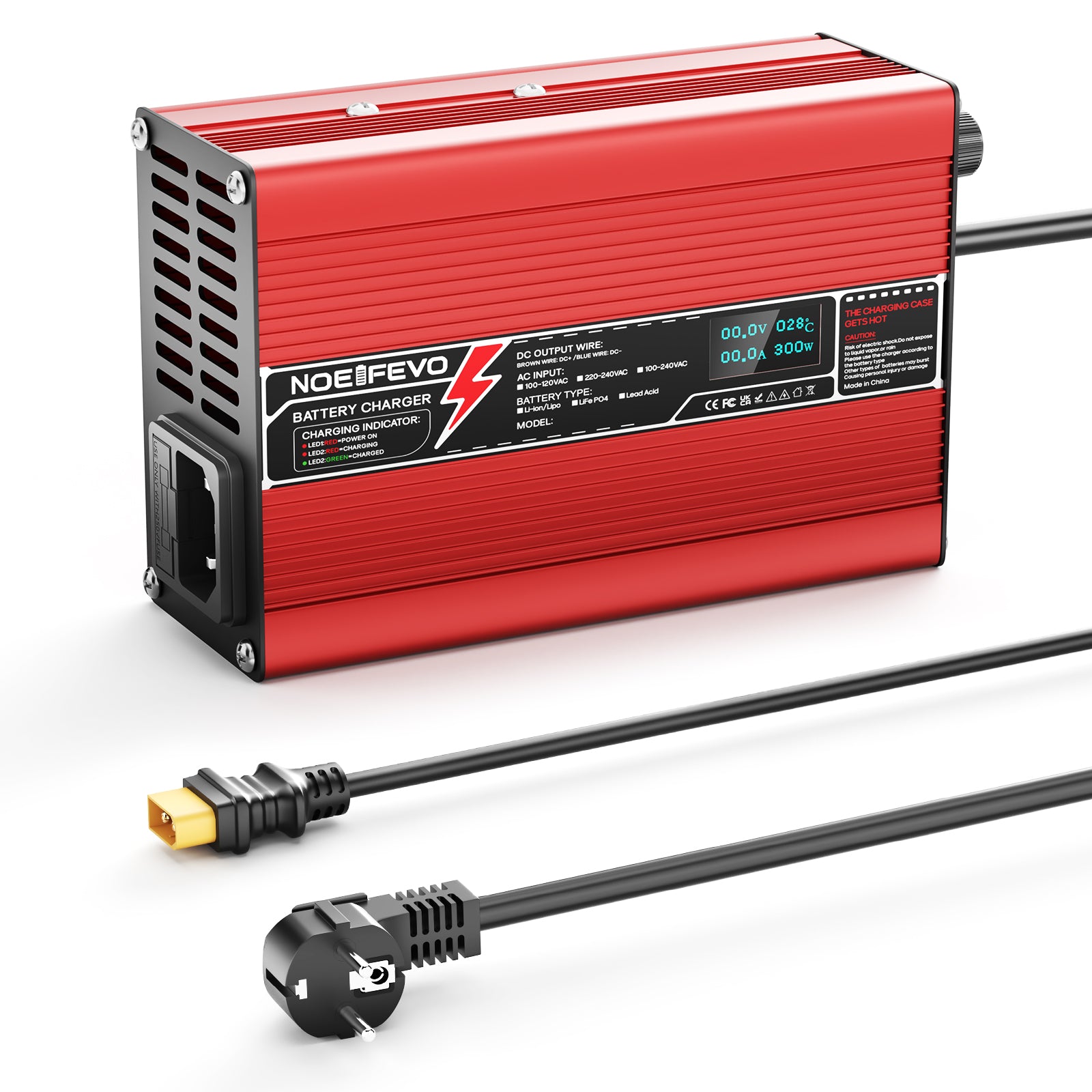

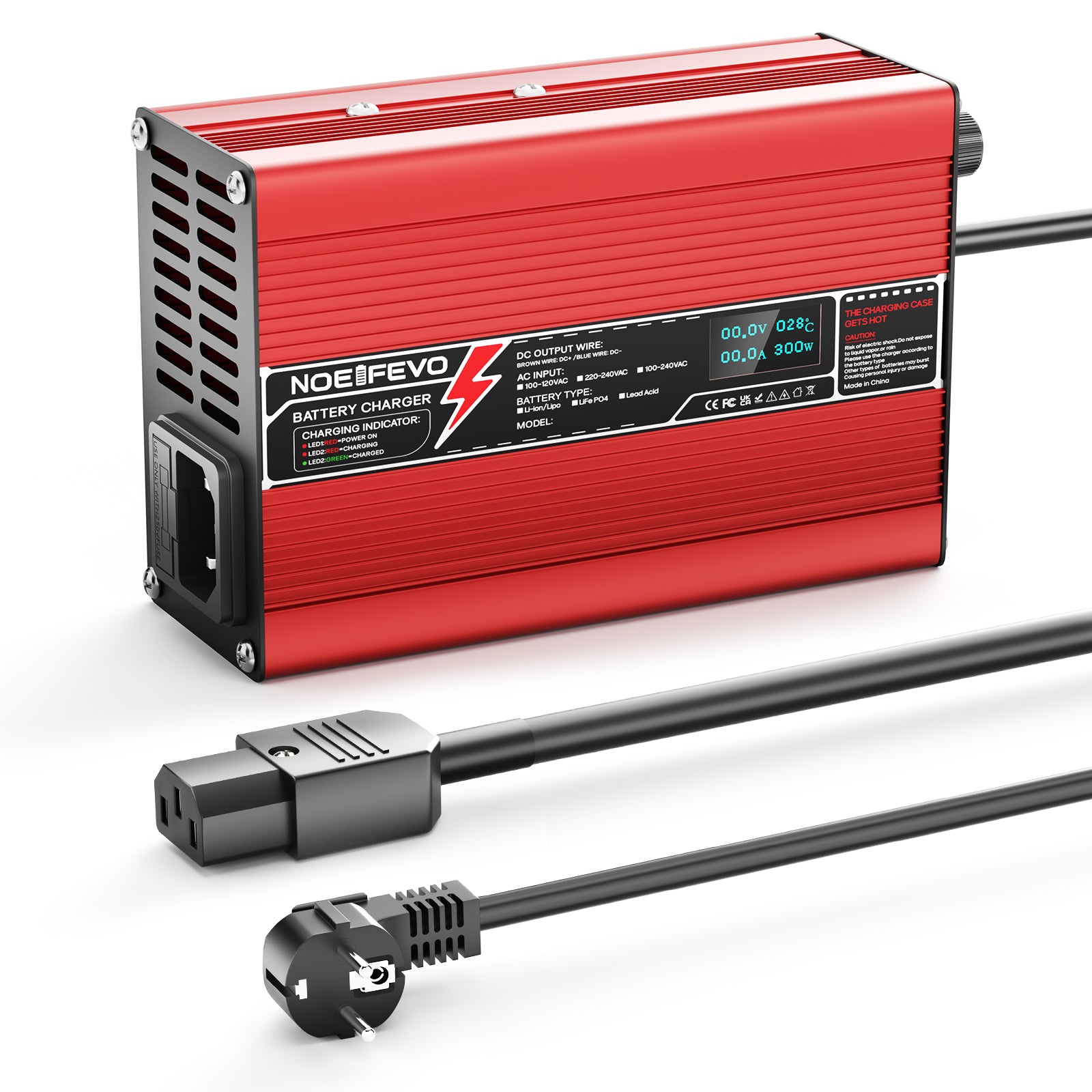

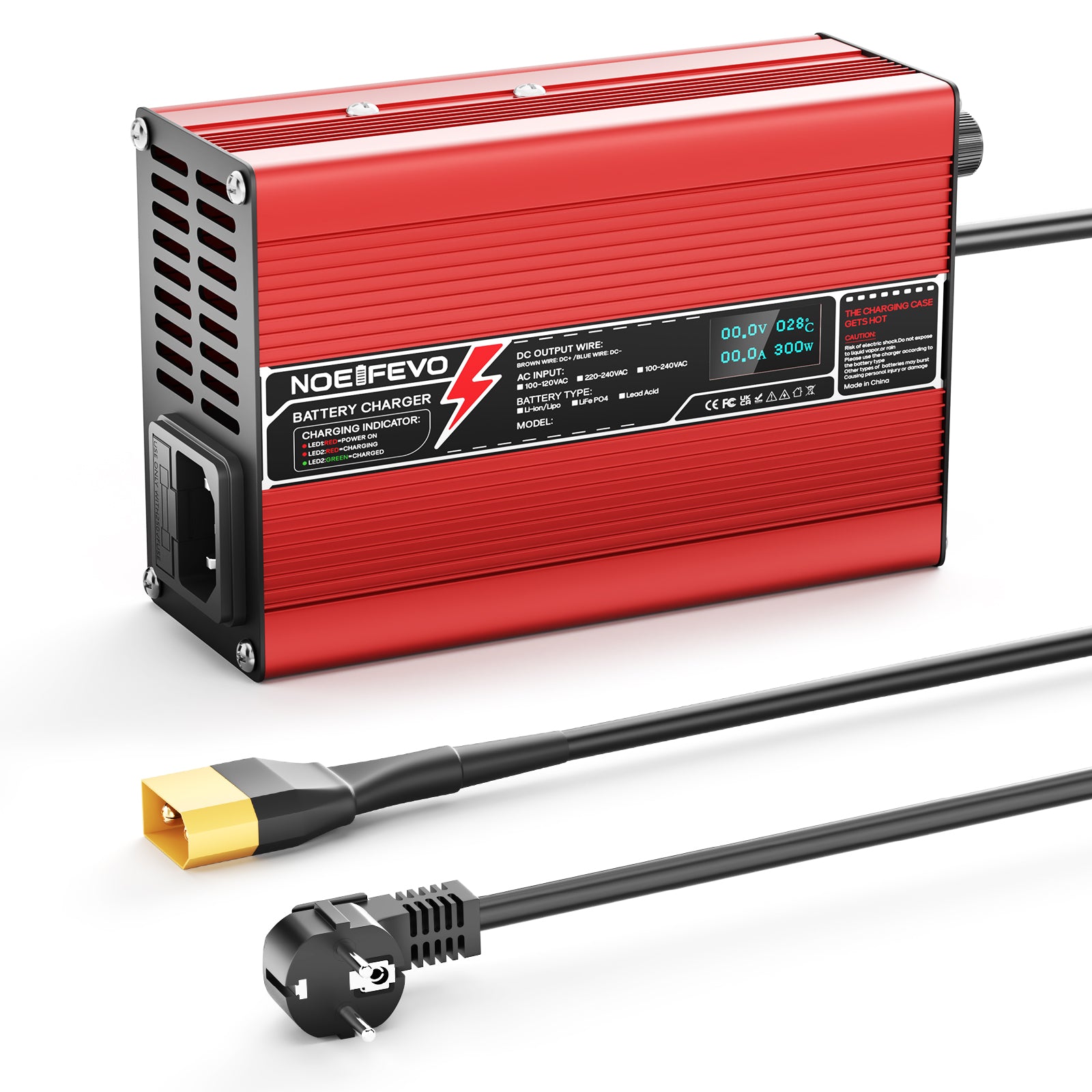

11. Optional Charging Plugs:XT60, XT90, Anderson 50A, Anderson 45A crocodile clip, M8, M25, XLR, IECC13, GX16-2 (1+2-), GX16-3 (1+3-) etc.(If the version you require is not listed here, please contact our customer service.)

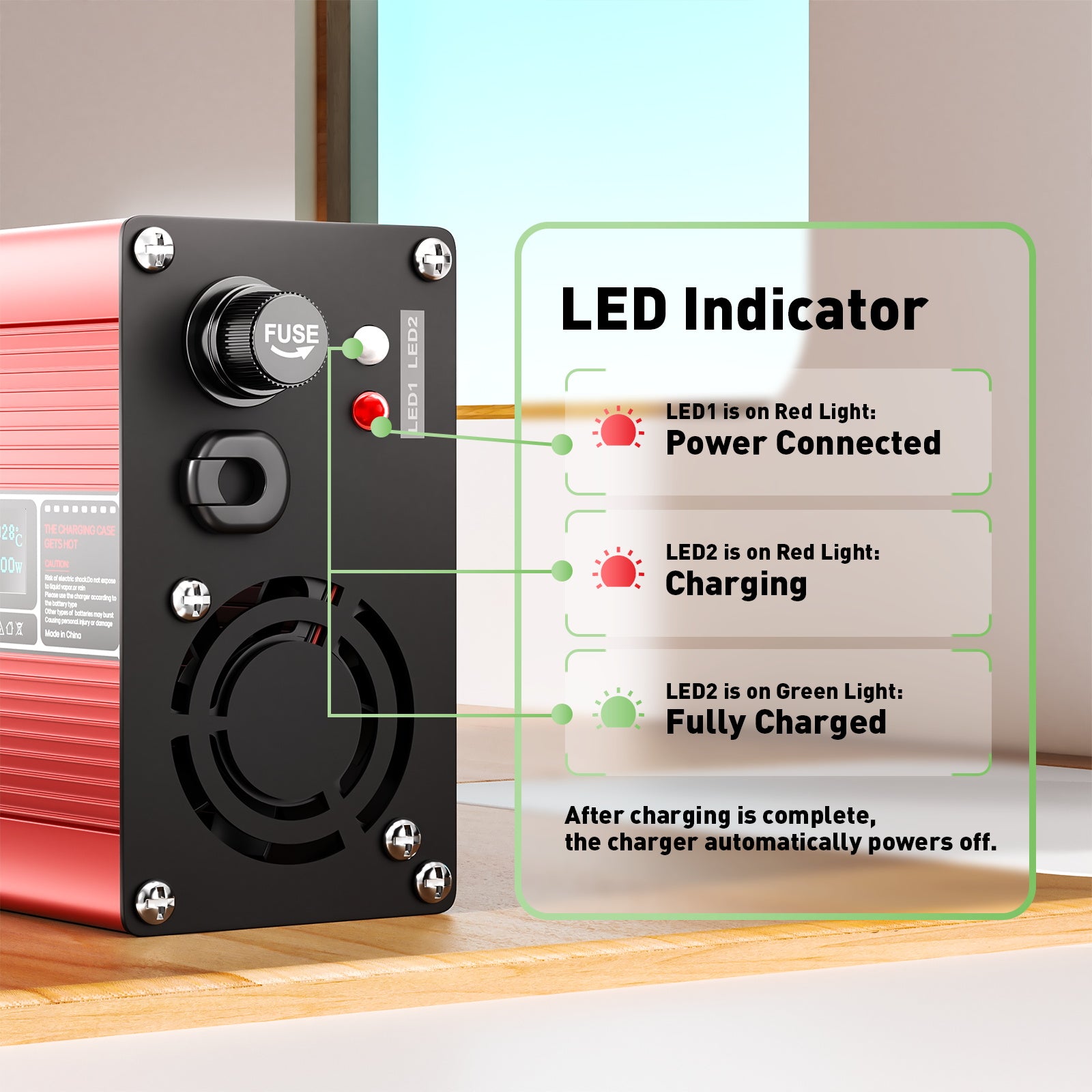

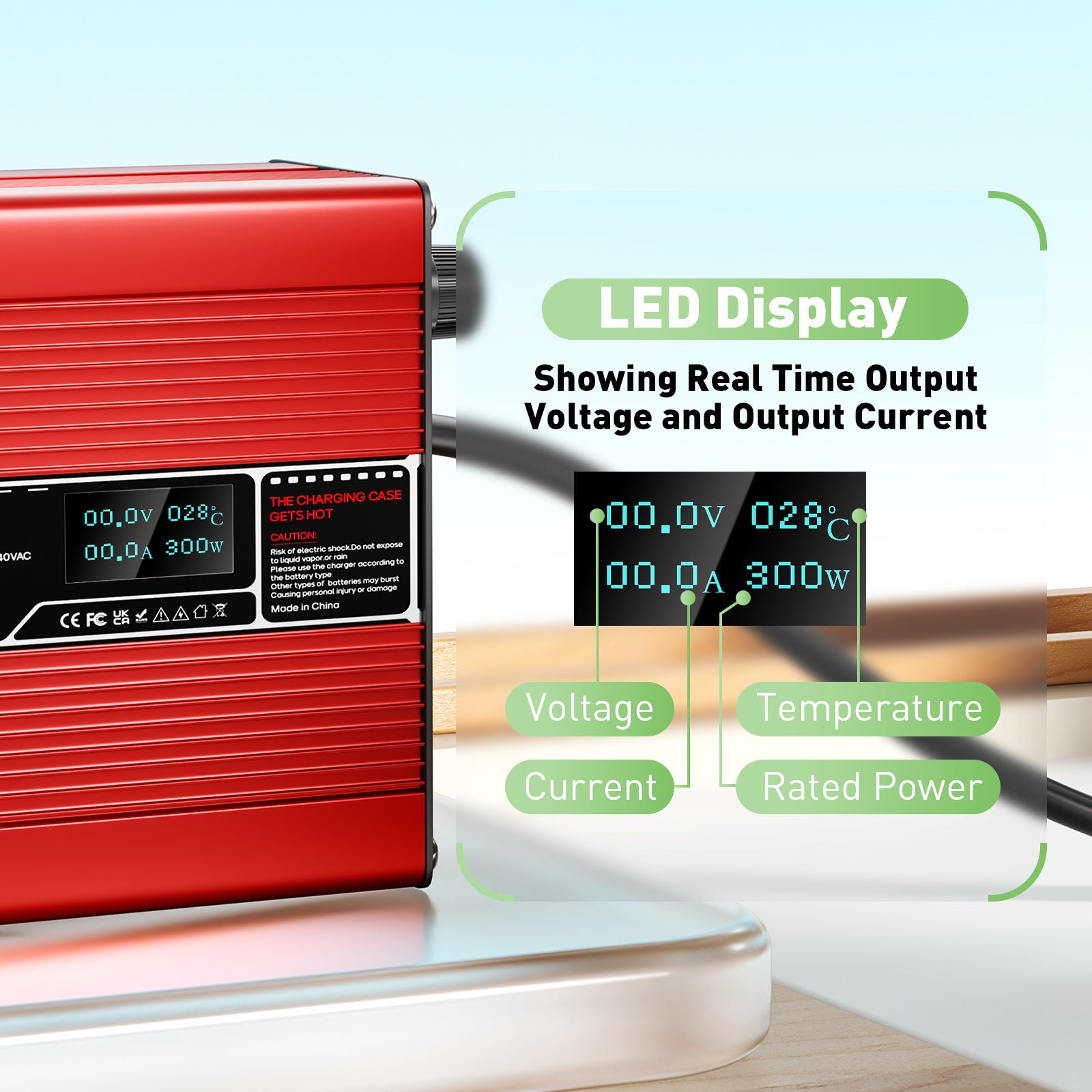

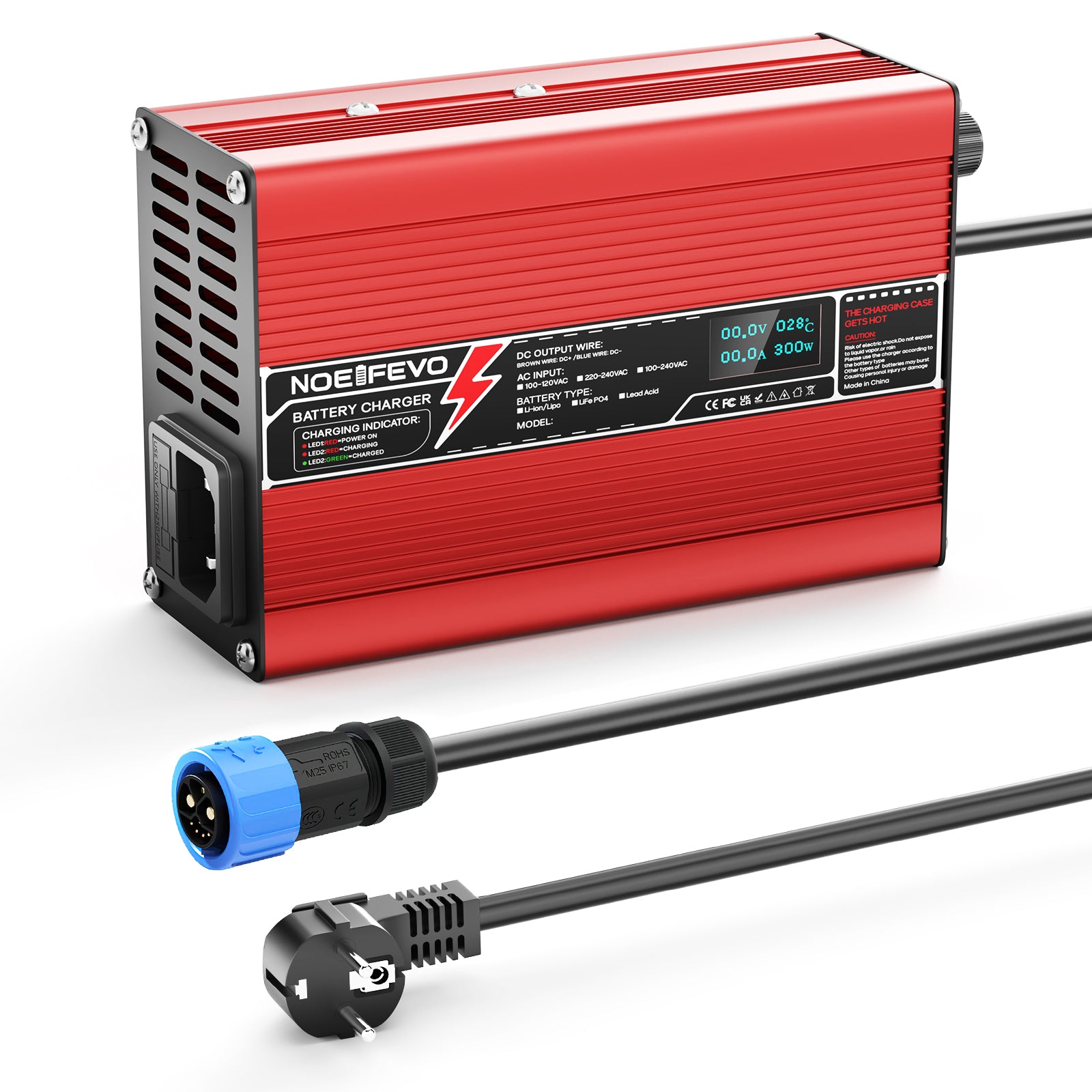

With LED display, all charging data can be shown in real-time.

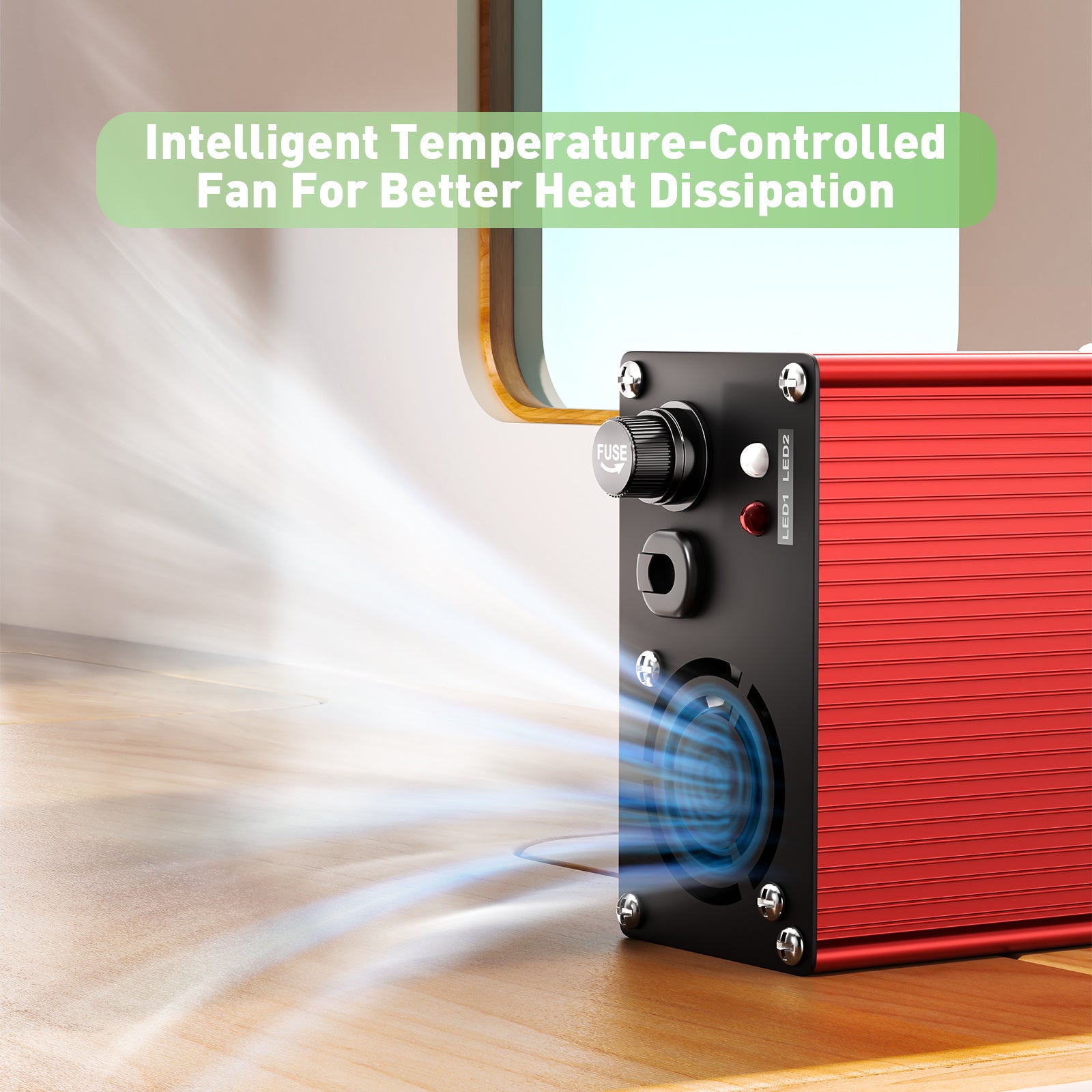

High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
Applications: Batteries, electric tools, e-bikes, scooters, electric vehicles, cars, golf carts, robots etc.

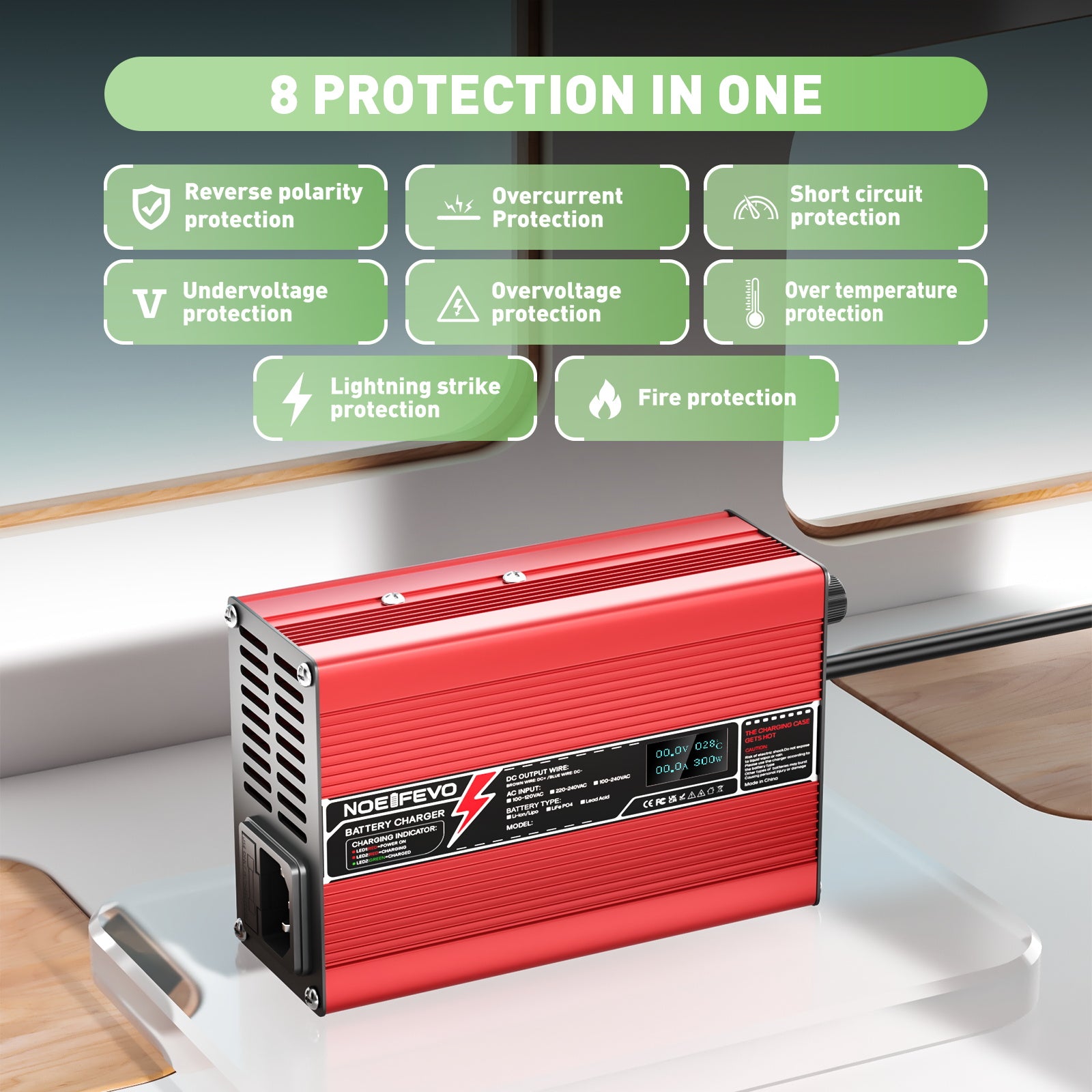

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

Usage:
1. Before use, check if the battery charger matches the type of charger model. If the model does not match, charging may be abnormal and can seriously damage the battery.
The battery must be connected correctly. Do not reverse the polarity! (Red + Black or Brown- Blue + or Red + Blue -).
Then plug in the wall socket and the charger starts charging the battery.
4. Once the voltage is full, first unplug the charger and then remove the battery plug.

Included:
1 x 25.2 V 10 A charger
