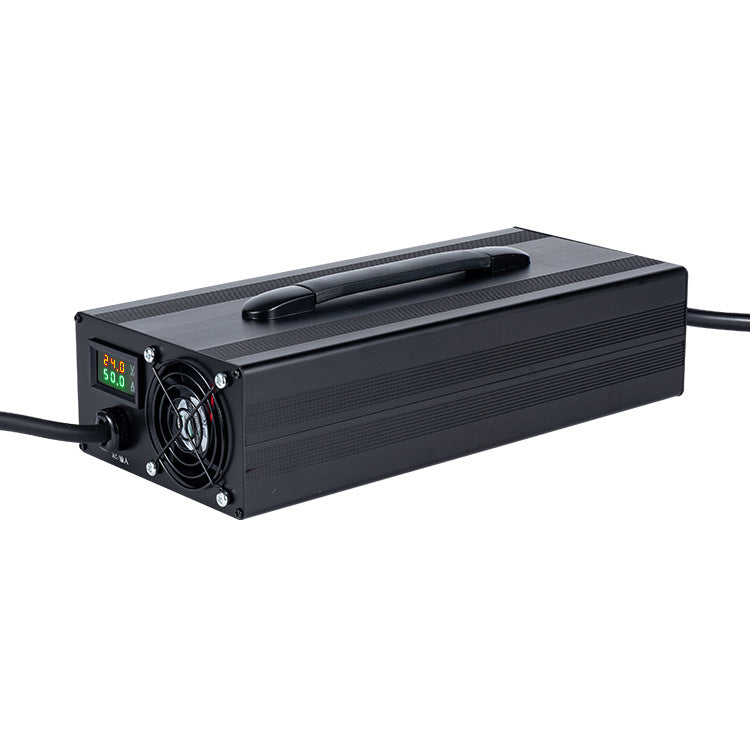

This is an intelligent, adjustable charger with a power range of 5 A to 50 A , der stufenlos reguliert werden kann. Beim Laden einer Batterie mit kleiner Kapazität kann ein niedrigerer Ladestrom gewählt werden; für Batterien mit größerer Kapazität steht ein höherer Ladestrom zur Verfügung. Für den täglichen Gebrauch empfehlen wir einen Ladestrom von 0,2C , to extend the battery life. In emergencies, however 1C-Ladung should be used to save time.
This NOEIFEVO Smart-Ladegerät meets not only the requirements of batteries with different capacities, but also adapts to various energy consumption conditions – with a focus on environmentally friendly design.

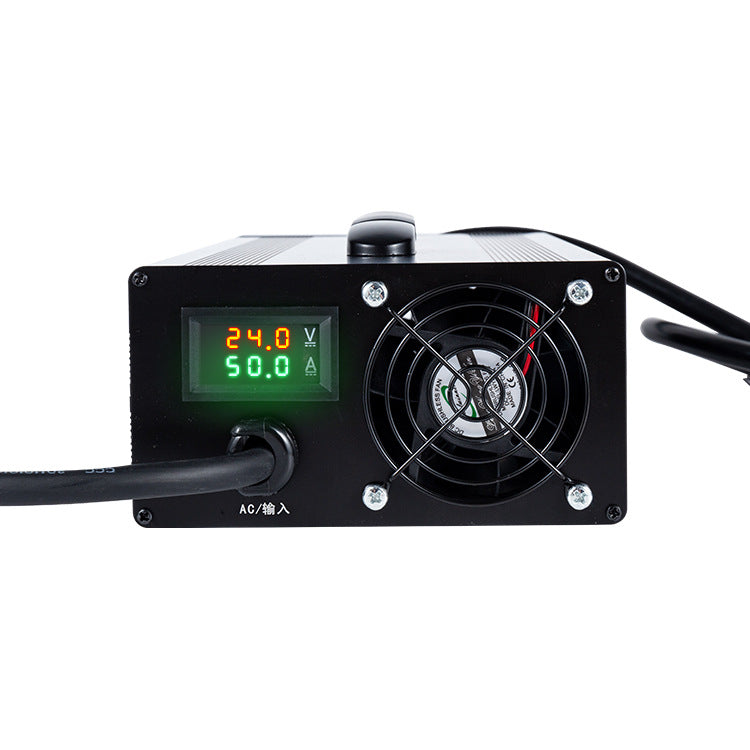

The LED display shows the charging voltage and charging current.
The loading process is very simple:

1. First, connect the charger to the battery.

2. Then connect the charger to the power source and set the charging performance according to the charging requirements. The charging process starts automatically.
   After the load process is completed, the load current gradually drops to 0.

Intelligent, temperature-controlled fan

The charger is equipped with an intelligent, temperature-controlled fan that only turns on when the internal temperature rises.
This function ensures efficient cooling and optimal operating conditions. Recognizing a charger due to high load or external influences a temperature rise, the fan is automatically activated to dissipate heat and prevent overheating. As soon as the temperature drops to a safe level, the fan turns off – for a quiet and energy-efficient operation.
This intelligent cooling system not only extends the life of the charger, but also improves performance and safety during longer charging operations.

The product is CE-certified and has the following protective functions:

• Fastest Loading

• Overvoltage protection

• Overload protection

• Overvoltage protection

• Voltage stabilisation protection

• Temperature protection

• Automatic Shutdown

• Balancing function

• Verpolungsschutz

• Overload protection

• Noise-reducing operation

• Magnetic field protection

• Strengthened aluminum alloy housing

Enhanced Aluminium Housing

The charger has a reinforced aluminum casing that ensures excellent heat dissipation and guarantees a long lifespan. It is rust-resistant, durable, and resistant to wear and tear – for reliable performance over a long period.

Wide range of applications

This charger is versatile and can be used for:

• Golfcarts

• Electric motors for boats

• Boote

• Recreational vehicles

• Household appliances

• Home batteries

• and much more.

Technical Data

1. Input Voltage: 220–240 V

2. Input voltage: 29.4 V (battery charging voltage)

3. Lademodus: CC/CV

4. Ladestrom: 5–50 A

5. Suitable for: 24V Lead-Acid Batteries

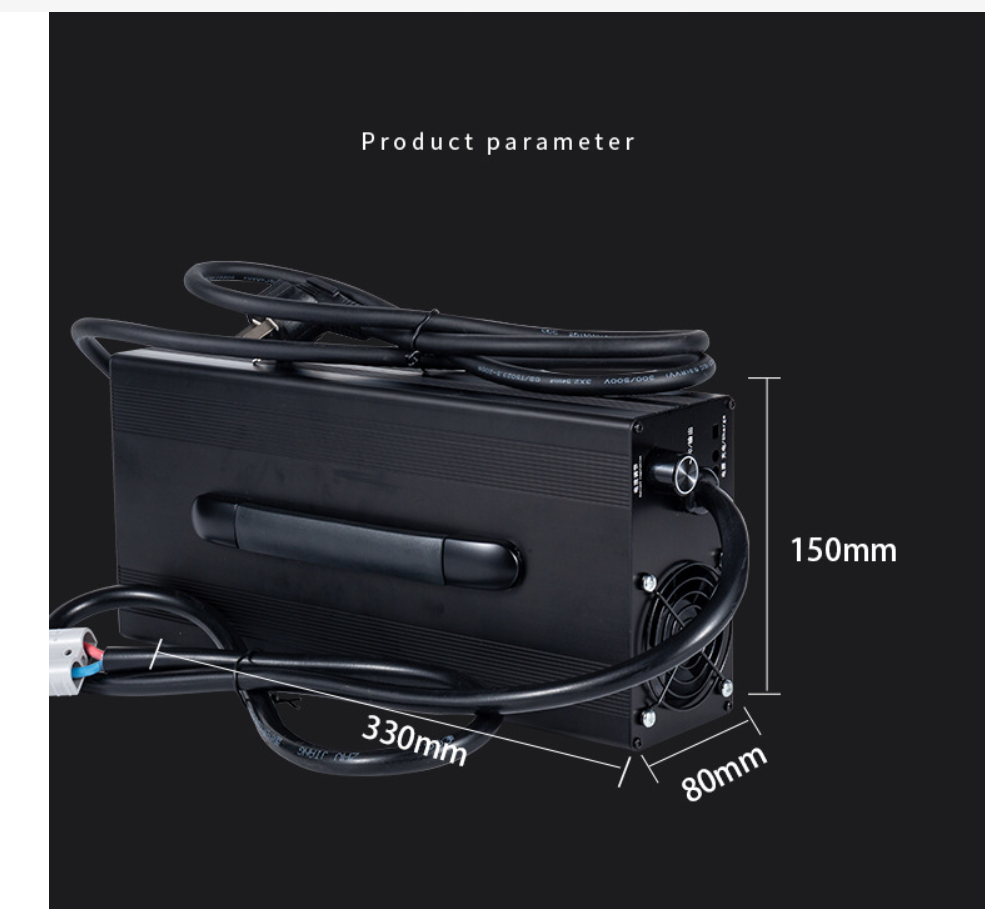

6. Dimensions: 330 mm × 150 mm × 80 mm

7. Weight: approx. 3.4 kg

8. Operating temperature: –10 °C to +50 °C

9. Efficiency: >85 %

10. Ladestecker: EU-Schuko-Stecker (unterstützt keine 110-V-Stecker)

11. Optional charging cables: Anderson 50 A, Anderson 120 A, Anderson 175 A, Crocodile clip, M8 etc.
    (If the desired version is not listed, please contact our customer service.)

Delivery contents:

• 1 × 24V 50A Ladegerät
