Due to certain batteries with M25 charging connectors that have integrated charging protocols, our charger cannot support batteries with built-in charging protocols. Please confirm with the battery supplier before purchase whether the battery has an integrated charging protocol.

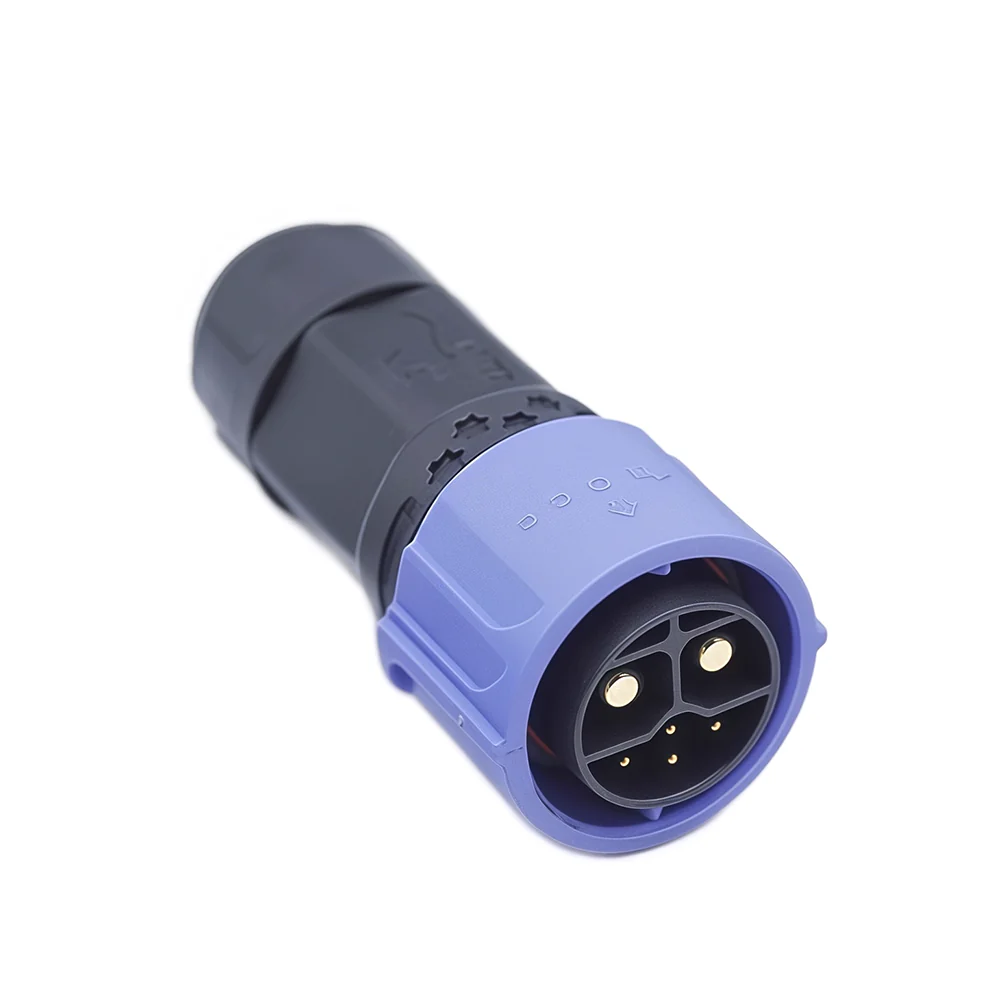

For M25 (2+1+5) and M25 (2+4), the standard polarization is 1+ for positive and 2- for negative. If you require a different polarization, please let us know.
Contact options:
You can reach us online or send an email to sale@noeifevo.de.
Bevor Sie ein Ladegerät kaufen, überprüfen Sie bitte, ob der Batterietyp, die Nennspannung, die Ladespannung und der akzeptable Ladestrom (empfohlener Ladestrom 0,2C) mit der Produktbeschreibung übereinstimmen. Wenn Sie sich nicht sicher sind, ob das Ladegerät für Ihre Batterie geeignet ist, wenden Sie sich bitte an unseren Kundenservice zur Unterstützung.
Specifications
1. Input Voltage: 220V
Starting voltage: 43.8V (the charging voltage for the battery)
3. Charging Method: CC/CV
Charging current: 10A
Suitable for: 12S 38.4V LiFePO4 battery (not for lead-acid batteries)
6. Weight: 1.2 kg
7. Dimensions: 170 x 90 x 50 mm
8. Operating Temperature Range: -20°C to +45°C
9. Efficiency: > 85 %
Charger Plug: EU Plug (if you need a different power plug, please contact our customer service)
11. Optional Charging Plugs:Anderson 50A, Anderson 45A, Crocodile clip, XT60, XT90, M8, XLR, M25(2+1+5)，M25（2+4）, IEC C13, GX16-2(1+2-), GX16-3(1+3-) etc.(If the version you need is not listed here, please contact our customer service).
With LED display, all charging data can be shown in real-time.
High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
Applications: Batteries, power tools, e-bikes, scooters, electric vehicles, cars, golf carts, robots etc.
Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection
Usage:
1. Before use, check if the battery charger matches the type of charger model. If the model does not match, charging may be abnormal and can seriously damage the battery.
2. Connect the battery properly. Do not reverse the polarity! (Red + Black or Brown- Blue + or Red + Blue -).
3. Plug in the power plug into the socket and the charger starts to charge the battery. When the voltage is full, unplug the charger first and then remove the battery plug.
Included:
1 x 43.8V 10A charger
