Please check the type and charging voltage of your battery before purchasing a charger. (If you are unsure, please contact our customer service.)
Specifications
1. Input Voltage: 220–240 V
Starting voltage: 63V (the charge voltage for the battery)
3. Charging Method: CC/CV
4. Charging Current: 4A
Suitable for: 15S 55.5V Lithium battery Li-Ion cell. (not suitable for Lead-acid battery and LiFePO4 battery)
Operating temperature: -20 °C to +45 °C
Efficiency: >85 %
Charger plug: EU Schuko plug (if you need another power plug, please contact our customer service)

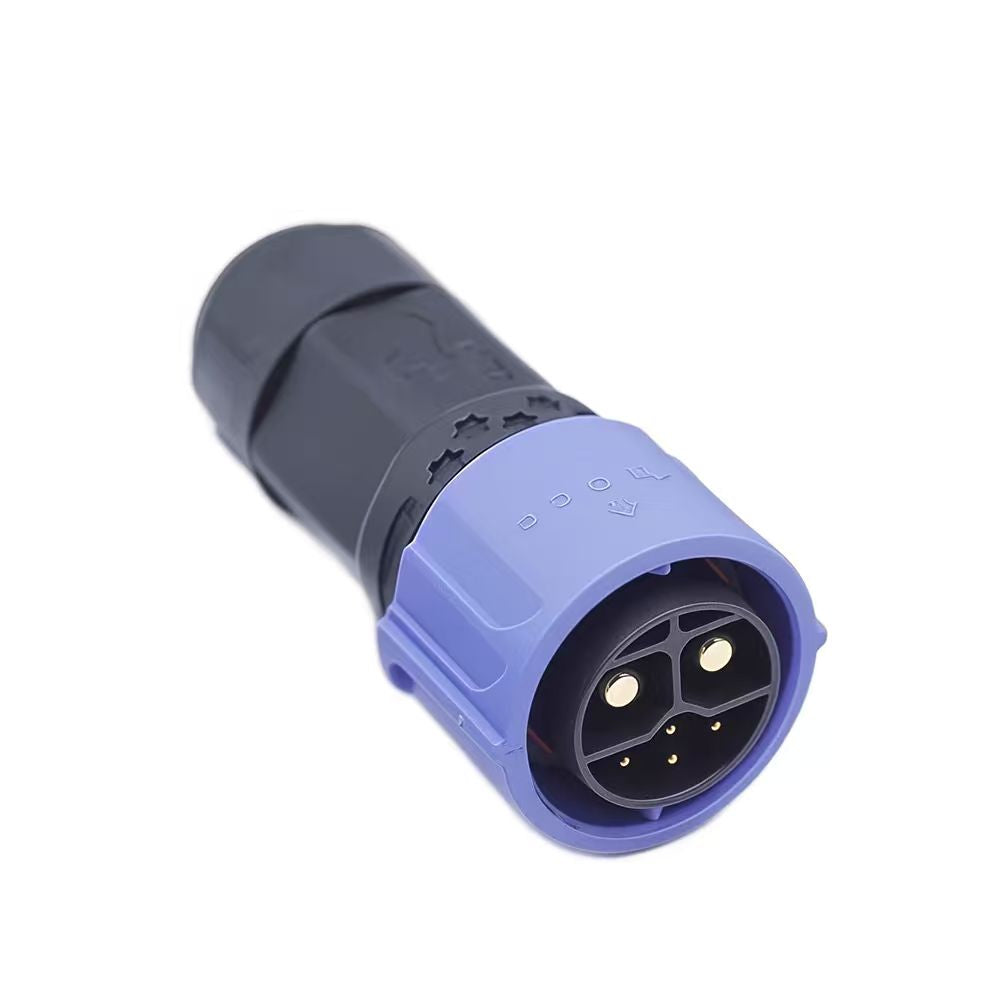

7. Optional charging connector type: XLR, IEC C13 (3P plug), GX16-2, GX16-3, XT60, XT90, Anderson 50A, Anderson 45A crocodile clip, DC5.5*2.1/2.5, M8, M25, RCA etc. (If the version you need is not listed here, please check this page or contact our customer service).

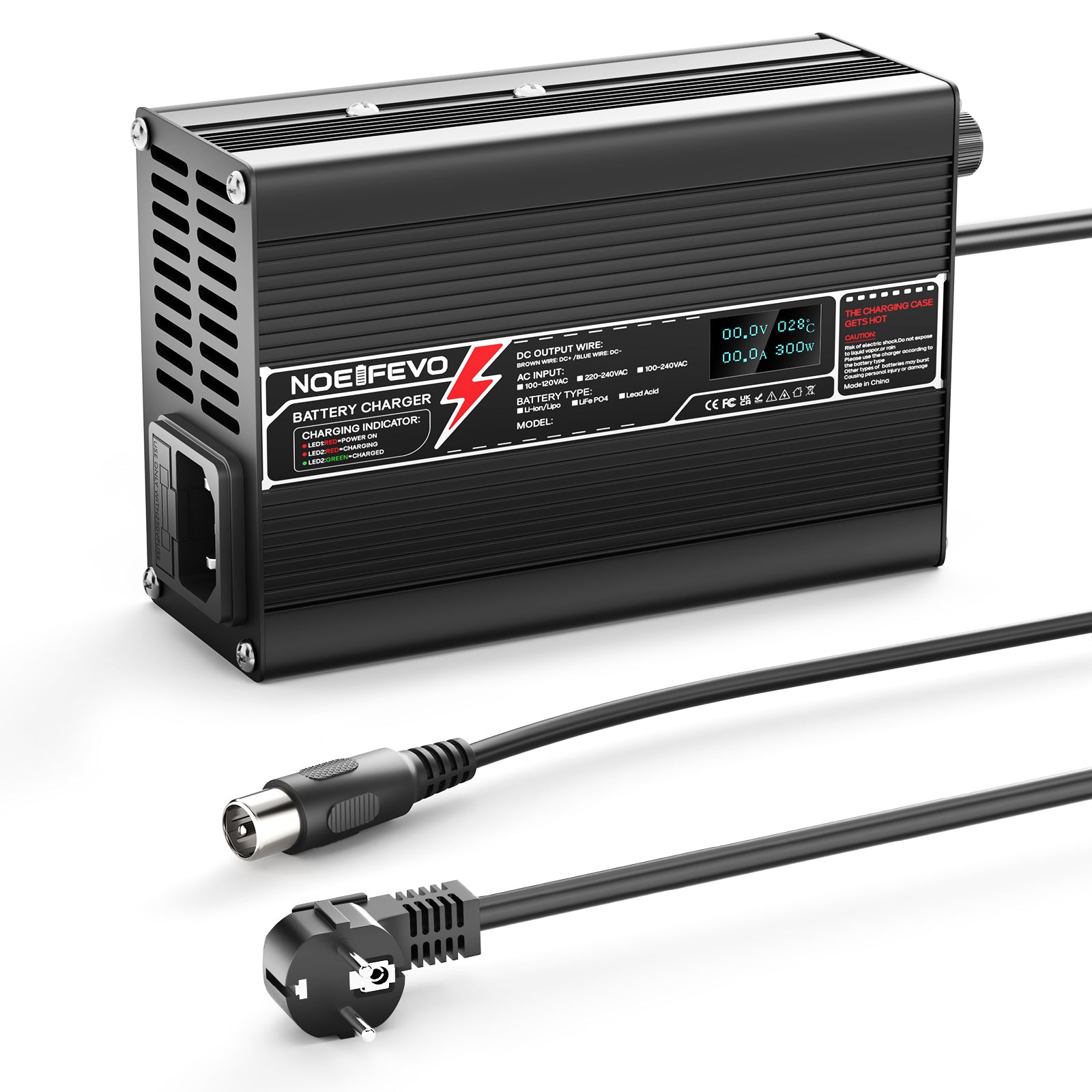

The LED display can show all charging data in real time.
High-quality aluminum casing with cooling fans ensures smooth operation of the charger.

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

How to Use:
1. Before use, check whether the battery charger matches the type of your charger model. If the model does not match, the charging process may be abnormal and the battery can be seriously damaged.
2. The battery must be connected correctly. Do not reverse polarity! (Red + Black- or Brown- Blue+ or Red + Blue -).
3. Then plug in the power outlet into the socket; the charger will begin to charge the battery.
4. Once the voltage is full, first unplug the charger and then remove the battery plug.

Package List
1*63V 4A charger
