Before purchasing a charger, please ensure that your battery type, nominal voltage, charging voltage, and allowable charge current (recommended charge current 0.2 C) match the product description below. If you are unsure whether the charger is suitable for your battery, please contact our customer service.

Specifications
1. Input Voltage: 220V
Starting voltage: 67.2 V (the charge voltage for the battery)
3. Charging Method: CC/CV
Charging current: 6 A
Suitable for: 16S 59.2V Lithium battery. (not for lead acid batteries)
6. Weight: 1.2 kg

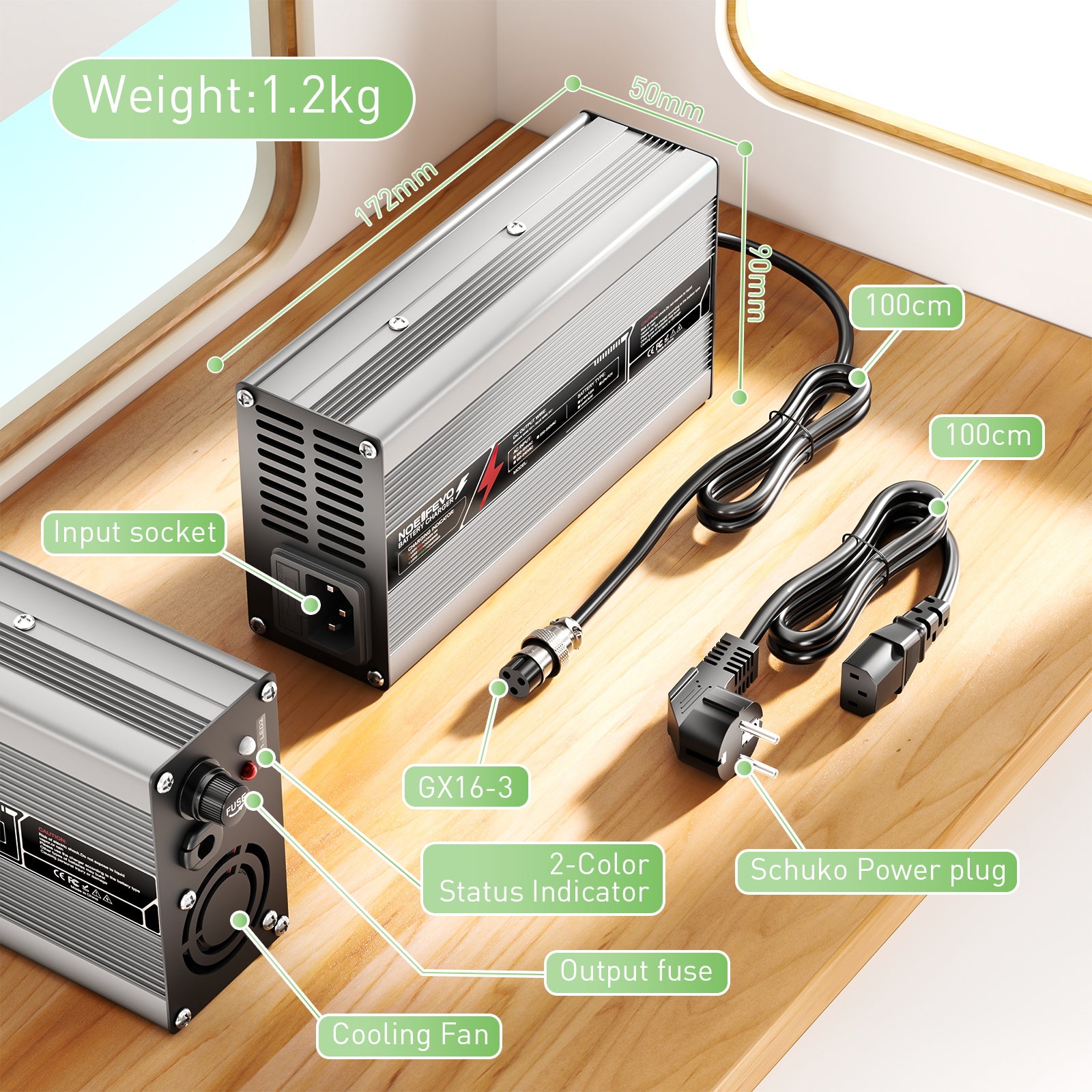

7. Dimensions: 172 x 90 x 50 mm

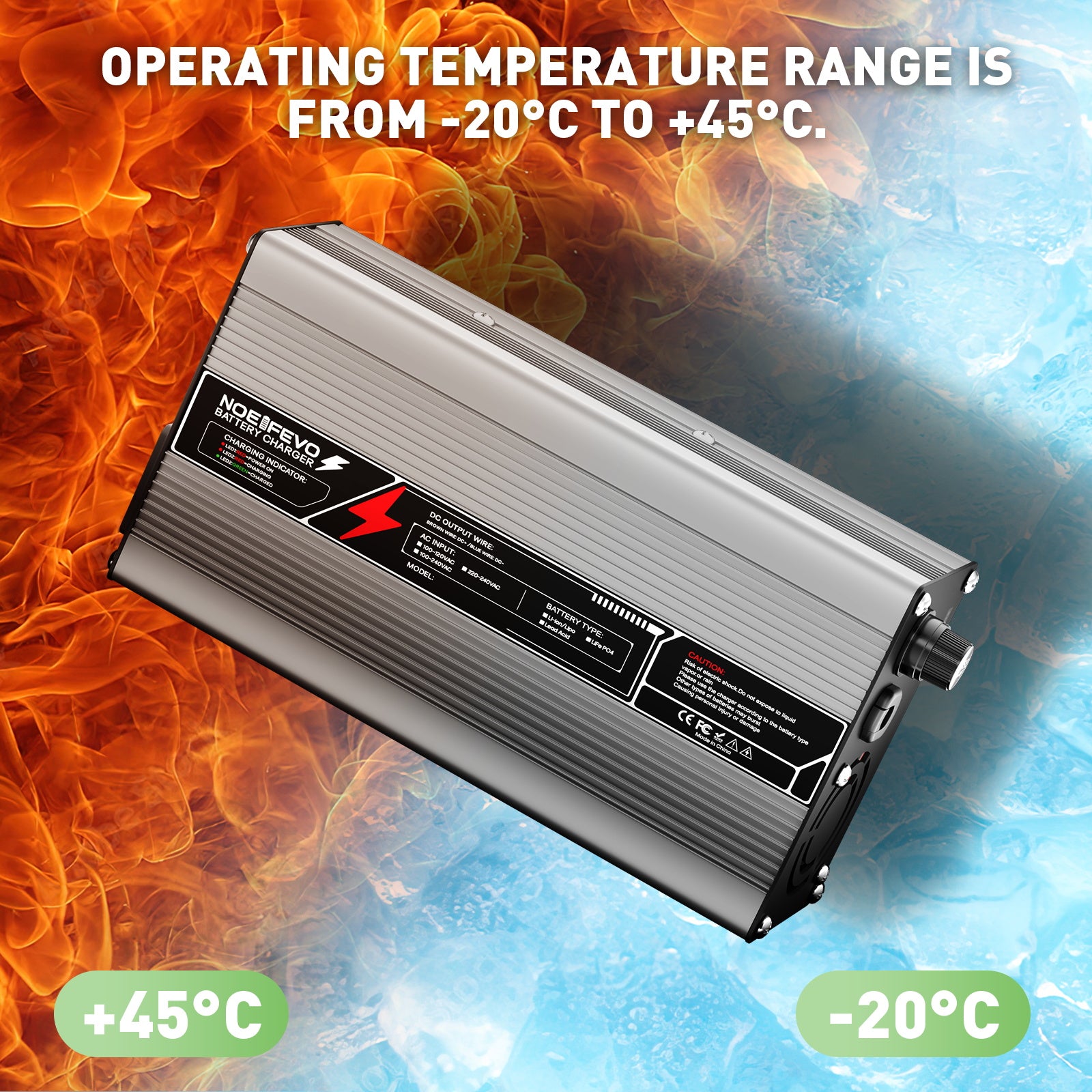

8. Operating Temperature Range: -20°C to +45°C
9. Efficiency: > 85 %
Charger Plug: EU Plug (if you need a different power plug, please contact our customer service)

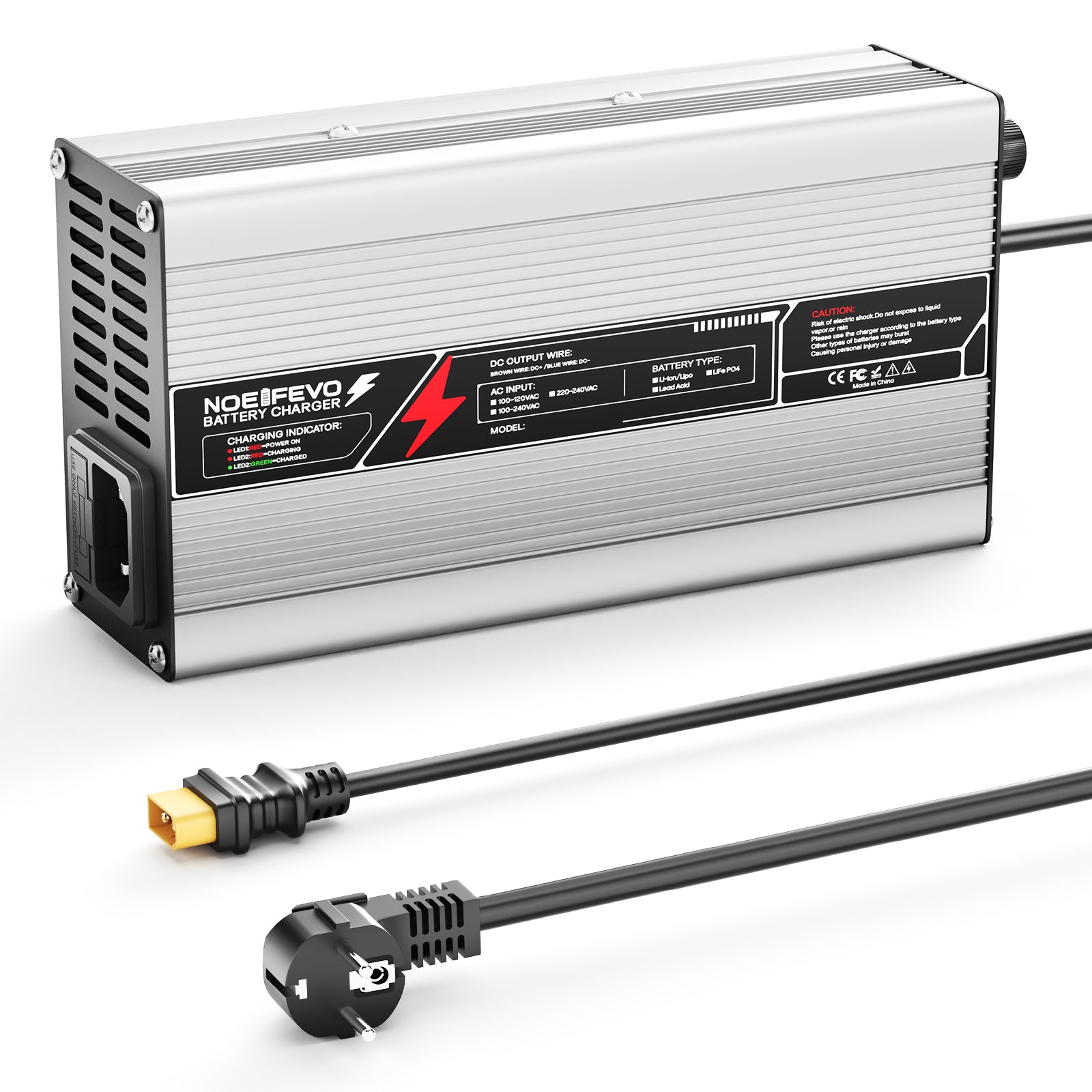

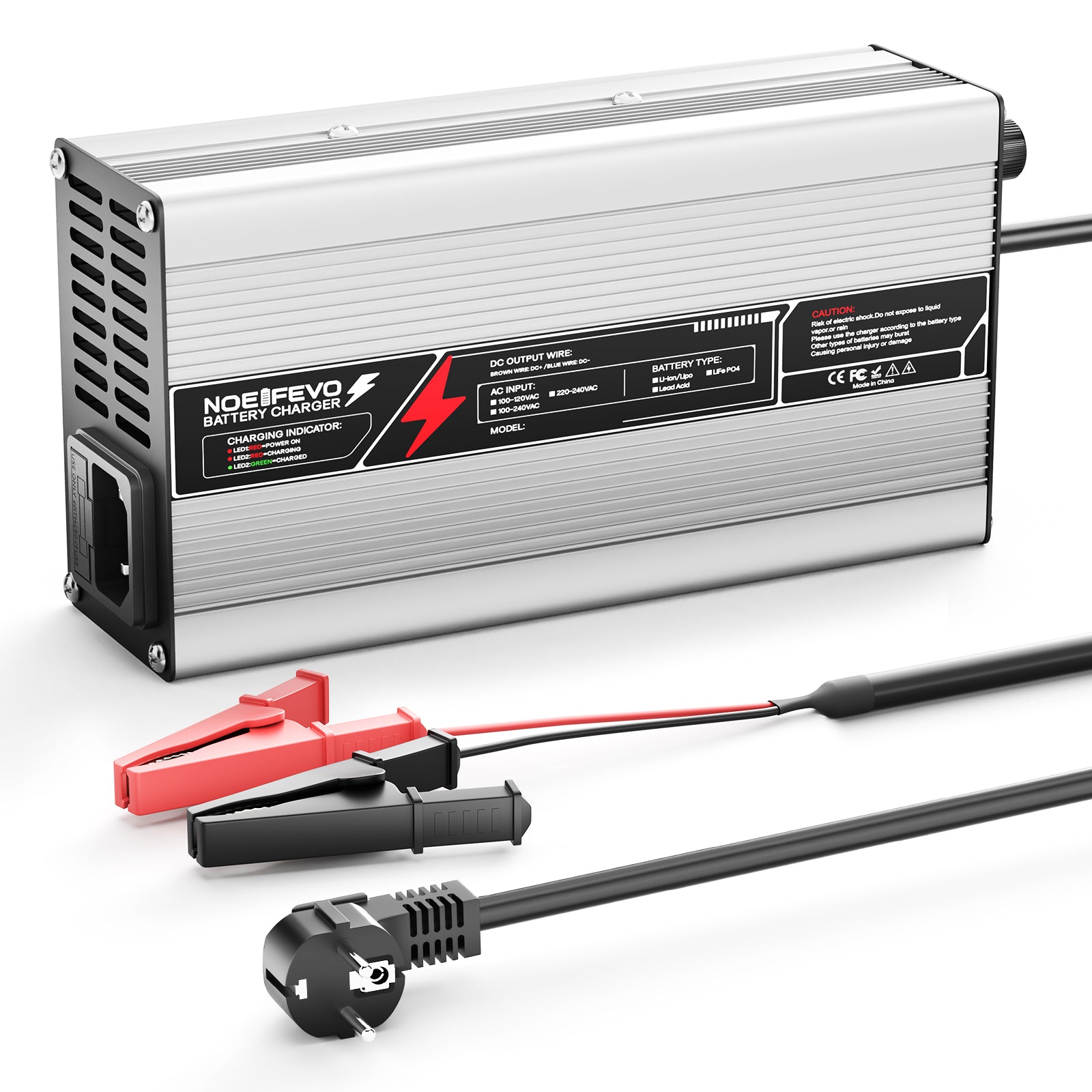

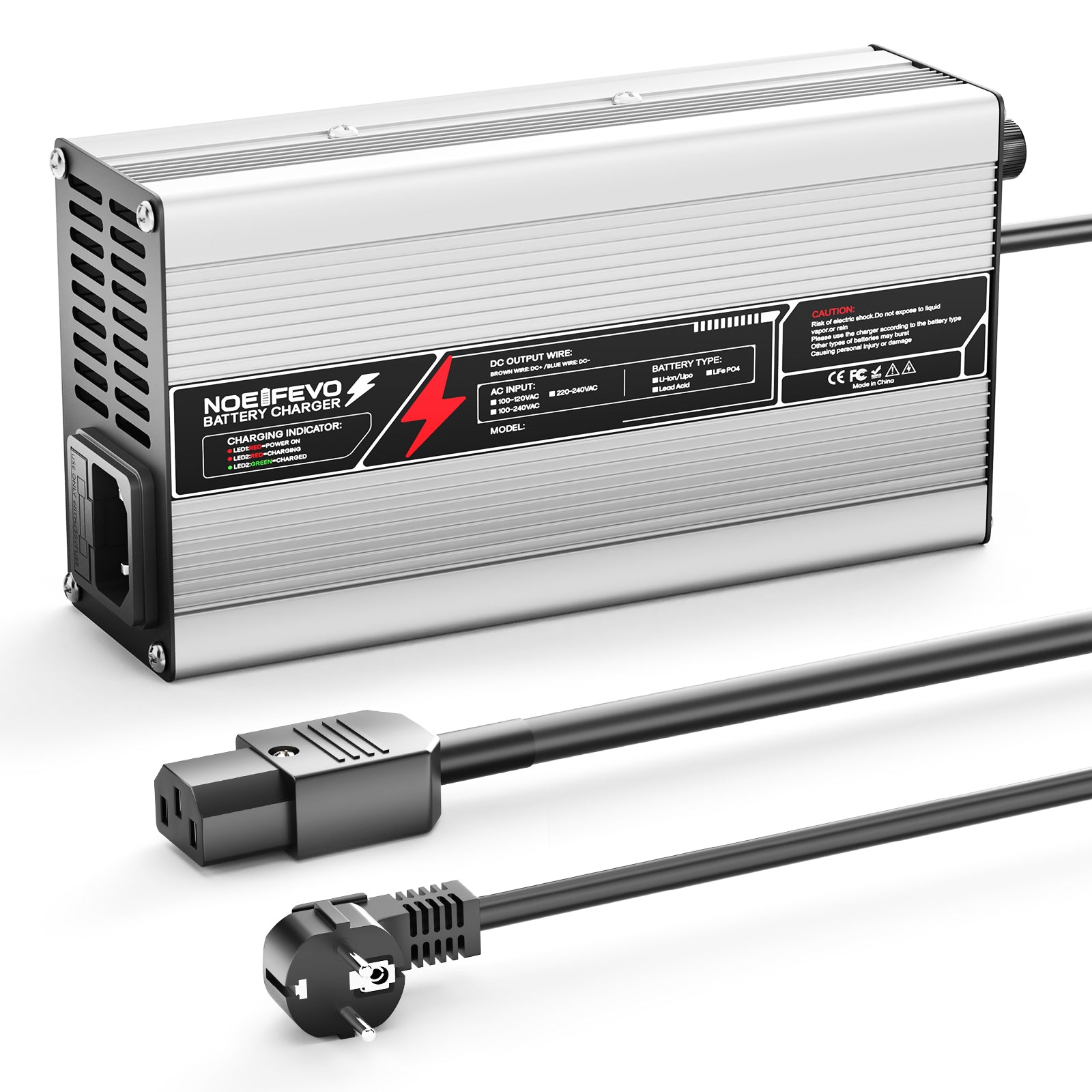

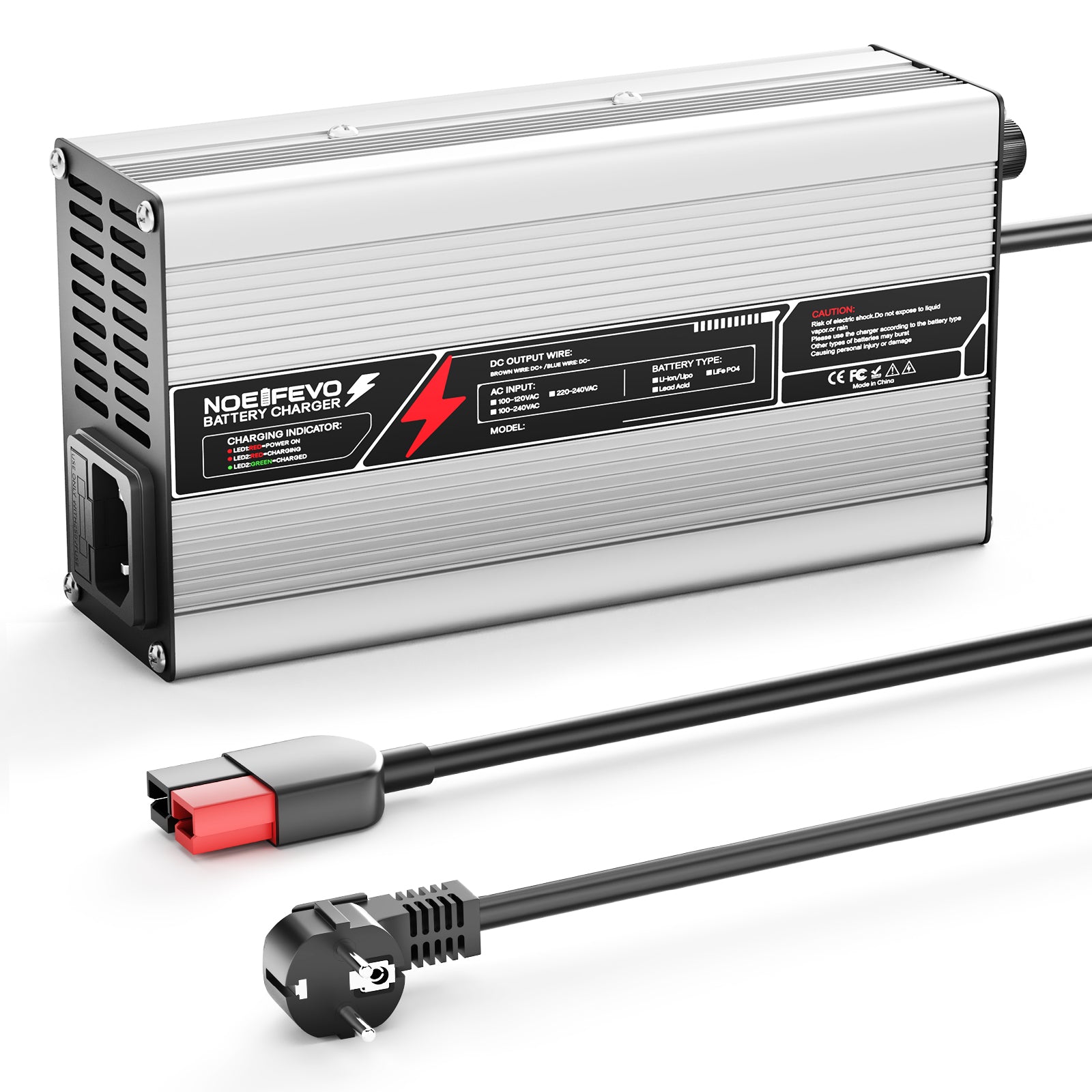

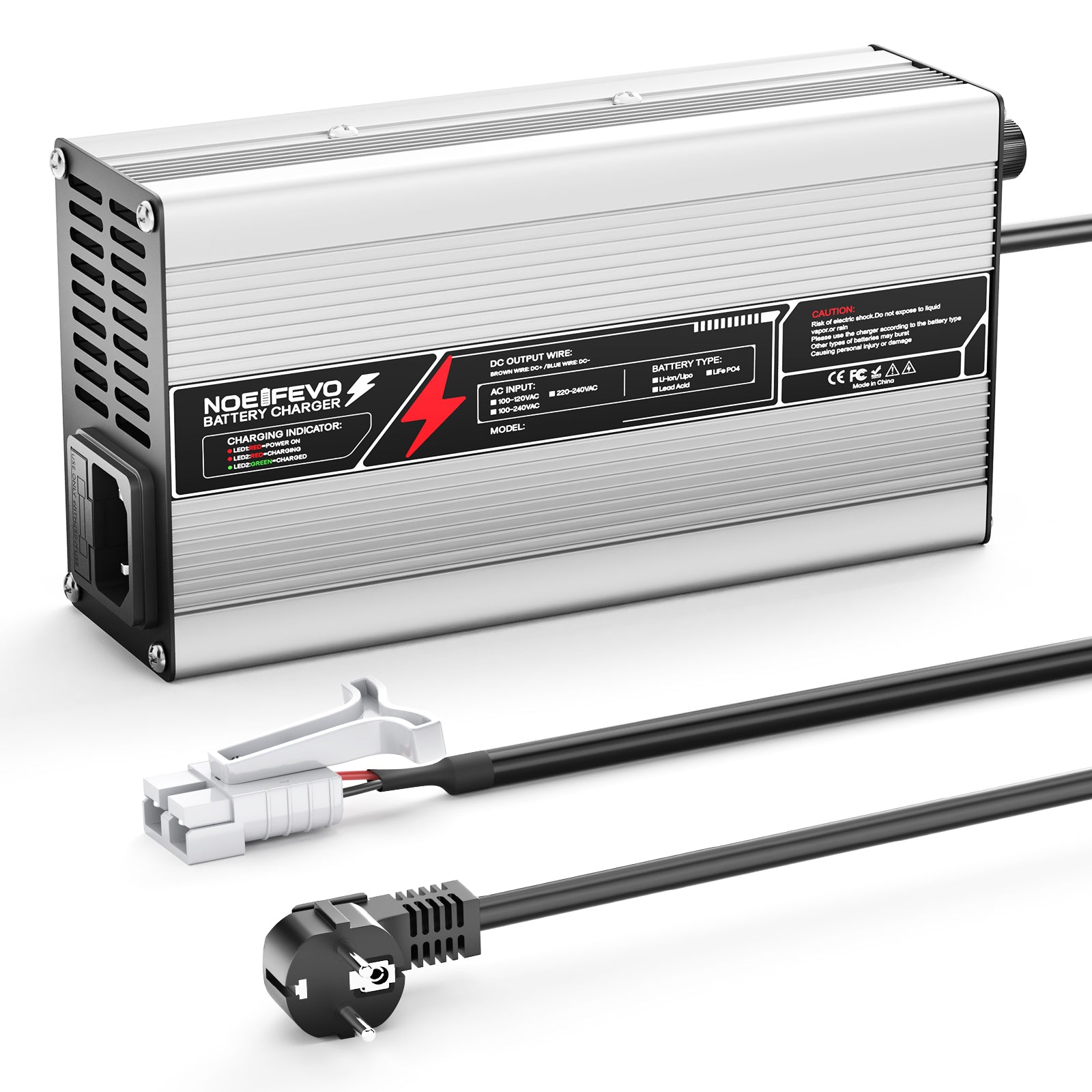

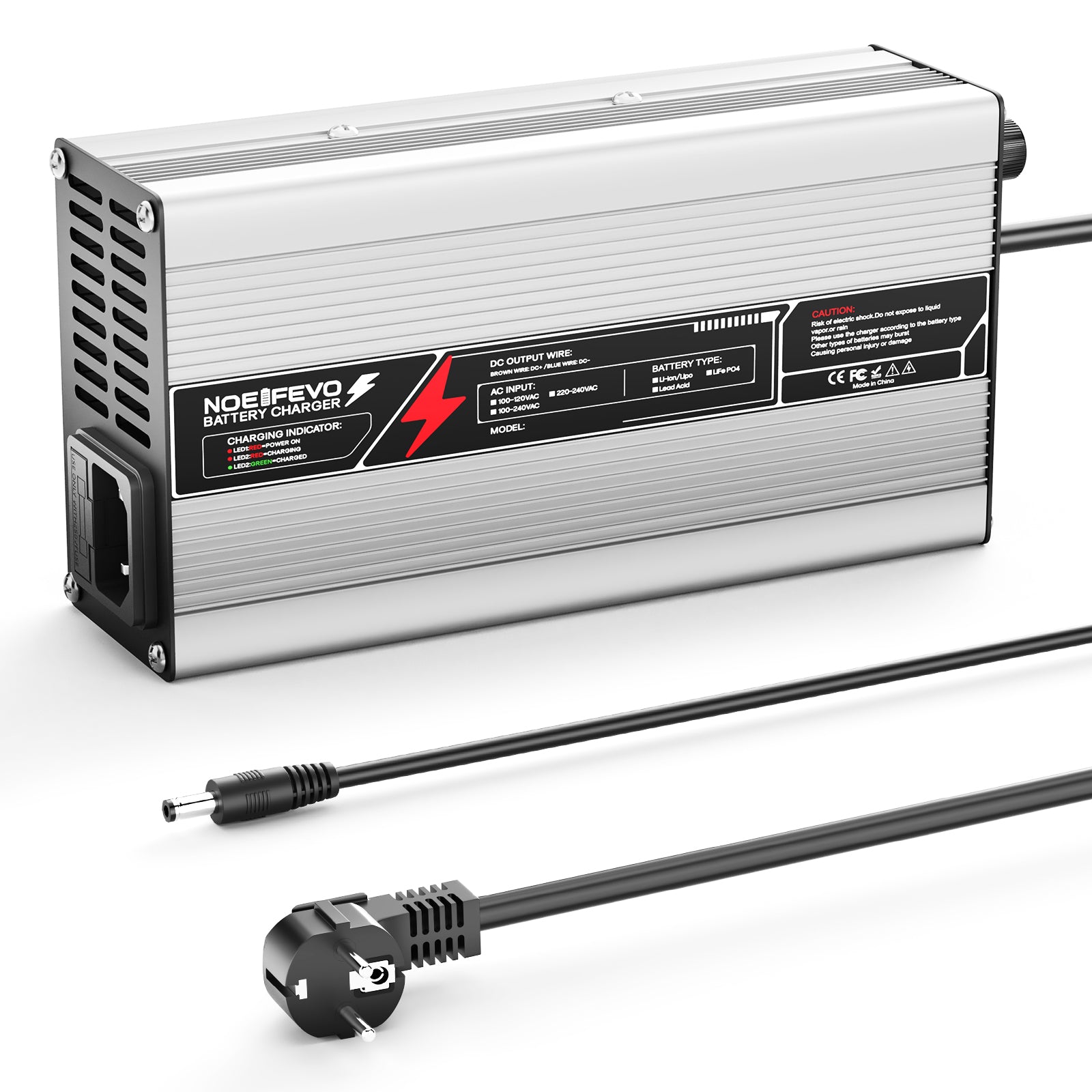

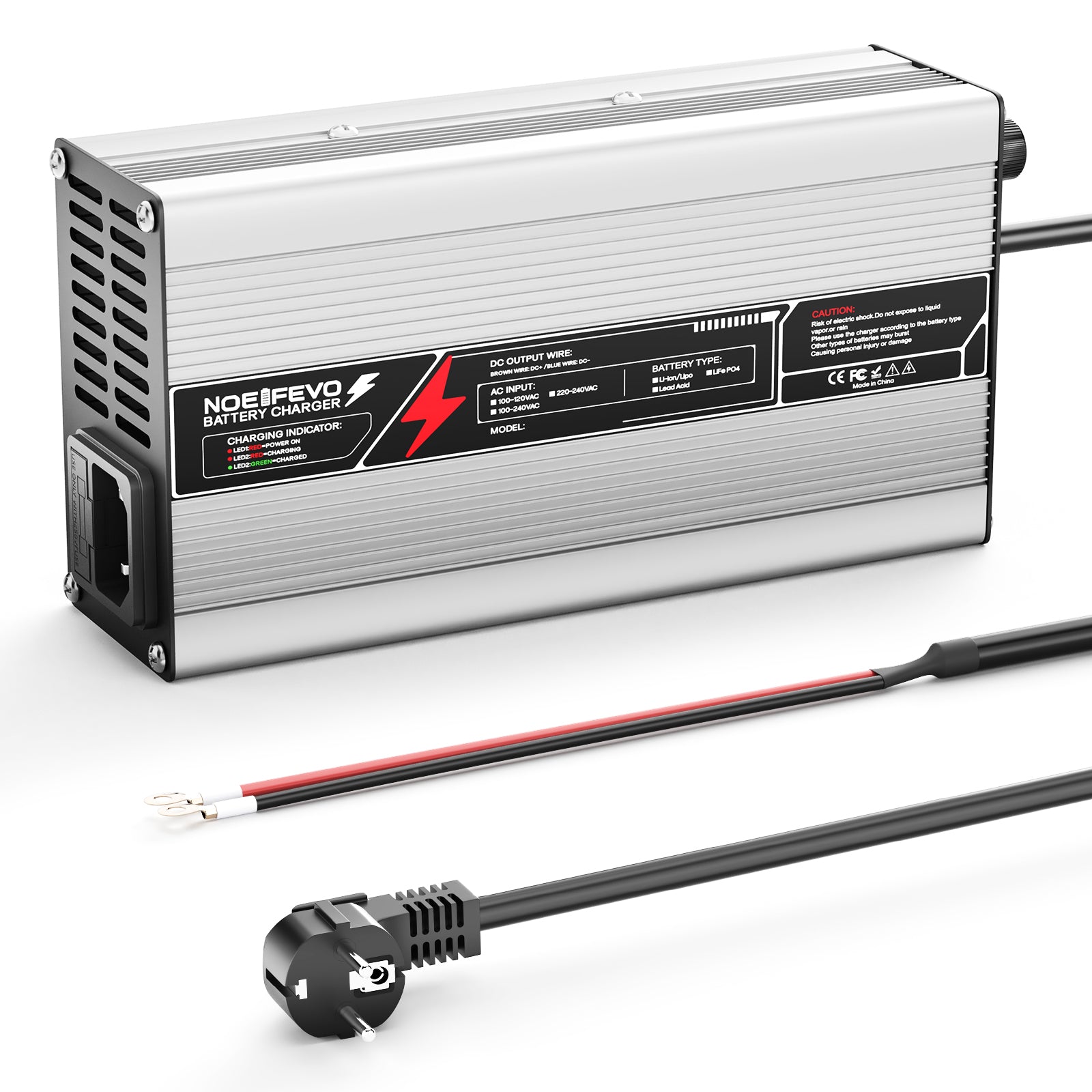

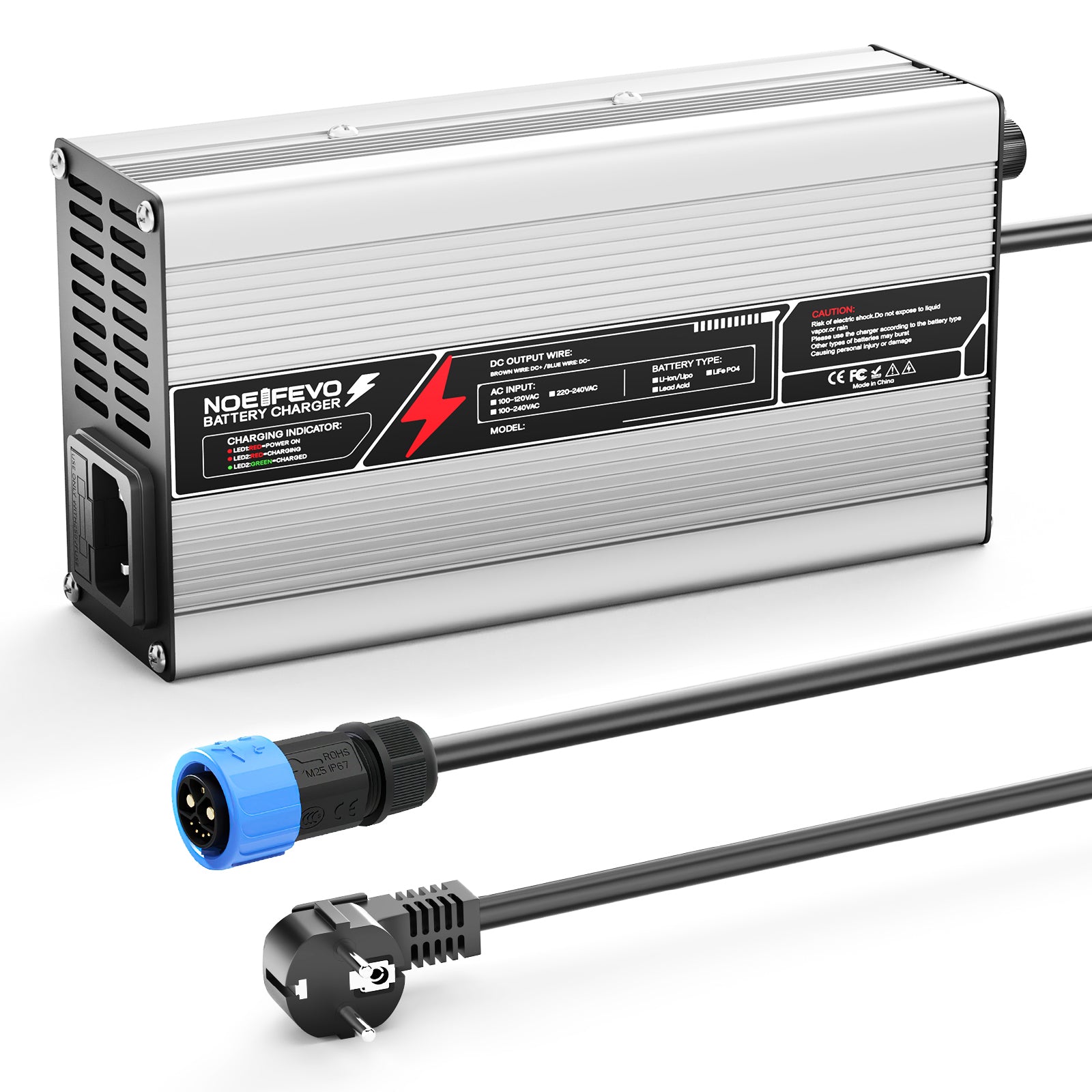

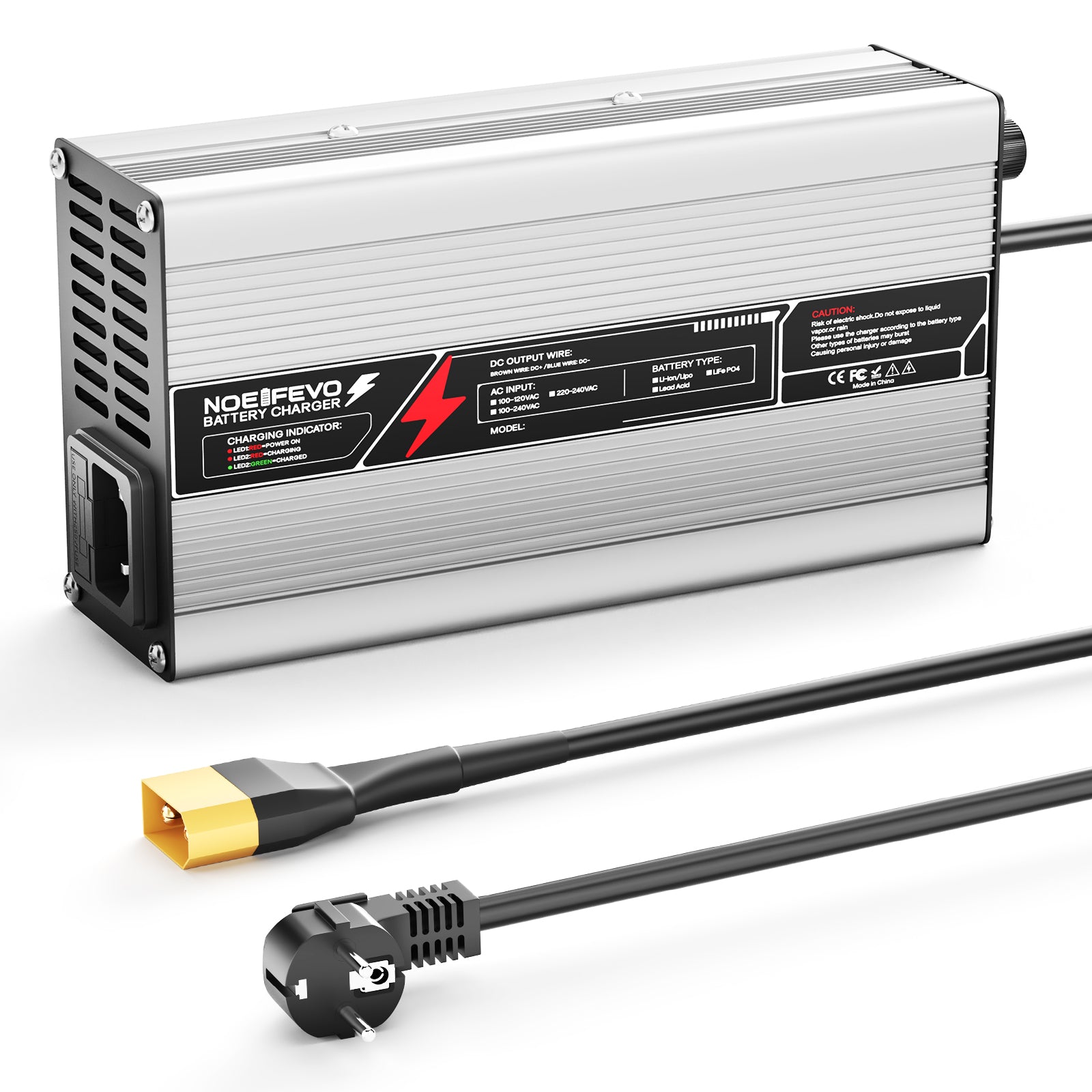

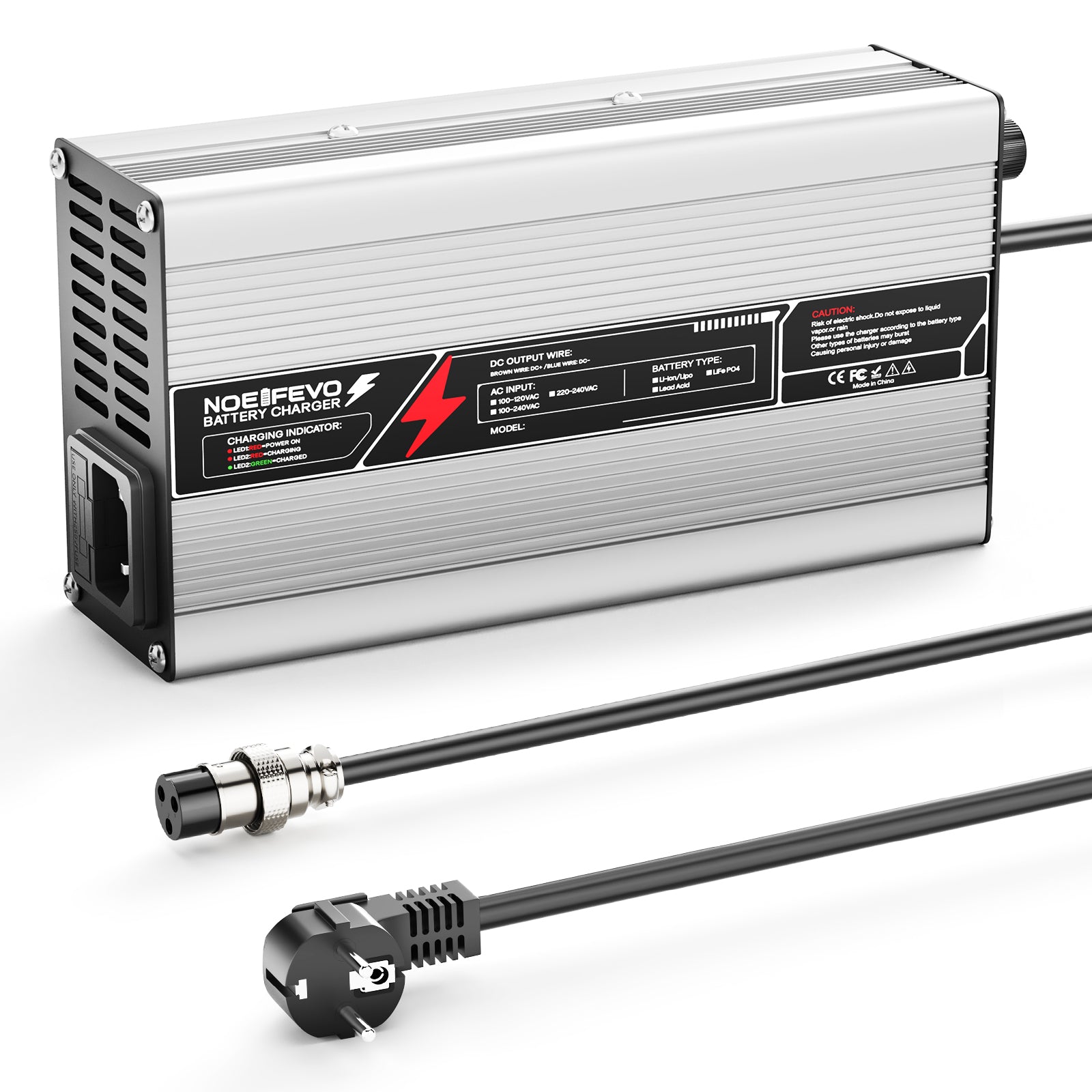

11. Optional Charging Plugs:XT60, XT90, Anderson 50A, Anderson 45A crocodile clip, M8, M25, XLR, IECC13, GX16-2 (1+2-), GX16-3 (1+3-)etc. (If the version you need is not listed here, please contact our customer service).

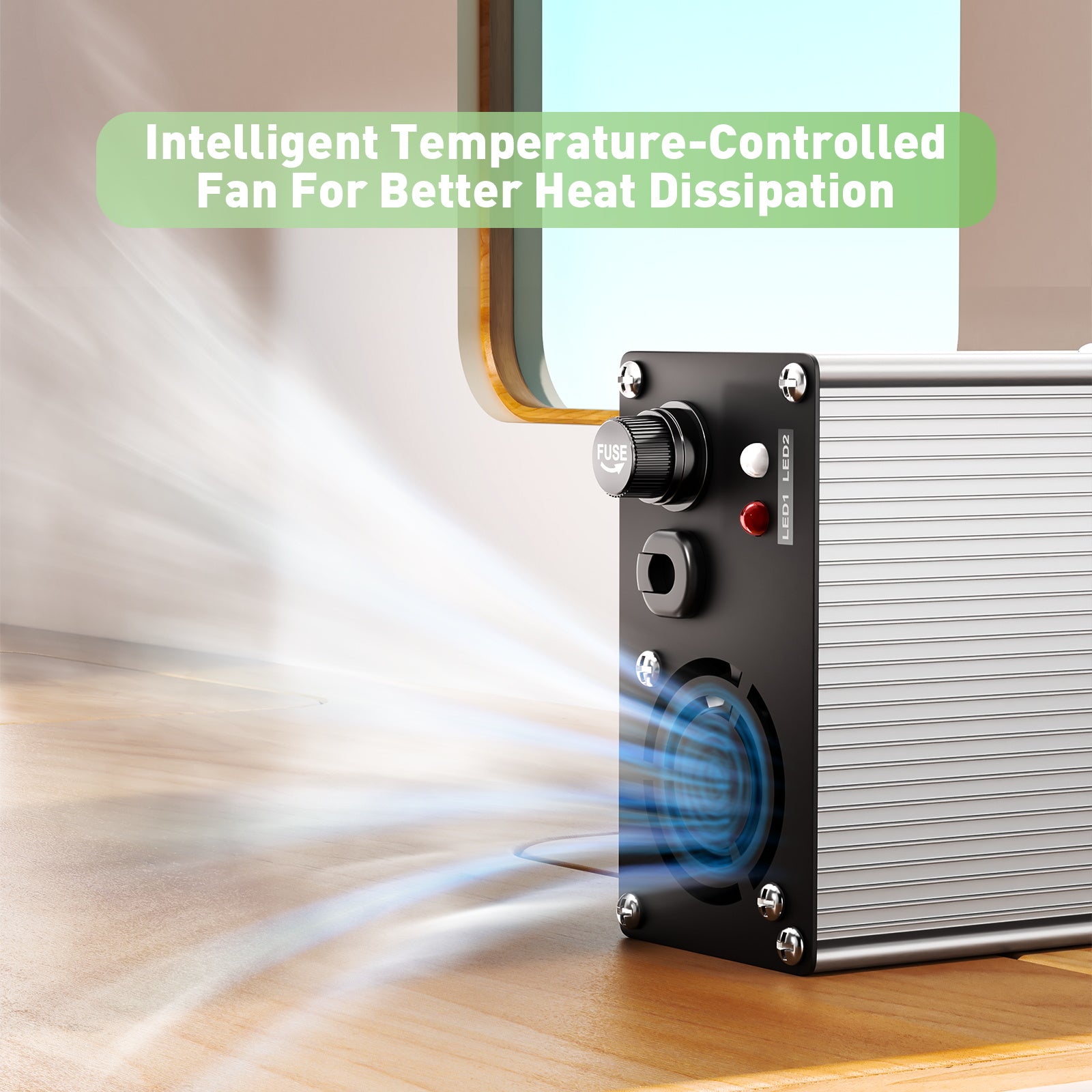

High-quality aluminum casing with cooling fans ensures smooth operation of the charger.
Applications: Batteries, electric tools, e-bikes, scooters, electric vehicles, cars, golf carts, robots, etc.

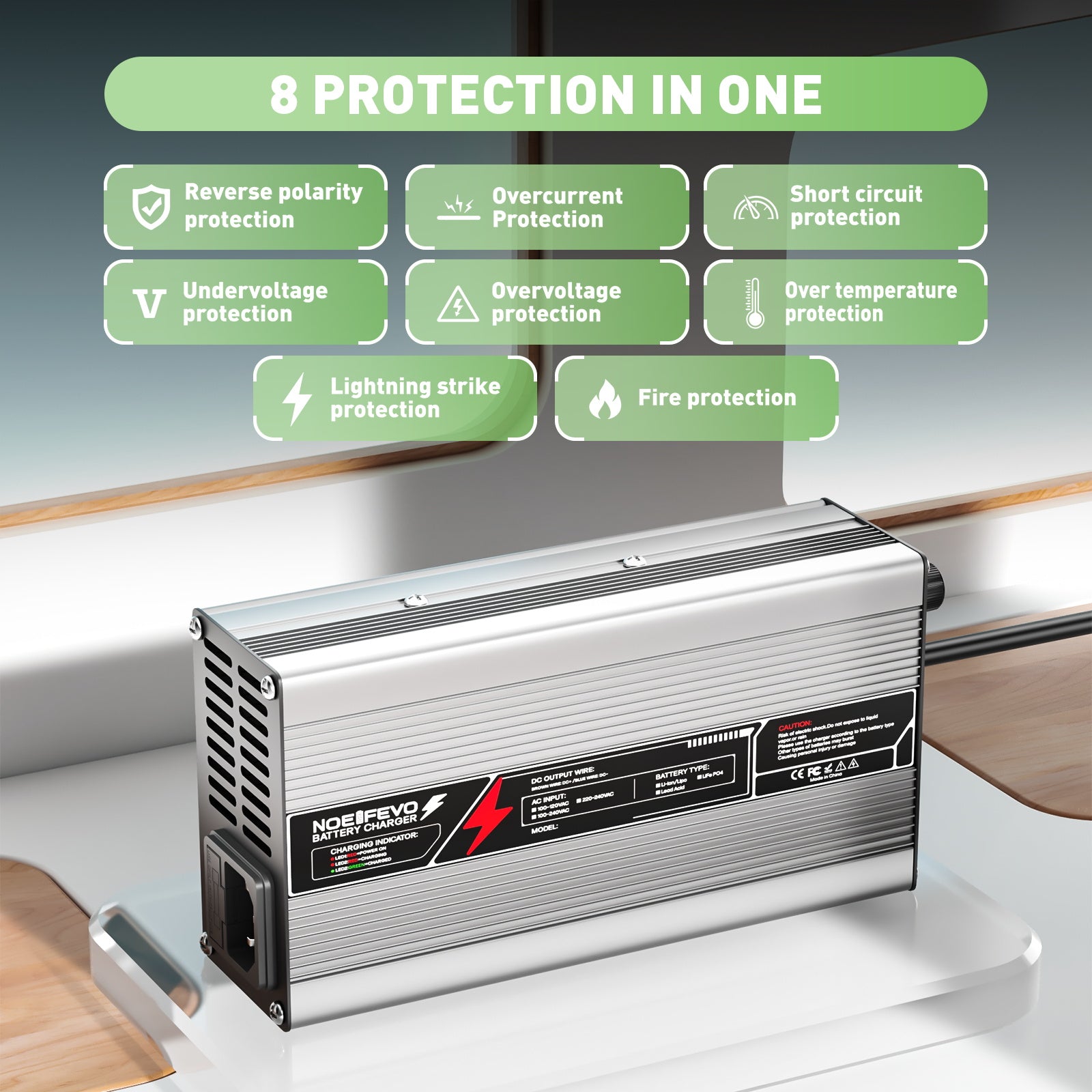

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

Usage:
1. Before use, check if the battery charger matches the type of charger model. If the model does not match, charging may be abnormal and can seriously damage the battery.
The battery must be connected correctly. Do not reverse the polarity! (Red + Black or Brown- Blue + or Red + Blue -).
Then plug in the wall socket and the charger starts charging the battery.
4. Once the voltage is full, first unplug the charger and then remove the battery plug.

Included:

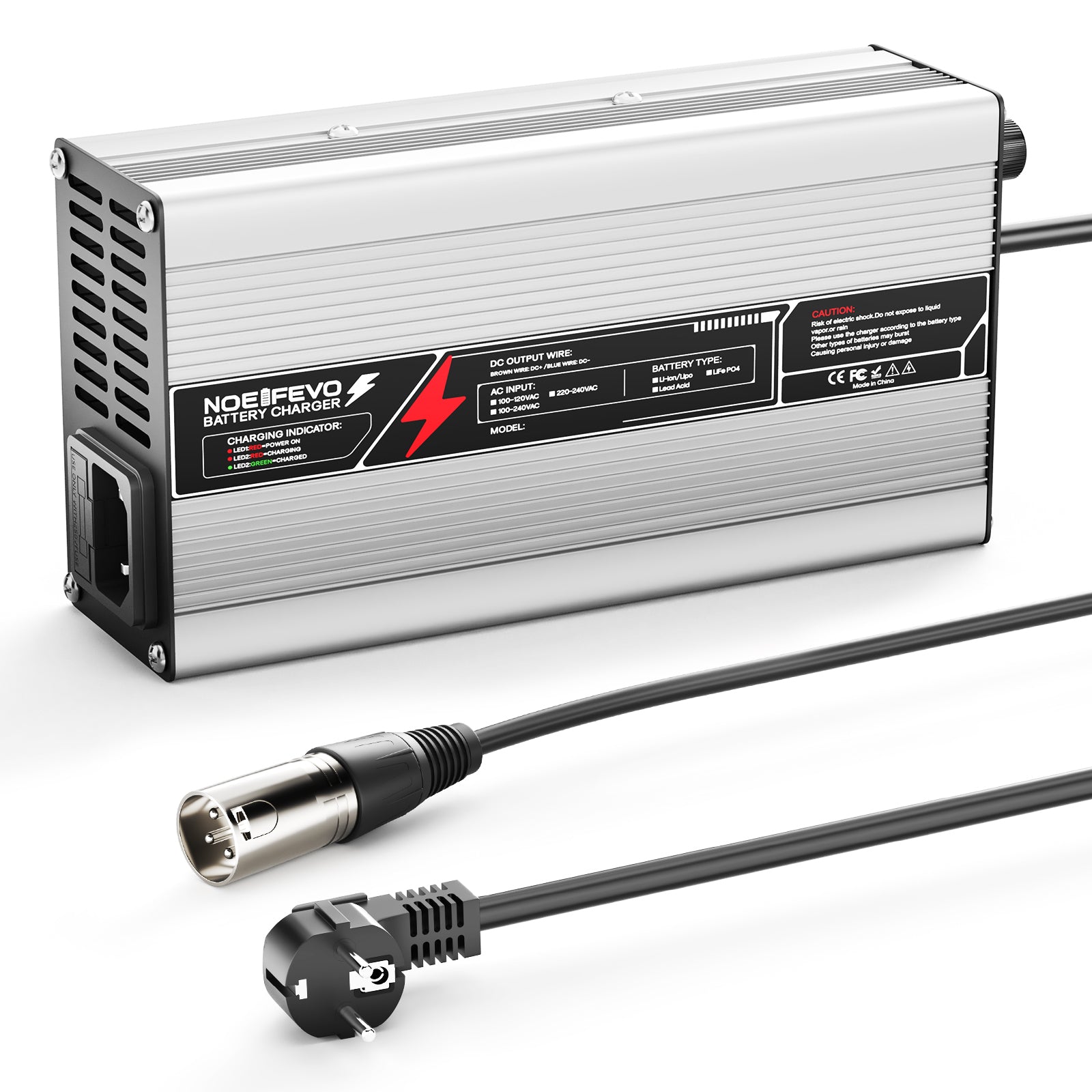

1 x 67.2V 6A Charger
