Please check the type and charging voltage of your battery before purchasing a charger. (If you are unsure, please contact our customer service.)
Specifications
1. Input Voltage: 220–240 V
2. Start Voltage: 67.4 V (the charging voltage for the battery)
3. Charging Method: CC/CV
4. Charging Current: 4A

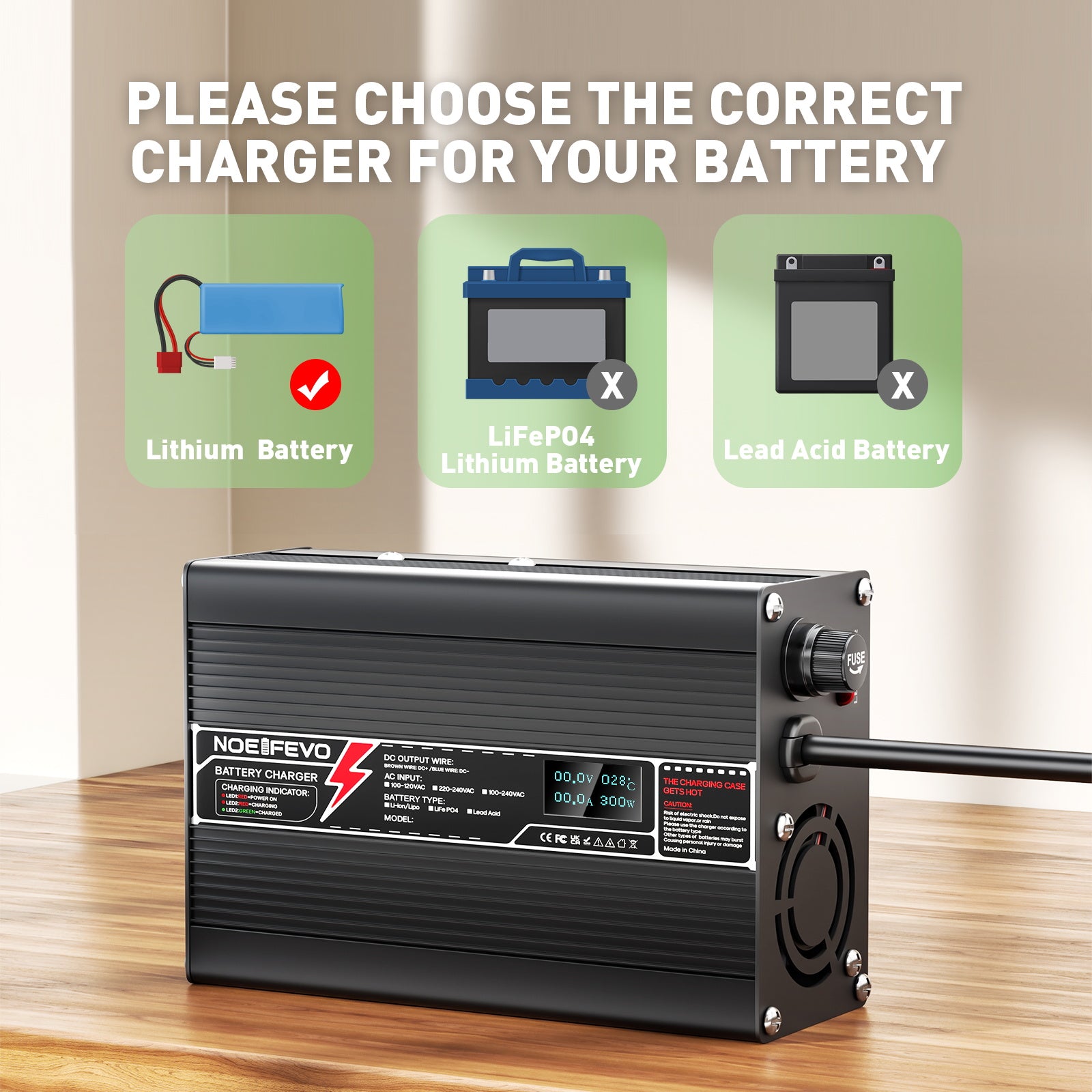

5. Suitable for: 16S 59.2V Lithium Battery Li-Ion Cell. (not suitable for lead-acid and LiFePO4 batteries)

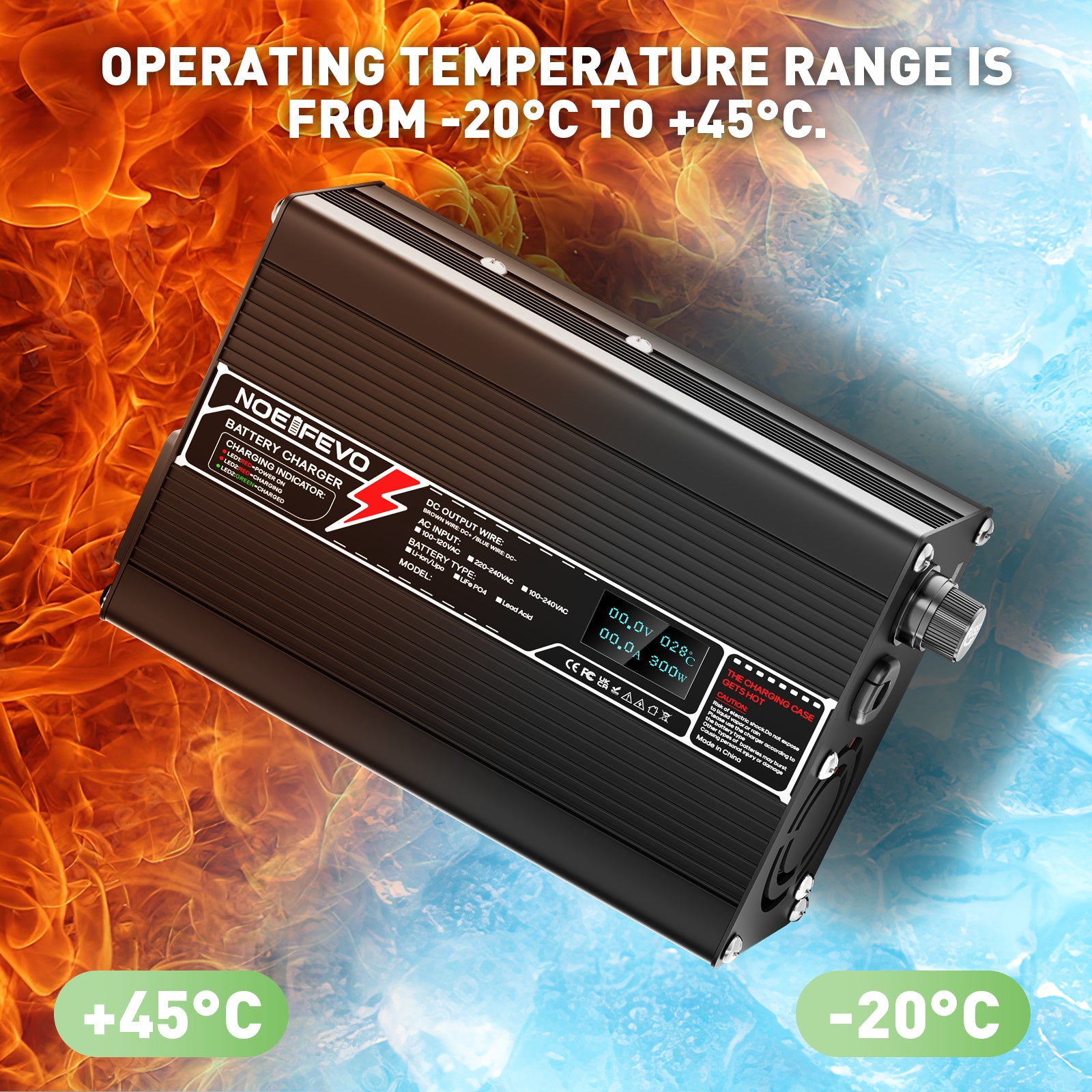

Operating temperature: -20 °C to +45 °C
Efficiency: >85 %
Charger plug: EU Schuko plug (if you need another power plug, please contact our customer service)

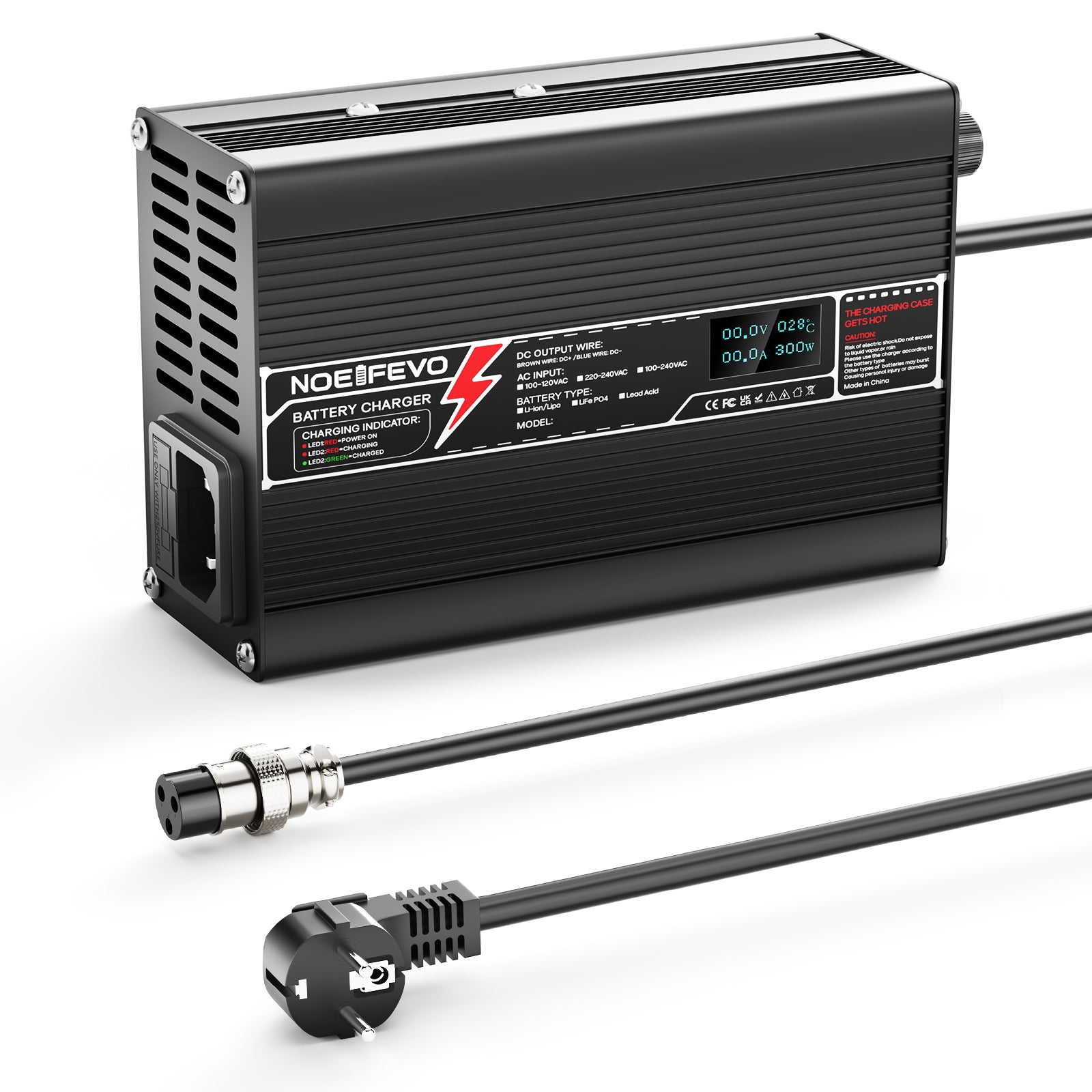

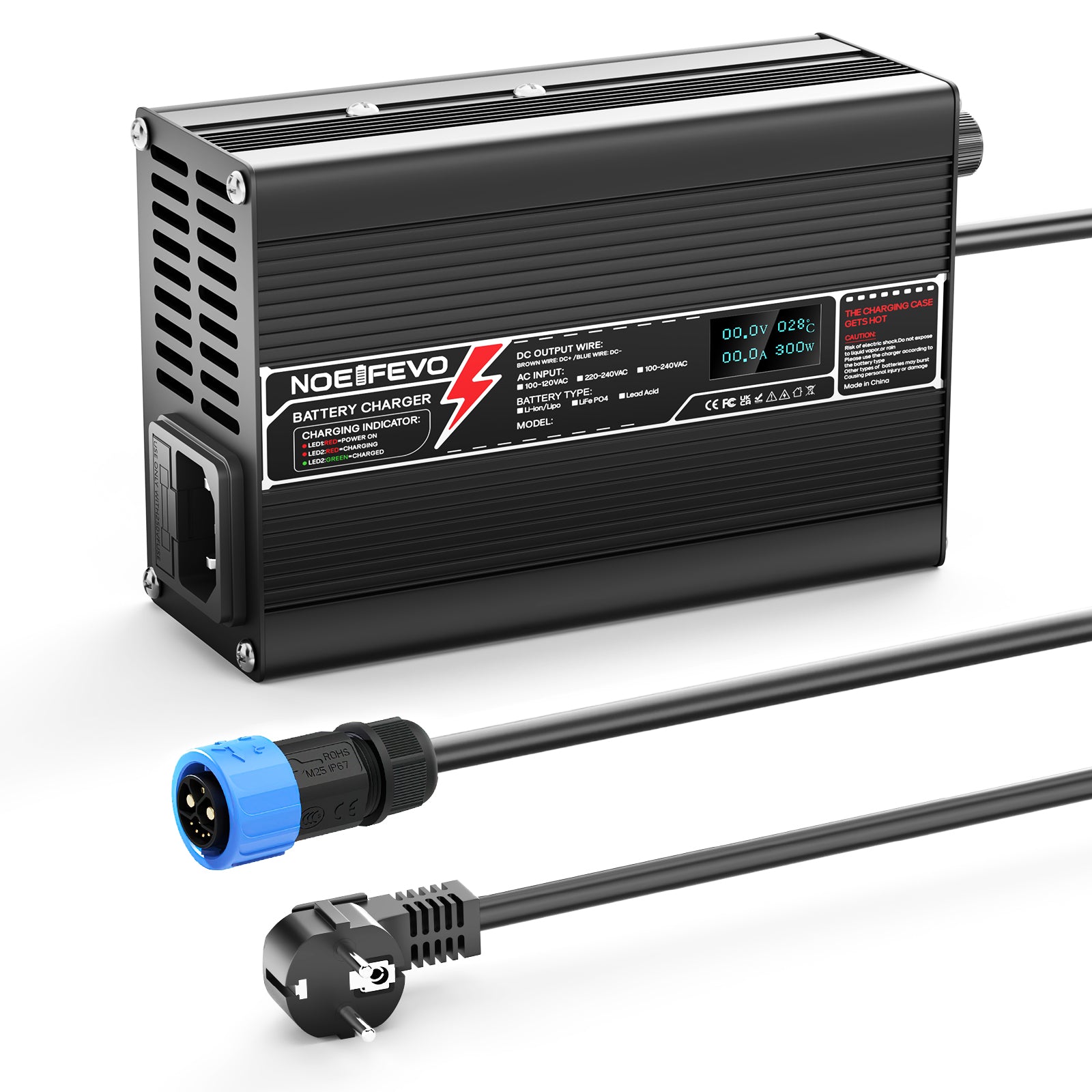

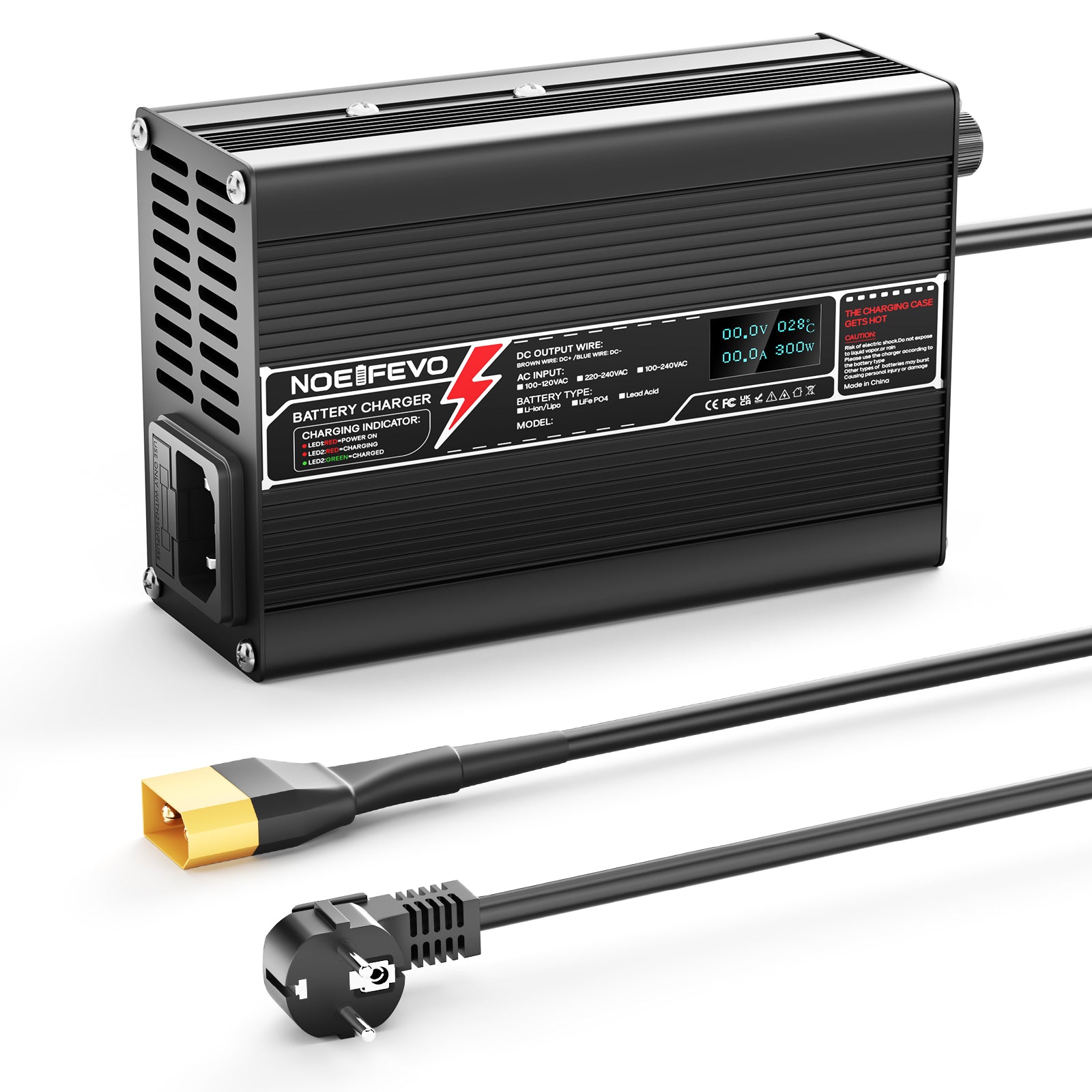

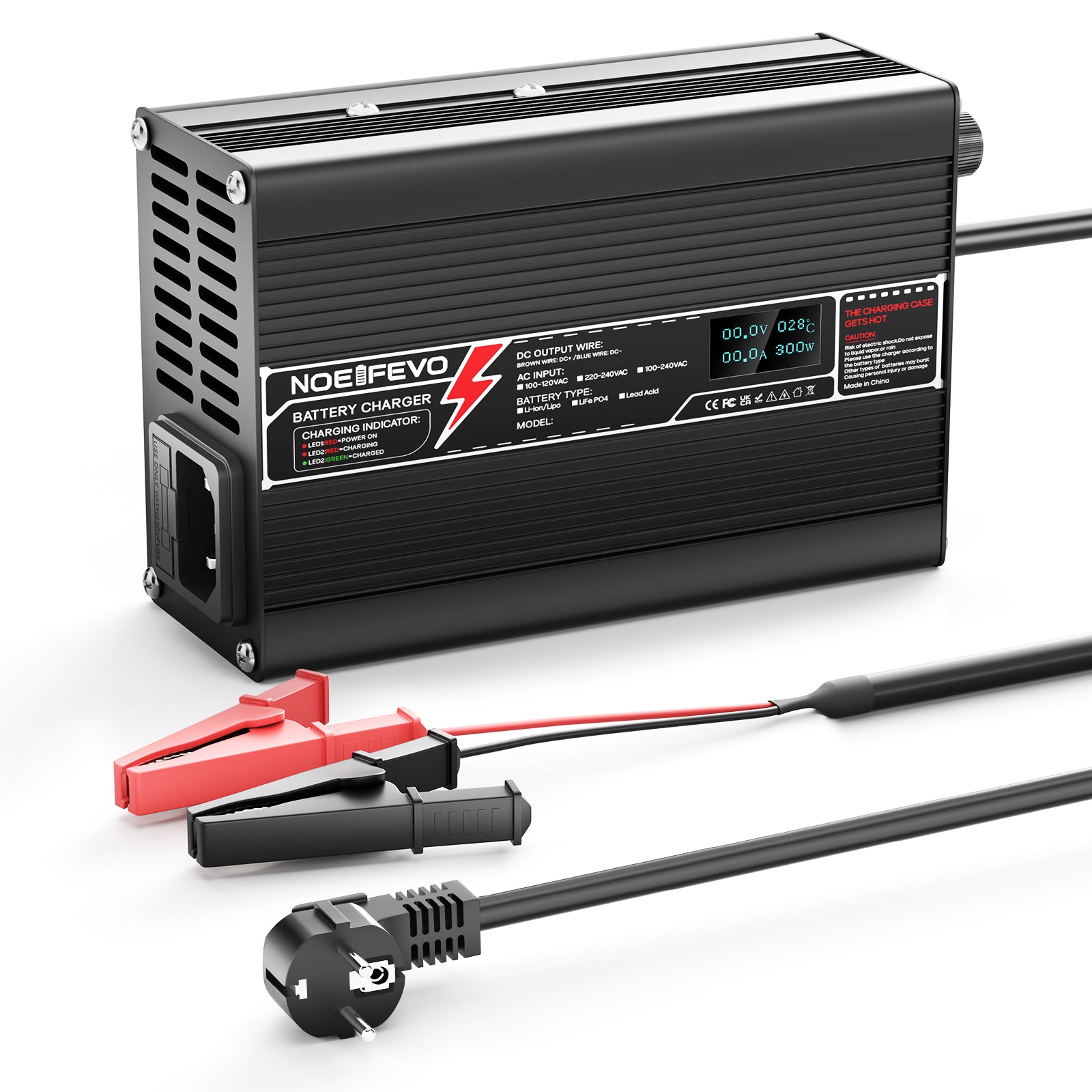

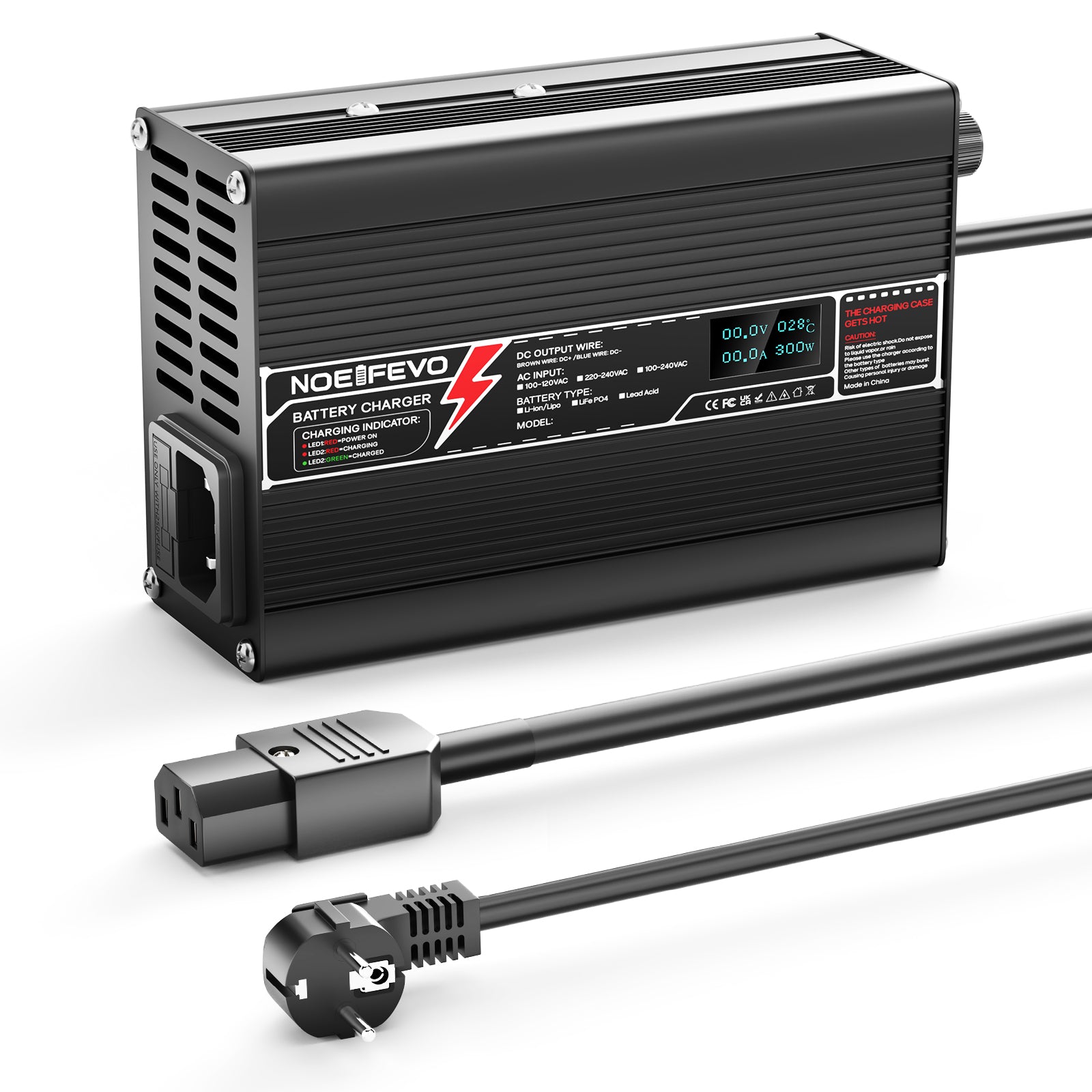

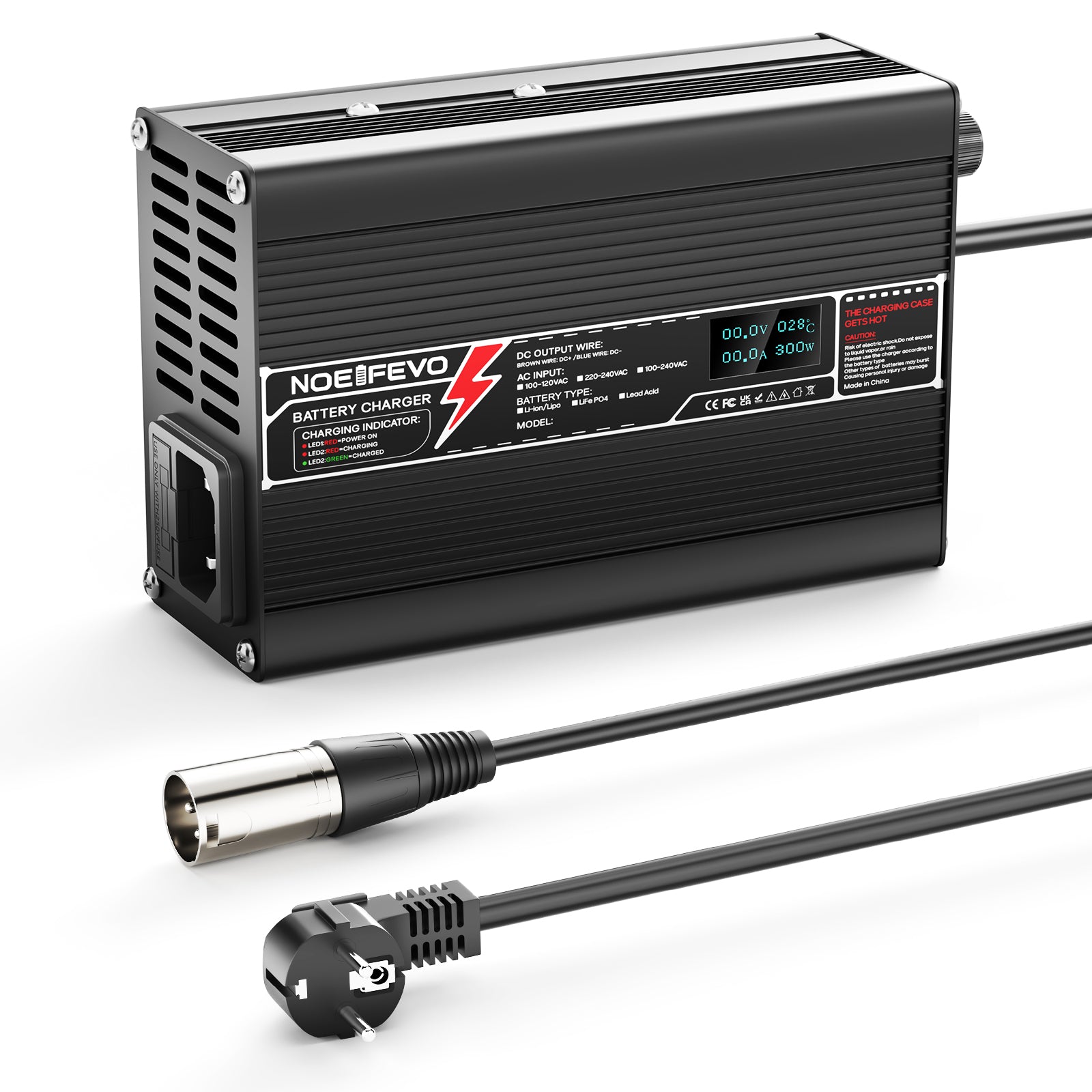

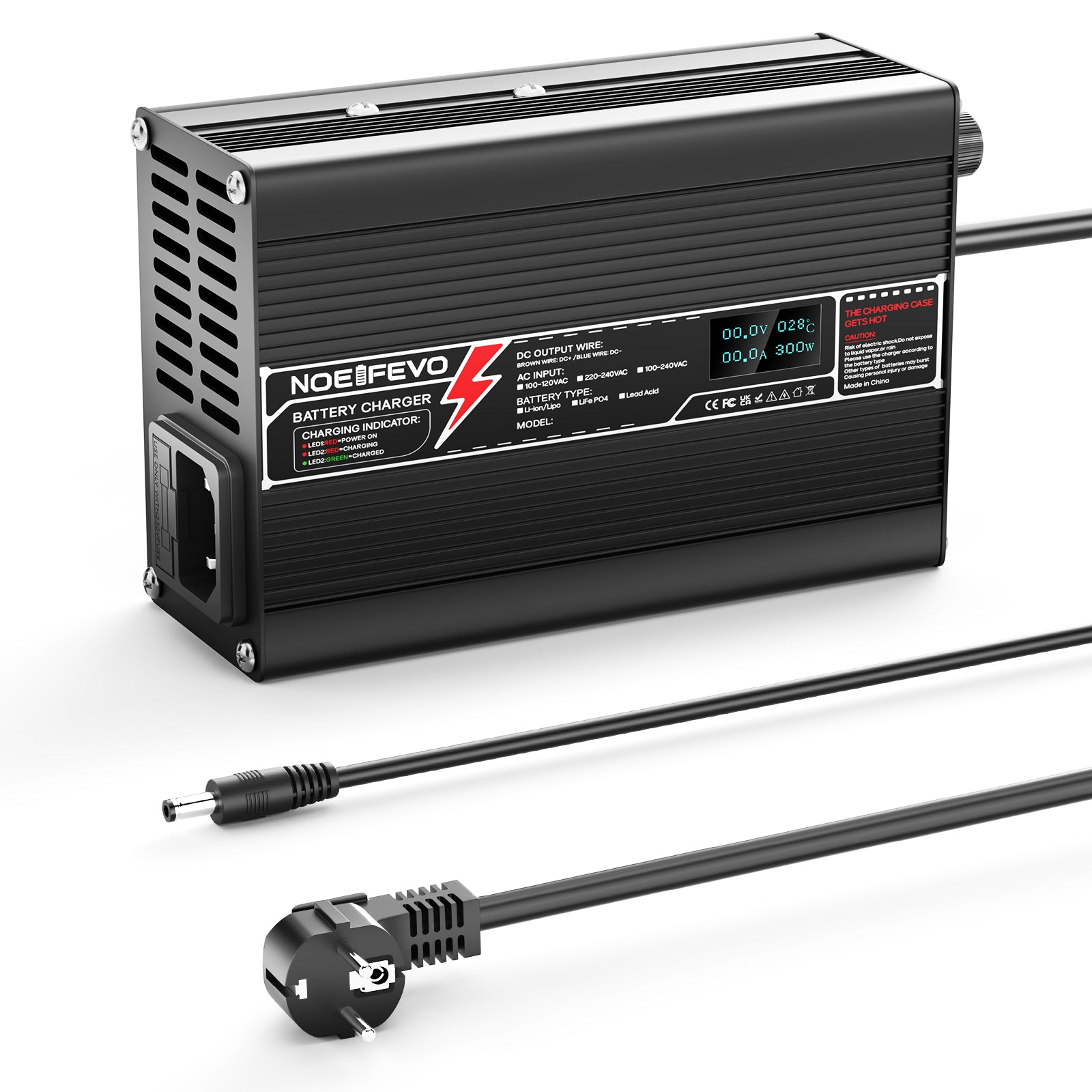

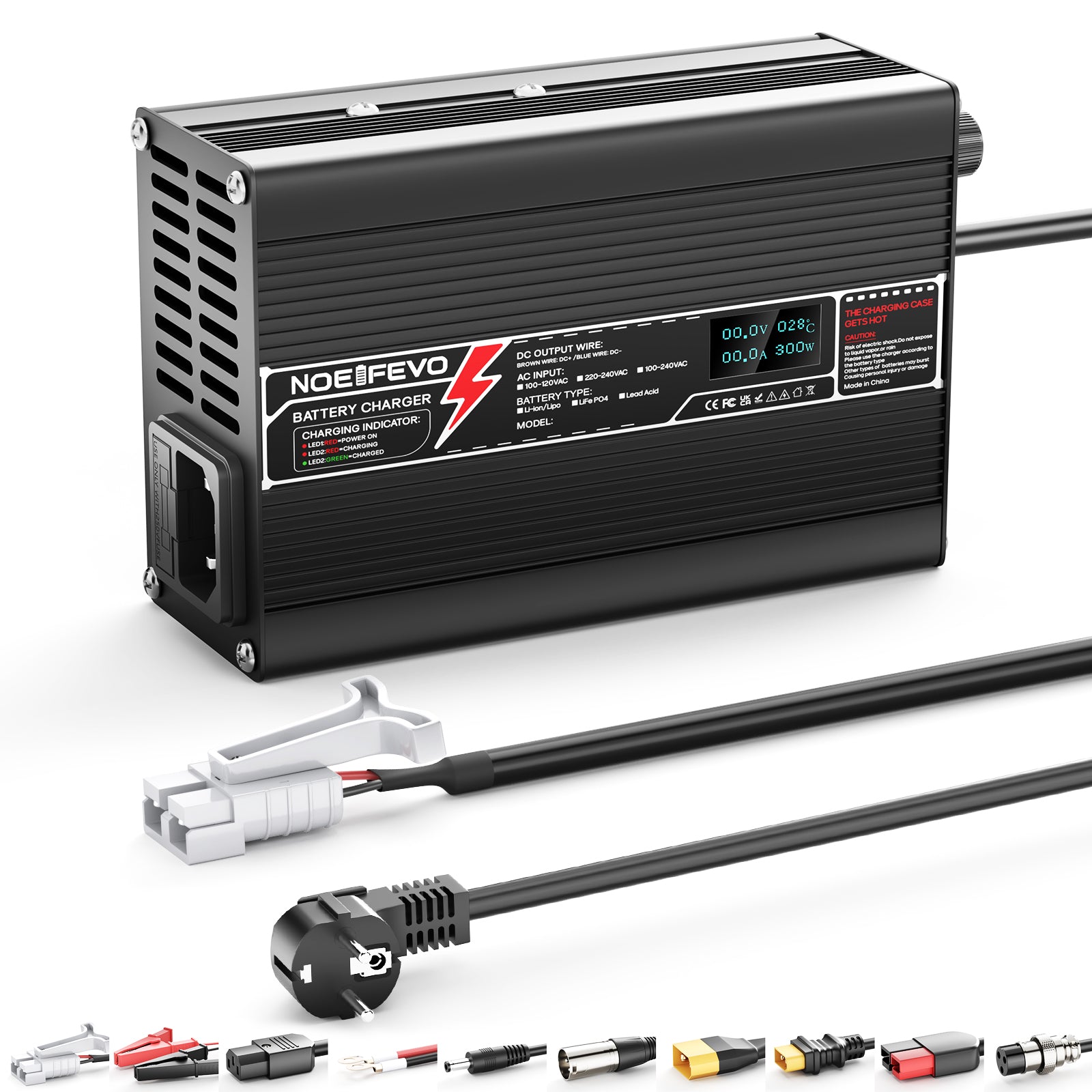

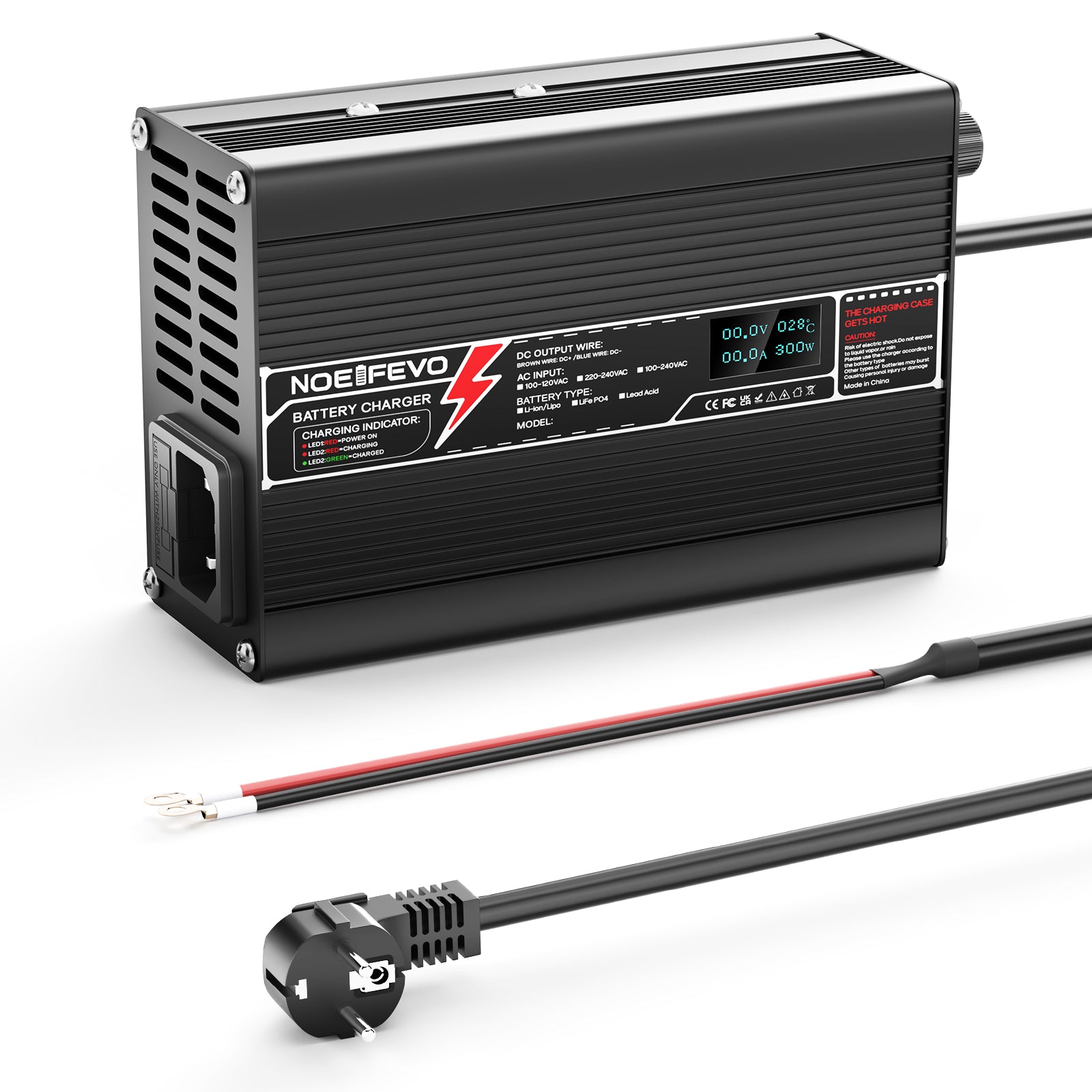

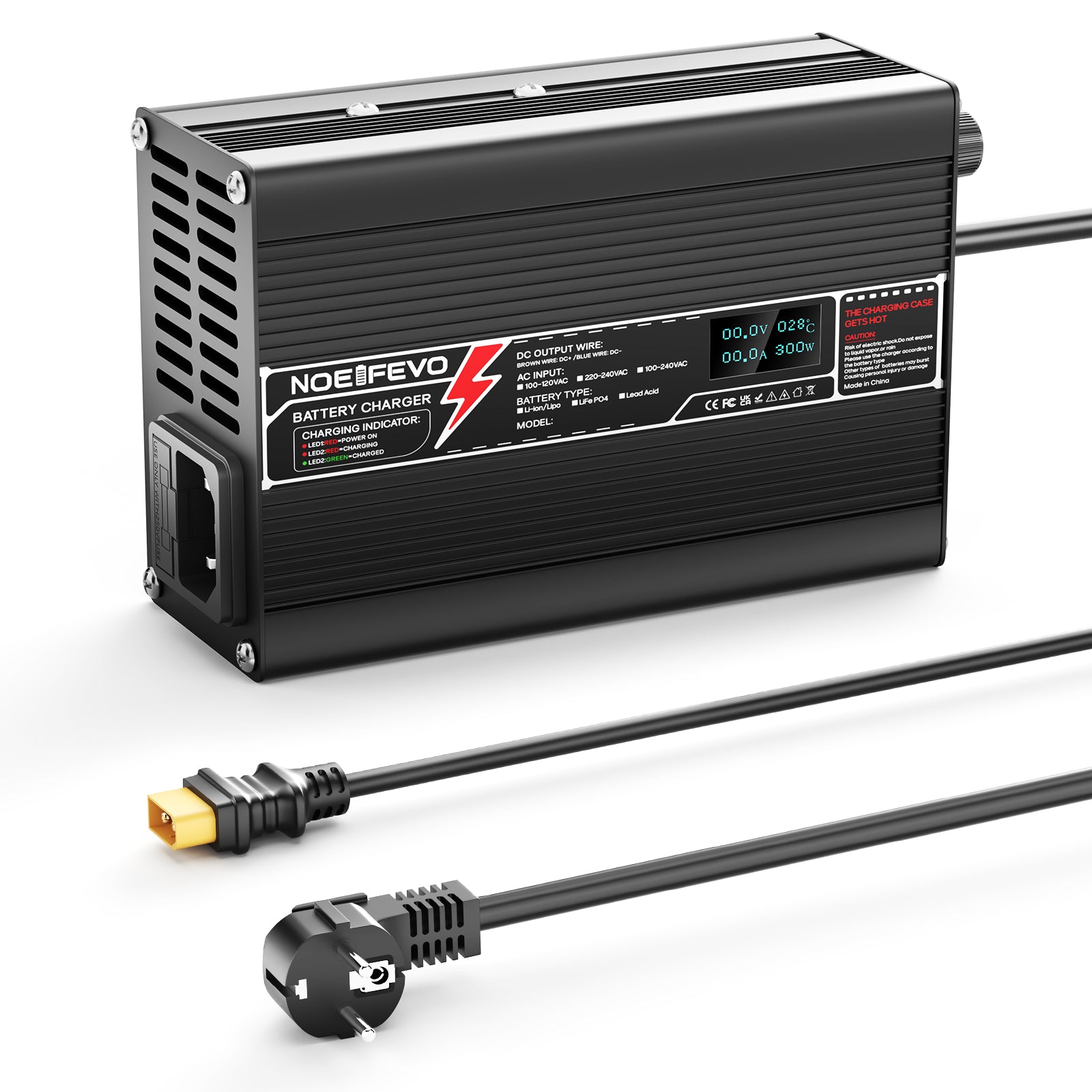

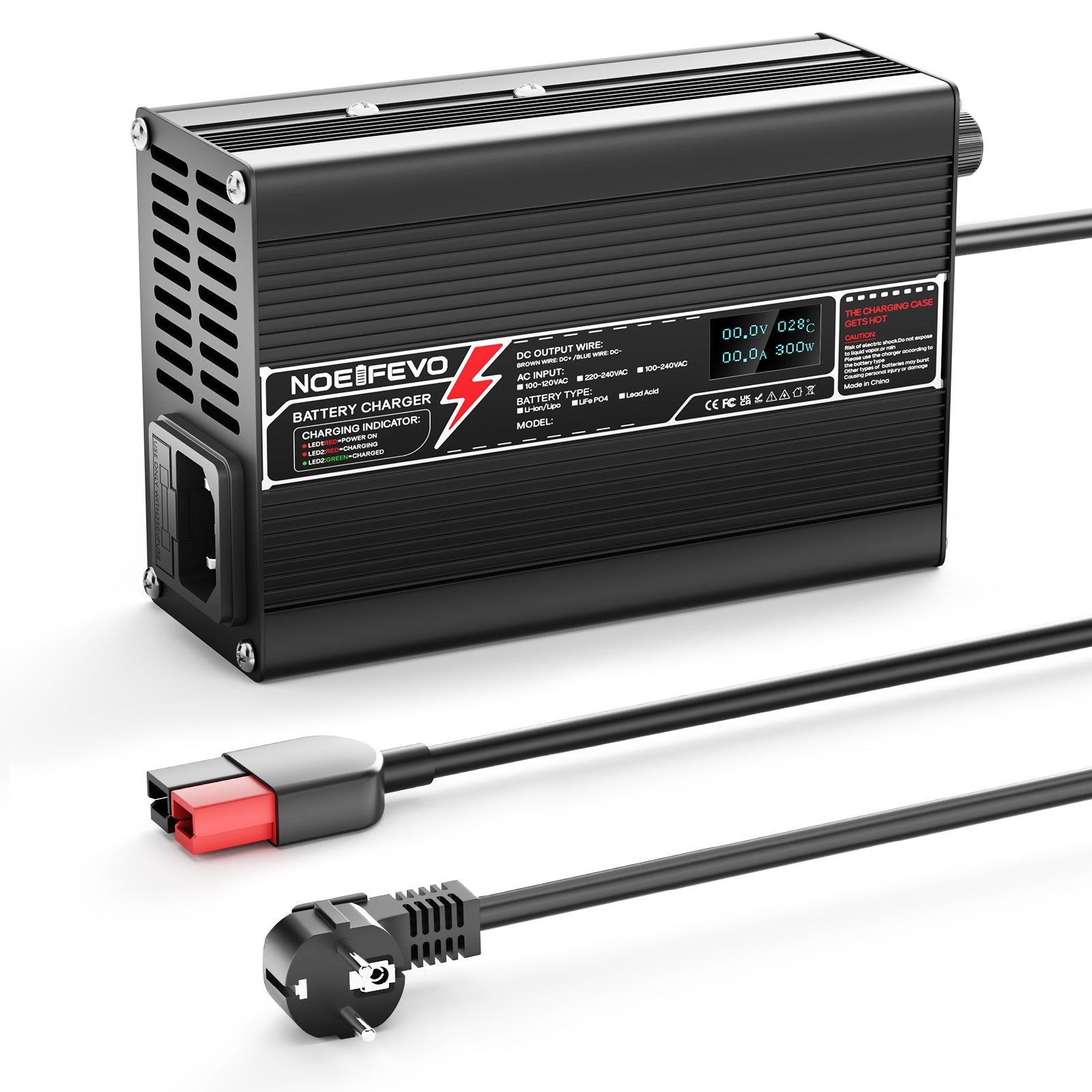

7. Optional Charging Connector Types: XLR, IEC C13 (3P connection), GX16-2, GX16-3, XT60, XT90, Anderson 50A, crocodile clip, DC, M25 etc. (if the version you need is not listed, please contact our customer service for assistance)

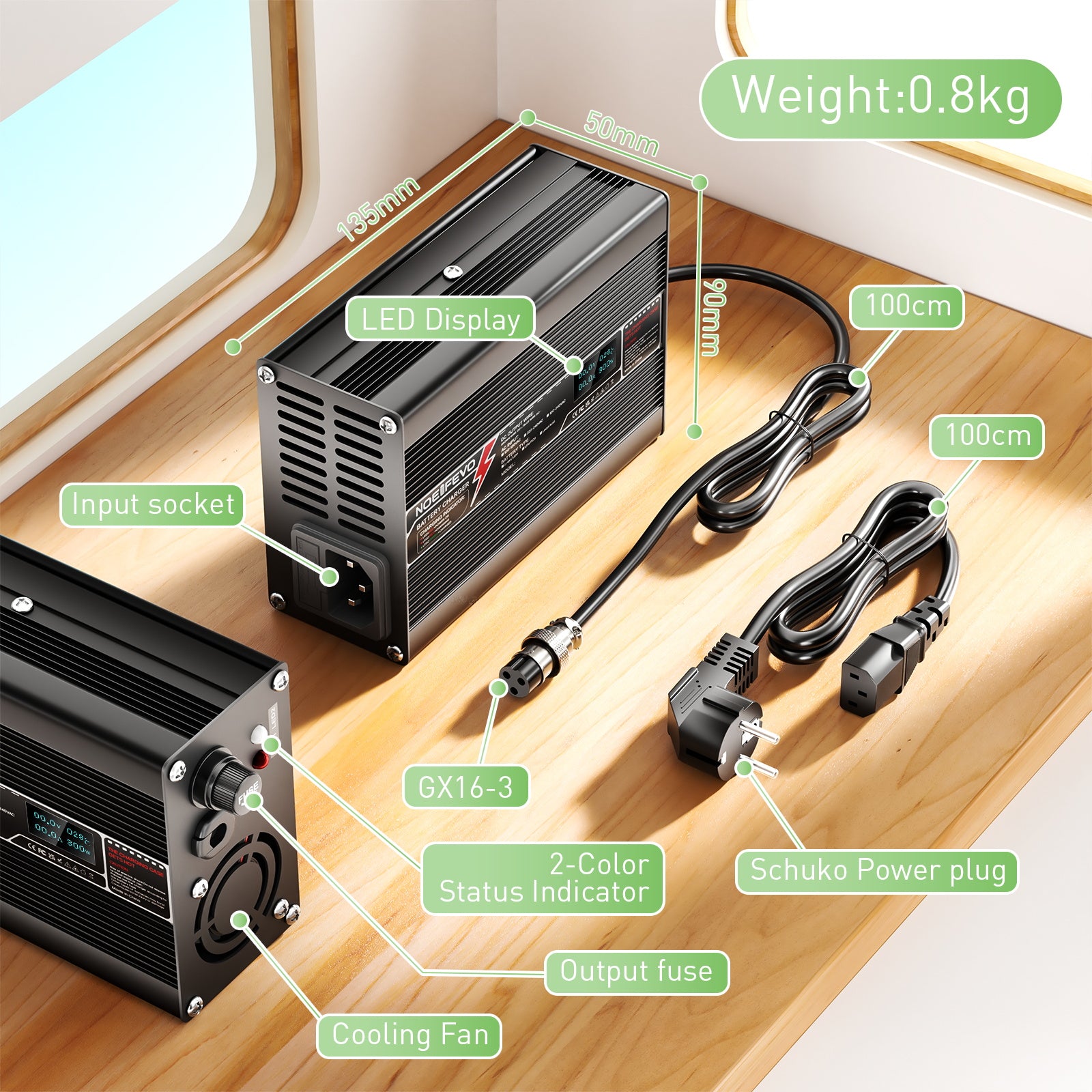

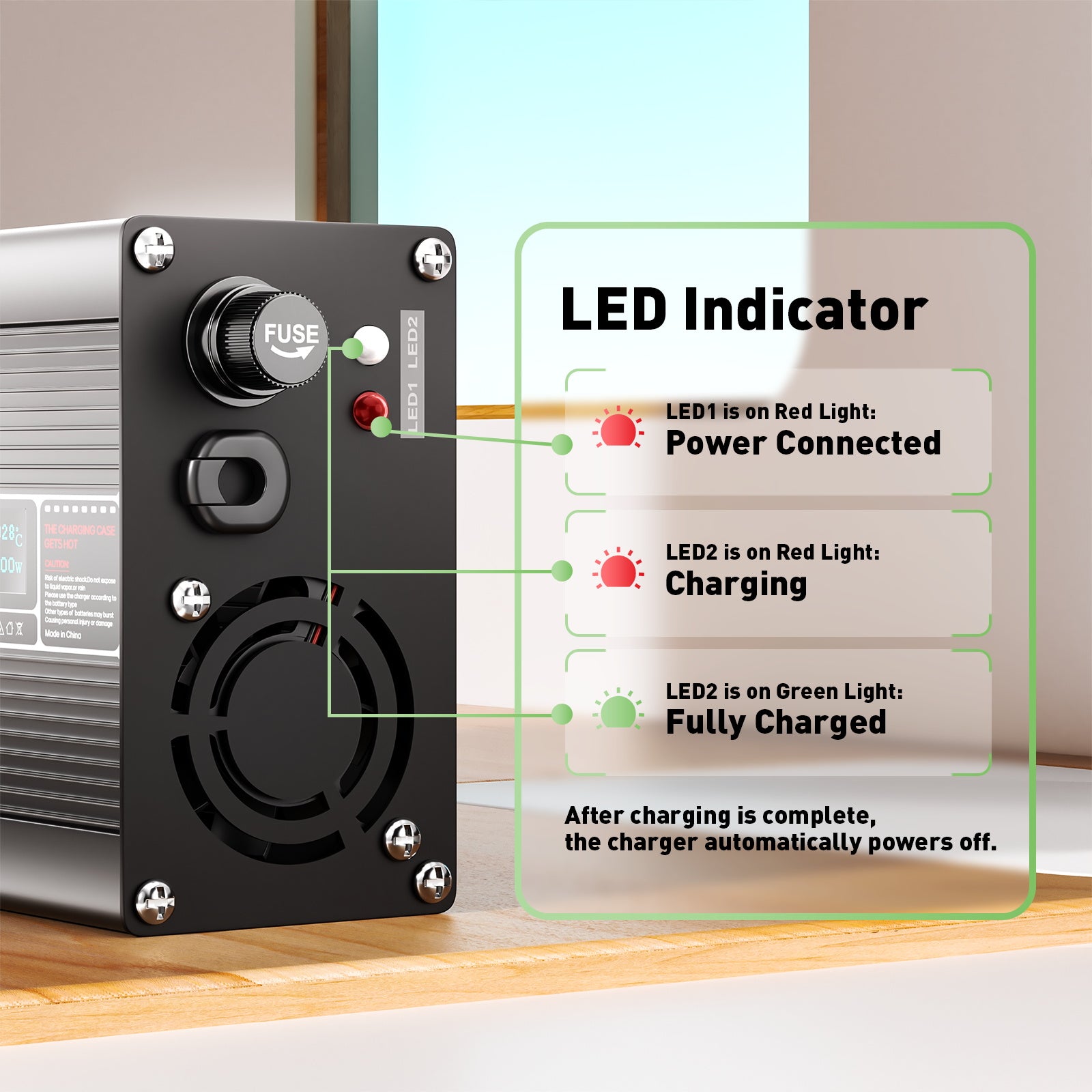

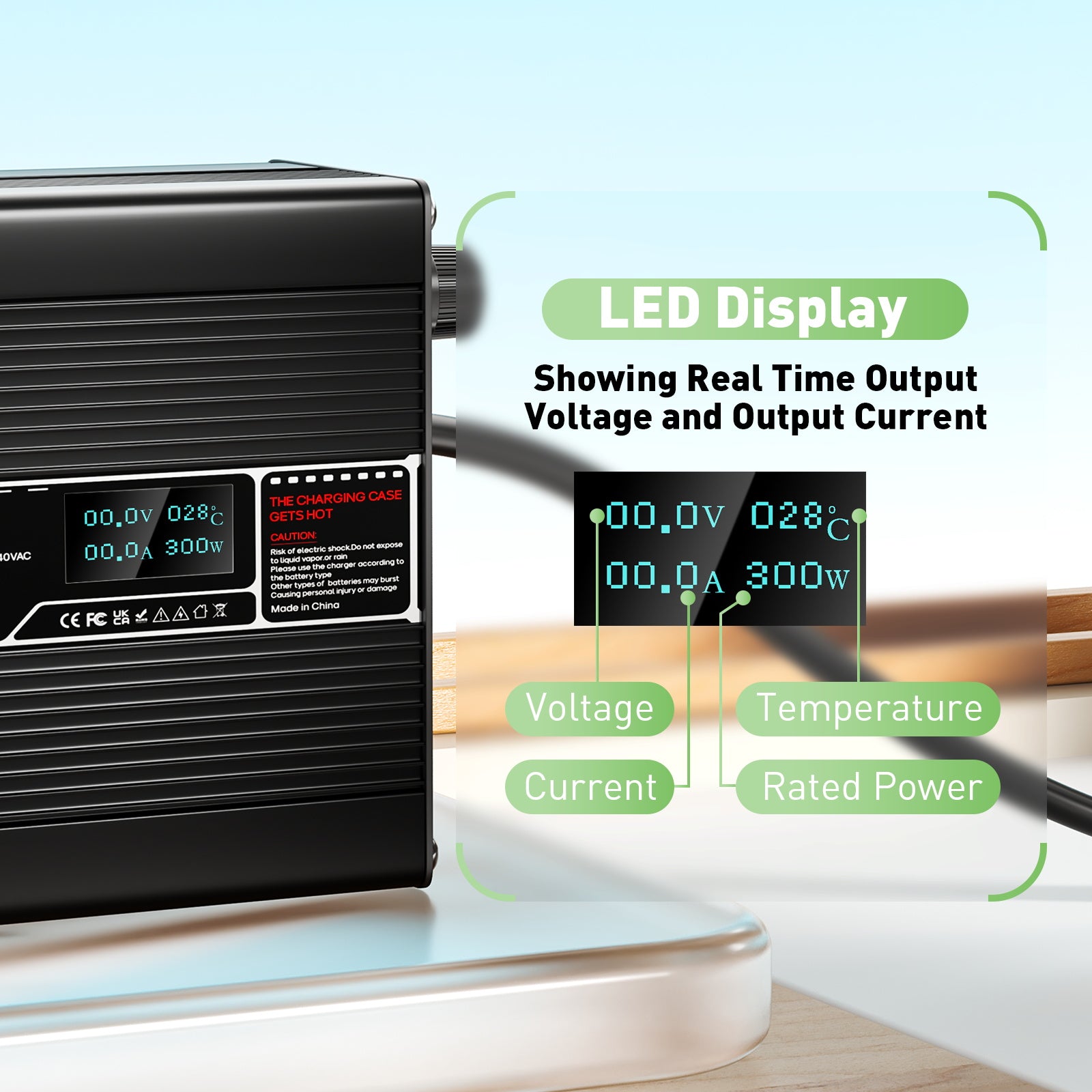

The LED display can show all charging data in real time.

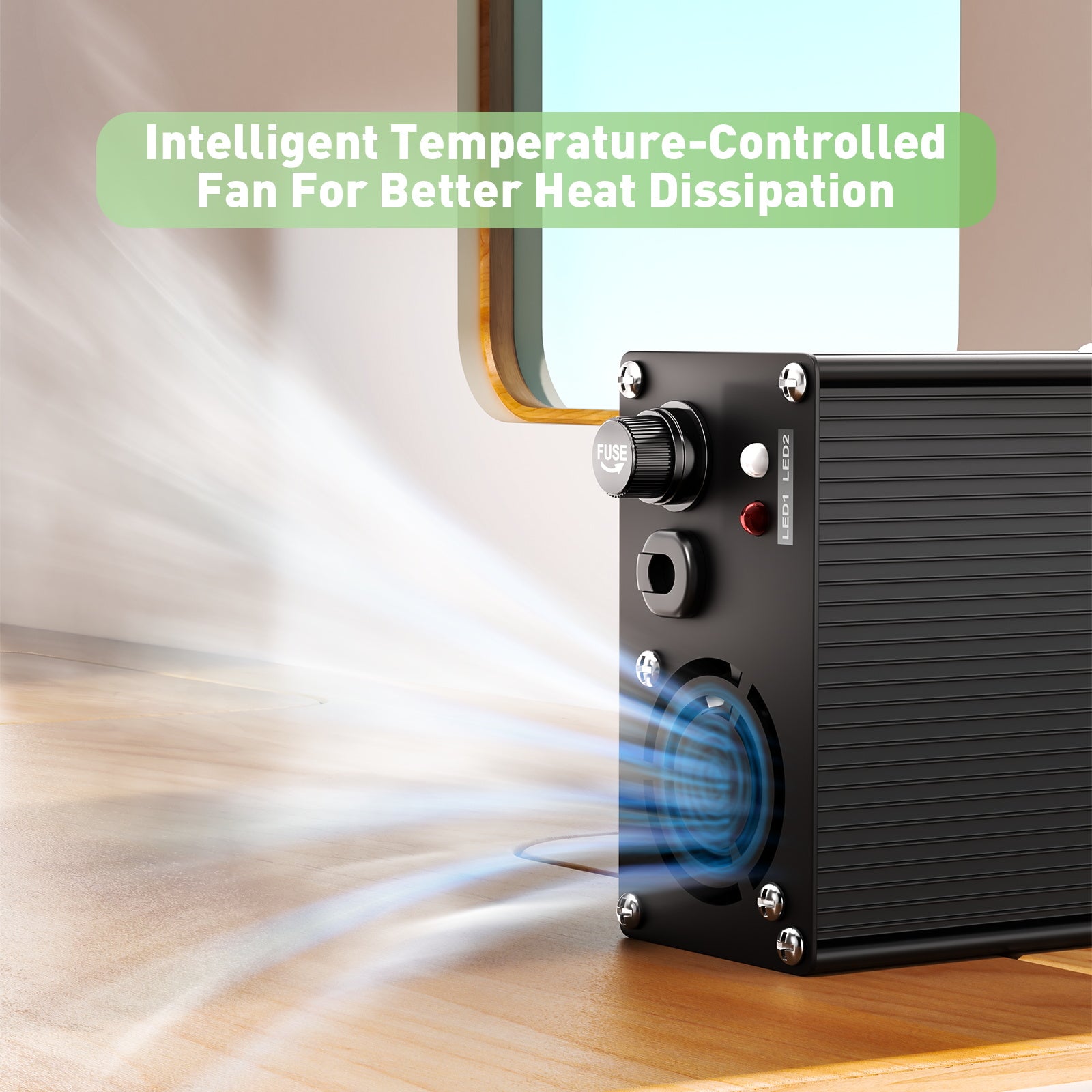

9. High-quality aluminum casing with cooling fans ensures smooth operation of the charger.

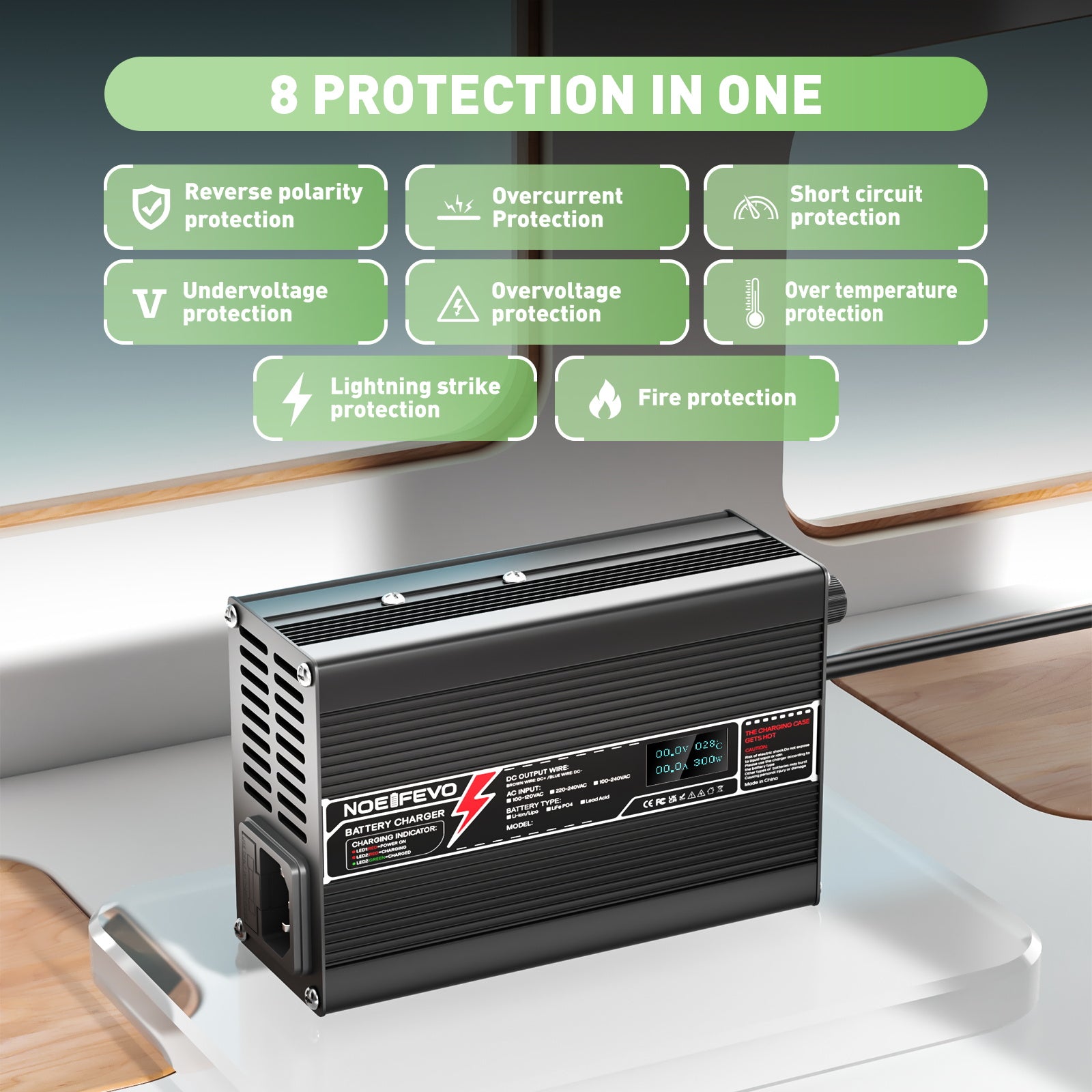

Protection Mode
1. Short-circuit protection
2. Overcurrent protection
3. Overvoltage protection
4. Polarity protection
5. Overtemperature protection

How to Use:
1. Before use, check whether the battery charger matches the type of your charger model. If the model does not match, the charging process may be abnormal and the battery can be seriously damaged.
2. The battery must be connected correctly. Do not reverse polarity! (Red + Black- or Brown- Blue+ or Red + Blue -).
3. Then plug in the power outlet into the socket; the charger will begin to charge the battery.
4. Once the voltage is fully charged, disconnect the charging device first, then the battery connector.

Package List
1*67.4V 4A Charger
